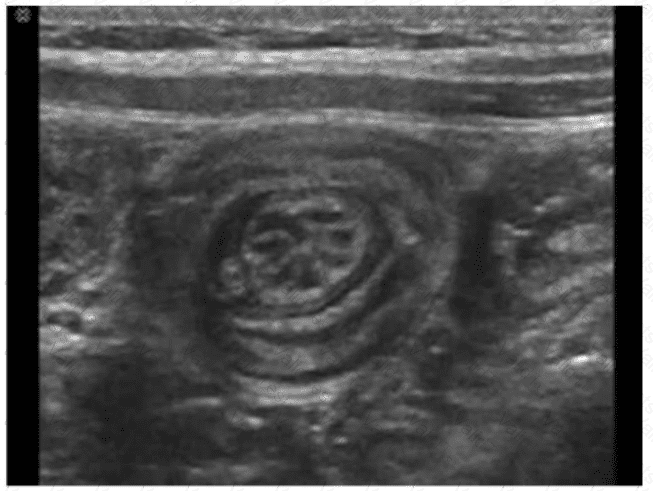

The ultrasound image shows a classic “target sign” or “donut sign,” characterized by concentric rings of alternating echogenicity. This sonographic finding is pathognomonic for intussusception, particularly when seen in the transverse plane.

Intussusception occurs when a segment of bowel telescopes into an adjacent segment, typically in children aged 6 months to 3 years. It commonly presents with intermittent abdominal pain, vomiting, and sometimes “red currant jelly” stools.

Key ultrasound features of intussusception:

Target sign in transverse view (concentric rings of bowel layers)

Pseudokidney or sandwich sign in longitudinal view

May show intraluminal mesenteric fat or vessels dragged in with the intussusceptum

Comparison of answer choices:

A. Bowel obstruction may show dilated loops of bowel with air-fluid levels and to-and-fro peristalsis but lacks the concentric ring sign.

B. Diverticulitis typically shows bowel wall thickening and pericolic fat stranding; not the concentric target appearance.

C. Appendicitis may appear as a blind-ending tubular structure (>6 mm), not with concentric ring pattern.

D. Intussusception — Correct. The image demonstrates the classic target sign seen with this condition.

Conn syndrome (primary hyperaldosteronism) results from excessive aldosterone secretion, often due to an adrenal adenoma, leading to hypertension, hypokalemia, and metabolic alkalosis. Cushing disease involves cortisol, Addison disease involves adrenal insufficiency, and Waterhouse-Friderichsen is associated with adrenal hemorrhage.

According to Rumack’s Diagnostic Ultrasound:

“Conn syndrome is due to excessive secretion of aldosterone, often secondary to adrenal cortical adenoma.”

The ultrasound image provided shows the liver and diaphragm imaged in a coronal plane with characteristic rib shadows and costophrenic angles. The orientation of the image and the structures visualized suggest that the transducer is placed in the right mid-axillary line, with the sound beam directed coronally — this is a classic right coronal scanning approach.

Key features supporting this:

The liver appears superiorly in the image.

Multiple echogenic lines (representing the ribs) run obliquely, casting acoustic shadows.

The diaphragm and adjacent lung base are seen clearly, which is commonly imaged through the right intercostal spaces in a coronal plane.

Comparison of answer choices:

A. Anterior: Would show a more transverse view of the liver and not typically image the diaphragm and lung this way.

B. Posterior: Not used for upper abdominal scanning due to shadowing from the spine and posterior ribs.

C. Left coronal: Would show the spleen and left kidney — not the liver as seen here.

D. Right coronal — Correct. This image was obtained using the right coronal (intercostal) approach through the right flank.

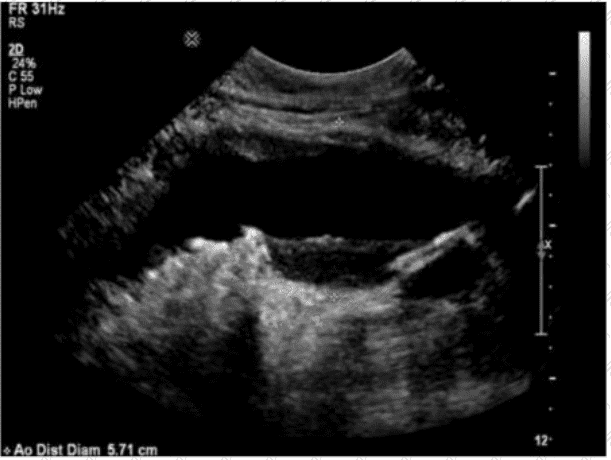

The ultrasound image provided shows a transverse view of the abdominal aorta, with a clearly measured aortic diameter of 5.71 cm. A normal adult abdominal aorta should measure less than 3.0 cm in anterior-posterior diameter. Any measurement exceeding this threshold is defined as an abdominal aortic aneurysm (AAA).

In this case, the dilation is well beyond the 3.0 cm threshold, confirming the presence of an aneurysm. The rounded, anechoic/heterogeneous central lumen surrounded by echogenic arterial wall layers further supports this diagnosis.

Comparison of answer choices:

A. Stenosis: Would show a narrowed lumen with turbulent, aliasing flow on Doppler, not a dilated aorta.

B. Dissection: Typically shows an echogenic intimal flap separating true and false lumens; no flap is visible here.

C. Aneurysm: Correct. The aorta’s transverse diameter (5.71 cm) confirms the presence of an aneurysm.

D. Occlusion: Would appear as a lack of flow with thrombus or echogenic content filling the lumen, not dilation.

The main renal vein should be assessed in addition to the renal arteries during renal Doppler exams. Venous thrombosis may coexist with arterial abnormalities and can impact renal perfusion. Evaluation of both arterial inflow and venous outflow ensures a comprehensive assessment of renal vascular patency.

According to Zwiebel’s Introduction to Vascular Ultrasound:

“Renal vein assessment should be performed during renal artery Doppler studies to exclude venous thrombosis or outflow obstruction.”

Hepatic adenomas are benign liver tumors strongly associated with long-term use of oral contraceptives and are most frequently found in women under 40. Hepatoblastoma is seen in children; hepatoma (HCC) is a malignant tumor typically found in cirrhotic livers. Cavernous hemangioma is unrelated to oral contraceptives.

According to Rumack’s Diagnostic Ultrasound:

“Hepatic adenomas occur predominantly in young women with a history of oral contraceptive use.”

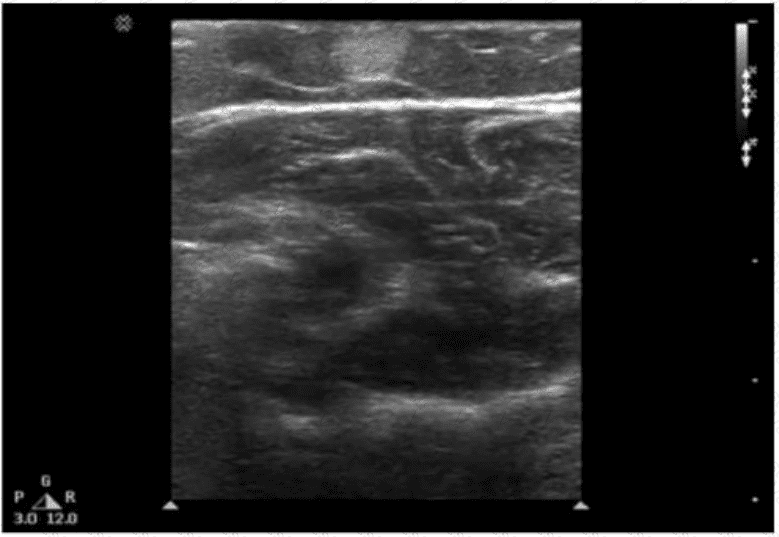

The ultrasound image demonstrates a well-defined, ovoid, hypoechoic to isoechoic mass within the subcutaneous tissue of the abdominal wall. The lesion appears compressible and shows linear striations parallel to the skin surface — a classic appearance of a lipoma.

Lipomas are the most common benign soft tissue tumors and frequently arise in the subcutaneous tissue. They are composed of mature adipose tissue and are typically asymptomatic unless large or compressing adjacent structures.

Sonographic features of a lipoma:

Isoechoic to mildly hyperechoic or hypoechoic relative to subcutaneous fat

Oval or elliptical in shape with well-defined margins

Internal linear striations or “feathered” echotexture

Compressible and non-vascular on Doppler imaging

Located in subcutaneous fat plane parallel to the skin surface

Differentiation from other options:

B. Fibroma: Typically appears as a homogeneous, hypoechoic mass but is far less common in the abdominal wall.

C. Desmoid: Appears as an ill-defined or infiltrative mass within deeper soft tissues; more heterogeneous and may distort surrounding tissue planes.

D. Metastasis: Often more irregular, heterogeneous, and may show increased vascularity or invasion into adjacent structures.

De Quervain thyroiditis (subacute granulomatous thyroiditis) is often triggered by a viral infection. Patients may present with painful thyroid enlargement, elevated inflammatory markers, and transient hyperthyroidism. Hashimoto’s and Graves' diseases are autoimmune in nature.

According to Braverman’s The Thyroid:

“Subacute (De Quervain) thyroiditis typically follows a viral upper respiratory tract infection and is characterized by thyroid pain and transient thyrotoxicosis.”

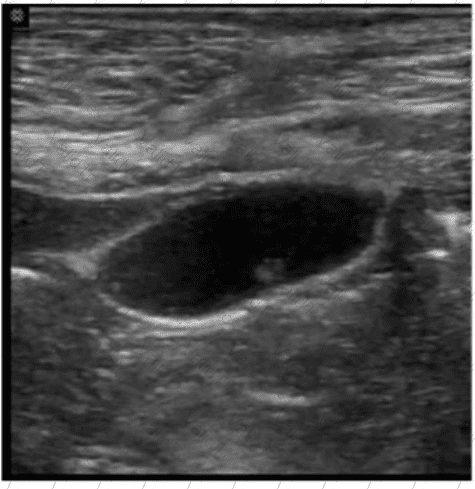

The image demonstrates a gallbladder with a possible echogenic focus (likely a gallstone) and posterior acoustic shadowing. This is suggestive of cholelithiasis. To differentiate uncomplicated gallstones from acute cholecystitis, the most effective technique is to assess for a positive sonographic Murphy sign.

A positive sonographic Murphy sign refers to the presence of focal tenderness over the gallbladder when it is directly palpated with the ultrasound transducer. It is a strong indicator of acute cholecystitis when combined with other features such as gallbladder wall thickening, pericholecystic fluid, and gallstones.

Sonographic Murphy sign — key points:

Assessed during real-time scanning

Localized tenderness when pressure is applied over the gallbladder

Highly sensitive for acute cholecystitis (especially in the presence of stones)

Differentiation from other options:

A. Use compound imaging: Improves image quality by reducing artifacts but does not verify tenderness or confirm acute inflammation.

B. Change the patient’s position: Helpful to confirm mobility of gallstones, but not diagnostic of inflammation.

C. Ask patient to perform Valsalva: Used primarily in vascular studies (e.g., assessing for varicocele or venous reflux), not relevant here.

A complex pleural effusion often contains internal septations or fibrin strands, distinguishing it from simple anechoic effusion. These septations suggest exudative processes such as infection, malignancy, or hemothorax.

According to Rumack’s Diagnostic Ultrasound:

“Complex pleural effusions demonstrate internal septations or loculations, often related to infection or malignancy.”
