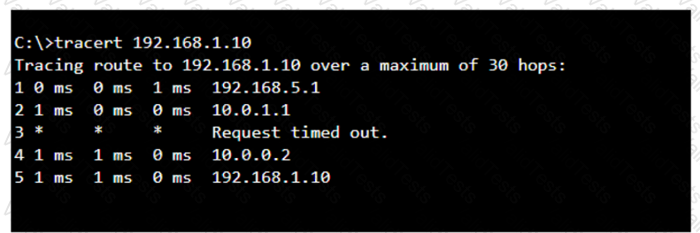

The tracert command output shows the path taken to reach the destination IP address, 192.168.1.10. The command output indicates:

•Hops 1 and 2 are successfully reached.

•Hop 3 times out, meaning the router at hop 3 did not respond to the tracert request. However, this does not necessarily indicate a problem with forwarding packets, as some routers may be configured to block or not respond to ICMP requests.

•Hops 4 and 5 are successfully reached, with hop 5 being the destination IP 192.168.1.10, indicating that the server is reachable.

Thus, the correct answer is C. The server with the address 192.168.1.10 is reachable over the network.

References :=

•Cisco Traceroute Command

•Understanding Traceroute

The tracert command output indicates that the server with the address 192.168.1.10 is reachable over the network. The asterisk (*) at hop 3 suggests that the probe sent to that hop did not return a response, which could be due to a variety of reasons such as a firewall blocking ICMP packets or the router at that hop being configured not to respond to ICMP requests. However, since the subsequent hops (4 and 5) are showing response times, it means that the packets are indeed getting through and the server is reachable12.

References :=

•How to Use Traceroute Command to Read Its Results

•How to Use the Tracert Command in Windows

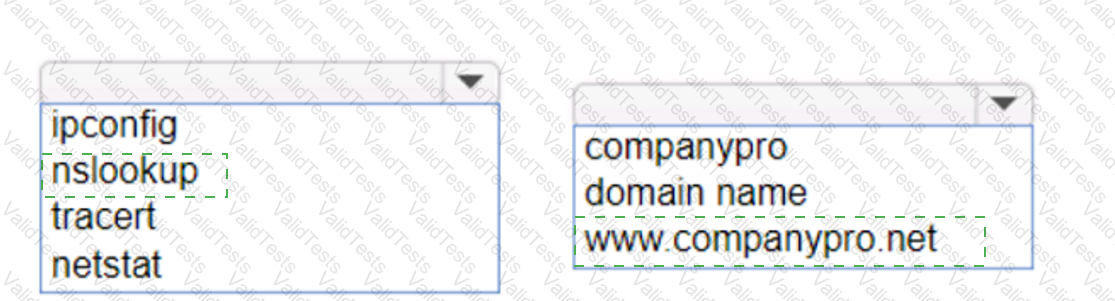

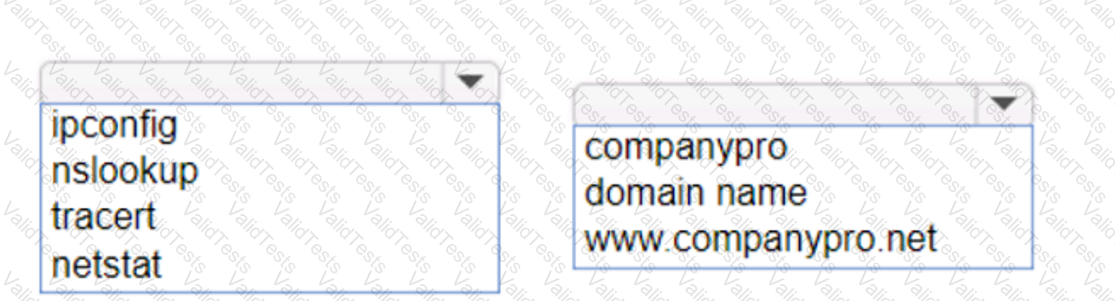

To list the IPv4 addresses associated with the host name www.companypro.net, you should use the following command:

nslookup www.companypro.net

This command will query the DNS servers to find the IP address associated with the hostname provided. If you want to ensure that it returns the IPv4 address, you can specify the -type=A option, which stands for Address records that hold IPv4 addresses1. However, the nslookup command by default should return the IPv4 address if available.

To list the IPv4 addresses associated with the host name www.companypro.net , you should use the nslookup command.

Command: nslookup

Target: www.companypro.net

So, the completed command is:

nslookup www.companypro.net

nslookup: This command is used to query the Domain Name System (DNS) to obtain domain name or IP address mapping or for any other specific DNS record.

www.companypro.net : This is the domain name you want to query to obtain its associated IP addresses.

References:

Using nslookup: nslookup Command Guide

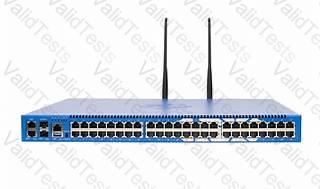

On a Cisco switch, a port with a blinking green LED typically indicates that the port is up (active) and is currently transmitting or receiving data. This is a normal state indicating active traffic on the port.

•A. Link is up with cable malfunctions: Usually indicated by an amber or blinking amber light.

•B. Link is up and not stable: Not typically indicated by a green blinking light.

•D. Link is up and there is no activity: Would be indicated by a solid green light without blinking.

Thus, the correct answer is C. Link is up and active.

References :=

•Cisco Switch LED Indicators

•Cisco Ethernet Switch LED Patterns

The IEEE 802.11 standard contains the specifications for Wi-Fi networks. It is a set of media access control (MAC) and physical layer (PHY) specifications for implementing wireless local area network (WLAN) computer communication in various frequencies, including but not limited to 2.4 GHz, 5 GHz, and 6 GHz1. This standard is maintained by the Institute of Electrical and Electronics Engineers (IEEE) and is commonly referred to as Wi-Fi. The standard has evolved over time to include several amendments that improve speed, range, and reliability of wireless networks.

References :=

•The Most Common Wi-Fi Standards and Types, Explained

•802.11 Standards Explained: 802.11ax, 802.11ac, 802.11b/g/n, 802.11a

•Wi-Fi Standards Explained - GeeksforGeeks

=========================

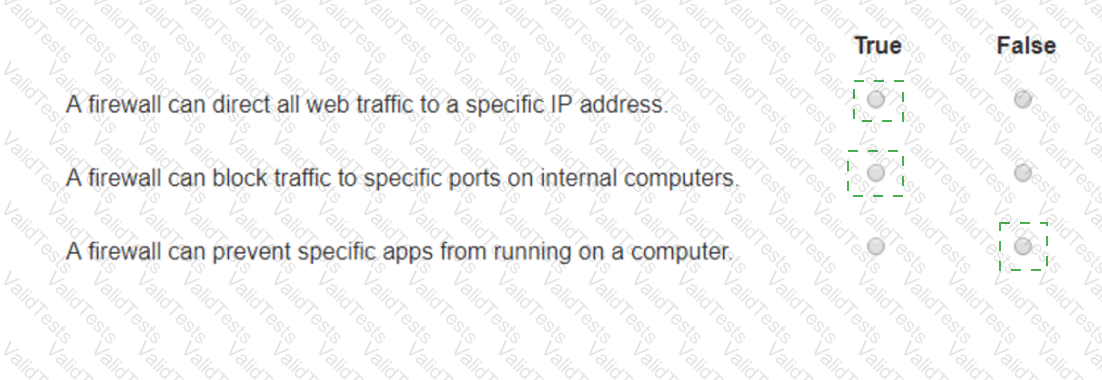

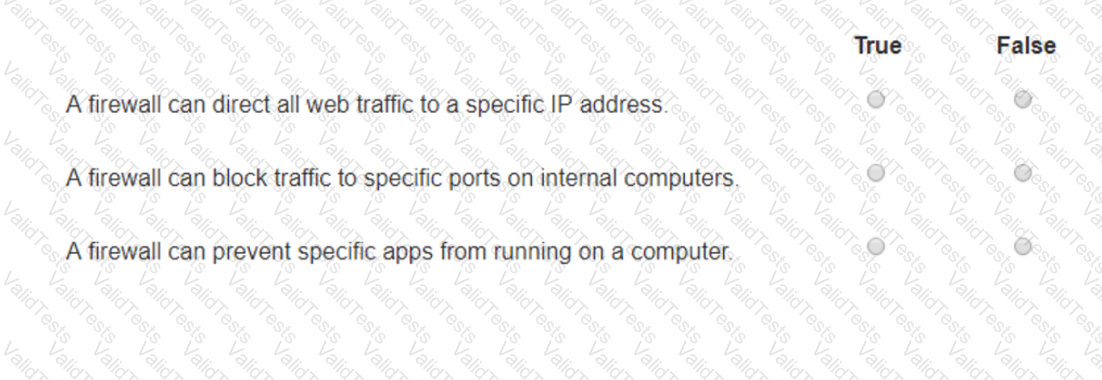

A firewall can direct all web traffic to a specific IP address.

True: Firewalls can be configured to perform Network Address Translation (NAT) and port forwarding, which can direct all web traffic (typically on port 80 and 443) to a specific internal IP address.

A firewall can block traffic to specific ports on internal computers.

True: Firewalls can be configured with access control lists (ACLs) or rules to block traffic to specific ports on internal computers, enhancing security by restricting unwanted or harmful traffic.

A firewall can prevent specific apps from running on a computer.

False: Firewalls typically control traffic flow and do not prevent specific applications from running on a computer. Application control is usually managed by endpoint security software or application control systems.

Directing Web Traffic: Firewalls can manage traffic redirection using NAT and port forwarding rules to route web traffic to designated servers or devices within the network.

Blocking Specific Ports: Firewalls can enforce security policies by blocking or allowing traffic based on port numbers, ensuring that only permitted traffic reaches internal systems.

Application Control: While firewalls manage network traffic, preventing applications from running typically requires software specifically designed for endpoint protection and application management.

References:

Understanding Firewalls: Firewall Capabilities

Network Security Best Practices: Network Security Guide

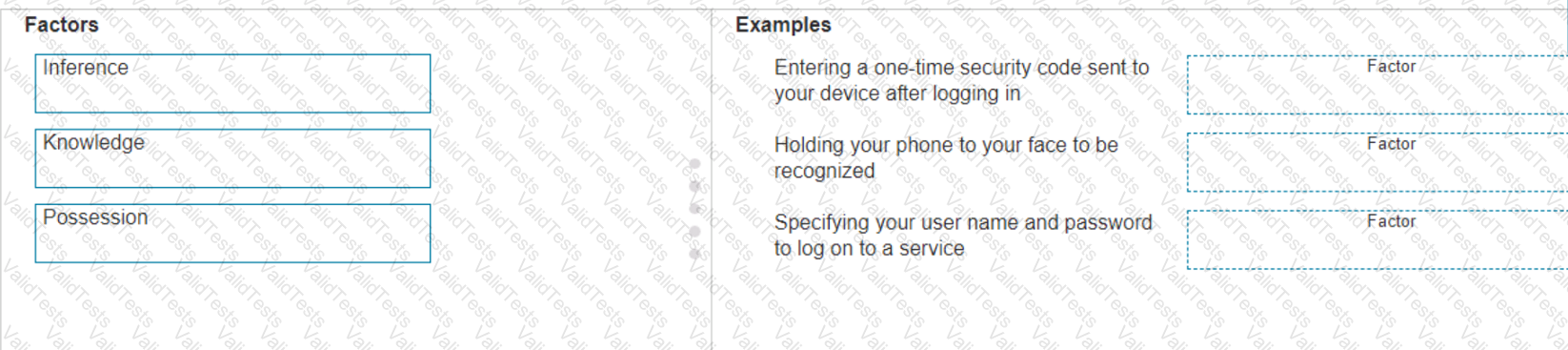

The correct matching of the MFA factors to their examples is as follows:

Entering a one-time security code sent to your device after logging in: Possession

Holding your phone to your face to be recognized: Inherence

Specifying your user name and password to log on to a service: Knowledge

Here’s why each factor matches the example:

Possession: This factor is something the user has, like a mobile device. A one-time security code sent to this device falls under this category.

Inherence: This factor is something the user is, such as a biometric characteristic. Facial recognition using a phone is an example of this factor.

Knowledge: This factor is something the user knows, like a password or PIN.

Multi-Factor Authentication (MFA) enhances security by requiring two or more of these factors to verify a user’s identity before granting access.

Entering a one-time security code sent to your device after logging in.

Factor: Possession

Explanation: This factor relates to something you have, such as a device that receives a security code.

Holding your phone to your face to be recognized.

Factor: Inference (typically referred to as Inherence or Biometric)

Explanation: This factor relates to something you are, such as biometric authentication like facial recognition.

Specifying your username and password to log on to a service.

Factor: Knowledge

Explanation: This factor relates to something you know, such as a username and password.

Possession Factor: This involves something the user has in their possession. Receiving a one-time security code on a device (e.g., phone) is an example of this.

Inference Factor (Inherence/Biometric): This involves something inherent to the user, such as biometric verification (e.g., facial recognition or fingerprint scanning).

Knowledge Factor: This involves something the user knows, such as login credentials (username and password).

References:

Multi-Factor Authentication (MFA) Explained: MFA Guide

Understanding Authentication Factors: Authentication Factors

To store files that will be accessible by every user on a network, you would need a server. A server is a computer system that provides data to other computers. It can serve data to systems on a local network (LAN) or a wide network (WAN) over the internet. In this context, a file server would be set up to store and manage files, allowing users on the network to access them from their own devices1.

References :=

What is a Server?

Understanding Servers and Their Functions

A server is a computer designed to process requests and deliver data to other computers over a local network or the internet. In this case, to store files that will be accessible by every user on the network, a file server is the appropriate endpoint device. It provides a centralized location for storing and managing files, allowing users to access and share files easily.

A. Access point: Provides wireless connectivity to a network.

C. Hub: A basic networking device that connects multiple Ethernet devices together, making them act as a single network segment.

D. Switch: A networking device that connects devices on a computer network by using packet switching to forward data to the destination device.

Thus, the correct answer is B. Server.

References :=

File Server Overview (Cisco)

Server Roles in Networking (Cisco)

Out-of-band management

When a Cisco switch is not accessible from the network, the recommended out-of-band method to access its running configuration is through the console port. Out-of-band management involves accessing the network device through a dedicated management channel that is not part of the data network. The console port provides direct access to the switch’s Command Line Interface (CLI) without using the network, which is essential when the switch cannot be accessed remotely via the network12.

References :=

Out-of-band (OOB) network interface configuration guidelines

Out of band management configuration

=========================

Two home office computers are connected to a switch by Ethernet cables.

Network Type: LAN (Local Area Network)

Explanation: A LAN connects devices within a limited area such as a home, office, or building, using Ethernet cables or Wi-Fi.

Three government buildings in the same city connect to a cable company over coaxial cables.

Network Type: MAN (Metropolitan Area Network)

Explanation: A MAN connects networks across a city or campus, often using fiber optic or coaxial cables.

A cell phone connects to a Bluetooth headset.

Network Type: PAN (Personal Area Network)

Explanation: A PAN connects devices within a personal workspace, typically using wireless technologies like Bluetooth.

A financial institution connects its branches through a telecommunications service provider.

Network Type: WAN (Wide Area Network)

Explanation: A WAN connects multiple LANs over long distances, often using leased lines or satellite links provided by telecommunications companies.

LAN (Local Area Network): Used for connecting devices within a small geographical area such as a single building or home.

MAN (Metropolitan Area Network): Covers a larger geographical area than a LAN, typically a city or campus.

PAN (Personal Area Network): Connects devices within the range of an individual person, such as connecting a phone to a Bluetooth headset.

WAN (Wide Area Network): Spans large geographical areas, connecting multiple LANs across cities, countries, or continents.

References:

Network Types Overview: Cisco Networking Basics

Understanding Different Network Types: Network Types Guide

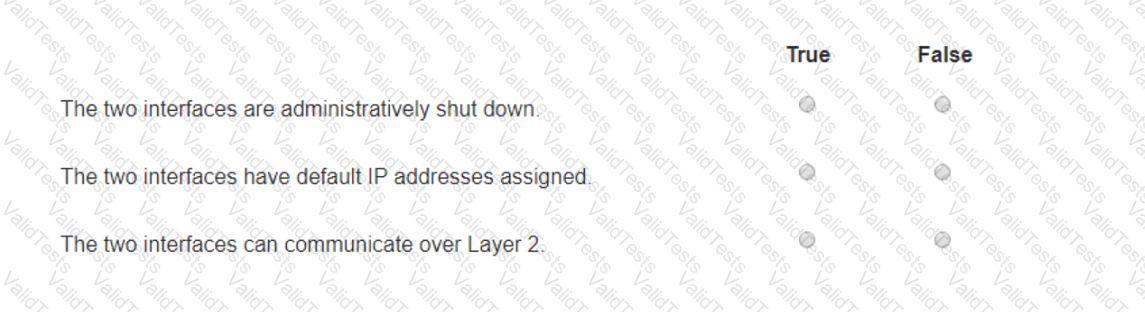

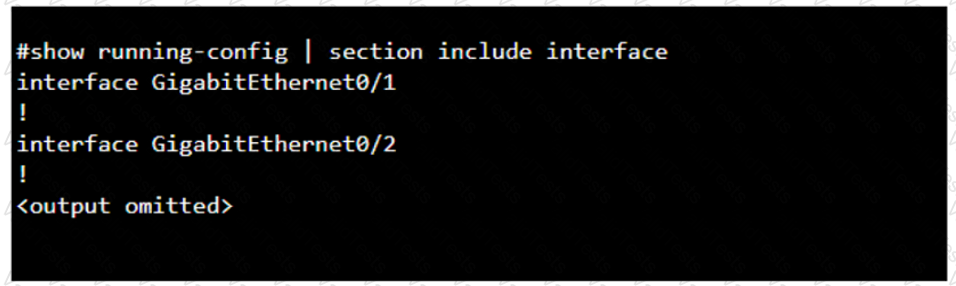

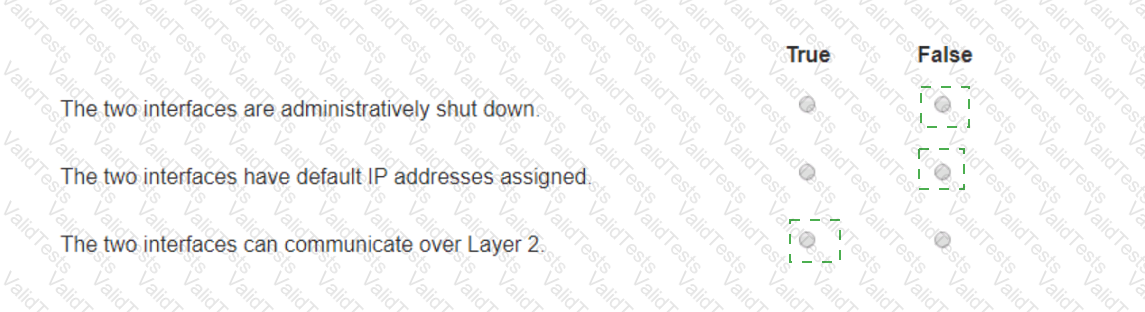

The two interfaces are administratively shut down:

False: The output does not show any "shutdown" command under the interfaces, which would indicate that they are administratively shut down. Therefore, they are likely in their default state, which is administratively up.

The two interfaces have default IP addresses assigned:

False: The output does not show any IP address configuration. In the default state, interfaces do not have IP addresses assigned unless explicitly configured.

The two interfaces can communicate over Layer 2:

True: By default, interfaces on a switch are Layer 2 interfaces capable of forwarding Ethernet frames. As there is no configuration provided that changes this, it can be assumed they can communicate over Layer 2.

Interface Status: The absence of the "shutdown" command means the interfaces are not administratively shut down.

IP Address Assignment: There is no evidence in the output that IP addresses have been assigned to the interfaces, which would typically be shown as "ip address" entries.

Layer 2 Communication: Switch interfaces in their default state operate at Layer 2, enabling them to forward Ethernet frames and participate in Layer 2 communication.

References:

Cisco IOS Interface Configuration: Cisco Interface Configuration

Understanding Cisco Switch Interfaces: Cisco Switch Interfaces
