 A centralized internet gateway is a network design that routes all internet-bound traffic from the on-premises infrastructure through a single point of egress, typically located at the data center or a regional hub1. This approach allows the enterprise to apply consistent security policies and access controls for SaaS applications, as well as optimize the bandwidth utilization and performance of the WAN links2. A centralized internet gateway can use various technologies to provide connectivity to SaaS applications, such as proxy servers, firewalls, web filters, and WAN optimizers3. However, a cloud-based proxy server (option A) is not a part of the centralized internet gateway, but rather a separate service that can be used to route traffic from the on-premises infrastructure to the SaaS provider data center4. VPN connections (option C) and dedicated, private connections (option D) are also not related to the centralized internet gateway, but rather alternative ways of providing secure and reliable access to SaaS applications from the on-premises infrastructure5. Therefore, the correct answer is option B, which describes the basic function of a centralized internet gateway. References := 1: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 1: Cloud Connectivity Overview, Lesson 1: Cloud Connectivity Concepts, Topic: Centralized Internet Gateway 2: Cloud OnRamp for SaaS, Cisco IOS XE Catalyst SD-WAN Release 17.3.1a and Later, Topic: Centralized Internet Gateway 3: Architect and optimize your internet traffic with Azure routing preference, Microsoft Azure Blog, Topic: Routing via the premium Microsoft global network 4: What is SaaS? Softwareas a Service, Microsoft Azure, Topic: How SaaS works 5: How an application gateway works, Microsoft Learn, Topic: Application gateway components

The connectivity model that meets the requirements of high availability, redundancy, and low latency for the company’s business applications is ExpressRoute with private peering using SDCI.

ExpressRoute is a service that provides a dedicated, private, and high-bandwidth connection between the customer’s on-premises network and Microsoft Azure cloud network1.

Private peering is a type of ExpressRoute circuit that allows the customer to access Azure services that are hosted in a virtual network, such as virtual machines, storage, and databases2.

SDCI (Secure Data Center Interconnect) is a Cisco solution that enables secure and scalable connectivity between multiple data centers and cloud providers, using technologies such as MPLS, IPsec, and SD-WAN3.

By using ExpressRoute with private peering and SDCI, the company can achieve the following benefits:

High availability: ExpressRoute circuits are redundant and resilient, and can be configured with multiple service providers and locations for failover and load balancing1. SDCI also provides high availability by using dynamic routing protocols and encryption mechanisms to ensure optimal and secure path selection3.

Redundancy: ExpressRoute circuits can be paired together to form a redundant connection between the customer’s network and Azure4. SDCI also supports redundancy by allowing multiple connections between data centers and cloud providers, using different transport technologies and service levels3.

Low latency: ExpressRoute circuits offer lower latency than public internet connections, as they bypass the congestion and variability of the internet1. SDCI also reduces latency by using MPLS and SD-WAN to optimize the performance and quality of service for the traffic between data centers and cloud providers3.

References:

What is Azure ExpressRoute?

Azure ExpressRoute peering

Cisco Secure Data Center Interconnect

ExpressRoute circuit and routing domain

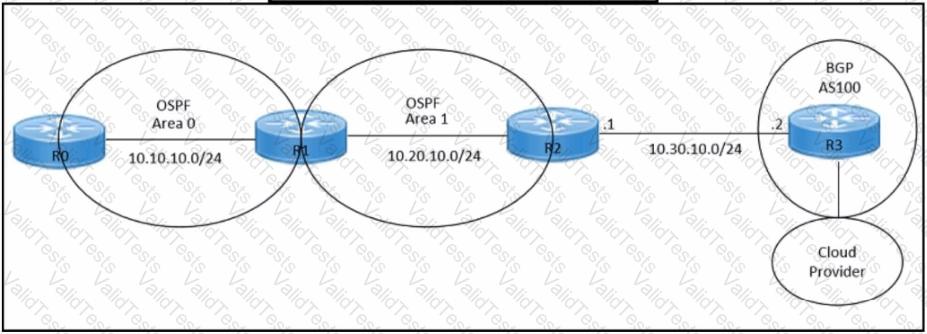

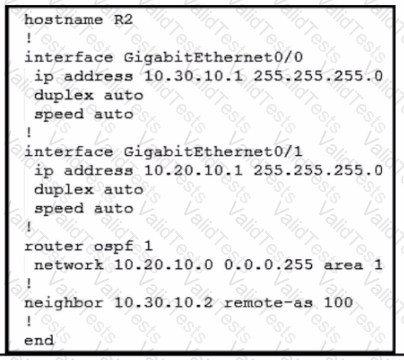

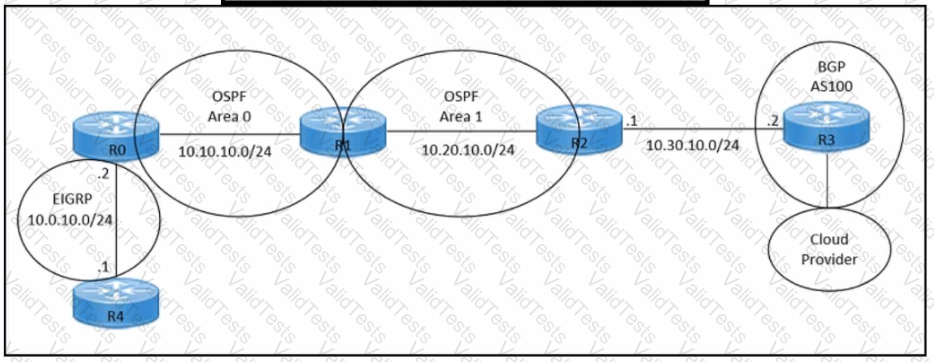

The command redistribute ospf 1 match external is missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario. References :=

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router

Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs

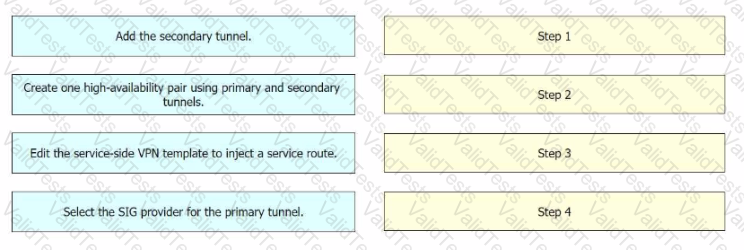

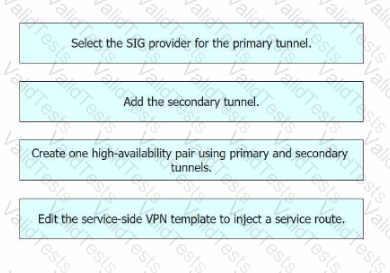

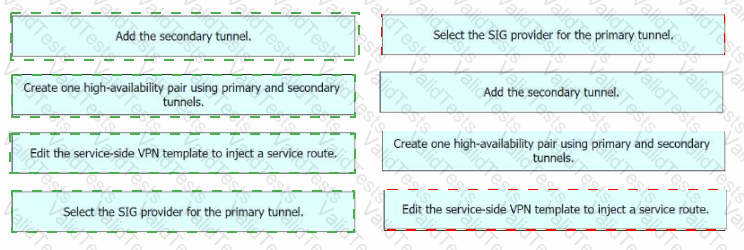

The configuration of cloud connectivity with Cisco Umbrella Secure Internet Gateway (SIG) in active/backup mode involves several steps. After configuring the SIG Credentials and SIG Feature Templates, the engineer must:

Select the SIG provider for the primary tunnel: This is the first step in setting up the active/backup mode. The primary tunnel is the main connection path for the cloud connectivity.

Add the secondary tunnel: The secondary tunnel serves as a backup in case the primary tunnel fails. It ensures that the cloud connectivity remains uninterrupted even if there are issues with the primary tunnel.

Create one high-availability pair using primary and secondary tunnels: This step involves pairing the primary and secondary tunnels to create a high-availability pair. Thisensures that the cloud connectivity will switch over to the secondary tunnel seamlessly if the primary tunnel fails.

Edit the service-side VPN template to inject a service route: The final step involves modifying the VPN template on the service side to include a service route. This ensures that the traffic is correctly routed through the primary or secondary tunnel as needed.

References :=

Designing and Implementing Cloud Connectivity (ENCC) v1.01

Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep2

Configure Umbrella SIG Tunnels for Active/Backup or Active/Active Scenarios - Cisco3

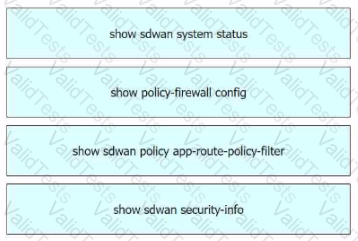

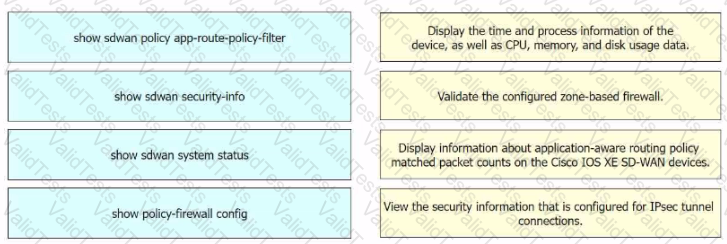

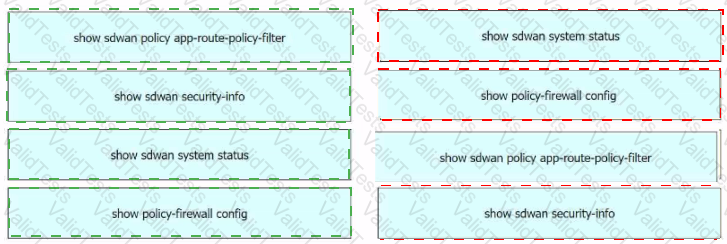

Display the time and process information of the device, as well as CPU, memory, and disk usage data. = show sdwan system status1

Validate the configured zone-based firewall. = show policy-firewall config1

Display information about application-aware routing policy matched packet counts on the Cisco IOS XE SD-WAN devices. = show sdwan policy app-route-policy-filter1

View the security information that is configured for IPsec tunnel connections. = show sdwan security-info

The commands used to identify issues on a Cisco IOS XE SD-WAN device are as follows1:

show sdwan system status: This command is used to display the time and process information of the device, as well as CPU, memory, and disk usage data1.

show policy-firewall config: This command is used to validate the configured zone-based firewall1.

show sdwan policy app-route-policy-filter: This command is used to display information about application-aware routing policy matched packet counts on the Cisco IOS XE SD-WAN devices1.

show sdwan security-info: This command is used to view the security information that is configured for IPsec tunnel connections1.

References :=

Cisco IOS XE Catalyst SD-WAN Qualified Command Reference

Cisco Catalyst SD-WAN Command Reference

Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE

SD-WAN Tunnel Interface Commands - Cisco

 Cisco SD-WAN IPsec tunnels are different from native IPsec VPN tunnels in several ways. One of the unique features of Cisco SD-WAN IPsec tunnels is that they support real-time dynamic path selection, which means that they can automatically choose the best path for each application based on the network conditions and policies. This feature improves the performance, reliability, and efficiency of the network traffic. Native IPsec VPN tunnels, on the other hand, do not have this capability and rely on static routing or manual configuration to select the path for each tunnel. This can result in suboptimal performance, increased latency, and higher costs. References := Traditional IPsec Versus Cisco SD-WAN IPsec, SD-WAN vs IPsec VPN’s - What’s the difference?, SD-WAN vs. VPN: How Do They Compare?, Traditional IPSEC Versus SD-WAN IPSEC

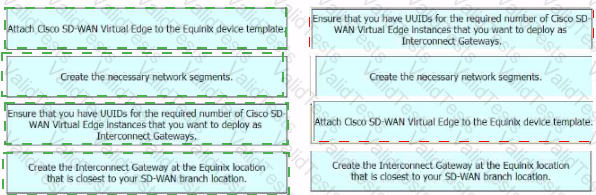

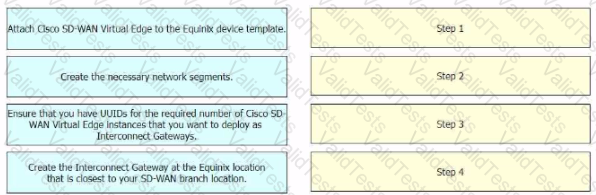

The process of configuring a Cisco SD-WAN Cloud Interconnect with Equinix involves several steps.

Ensure that you have UUIDs for the required number of Cisco SD WAN Virtual Edge instances that you want to deploy as Interconnect Gateways: This is the first step where you ensure that you have the necessary UUIDs for the Cisco SD-WAN Virtual Edge instances that you want to deploy.

Create the necessary network segments: After ensuring the availability of UUIDs, you create the necessary network segments.

Attach Cisco SD-WAN Virtual Edge to the Equinix device template: After setting up the network segments, you attach the Cisco SD-WAN Virtual Edge to the Equinix device template.

Create the Interconnect Gateway at the Equinix location that is closest to your SD-WAN branch location: Finally, you create the Interconnect Gateway at the Equinix location that is closest to your SD-WAN branch location.

References :=

[Cisco SD-WAN Cloud Interconnect with Equinix]

[Cisco SD-WAN Cloud OnRamp for CoLocation Deployment Guide]

An identity mismatch occurs when the local and remote identities configured on the IPsec peers do not match. This can prevent the establishment of an IPsec tunnel or cause traffic to be dropped by the IPsec policy. In this case, the network engineer should verify that the local and remote identities configured on the Cisco WAN edge router and the AWS endpoint match the values expected by each peer. The identities can be an IP address, a fully qualified domain name (FQDN), or a distinguished name (DN). The identities are exchanged during the IKE phase 1 negotiation and are used to authenticate the peers. If the identities do not match, the peers will reject the IKE proposal and the IPsec tunnel will not be established or will be torn down. References :=

Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services, Topic: Troubleshooting

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 2: Implementing Cisco SD-WAN Cloud OnRamp for IaaS, Topic: Troubleshooting Cisco SD-WAN Cloud OnRamp for IaaS

Cisco IOS Security Configuration Guide, Release 15M&T, Chapter: Configuring IPsec Network Security, Topic: Configuring IPsec Identity and Peer Addressing

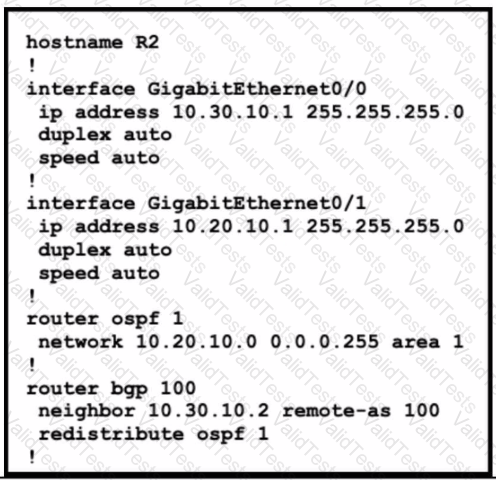

To redistribute OSPF internal routes into BGP for connecting an on-premises network to a cloud provider, the engineer should run the commands “router bgp 100” and “redistribute ospf 1” on router R2. The command “router bgp 100” is used to create a BGP routing process with AS number 100. The command “redistribute ospf 1” is used to redistribute OSPF routes from process ID 1 into BGP. References: = I need to access the specific content of Designing and Implementing Cloud Connectivity (ENCC) v1.0 from Cisco’s official resources to provide exact references. However, I don’t have direct access to external databases or resources, including the Cisco ENCC course materials. I recommend referring to the ENCC course materials for the most accurate and detailed information. Please note that this answer is based on general networking principles and may not reflect the specific content of the ENCC course. Always refer to the official course materials for the most accurate information.

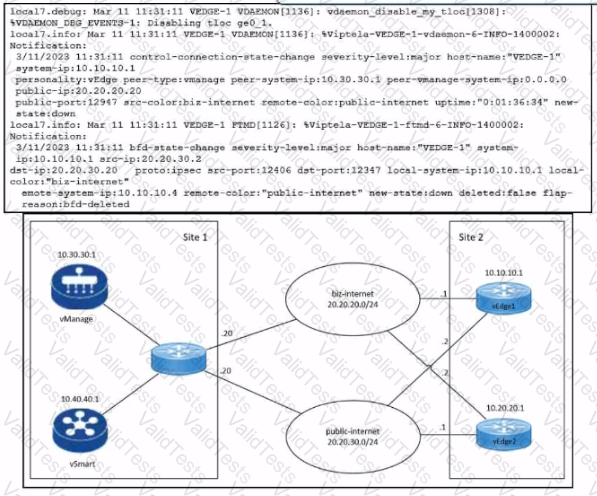

 BFD (Bidirectional Forwarding Detection) is a protocol that detects failures in the overlay tunnel between Cisco SD-WAN devices. BFD packets are sent and received periodically by each device to check the liveliness and quality of the connection. If a device does not receive a BFD packet from its peer within a specified timeout interval, itconsiders the peer to be unreachable and reports a BFD down event. This event triggers a control connection state change and a possible route change in the SD-WAN fabric.

In this scenario, the engineer discovers that BFD is flapping on vEdge1, which means that the BFD session between vEdge1 and the remote Edge device is going up and down repeatedly. This indicates a connectivity issue between the two devices, such as network congestion, packet loss, or misconfiguration. The most likely cause of the problem is that the remote Edge device failed to respond BFD keepalives within the timeout interval, which resulted in a BFD timeout event on vEdge1. This event caused vEdge1 to mark the remote Edge device as down and notify the control plane. The control plane then tried to establish a new BFD session with the remote Edge device, which may have succeeded or failed depending on the network condition. This cycle of BFD session creation and deletion caused the BFD flapping on vEdge1.

The other options are less likely to be the cause of the problem. Option A is incorrect because if the remote Edge device BFD was down, vEdge1 would not receive any BFD packets from it and would not flap. Option C is incorrect because if the remote Edge device had a duplicate IP address, vEdge1 would not be able to establish a BFD session with it in the first place. Option D is incorrect because the control plane does not delete the BFD session unless there is a configuration change or a port-hop event on the device. References: Bidirectional Forwarding Detection Flap-Reason Definitions on Cisco vEdge Routers, Cisco Catalyst SD-WAN BFD, Cisco SD WAN: BFD (Bidirectional Forwarding Detection)
