When an administrator configures a new OSPF area on FortiManager but has not yet pushed the changes to the managed FortiGate device, the configuration is saved in theDevice-level database.

Explanation of Options:

A. Device-level database:

This istrue. When changes are made to a device's configuration on FortiManager, they are saved in theDevice-level database. This database stores the configuration for individual managed devices. The configuration changes remain here until they are pushed to the actual FortiGate device.

B. ADOM-level database:

This isfalse. The ADOM-level database holds configurations related to the entire ADOM (Administrative Domain), such as global settings that apply to all devices within the ADOM, rather than configurations specific to individual devices.

C. Configuration-level database:

This isfalse. The term "Configuration-level database" is not typically used in FortiManager terminology. Changes are stored in the device-level database and are applied when pushed to the FortiGate.

D. Revision history database:

This isfalse. The revision history database keeps track of previous versions of configurations after they have been pushed to the FortiGate device. It does not store unsaved or pending configurations that have not yet been applied to the device.

Option B: 192.168.1.0/24is the correct answer. In FortiManager, when a firewall address object is defined and used across multiple policy packages without any Per-Device Mapping, the default value configured in the object definition (192.168.1.0/255.255.255.0) is applied to all devices. The exhibit shows that the address objectLOCAL_SUBNEThas a default IP/netmask of192.168.1.0/24. Therefore,FortiManager will use this default value for any FortiGate device that does not have a specific Per-Device Mapping configured.

Explanation of Incorrect Options:

Option A: FortiManager generates an error for each FortiGate without a per-device mapping defined for that objectis incorrect because FortiManager does not generate an error when a Per-Device Mapping is not set. Instead, it uses the default value provided in the object definition.

Option C: 192.168.1.0/28is incorrect because the default value is192.168.1.0/24, as seen in the exhibit, not/28.

Option D: FortiManager replaces the address object to noneis incorrect because FortiManager does not replace address objects to "none" when a Per-Device Mapping is missing; it uses the default value instead.

FortiManager References:

Refer to the FortiManager 7.4 Administration Guide, specifically in sections related to "Address Object Management" and "Per-Device Mapping," which detail the behavior of address objects without specific device mappings.

FortiManager backups include:

A. All devices— This includes all device configurations managed by FortiManager, such as firewall policies, objects, and other settings.

D. Flash configuration— This consists of local FortiManager configurations stored in flash memory, such as system settings, scripts, and other locally-stored configurations.

Options B and C are incorrect because:

B (Firmware images)are not typically included in a FortiManager backup. Firmware images are usually stored separately and managed through a different process.

C (FortiGuard database)is incorrect as the FortiGuard database, which contains threat intelligence and security signatures, is not part of the standard FortiManager backup.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Backup and Restore Processes.

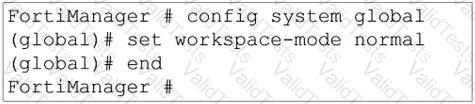

Ungraceful closed sessions will keep the ADOM in a locked state until the administrator session times out.

In normal workspace mode, if an administrator closes the session without unlocking the ADOM properly, the ADOM remains locked until the session times out.

The same administrator can lock more than one ADOM at the same time.

In normal workspace mode, an administrator can lock more than one ADOM simultaneously for editing. Each ADOM operates independently in terms of locking and editing.

Option B: Routingis the correct answer. The ADOM-level database in FortiManager stores configuration settings such as routing, firewall policies, and objects that are shared across multiple devices in the ADOM.

Explanation of Incorrect Options:

Option A: NSX-T Service Templateis incorrect as it is not a FortiGate-specific setting managed at the ADOM level.

Option C: SNMPis incorrect because SNMP settings are typically managed on a per-device basis.

Option D: Security profilesis incorrect because security profiles are generally device-level configurations, not ADOM-level.

FortiManager References:

Refer to "FortiManager Administration Guide" for further details on ADOM-level and device-level configurations.

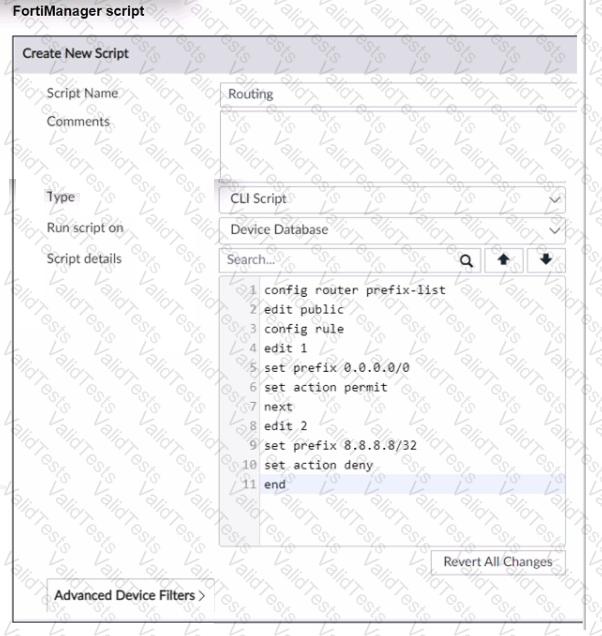

If the script is run using the "Device Database" option on FortiManager, the following occurs:

A.You must install these changes on a managed device using the Install Wizard.

Running the script on the Device Database updates only the configuration in the FortiManager's database, not on the actual FortiGate device. To apply the changes, you need to use the Install Wizard to push these configurations to the managed device.

D.The device Config Status is tagged as Modified.

After running the script on the Device Database, FortiManager tags the device's configuration status as "Modified," indicating that there are pending changes that have not yet been installed on the device.

Options B and C are incorrect because:

Bsuggests a new revision history is created, but this only happens when changes are actually installed on the managed device.

Cimplies the script is directly executed on the FortiGate, which is not the case when using the Device Database option.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Scripting and Configuration Management.
