A limitation of NSGs is that they are applied only at the subnet level or to network interfaces (vNICs), not directly to other resources like load balancers or application gateways. This means granular application-layer filtering is not supported, and NSGs primarily operate at Layers 3 and 4.

A Microsoft Entra tenant is the primary administrative unit that represents an organization within Microsoft’s identity platform. It defines the boundary for identity management, access control, and resource governance, and serves as the core entity that connects the organization to Microsoft's cloud services such as Azure and Microsoft 365.

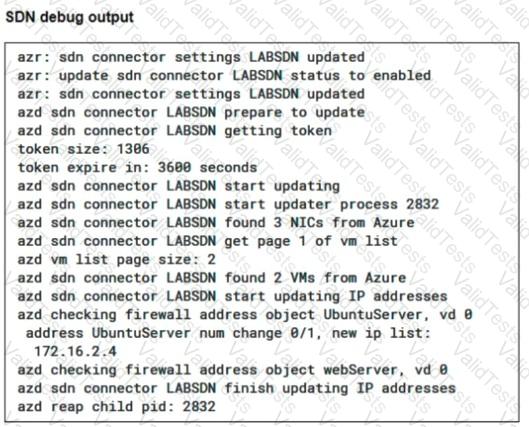

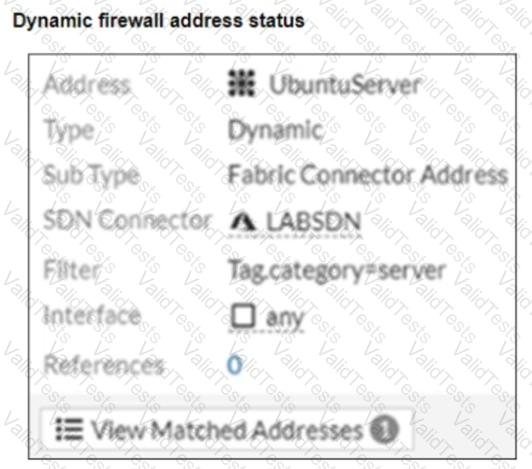

The debug output shows that the UbuntuServer address object successfully resolved an IP, while the webServer did not. The most likely cause is a mismatch in the dynamic address filter or missing tags on the target VM.

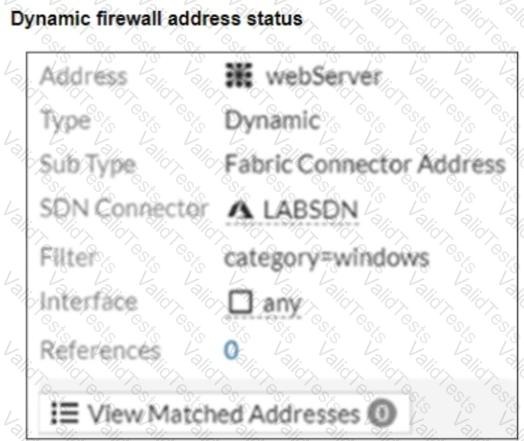

Verify the filter used for the dynamic firewall address – The filter category=windows may not match any VM metadata, resulting in no matched addresses.

Verify the tags on the target VM – Ensure that the VM has the correct tags (e.g., category=windows) that match the dynamic address filter to enable resolution.

In a FortiGate active-active HA deployment in Azure, synchronization between instances is achieved using:

FortiGate Clustering Protocol (FGCP) – This is the primary protocol used to synchronize configuration and session information between HA peers.

Heartbeat interfaces – These interfaces are specifically configured to exchange HA state and sync data between the FortiGate VMs, ensuring cluster consistency.

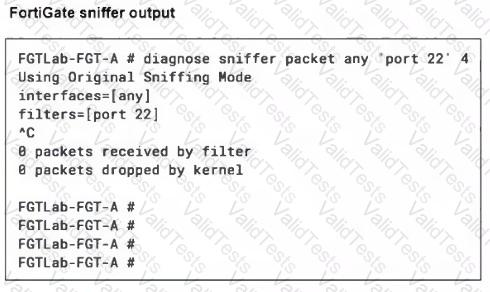

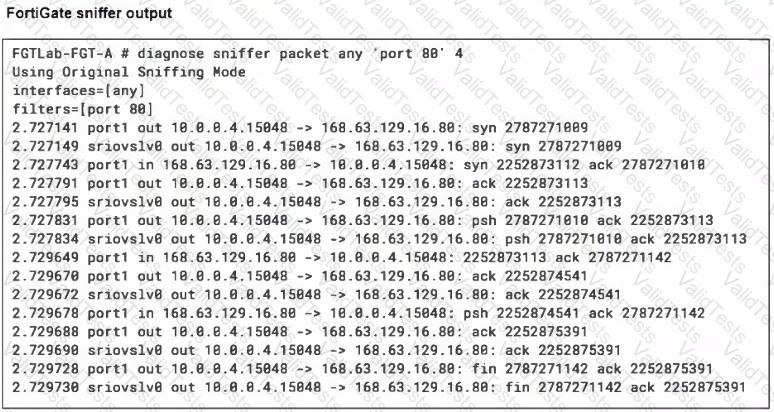

Since port 80 traffic is reaching the FortiGate (as shown in the sniffer output) but port 22 traffic is not, the issue lies before the FortiGate, at the Azure Load Balancer level. Azure Load Balancers require an Inbound NAT rule to forward specific ports (like SSH on port 22) to a specific backend VM. Creating a new Inbound NAT rule for port 22 will allow SSH traffic to be properly routed to the FortiGate VM.

Azure ExpressRoute provides dedicated private connections between on-premises infrastructure and Azure data centers, bypassing the public internet. This results in more predictable latency, higher reliability, and better security, making it ideal for mission-critical workloads.

Azure Firewall Premium includes advanced features not available in the Standard tier, such as enhanced URL filtering and web categories, TLS inspection, IDPS (intrusion detection and prevention system), and support for private certificate authorities. These enable more granular and secure traffic inspection and control.

In an active-active FortiGate ELB/ILB deployment, the inbound NAT rules configured on the external load balancer are used to allow administrative access (e.g., HTTPS, SSH) to the individual FortiGate VMs. Since the public IP is associated with the load balancer, NAT rules are required to map specific ports to backend FortiGate instances for management access.

Azure assigns MAC addresses in a specific Organizationally Unique Identifier (OUI) range. The MAC address d8-34-99-c5-0A-BC begins with d8-34-99, which is a Microsoft-assigned OUI used in Azure virtual networks. This strongly indicates the output was taken from a VM running in Azure.

The branch-to-hub to hub-to-branch topology in Azure Virtual WAN enables efficient branch-to-branch communication by routing traffic through connected hubs. This improves data transfer speed and reliability between branches without needing direct connections between all sites, simplifying management while maintaining performance.
