Terraform manages and tracks the state of infrastructure resources through a file known as terraform.tfstate. This file is automatically created by Terraform and is updated after the application of a Terraform plan to capture the current state of the resources.

State File Purpose: The terraform.tfstate file contains a JSON object that records the IDs and properties of resources Terraform manages, so that it can map real-world resources to your configuration, keep track of metadata, and improve performance for large infrastructures.

State File Management: This file is crucial for Terraform to perform resource updates, deletions, and for creating dependencies. It's essentially the 'source of truth' for Terraform about your managed infrastructure and services.

References: This behavior is documented in Terraform's official documentation, which explains how the terraform.tfstate file is used to keep track of the infrastructure Terraform is managing.

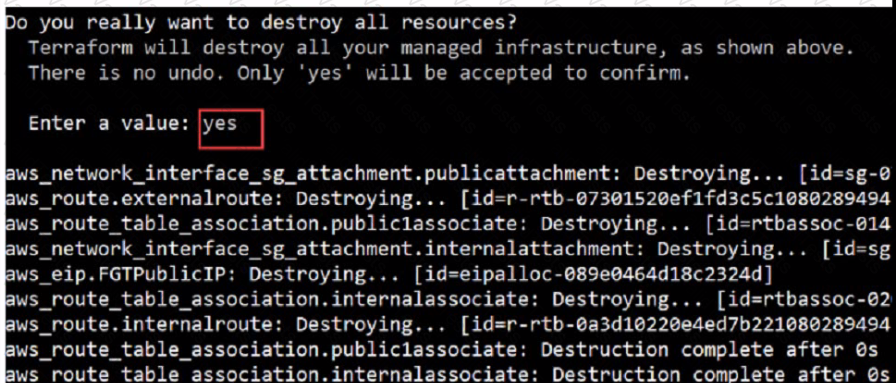

Confirming to delete all the resources in Terraform will have the following impact:

D. It destroys all the resources in the state file.

Terraform State File Role: The terraform.tfstate file contains a real-time mapping of the resources that Terraform manages, including their current configuration and relationships. This file tracks the actual state of resources provisioned by Terraform.

Impact of Destruction: When Terraform prompts for confirmation to destroy resources, and 'yes' is entered, Terraform reads the state file and systematically removes all the resources that are managed as part of that state. This is not limited to a specific .tfvars file, IAM user, or resource group—it is a global action that affects all resources tracked by the state file associated with the current Terraform workspace and configuration.

References: The function of the terraform.tfstate file and the impact of resource destruction are detailed in Terraform's official documentation. This behavior is fundamental to how Terraform manages infrastructure as code.

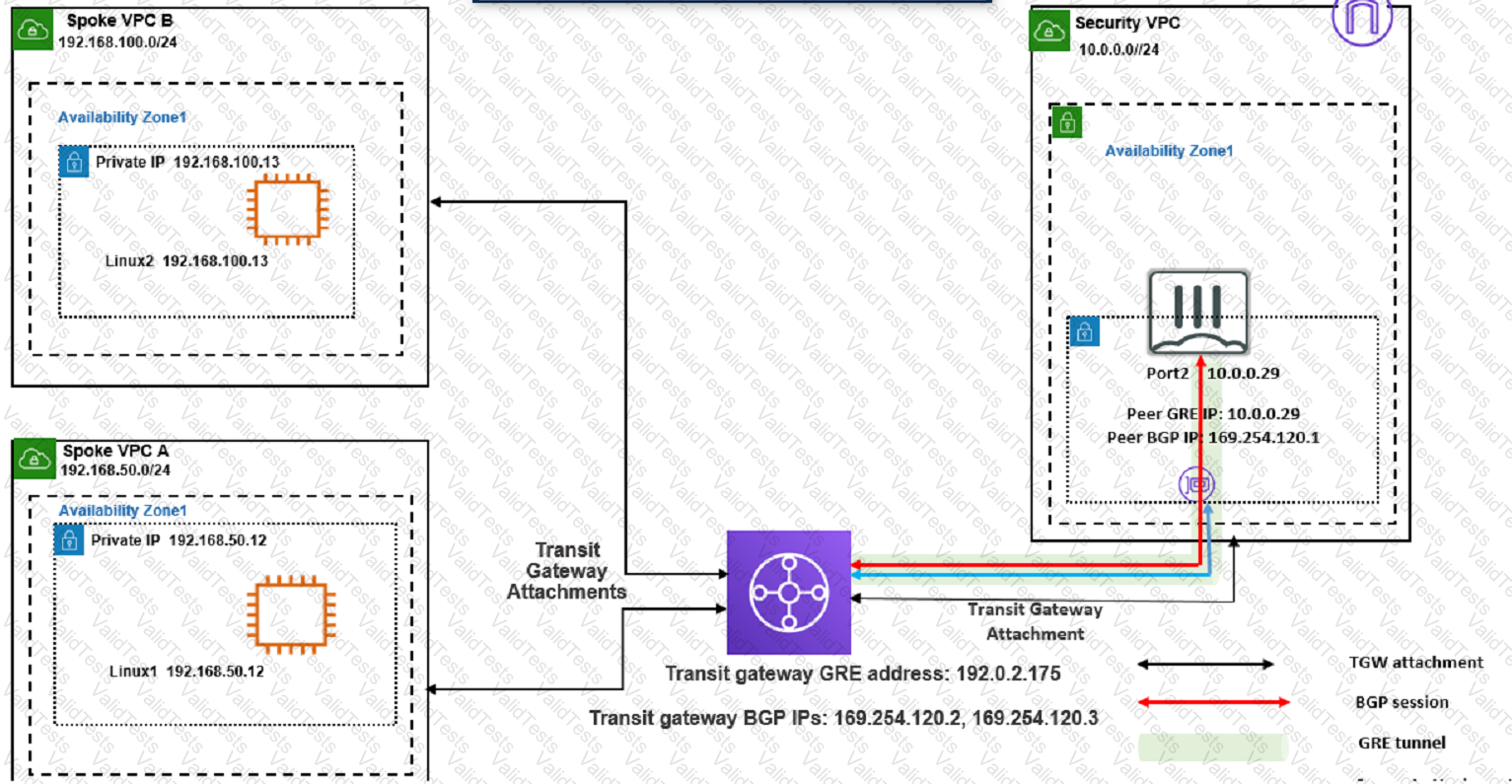

According to the AWS documentation for Transit Gateway, a Transit Gateway is a network transit hub that connects VPCs and on-premises networks. To route traffic from Linux instances to the TGW, you need to do the following steps:

In the TGW route table, associate two attachments. An attachment is a resource that connects a VPC or VPN to a Transit Gateway. By associating the attachments to the TGW route table, you enable the TGW to route traffic between the VPCs and the VPN.

In the main subnet routing table in VPC A and B, add a new route with destination 0_0.0.0/0, next hop TGW. This route directs all traffic from the Linux instances to the TGW, which can then forward it to the appropriate destination based on the TGW route table.

The other options are incorrect because:

In the TGW route table, adding route propagation to 192.168.0 0/16 is not necessary, as this is already the default route for the TGW. Route propagation allows you to automatically propagate routes from your VPC or VPN to your TGW route table.

In the main subnet routing table in VPC A and B, adding a new route with destination 0_0.0.0/0, next hop Internet gateway (IGW) is not correct, as this would bypass the TGW and send all traffic directly to the internet. An IGW is a VPC component that enables communication between instances in your VPC and the internet.

[Transit Gateways - Amazon Virtual Private Cloud]

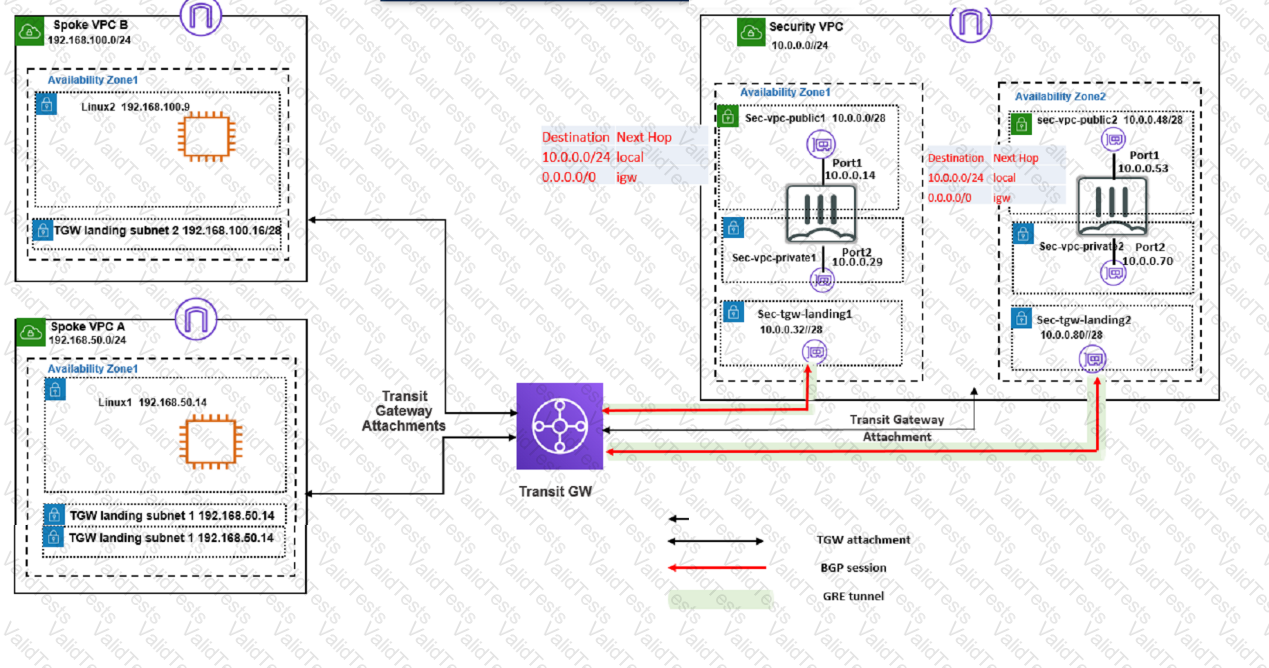

The correct answer is B and C. Both landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the TGW. Both landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate port2.

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. To send outbound traffic from the Linux instances to the internet through the security VPC, you need to do the following steps:

In the main subnet routing table in the spoke VPCs, add a new route with destination 0.0.0.0/0, next hop TGW. This route directs all traffic from the Linux instances to the TGW, which can then forward it to the appropriate destination based on the TGW route table.

In the main subnet routing table in the security VPC, add a new route with destination 0.0.0.0/0, next hop FortiGate port2. This route directs all traffic from the TGW to the FortiGate internal interface, where it can be inspected and allowed by the FortiGate policies.

The other options are incorrect because:

Adding a 0.0.0.0/0 traffic route to the Internet Gateway (IGW) in the spoke VPCs is not correct, as this would bypass the TGW and the security VPC and send all traffic directly to the internet.

Adding a 0.0.0.0/0 traffic route to the TGW in all the VPCs is not necessary, as only the spoke VPCs need to send traffic to the TGW. The security VPC needs to send traffic to the FortiGate port2.

Transit Gateways - Amazon Virtual Private Cloud : Fortinet Documentation Library - Deploying FortiGate VMs on AWS

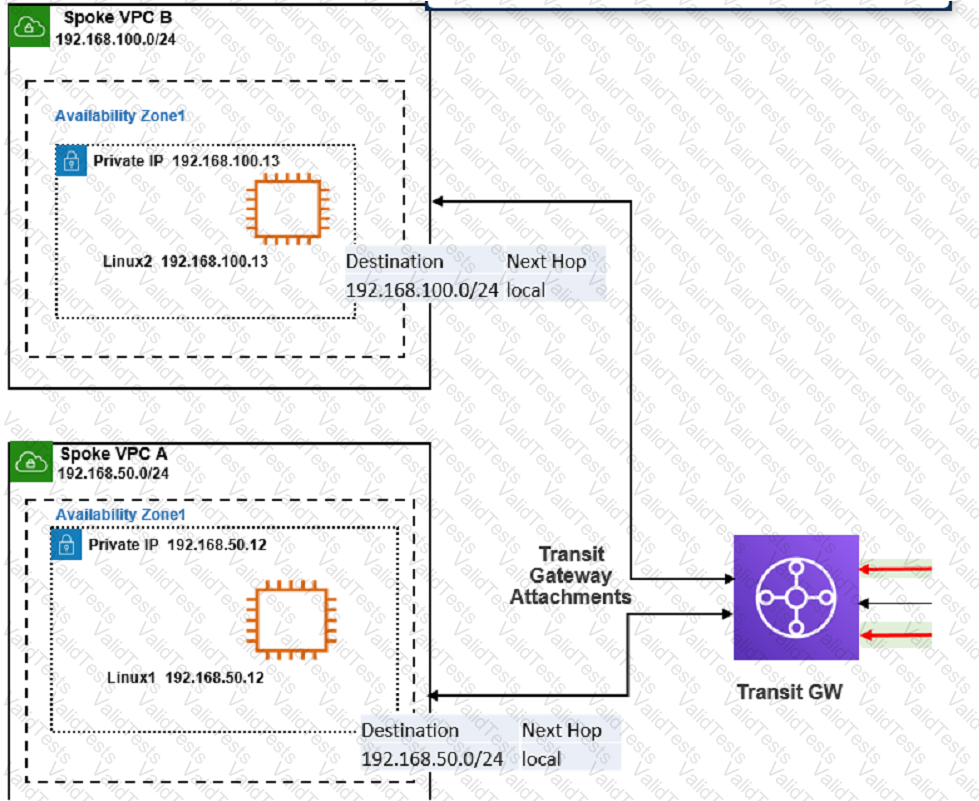

This is because the Linux1 EC2 instance is not accessible directly from the internet using its public IP address in AWS.

An internet gateway is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. Without an internet gateway, the Linux1 EC2 instance cannot receive or send traffic to or from the internet, even if it has a public IP address assigned to it.

To fix this issue, you need to attach an internet gateway to the Spoke VPC A and configure a route table that directs internet-bound traffic to the internet gateway. You also need to ensure that the Linux1 EC2 instance has a security group that allows inbound and outbound traffic on the desired ports.

[Internet Gateways - Amazon Virtual Private Cloud] : [Attach an Internet Gateway to Your VPC - Amazon Virtual Private Cloud] : [Security Groups for Your VPC - Amazon Virtual Private Cloud]

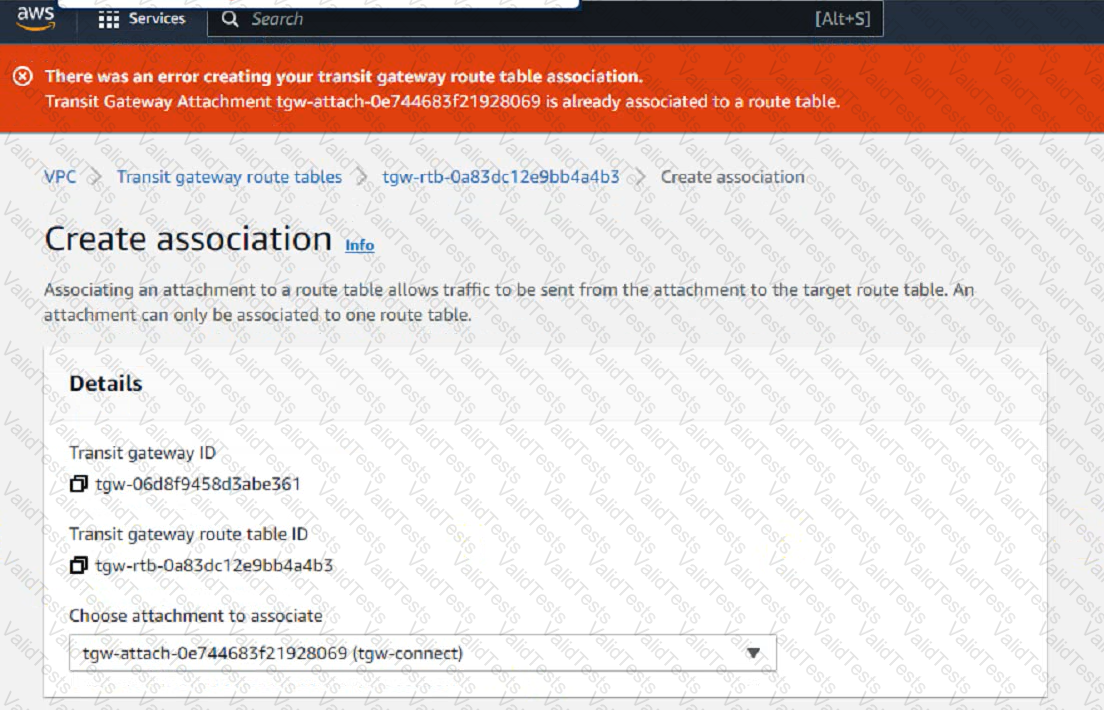

The error message indicates that the Connect attachment is already associated with another transit gateway route table. You cannot associate the same attachment with more than one route table. However, you can propagate the same attachment to multiple route tables. Therefore, to fulfill your requirement of configuring a second route table for east-west traffic inspection between two VPCs, you need to create a propagation with the Connect attachment in the second route table. This will allow the second route table to learn the routes from the Connect attachment and forward the traffic to the security VPC1. You also need to associate the second route table with the Transport attachment, which is the transit gateway attachment for the security VPC1.

References:

Transit gateway route tables - Amazon VPC | AWS Documentation

Getting started with transit gateways - Amazon VPC | AWS Documentation

Configuring TGW route tables | FortiGate Public Cloud 7.4.0 | Fortinet Document Library

Transit Gateway Connect Specificity: AWS Transit Gateway Connect is a specific feature designed to streamline the integration of SD-WAN appliances and third-party virtual appliances into your Transit Gateway.expand_more It utilizes a specialized attachment type.exclamation

BGP's Role: While Transit Gateway Connect attachments leverage BGP for dynamic routing, BGP itself is a routing protocol and not the core connectivity mechanism in this context.

GRE Tunneling: GRE is a tunneling protocol commonly used with Transit Gateway Connect attachments to encapsulate traffic.

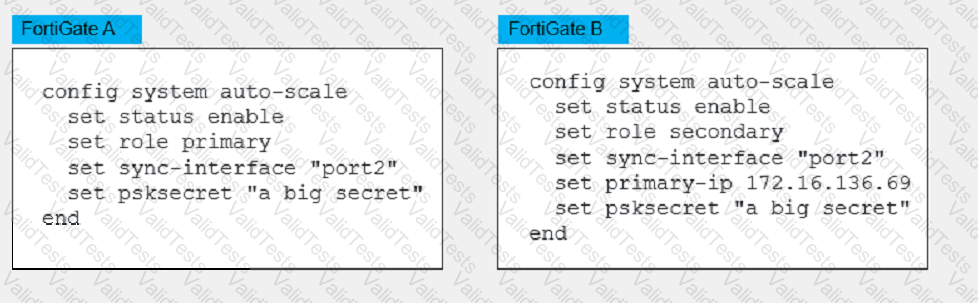

B. FortiGate A and FortiGate B are two independent devices. This means that they are not part of a cluster or a high availability group, and they do not share the same configuration or state information. They are configured as standalone FortiGates with standalone configuration synchronization enabled1. This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname1. D. It does not synchronize the FortiGate hostname. This is one of the settings that are excluded from the standalone configuration synchronization, as mentioned above. The hostname is a unique identifier for each FortiGate device, and it should not be changed by the synchronization process1.

The other options are incorrect because:

FortiGate-VM instances are not scaled out automatically according to predefined workload levels. This is a feature of the auto scaling solution for FortiGate-VM on Azure, which requires a different deployment and configuration than the one shown in the exhibit2. The exhibit shows a static deployment of two FortiGate-VM instances behind an Azure load balancer, which does not support auto scaling.

By default, FortiGate does not use FGCP. FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group3. However, the exhibit shows that the FortiGates are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.

When using an AWS CloudFormation template to add a new spoke to an existing transit VPC environment, the necessary components are:

The BGPASN value used for the transit VPC (Option C): BGP Autonomous System Number (ASN) is required for setting up BGP routing between the transit VPC and the new spoke. This number uniquely identifies the system in BGP routing and is crucial for correct routing and avoiding routing conflicts.

The tag value of the spoke (Option D): Tags in AWS are used to identify and manage resources. The tag value assigned to a spoke VPC helps in organizing, managing, and locating the VPC within the larger AWS environment. Tags are essential for automation scripts and policies that depend on specific identifiers to apply configurations or rules.

References: AWS CloudFormation and AWS Transit Gateway documentation provide guidance on the use of BGPASN and tags for managing and automating VPC deployments effectively.

The Azure SDN connector uses two types of queries to interact with the Azure management API. The first query is targeted to a special IP address to get a token. This token is used to authenticate the subsequent queries. The second type of query is used to retrieve information about the Azure resources, such as virtual machines, network interfaces, network security groups, and public IP addresses. Some queries are made to manage public IP addresses, such as assigning or releasing them from the FortiGate VM. References: Configuring an SDN connector in Azure, Azure SDN connector using service principal, Troubleshooting Azure SDN connector
