Viewing page 1 out of 3 pages
Viewing questions 1-10 out of questions
Questions # 1:

Question # 1

Exhibit B –

Question # 1

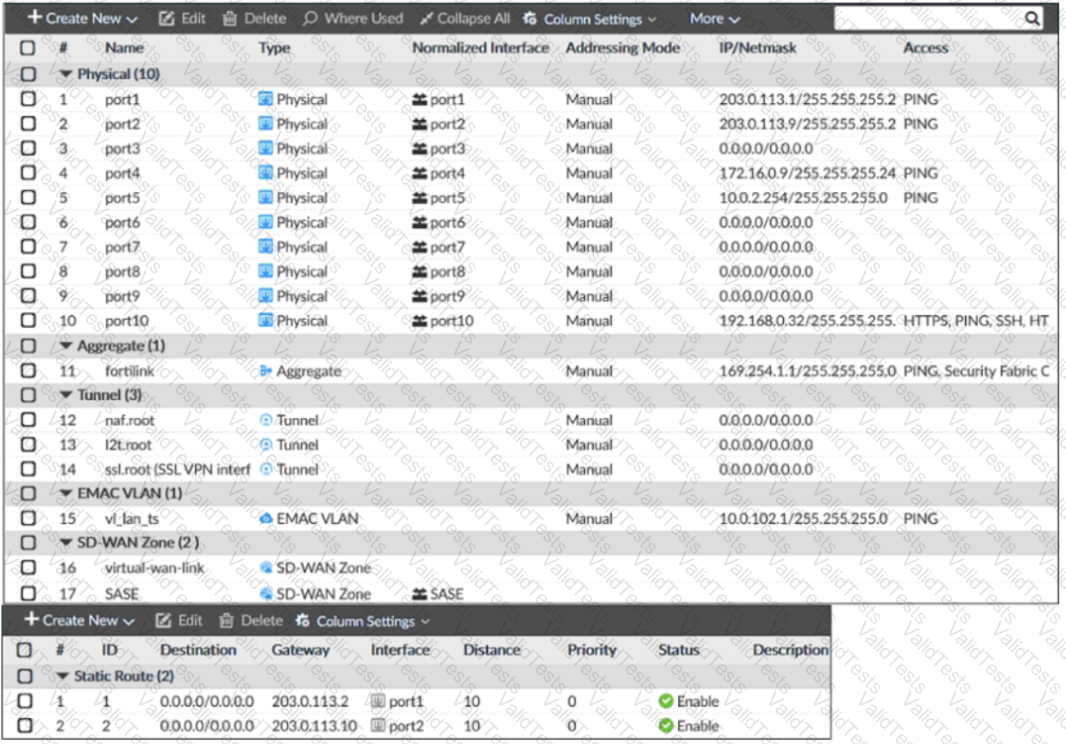

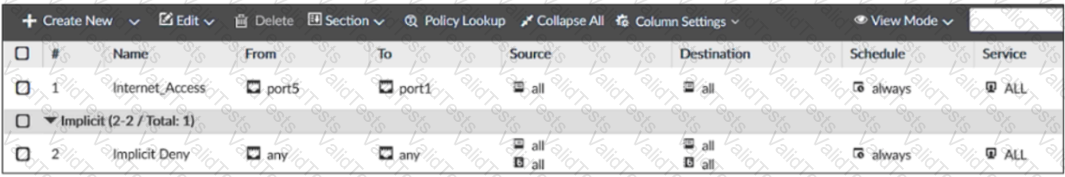

Exhibit A shows the system interface with the static routes and exhibit B shows the firewall policies on the managed FortiGate.

Based on the FortiGate configuration shown in the exhibits, what issue might you encounter when creating an SD-WAN zone for port1 and port2?

Options:

A.

port1 is assigned a manual IP address.

B.

port1 is referenced in a firewall policy.

C.

port2 is referenced in a static route.

D.

port1 and port2 are not administratively down.

Expert Solution
Questions # 2:

Refer to the Exhibits:

Question # 2

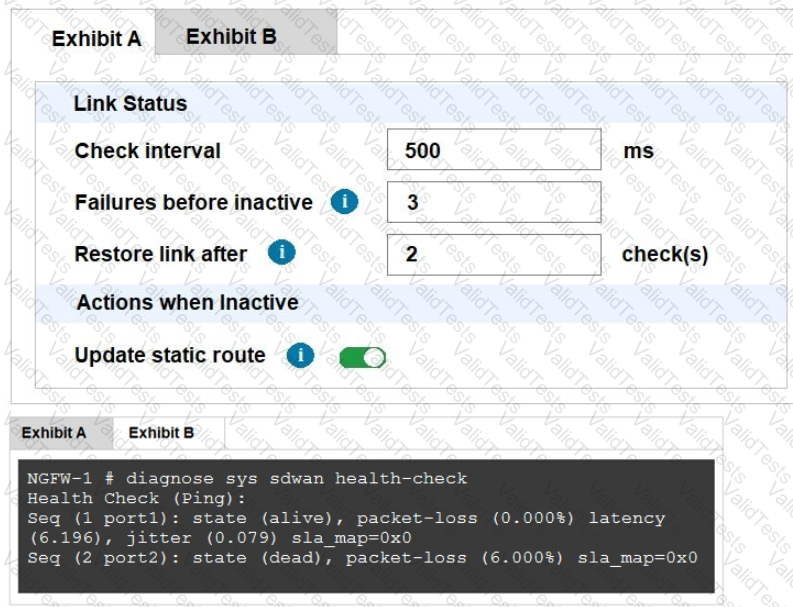

Exhibit A, which shows the SD-WAN performance SLA and exhibit B shows the health of the participating SD-WAN members.

Based on the exhibits, which statement is correct?

Options:

A.

The dead member interface stays unavailable until an administrator manually brings the interface back.

B.

Port2 needs to wait 500 milliseconds to change the status from alive to dead.

C.

Static routes using port2 are active in the routing table.

D.

FortiGate has not received three consecutive requests from the SLA server configured for port2.

Expert Solution
Questions # 3:

What are two benefits of using the Internet service database (ISDB) in an SD-WAN rule? (Choose two.)

Options:

A.

The ISDB is dynamically updated and reduces administrative overhead.

B.

The ISDB requires application control to maintain signatures and perform load balancing.

C.

The ISDB applies rules to traffic from specific sources, based on application type.

D.

The ISDB contains the IP addresses and port ranges of well-known internet services.

Expert Solution
Questions # 4:

Refer to the exhibits.

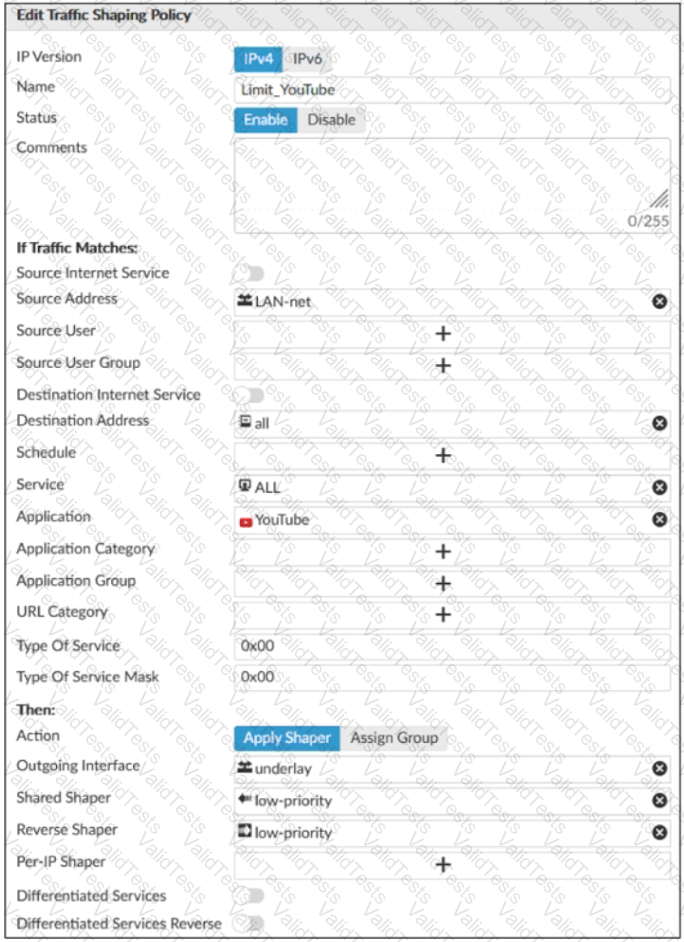

Exhibit A -

Question # 4

Exhibit B -

Question # 4

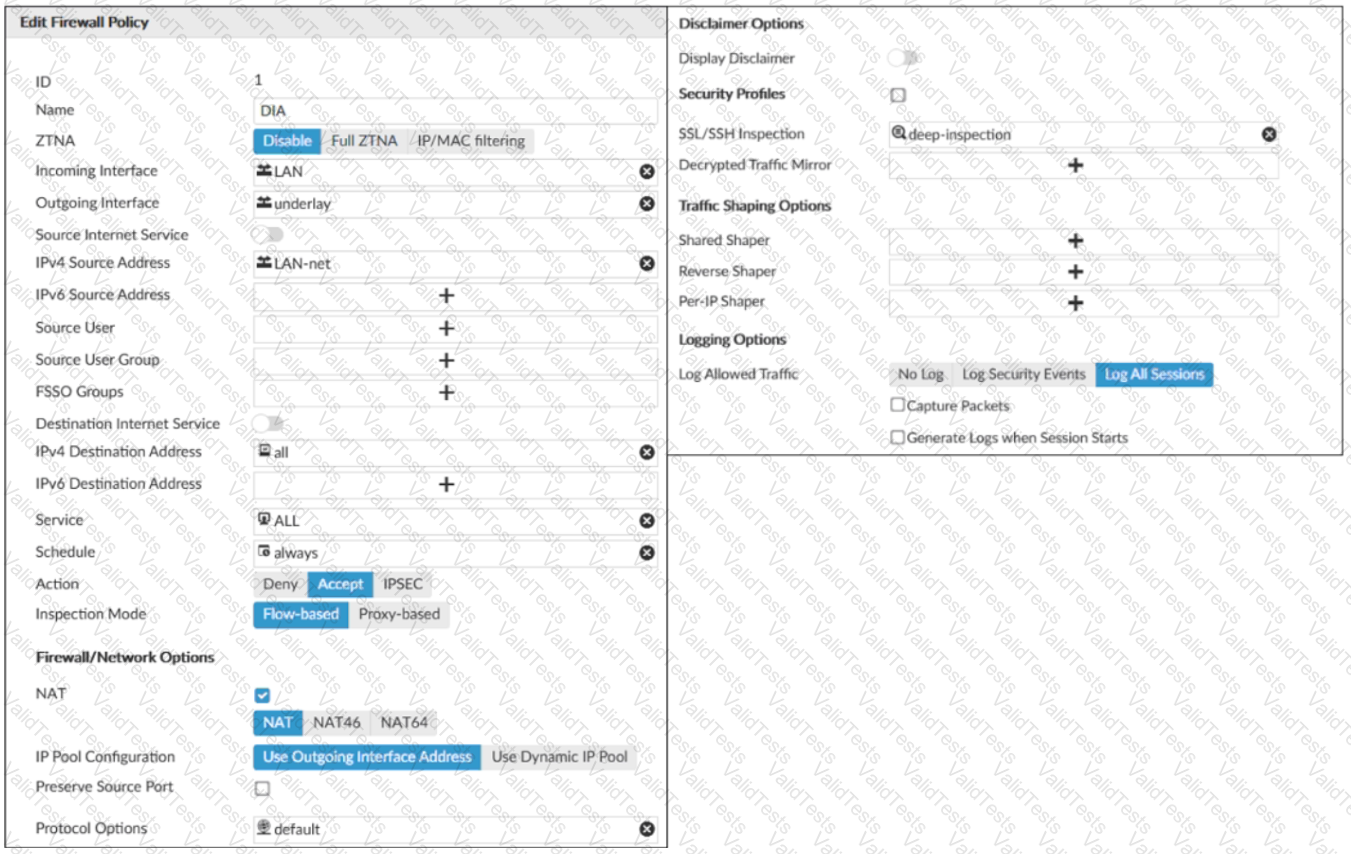

Exhibit A shows the traffic shaping policy and exhibit B shows the firewall policy.

The administrator wants FortiGate to limit the bandwidth used by YouTube. When testing, the administrator determines that FortiGate does not apply traffic shaping on YouTube traffic.

Based on the policies shown in the exhibits, what configuration change must be made so FortiGate performs traffic shaping on YouTube traffic?

Options:

A.

Destination internet service must be enabled on the traffic shaping policy.

B.

Application control must be enabled on the firewall policy.

C.

Web filtering must be enabled on the firewall policy.

D.

Individual SD-WAN members must be selected as the outgoing interface on the traffic shaping policy.

Expert Solution
Questions # 5:

Refer to the exhibits.

Question # 5

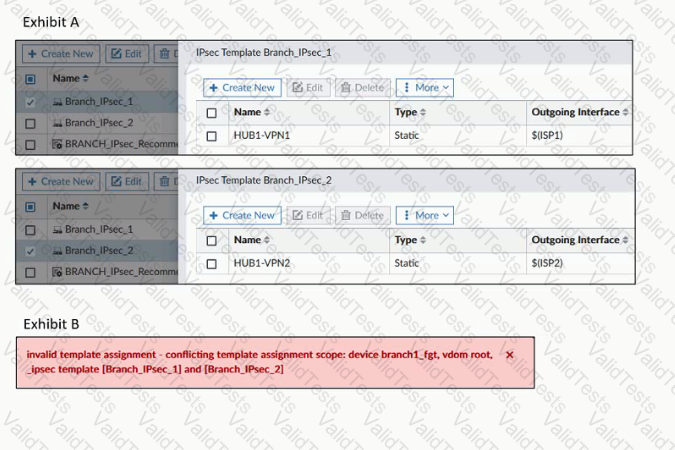

Exhibit A shows two IPsec templates to define Branch_IPsec_1 and Branch_IPsec_2. Each template defines a VPN tunnel.

Exhibit B shows the error message that FortiManager displayed when the administrator tried to assign the second template to the FortiGate device.

Which statement best explain the cause for this issue?

Options:

A.

You can assign only one template with a tunnel of fype static to each FortiGate device

B.

You can define only one IPsec tunnel from branch devices to HUB1.

C.

You can assign only one IPsec template to each FortiGate device.

D.

You should review the branch1_fgt configuration for the already configured tunnel with the name HUB1-VPN2.

Expert Solution
Questions # 6:

In the default SD-WAN minimum configuration, which two statements are correct when traffic matches the default implicit SD-WAN rule? (Choose two )

Options:

A.

Traffic has matched none of the FortiGate policy routes.

B.

Matched traffic failed RPF and was caught by the rule.

C.

The FIB lookup resolved interface was the SD-WAN interface.

D.

An absolute SD-WAN rule was defined and matched traffic.

Expert Solution
Questions # 7:

Which diagnostic command can you use to show the configured SD-WAN zones and their assigned members?

Options:

A.

diagnose sys sdwan zone

B.

diagnose sys sdwan service

C.

diagnose sys sdwan member

D.

diagnose sys sdwan interface

Expert Solution
Questions # 8:

Which two statements are true about using SD-WAN to steer local-out traffic? (Choose two.)

Options:

A.

FortiGate does not consider the source address of the packet when matching an SD-WAN rule for local-out traffic.

B.

By default, local-out traffic does not use SD-WAN.

C.

By default, FortiGate does not check if the selected member has a valid route to the destination.

D.

You must configure each local-out feature individually, to use SD-WAN.

Expert Solution
Questions # 9:

Refer to the exhibit.

Question # 9

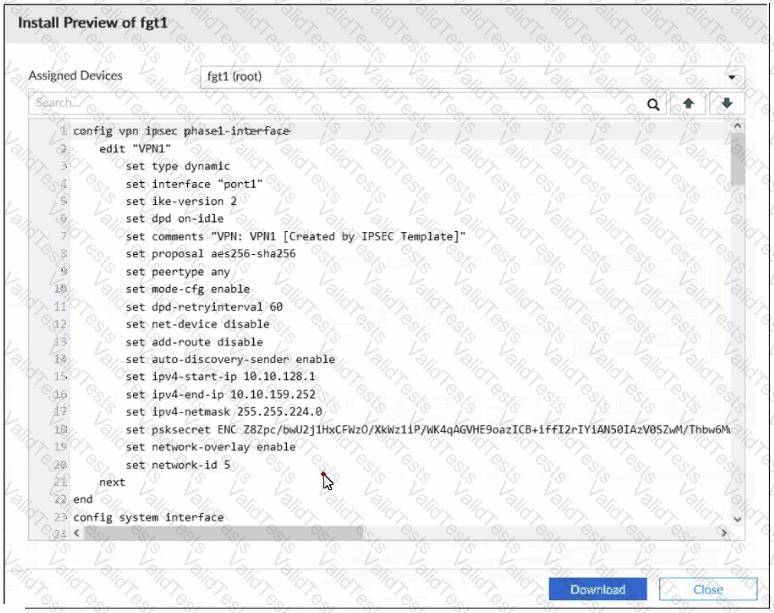

An administrator used the SD-WAN overlay template to prepare an IPsec configuration for a hub-and-spoke SD-WAN topology. The exhibit shows the installation preview for one FortiGate device. In the exhibit, which statement best describes the configuration applied to the FortiGate device?

Options:

A.

It is a hub device. It can send ADVPN shortcut offers.

B.

It is a spoke device that establishes dynamic IPsec tunnels to the hub. The subnet range is 10.10.128.0/23.

C.

It is a spoke device that establishes dynamic IPsec tunnels to the hub. It can send ADVPN shortcut requests.

D.

It is a hub device and will automatically discover the spoke devices that are in the SD-WAN topology.

Expert Solution
Questions # 10:

Refer to the exhibits.

Question # 10

Question # 10

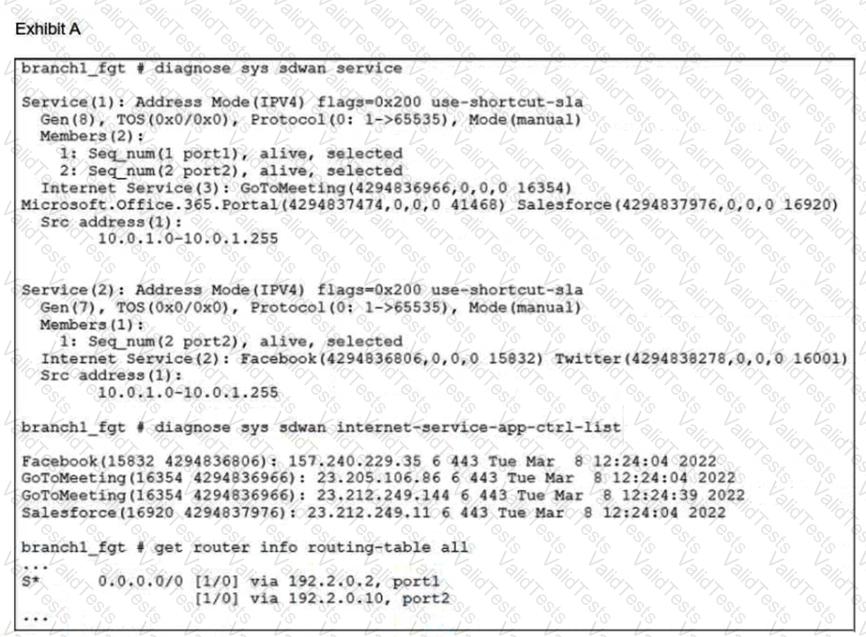

An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the information shown in exhibit A.

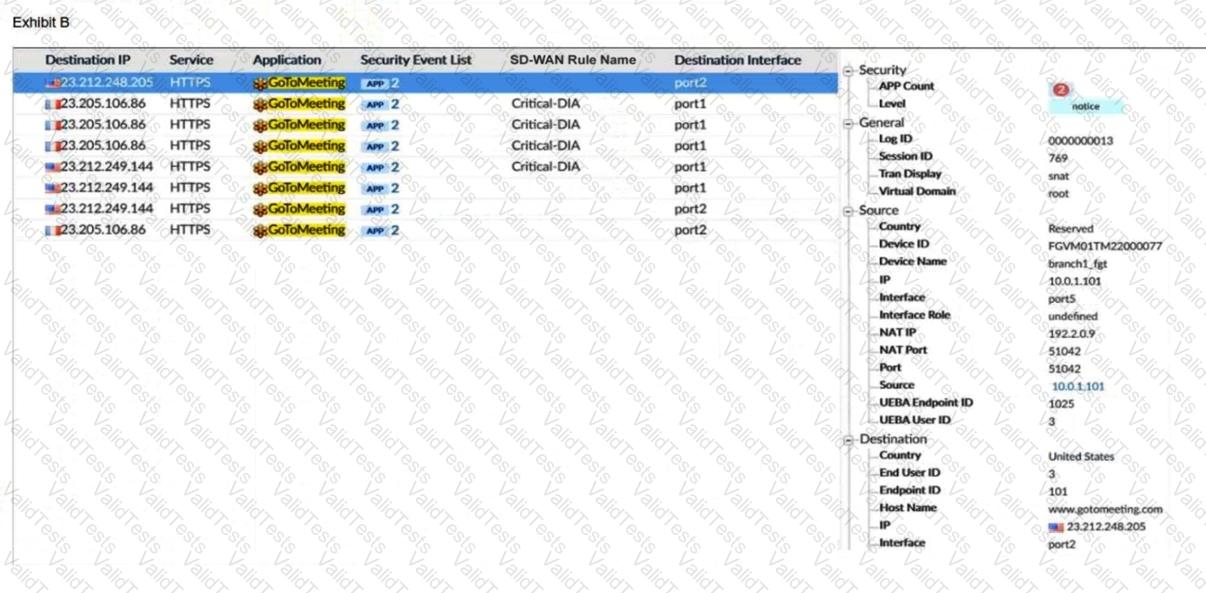

After generating GoToMeeting test traffic, the administrator examined the respective traffic log on FortiAnalyzer, which is shown in exhibit B. The administrator noticed that the traffic matched the implicit SD-WAN rule, but they expected the traffic to match rule ID 1.

Which two reasons explain why the traffic matched the implicit SD-WAN rule? (Choose two.)

Options:

A.

FortiGate did not refresh the routing information on the session after the application was detected.

B.

Port1 and port2 do not have a valid route to the destination.

C.

Full SSL inspection is not enabled on the matching firewall policy.

D.

The session 3-tuple did not match any of the existing entries in the ISDB application cache.

Expert Solution
