Examine the following ACL rule policies:
Permit traffic from 10.2.2.1 through 10.2.2.30 to anywhere
Permit traffic from 10.2.2.40 through 10.2.2.55 to anywhere
Deny all others
Based on this policy, place the following ACL rule statements in the correct order to accomplish the above
filtering policy.
A network administrator is implementing BGP for a larger network. The network has over 20 exit points across 15 different BGP routers. The administrator does not want to implement a fully-meshed iBGP peering between all BGP routers.
Which feature should the administrator implement to reduce the number of peers the administrator needs to define?
The network is configured for OSPF with the following attributes:
Core1 and Core2 and ABRs
Area 1 has 20 networks in the 10.1.0.0/16 range
Area 0 has 10 networks in the 10.0.0.0/16 range
Area 2 has 50 networks in the 10.2.0.0/16 range
The ASBR is importing a static route into Area 1
Core2 has a summary for Area 2: area 0.0.0.2 range 10.2.0.0/16 type inter-area

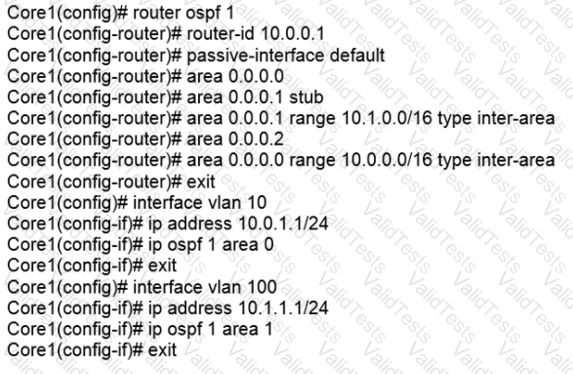

Here is the OSPF configuration performed on Core1:
Based on the above information, what is correct?
Examine the output from an AOS-CX switch implementing a dynamic segmentation solution involving
downloadable user roles:
Switch# show port-access role clearpass
Role information:
Name : icxarubadur_employee-3044-2
Type : clearpass
Status: failed, parsing_failed
Reauthentication Period :
Authentication Mode :
Session Timeout :
The downloadable user roles are not being downloaded to the AOS-CX switch. Based on the above output,
what is the problem?
What are best practices when implementing VSX on AOS-CX switches? (Choose two.)
A network administrator needs to replace an antiquated access layer solution with a modular solution involving AOS-CX switches. The administrator wants to leverage virtual switching technologies. The solution needs to support high-availability with dual-control planes.
Which solution should the administrator implement?
What is a concept associated with PIM sparse mode (SM)?
When cutting and pasting configurations into NetEdit, which character is used to enter commands within the context of the previous command?
A network engineer is using NetEdit to manage AOS-CX switches. The engineer notices that a lot of thirdparty VoIP phones are showing up in the NetEdit topology. The engineer deletes these, but they are
automatically rediscovered by NetEdit and added back in.
What should the administrator do to solve this problem?
A network engineer is examining NAE graphs from the Dashboard but notices that the time shown in the graph does not represent the current time. The engineer verifies that the AOS-CX switch is configured for NTP and is successfully synchronized. What should be done to fix this issue?
