This is because a parameter is a variable that can be defined and modified by the user or the script, and can be used to customize the behavior and output of the NAE script. A parameter can be referred to by using the syntax self ^ramsfname], where ramsfname is the name of the parameter.

By defining a parameter for the value, the developer can make the NAE script more flexible and adaptable to different scenarios and switches. The parameter can be set to a default value, such as 10, but it can also be changed by the user or the script based on the network conditions and requirements. For example, the parameter can be adjusted dynamically based on the average or standard deviation of the number of rejects per hour, or based on the feedback from the user or other admins. This way, the NAE script can trigger an alert only when the number of rejects is truly unusual and not just arbitrary.

A. Checking one of the access switches’ RADIUS statistics and adding 10 to the number listed for rejects. This is not a good recommendation because it does not account for the variability and diversity of the network environment and switches. The number of rejects listed for one switch might not be representative or relevant for another switch, as different switches might have different traffic patterns, client types, RADIUS configurations, etc. Moreover, adding 10 to the number of rejects is an arbitrary and fixed value that might not reflect the actual threshold for triggering an alert.

B. Defining a baseline and referring to it for the value. This is not a bad recommendation, but it is not as good as defining a parameter. A baseline is a reference point that represents the normal or expected state of a network metric or performance indicator. A baseline can be used to compare and contrast the current network situation and detect any anomalies or deviations. However, a baseline might not be easy or accurate to define, as it might require historical data, statistical analysis, or expert judgment. Moreover, a baseline might not be stable or constant, as it might change over time due to network growth, evolution, or optimization.

C. Using 10 (per hour) as a good starting point for the value. This is not a good recommendation because it is an arbitrary and fixed value that might not reflect the actual threshold for triggering an alert. Using 10 (per hour) as the value might result in false positives or false negatives, depending on the network conditions and switches. For example, if the normal number of rejects per hour is 5, then using 10 as the value might trigger an alert too frequently and unnecessarily. On the other hand, if the normal number of rejects per hour is 15, then using 10 as the value might miss some important alerts and risks.

Auto-site clustering is a feature that allows gateways in the same site and group to form a cluster automatically. However, this mode does not support VRRP IP addresses, which are required for dynamic authorization (CoA) from ClearPass Policy Manager (CPPM) to the gateways. Dynamic authorization is a mechanism that allows CPPM to change the attributes or status of a client session on the gateways without requiring re-authentication. This is useful for applying policies, roles, or bandwidth limits based on various conditions. Without VRRP IP addresses, CPPM would not be able to send CoA messages to the correct gateway in case of a failover event, resulting in inconsistent or incorrect client behavior.

To enable VRRP IP addresses for dynamic authorization, you need to set up gateway clusters manually and assign a VRRP VLAN and a VRRP IP address to each cluster. This way, CPPM can use the VRRP IP address as the NAS IP address for RADIUS communications and CoA messages. The VRRP IP address will remain the same even if the active gateway in the cluster changes due to a failover event, ensuring seamless operations. You can find more information about how to set up gateway clusters manually and configure VRRP IP addresses in the Gateway Cluster Deployment - Aruba page and the ClearPass Policy Manager User Guide1.

According to the ClearPass Policy Manager User Guide1, userAccountControl is a custom attribute in Active Directory that contains a set of flags that define the properties and behavior of user accounts. One of these flags is ACCOUNTDISABLE, which indicates whether the account is disabled or not. By adding this attribute to the filters in the AD authentication source, CPPM can retrieve this attribute for each user and use it as a condition in the enforcement policies to prevent users with disabled accounts from connecting even if they have valid certificates. Therefore, option C is the correct answer.

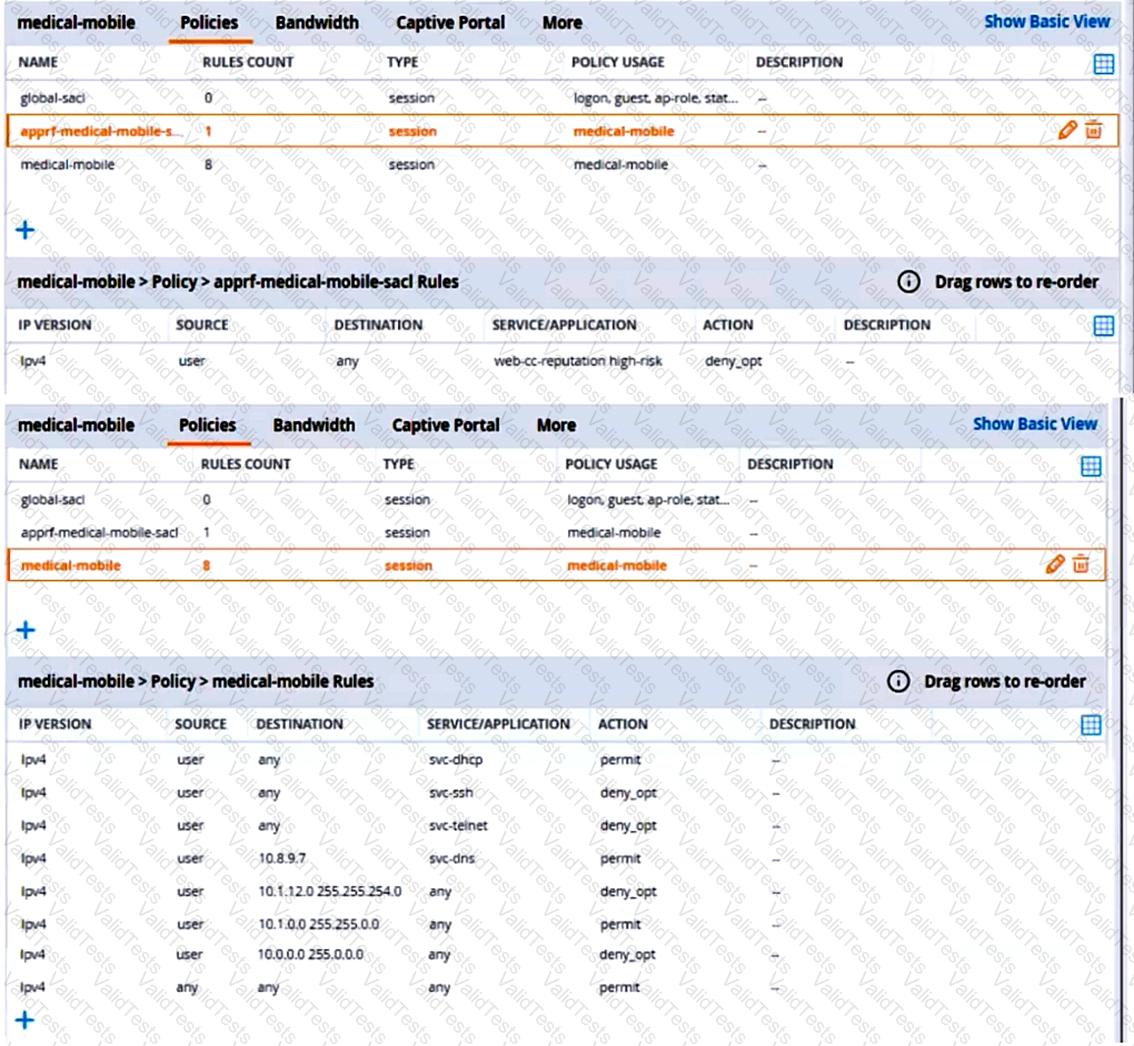

AppRF and WebCC are features that allow the MCs to classify and control application traffic and web content based on predefined or custom categories 12. These features are required to meet the scenario requirements of denying access to all high-risk websites and denying access to the WLAN for a period of time if they send any SSH or Telnet traffic.

To enable AppRF and WebCC, you need to check the following settings:

On the global level, you need to enable AppRF and WebCC under Configuration > Services > AppRF and Configuration > Services > WebCC, respectively 12.

On the role level, you need to enable AppRF and WebCC under Configuration > Security > Access Control > Roles > medical-mobile > AppRF and Configuration > Security > Access Control > Roles > medical-mobile > WebCC, respectively 12.

You also need to make sure that the MCs have valid licenses for AppRF and WebCC, which are included in the ArubaOS PEFNG license 3.

This is because network forensics relies on the analysis of network traffic data, which is often time-stamped by the devices that generate or transmit it. Having a synchronized and accurate clock across all network devices helps to establish a reliable timeline of events and correlate different sources of evidence12

A. Enable BPDU protection and loop protection on edge switch ports is not related to network security forensics, but rather to preventing network loops and topology changes caused by rogue switches or bridges3

B. Enabling debug-level information for network infrastructure device logs might provide more details about the network activity, but it also consumes more resources and storage, and might not be relevant or useful for forensic analysis. Moreover, debug-level information might not be available for long-term retention or legal purposes4

C. Implementing 802.1X authentication on switch ports that connect to APs is a good security practice to prevent unauthorized access to the network, but it does not directly help with network security forensics. 802.1X authentication does not capture or record network traffic data, which is the main source of evidence for network forensics

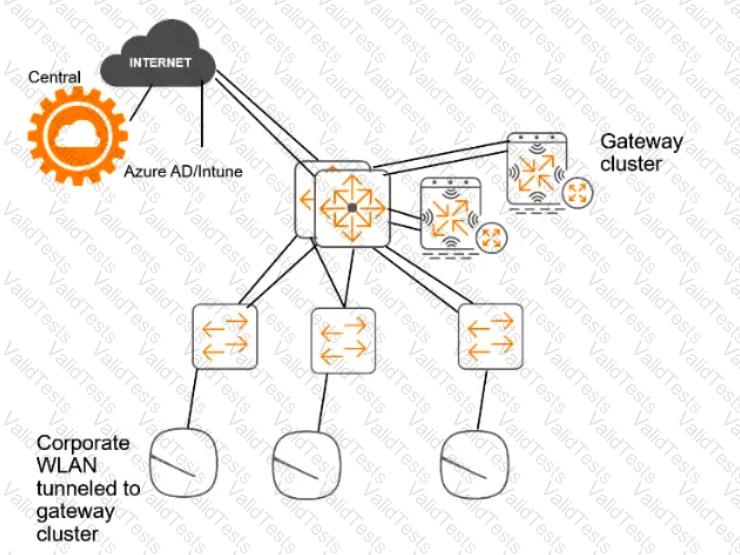

An authentication source is a configuration element in CPPM that defines how to connect to an external identity provider and retrieve user or device information . CPPM supports various types of authentication sources, such as Active Directory, LDAP, SQL, Kerberos, and HTTP .

To authenticate wireless and wired clients to Azure AD, you need to set up an authentication source as HTTP type, referencing Azure AD’s FQDN . This type of authentication source allows CPPM to use REST API calls to communicate with Azure AD and validate the user or device credentials . You also need to configure the OAuth 2.0 settings for the authentication source, such as the client ID, client secret, token URL, and resource URL .

To use information collected by Intune to make access control decisions, you need to set up another authentication source as HTTP type, referencing the Intune extension . This type of authentication source allows CPPM to use REST API calls to communicate with Intune and retrieve the device compliance status . You also need to configure the OAuth 2.0 settings for the authentication source, such as the client ID, client secret, token URL, and resource URL .

To use Azure AD as the authentication source in 802.1X services, you need to configure CPPM as a SAML service provider and Azure AD as a SAML identity provider. This allows CPPM to use Azure AD for user authentication and role mapping. To do this, you need to create an app registration on Azure AD that references the CPPM’s FQDN as the reply URL and the entity ID. You also need to grant the app registration the required permissions to access user information from Azure AD1

BPDU (Bridge Protocol Data Unit) is a message that is exchanged between switches to maintain the spanning tree topology and prevent loops. BPDU protection and BPDU filtering are two features that can be configured on AOS-CX switch ports to enhance security and performance.

BPDU protection is a feature that disables a port if it receives a BPDU, indicating that an unauthorized switch or device has been connected to the port. BPDU protection is typically used on edge ports, which are ports that connect to end devices such as PCs or printers, and are not expected to receive BPDUs. BPDU protection prevents rogue devices from connecting to the network and affecting the spanning tree topology.

BPDU filtering is a feature that prevents a port from sending or receiving BPDUs, effectively isolating the port from the spanning tree topology. BPDU filtering is typically used on inter-switch ports, which are ports that connect to other switches, for specialized use cases such as creating a separate spanning tree domain or reducing the overhead of BPDUs. BPDU filtering should be used with caution, as it can create loops or inconsistencies in the network.

You can find more information about how to configure BPDU protection and BPDU filtering on AOS-CX switch ports in the [Configuring Spanning Tree Protocol - Aruba] page and the [AOS-CX Switching Configuration Guide] page. The other options are not correct because they either use BPDU protection or BPDU filtering on the wrong type of ports or for the wrong purpose. For example, using BPDU protection on inter-switch ports would disable the ports if they receive BPDUs, which are expected in normal operation. Using BPDU filtering on edge ports would allow rogue devices to connect to the network and create loops or affect the spanning tree topology.
