IGMP (Internet Group Management Protocol) supports several message types: Join, Leave, Query, and Report messages to manage multicast group membership.

Join messages indicate a host wants to join a multicast group.

Leave messages indicate a host is leaving a multicast group.

Query messages are sent by routers to discover group members.

Report messages are sent by hosts to indicate membership.

Therefore, the full set of IGMP message types supported includes Join, Leave, Query, and Report.

Options with only Leave and Report or only Join and Query are incomplete.

In a hotel environment where a single subnet is used for wired guests, but guest devices in a conference room need to communicate with each other (and with the default gateway), while remaining isolated from other guests elsewhere, Community VLANs are appropriate.

Community VLANs allow hosts within the same VLAN community to communicate with each other and the default gateway but are isolated from hosts in other communities.

Isolated VLANs block communication between ports and only allow communication to the gateway.

Therefore, assigning conference room guests to a community VLAN and the gateway to a primary VLAN allows the desired communication model.

Comprehensive Detailed Explanation:

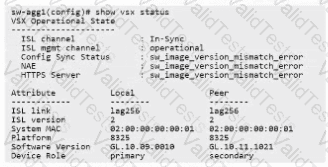

For live upgrading a VSX cluster, the correct procedure is to use the vsx update-software option, which allows in-service software upgrade (ISSU) with minimal disruption by upgrading switches one at a time while maintaining synchronization.

issu update-software is not a recognized command in Aruba CX.

Reloading the primary first risks service disruption.

Compatibility mode is not required prior to reboot.

For a 1 Gbps link between two Aruba CX switches, the appropriate SFP port type is an SFP (Small Form-factor Pluggable). SFP+ and SFP28 are used for higher speeds such as 10 Gbps and 25 Gbps, respectively. QSFP+ is for even higher speeds (40 Gbps).

SFP supports 1 Gbps (1000BASE-X)

SFP+ supports 10 Gbps

SFP28 supports 25 Gbps and above

QSFP+ supports 40 Gbps and above

Therefore, the correct port type for a 1 Gbps link is SFP.

To prevent the campus core from seeing the data center core as the root bridge in a spanning tree topology (which can cause suboptimal paths or loops), Root Guard should be applied on the campus-to-data center core link. Root Guard enforces root bridge placement by blocking any superior BPDU from a downstream switch, maintaining the intended root bridge location.

BPDU filter blocks BPDUs entirely, which can cause problems.

Admin edge and BPDU guard are related to edge port protection, not root placement control.

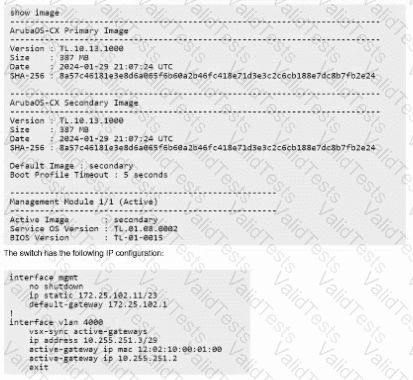

To upgrade an HPE Aruba Networking CX 8320 VSX cluster with minimal downtime from a remote server, the correct command is:

vsx update-software scp://172.25.101.10/image vrf mgmt

Using SCP (Secure Copy Protocol) ensures secure transfer.

Specifying vrf mgmt ensures the update uses the management VRF for connectivity.

Using TFTP is less secure and not recommended for production upgrades.

The primary keyword is not valid for the vsx update-software command.

This method allows an in-service software upgrade (ISSU) with least disruption.

The command erase all zeroize performs a secure erase on the switch, which deletes all customer data including startup-config and stored credentials. This process can take up to an hour depending on the hardware and storage media.

It does not retain running config (Option A).

It does not restore the factory AOS-CX image (Option B).

Admin credentials are deleted as part of the secure erase (Option C is incorrect).

Therefore, this command securely wipes all data and resets the device.

OSPF neighbors on broadcast networks typically reach the 2WAY state during the DR/BDR election process. It is normal behavior for OSPF neighbors on a broadcast network to be in the 2WAY state until a Designated Router (DR) and Backup DR (BDR) are elected.

The tie in DR election explains why multiple neighbors can be in 2WAY.

No OSPF networks advertised would not cause 2WAY.

IGMP snooping does not affect OSPF adjacency states.

When a VSX primary switch is powered off, it loses connectivity with management systems such as HPE Aruba Central. This causes the management system to trigger a "Switch Disconnected" alert because the switch is no longer reachable.

"Switch Reboot" alerts would indicate a restart, not power off.

"Switch Stack Conductor Change" refers to stack leadership changes, not VSX primary down.

"Switch STP Root Change" relates to Spanning Tree Protocol root bridge changes.

Hence, powering off the VSX primary causes a "Switch Disconnected" alert.

For an interface connected to an untrusted device regarding DSCP markings, the recommended configurations are:

Apply a classifier-based policy to assign a Local Priority value (Option B). This overrides or marks traffic based on predefined criteria.

Configure qos trust none (Option E) to disable trusting DSCP or CoS markings from the device, preventing manipulation of QoS.

Trusting CoS (Option A) is incorrect because the device is untrusted.

DSCP maps and Weighted Fair Queuing (Options C and D) are additional QoS features but do not specifically address untrusted markings.
