Detailed Explanation:

Rationale for Correct Answer:

Option A is correct because Fibre Channel over Ethernet (FCoE) is designed for large enterprise environments that already have Fibre Channel (FC) infrastructures but want to simplify cabling and reduce hardware by converging LAN and SAN traffic over a single Ethernet fabric. FCoE retains the efficiency, low latency, and reliability of Fibre Channel while leveraging Ethernet to minimize physical infrastructure costs. This aligns with HPE’s best practices for environments using HPE Alletra 9000/Primera or HPE Nimble arrays connected to converged networks where cost reduction and high performance are equally important.

Analysis of Incorrect Options (Distractors):

B: Real-time replication across WANs requires protocols like HPE 3PAR/Alletra Remote Copy, asynchronous/synchronous replication, or HPE Peer Persistence. FCoE is not suited for high-latency WANs because it is a LAN protocol designed for short distances within a data center.

C: For inter-data center SAN unification, FCIP (Fibre Channel over IP) or iSCSI are more suitable. FCoE does not handle long-distance high-latency links effectively.

D: A startup building AI applications with cloud workloads typically benefits from object storage (HPE Scality RING, HPE GreenLake for File and Object) or direct cloud-native APIs (S3/Blob). FCoE is irrelevant in this use case since it is on-prem and infrastructure-focused.

Key Concept:

The question is testing knowledge of FCoE and its appropriate deployment scenarios — specifically, its role in consolidating storage and network traffic inside enterprise data centers while preserving Fibre Channel protocol advantages.

Detailed Explanation:

Rationale for Correct Answer:

The exhibit shows an Alletra MP configuration delivering ~4.6 GB/s (256 KB sequential read) with four 10 Gb host ports. That throughput is close to the aggregate front-end bandwidth ceiling of 4×10 GbE (≈5 GB/s raw, less with protocol overhead). For large-block sequential workloads, the front-end link budget is often the bottleneck; adding additional 10 GbE ports (or moving to higher-speed links) increases available host bandwidth and raises sustained sequential read throughput. This aligns with HPE sizing guidance: scale host connectivity to meet sequential throughput targets before adding media.

Analysis of Incorrect Options (Distractors):

B: Adding a third node isn’t applicable to a 2-node HA block pair and would not address a front-end bandwidth limit.

C: More controller cores don’t raise link-level throughput if host I/O is already constrained by port bandwidth.

D: Adding NVMe media primarily boosts IOPS/parallelism; sequential read is bounded here by front-end ports.

Key Concept: Sequential throughput is front-end bandwidth bound; scale host ports to increase GB/s.

Detailed Explanation:

Rationale for Correct Answer:

In the exhibit, several paths show “Standby” and some appear “Dead”, while only a subset is Active (0). This typically indicates that one storage controller may be missing or offline, which reduces redundancy and can cause performance degradation. In a healthy Peer Persistence environment, both controllers should present active and non-optimized paths.

Distractors:

A & B: Having multiple active paths does not inherently reduce performance; in fact, MPIO load balances traffic. The issue here is path failures, not excessive active paths.

Key Concept: MPIO pathing in HPE Peer Persistence and controller health.

Detailed Explanation:

Rationale for Correct Answer:

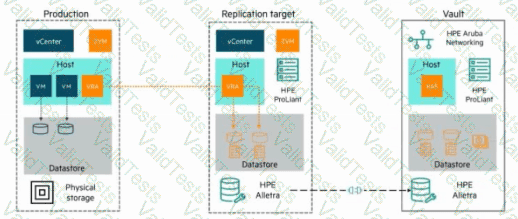

In the Zerto Vault architecture, production workloads replicate continuously to a Replication Target (secondary site). From there, data is further replicated periodically and encrypted into the Vault (air-gapped, isolated site). This two-step process ensures ransomware resilience and immutability, as the Vault acts as a hardened third copy.

Distractors:

A: Production-to-replication target traffic is continuous synchronous/asynchronous replication, not periodic. Periodic replication applies to Replication Target → Vault.

C: The Resilience Automation Server (RAS) is responsible for orchestrating failover and immutability enforcement, but it does not control port access between production and replication target.

D: Snapshots of Zerto components are not what is replicated — it’s application data VMs/volumes. The Vault ensures immutability of replicated data, not ZVM components.

Key Concept: Zerto Vault = encrypted, periodic replication from replication target to immutable vault.

Detailed Explanation:

Rationale for Correct Answer:

For HPC and AI/ML workloads, NFS over RDMA (Remote Direct Memory Access) provides significantly lower latency and reduced CPU overhead compared to standard NFS over TCP. This allows direct memory-to-memory data transfers between storage and compute nodes, bypassing the kernel network stack. In VAST Data (underpinning GreenLake for File Storage), NFS over RDMA is explicitly supported to accelerate shared dataset access in HPC and AI environments.

Distractors:

A: Standard NFS introduces more latency due to kernel TCP/IP stack overhead.

C: RoCE (RDMA over Converged Ethernet) is a transport layer technology — useful, but the protocol chosen for the file system must be NFS over RDMA, not just RoCE.

D: iSER (iSCSI Extensions for RDMA) enhances iSCSI block storage, not NFS file workloads.

Key Concept: NFS over RDMA for HPC/AI shared datasets.

Detailed Explanation:

Rationale for Correct Answer:

Option C is correct because HPE StoreOnce Virtual Lock technology provides immutability at the Catalyst store level, preventing backup data from being deleted or modified for a defined retention period. This ensures ransomware or malicious actors cannot encrypt, alter, or delete the protected backups, aligning with modern data protection requirements for immutability and compliance. In integration with Veeam v12, backups stored on StoreOnce Catalyst stores can be locked, creating an additional immutability layer beyond application-consistent snapshots.

Analysis of Incorrect Options (Distractors):

A: Virtual Lock is not a Veeam feature. While Veeam v12 supports immutability on certain storage backends (object lock-enabled S3, hardened Linux repositories), HPE Virtual Lock is specific to StoreOnce Catalyst stores, not Veeam job settings.

B: VMware vCenter datastores do not have a native immutability feature. Snapshots in vCenter can be deleted or corrupted during ransomware events, making this option incorrect.

D: HPE Alletra arrays support application-consistent snapshots and replication, but they do not provide the immutability guarantee that StoreOnce Virtual Lock enforces. Array-level snapshots can still be deleted if admin credentials are compromised.

Key Concept:

This question targets knowledge of HPE StoreOnce Virtual Lock — a feature designed to enforce immutability on Catalyst backup stores, making backup data resistant to deletion or alteration during ransomware or insider attacks.

Detailed Explanation:

Rationale for Correct Answer:

Alletra 6000 expansion shelves connect via 24G SAS back-end connectivity. The BOM must include the required SAS cables to properly attach the shelf. If only the shelf is listed, it’s incomplete — SAS connectivity accessories must be added.

Distractors:

B: The supported max capacity is higher than 138TB + 46TB, so it won’t exceed limits.

C: Expansion shelves don’t use OCP adapters; they rely on SAS backend ports.

D: QSFP+ DACs are used for front-end networking (iSCSI/FC), not SAS shelf expansion.

Key Concept: Alletra 6000 expansions require 24G SAS cables included in the BOM.

Detailed Explanation:

Rationale for Correct Answer:

Frequent cache misses occur when the working dataset does not fit effectively in cache. Increasing the flash-to-disk ratio ensures a higher portion of hot data is served from flash media rather than backend disk, reducing cache miss penalties. This is the standard HPE recommendation for read-intensive workloads where cache is insufficient.

Distractors:

A: Adding shelves adds capacity, not cache-to-data efficiency.

B: Upgrading controllers increases CPU, but not necessarily cache efficiency.

C: Pinned cache is intended for metadata or specific workloads, not large-scale read caching.

Key Concept: Flash-to-disk ratio optimization reduces cache misses.

Detailed Explanation:

Rationale for Correct Answer:

In Brocade (HPE B-Series) SAN switches, FCIP trunking allows multiple IP circuits to be aggregated. This increases bandwidth and provides resiliency (if one link fails, traffic continues over remaining paths). It is the correct statement regarding HPE’s FCIP feature set.

Distractors:

B: High availability still requires redundant fabrics; FCIP trunking alone doesn’t replace fabric design best practices.

C: FCIP can run over shared IP WANs; no need for dedicated links.

D: Encryption adds overhead; performance impact exists (although minimal with hardware offload).

Key Concept: FCIP trunking = bandwidth + availability for multisite SAN.

Detailed Explanation:

Rationale for Correct Answer:

The SAF (Storage Assessment Framework) requires engineers to manually email the collected assessment data to HPE for processing. This is different from fully automated tools like CloudPhysics or Backup assessments that integrate directly with portals. This distinction is important for new engineers performing customer assessments.

Distractors:

A: Backup assessments are usually tool-driven (StoreOnce, RMC, etc.) and automated.

C: Non-HPE assessments are outside scope and not part of HPE standard process.

D: CloudPhysics is fully automated and cloud-based — no manual email required.

Key Concept: SAF = requires manual email submission to HPE.
