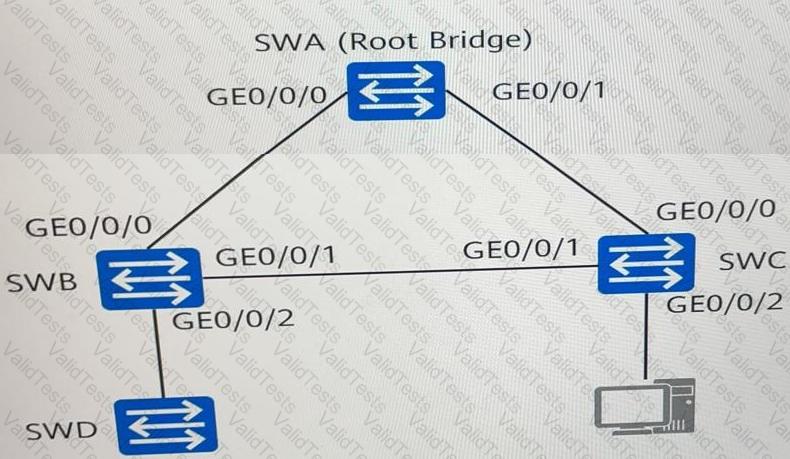

Edge ports are used in RSTP to bypass the spanning tree calculation for ports connected to end devices. By configuring ports like SWD's GE0/0/2 and SWC's GE0/0/2 as edge ports, they transition directly to the Forwarding state upon activation, ensuring faster convergence. Statement A is incorrect because receiving BPDU invalidates the edge port status ​.

Comprehensive and Detailed Step-by-Step Explanation:

BGP Router ID Behavior:

The router ID uniquely identifies a BGP device in the network.

If the router ID is changed, it is equivalent to creating a new BGP instance, and the existing BGP session is reset to establish a new peer relationship.

Impact of Router ID Change:

BGP peering relies on stable identifiers. Changing the router ID disrupts the TCP session and requires reestablishing the relationship.

References:

HCIA-Datacom Study Guide, Chapter: BGP Peer Relationships

Huawei BGP Configuration Best Practices

Comprehensive and Detailed In-Depth Explanation:

OSPF network types affect how protocol packets (Hello, LSA updates) are transmitted:

NBMA (Non-Broadcast Multi-Access) networks (e.g., Frame Relay) do not support multicast, so routers must unicast OSPF packets to neighbors.

Broadcast networks (e.g., Ethernet) support multicast and use 224.0.0.5 for Hello packets and 224.0.0.6 for DR/BDR communication.

The statement is false because:

NBMA does not unicast all packets—only Hello packets must be manually configured to be unicast.

LSAs and routing updates can still be multicast if an NBMA network is configured as point-to-multipoint.

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Network Types and Packet Transmission.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is L2TP (Layer 2 Tunneling Protocol)?

L2TP is a tunneling protocol used to transport Layer 2 frames over IP networks.

It is commonly used to establish VPNs but does not provide built-in encryption or security for the transmitted data.

2. Why L2TP Requires Additional Security Measures:

Since L2TP does not encrypt traffic, it is vulnerable to eavesdropping and tampering.

To secure L2TP tunnels, it is often paired with IPsec, which provides strong encryption and authentication. The combination of L2TP and IPsec is known as L2TP/IPsec.

3. Why the Statement is TRUE:

The statement accurately describes the limitation of L2TP (lack of encryption) and the need for additional security measures like IPsec.

Routing Entries in PIM

(S, G) entries: Represent the shortest path tree (SPT) from a specific source (S) to a specific multicast group (G). These entries are created after data packets are transmitted directly from the source to the receivers.

(S, G) entries are used in both PIM-DM and PIM-SM modes.

PIM-DM and PIM-SM Modes

In PIM-DM, multicast traffic is initially flooded throughout the network and pruned where no receivers exist. (S, G) entries represent source-specific paths created after the flooding stage.

In PIM-SM, multicast traffic initially flows through a shared tree, but (S, G) entries are created when the network switches to the SPT for more efficient forwarding.

HCIP-Datacom-Core Reference

The functionality and application of (S, G) routing entries are detailed in multicast and PIM configuration chapters​​.

By default, BGP does not automatically summarize imported routes. Route summarization must be explicitly configured using the summary or similar commands ​.

Secure access channels include protocols that encrypt the transmitted data to protect against interception or unauthorized access. HTTPS (HyperText Transfer Protocol Secure) ensures data encryption over web communications, while SFTP (Secure File Transfer Protocol) provides secure file transfer by utilizing SSH for data encryption. Telnet and SNMPv2, on the other hand, lack robust encryption and are considered insecure. Huawei security standards highlight the importance of encrypted communication to prevent data leaks ​.

Comprehensive and Detailed Step-by-Step Explanation:

Analysis of VRRP Configuration:

Option A (Preemption): Correct. The output explicitly states that preemption is enabled.

Option C (Authentication): Correct. Authentication is enabled using MD5.

Option D (Group ID): Correct. The VRRP group ID is explicitly stated as 1.

False Statement:

Option B (mVRRP Group): The output does not indicate this is an mVRRP (Multicast VRRP) group. This feature must be explicitly configured and is not enabled by default.

References:

HCIA-Datacom Study Guide, Chapter: VRRP Configuration Details

Huawei VRRP Command Reference

The election of a Designated Router (DR) and Backup Designated Router (BDR) occurs during the OSPF network's initial setup or upon the failure of an existing DR. A new router joining an OSPF network does not automatically preempt the current DR, even if it has the highest priority. DR and BDR elections are not preemptive. The other statements are correct regarding OSPF DR/BDR election processes ​.

Policy-Based Routing (PBR) on interfaces is used to forward traffic based on specific policies rather than the routing table. However, PBR is not suitable for modifying the next-hop of locally originated traffic. Other scenarios listed are typical use cases for interface PBR ​.
