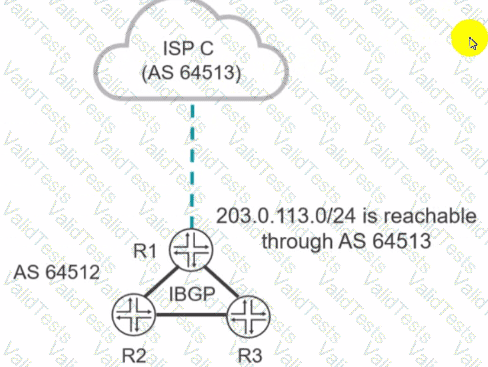

A route being hidden in BGP usually indicates a configuration that prevents it from being used, such as a next-hop that is not reachable.

B. Configuring a routing policy on R1 that sets the next-hop to the address used for IBGP peering ensures reachability of the next-hop within the local AS.

D. Applying the correct routing policy as an export policy to the IBGP group on R1 will share the route with the IBGP peers, in this case, R2 and R3.

When deploying Link Aggregation Groups (LAGs), it is necessary for all ports in the LAG to operate at the same speed to ensure consistent performance and avoid issues with load balancing. Multi-Chassis LAG (MC-LAG) allows for the use of member links that span multiple physical devices, offering redundancy and higher bandwidth by combining the links from two separate devices into a single logical LAG.

References

Juniper Networks Technical Documentation on Link Aggregation Groups

Juniper Networks Technical Documentation on MC-LAG

To create connections between routing instances on the same Junos device and route between them, you can use logical tunnel interfaces, which are virtual interfaces that can be used to route traffic between instances without the need for physical connectivity. Additionally, loopback interfaces, which represent the device itself, can be used to route traffic between routing instances as they are always up and can be reached within the device.

References

Juniper Networks Technical Documentation on Routing Instances

Juniper Networks Technical Documentation on Logical Tunnel Interfaces

The FE80::/10 prefix is reserved for IPv6 link-local addresses. These addresses are auto-configured on all IPv6-enabled interfaces and can be used for communication within the local link (subnet) only.

References

Juniper Networks Technical Documentation on IPv6 Addressing

To configure OSPFv3 (the version of OSPF that supports IPv6), you would use the set protocols ospf3 command with the appropriate area and interface. OSPFv3 requires a 32-bit router ID just like OSPFv2, which is typically an IPv4 address. OSPF does not use a 128-bit router ID, so answer D is incorrect.

With Label Distribution Protocol (LDP), a full mesh of label-switched paths (LSPs) is automatically created between all LDP-enabled routers, and these paths are reflected in the inet.3 table. LDP LSPs are set up when LDP is enabled on interfaces connecting routers in an MPLS network.

The IPv6 header includes a new field that is not found in the IPv4 header, called the flow label. The flow label in IPv6 is used to identify packets that require special handling by routers for quality of service (QoS) or other reasons, allowing these packets to be handled efficiently as they move through the network.

References

Juniper Networks Technical Documentation on IPv6

IPv6 Header Fields - Juniper Networks

In VRRP (Virtual Router Redundancy Protocol), the router with the highest priority is elected as the master (primary) router. In the exhibit, routers R1 and R4 are both configured with a VRRP priority of 90. Since R2 and R3 have default priorities (which are lower than 90), they will not be elected over R1 or R4. Between R1 and R4, if all else is equal, the router with the numerically higher IP address becomes the master. However, if not enough information is provided to determine which of R1 or R4 has the higher IP address, the answer would be the one explicitly mentioned with the highest priority.

You can see area 0.0.0.1 set for one interface and area 0.0.0.0 for the other interface. This means the router communicates in the backbone and area 1, thus it is an ABR.

Default hello timer and dead intervals are configured

hello-interval—Specifies the length of time, in seconds, before the routing device sends a hello packet out of an interface. By default, the routing device sends hello packets every 10 seconds. The range is from 1 through 255 seconds.

dead-interval—Specifies the length of time, in seconds, that the routing device waits before declaring that a neighboring routing device is unavailable. This is an interval during which the routing device receives no hello packets from the neighbor. By default, the routing device waits 40 seconds (four times the hello interval). The range is 1 through 65,535 seconds.

https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/topic-map/configuring-ospf-timers.html#:~:text=The%20hello%20interval%20and%20the,devices%20on%20a%20shared%20network .

C. The R2 device is shown as having interfaces in two different OSPF areas (Area 0 and another area not specified), which makes it an Area Border Router (ABR).

D. The OSPF hello and dead intervals are set to their default values of 10 and 40 seconds, respectively.

https://www.juniper.net/documentation/us/en/software/junos/mpls/topics/topic-map/lsp-routers.html

In an MPLS network, the types of routers include ingress routers (where the MPLS labels are first applied), egress routers (where MPLS labels are removed), and transit routers (which switch MPLS-labeled packets through the MPLS network). Peering routers and aggregation routers are not specific types of MPLS routers; they are general network terms.
