 Creating AP groups for each location allows for the mapping of specific VLANs to an internal SSID tailored for that area. This approach enables clients to be on different subnets based on their building location within a single controller environment.

https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-vlan/71477-ap-group-vlans-wlc.html

To support VoWLAN services and provide roaming recommendations to supported voice clients without impacting non-VoWLAN clients, the feature that should be enabled on the VoWLAN SSID is 802.11k neighbor lists. This feature allows APs to provide information about neighboring APs that are candidates for roaming, which helps clients make better decisions about when and where to roam. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice

 The wireless architecture described is a centralized deployment. This is characterized by access points distributed across multiple buildings and managed centrally by Wireless LAN Controllers (WLCs). Centralized deployments are common in larger environments like a technology company campus because they allow for centralized management, scalability, and advanced features such as load balancing and fault tolerance.

References:

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide Premium Edition and Practice Tests

 In a wireless network design where redundancy is required for guest access, setting different priorities for the anchor controllers ensures that one serves as the primary and the other as a backup. Anchor A, being the primary controller, should have a higher priority (lower numerical value), making it the preferred choice for guest WLAN connections. Anchor B, as the secondary or backup controller, should have a lower priority (higher numerical value) so that it is used only if Anchor A fails. This approach provides a failover mechanism for guest access in the DMZ.

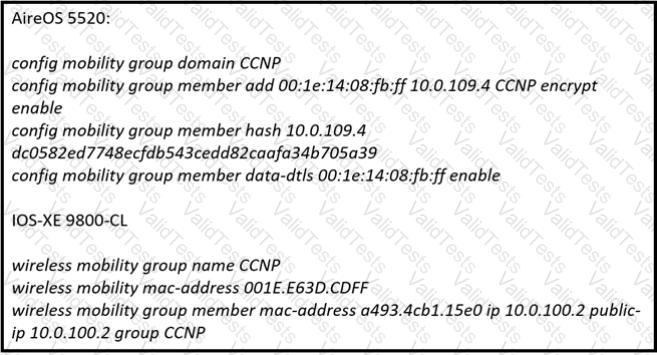

The data path issue between the Cisco Catalyst 9800-CL and AireOS 5520, despite an active control path, is likely due to encrypted mobility being enabled on the AireOS 5520. Encrypted mobility requires both peers to have a matching configuration for encryption, which includes proper certificates and shared secrets. If there’s a mismatch, the control path may be established, but the data path can fail due to the inability to establish an encrypted tunnel.

An RSSI value of -77 dBm is within the range that a 5 GHz radio can receive and decode, provided it’s not below the RX-SOP threshold set for the RF profile. Since the RF profile is set to Medium for 802.11a, which operates in the 5 GHz band, the AP’s 5 GHz radio will decode the frames.

In a hospital setting, the kitchen is a common source of 2.4 GHz RF noise due to the use of microwave ovens which operate on the same frequency. X-ray radiography equipment, while primarily using higher frequency ranges, can also contribute to RF noise in both the 2.4 GHz and 5 GHz bands due to electronic components and shielding inefficiencies. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

https://www.ciscopress.com/articles/article.asp?p=2351131 &seqNum=2

A Patch antenna should be used to provide wireless coverage on the perimeter of a building while minimizing signal leakage. Patch antennas have a directional radiation pattern that can be focused along the perimeter.

https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/industrial-routers-and-industrial-wireless-antenna-guide/ANT-MP-INT-OUT-M.html

 Cisco Hyperlocation requires a high degree of accuracy in client location tracking. A recommended cell overlap of 50% ensures that client devices are consistently within the range of multiple access points, which improves location accuracy and reliability. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 In a mining facility, especially within mine shafts where the environment can be long and narrow, an omnidirectional antenna is typically used for a Layer 2 survey. This type of antenna radiates RF signal equally in all directions, providing coverage along the length of the shaft.
