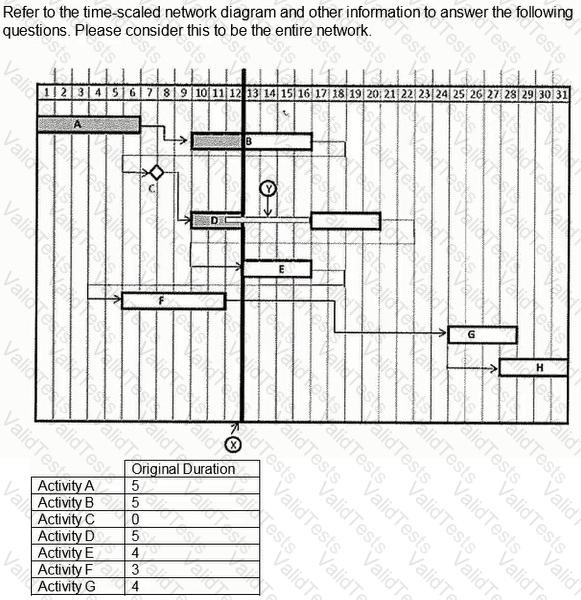

The time-scaled diagram shows that Activity H starts immediately after the finish of Activity G.
This is indicative of a Finish-to-Start (FS) relationship.
Cross-Verification:
Option A: Incorrect. The relationship is visible in the diagram.
Option B: Incorrect. There is no evidence of a Start-to-Start (SS) relationship.
Option D: Incorrect. Finish-to-Finish (FF) is not applicable here.
Option C: Correct. FS relationship matches the network logic.
