Cisco CCNP Data Center 300-620 Question # 34 Topic 4 Discussion
300-620 Exam Topic 4 Question 34 Discussion:
Question #: 34
Topic #: 4

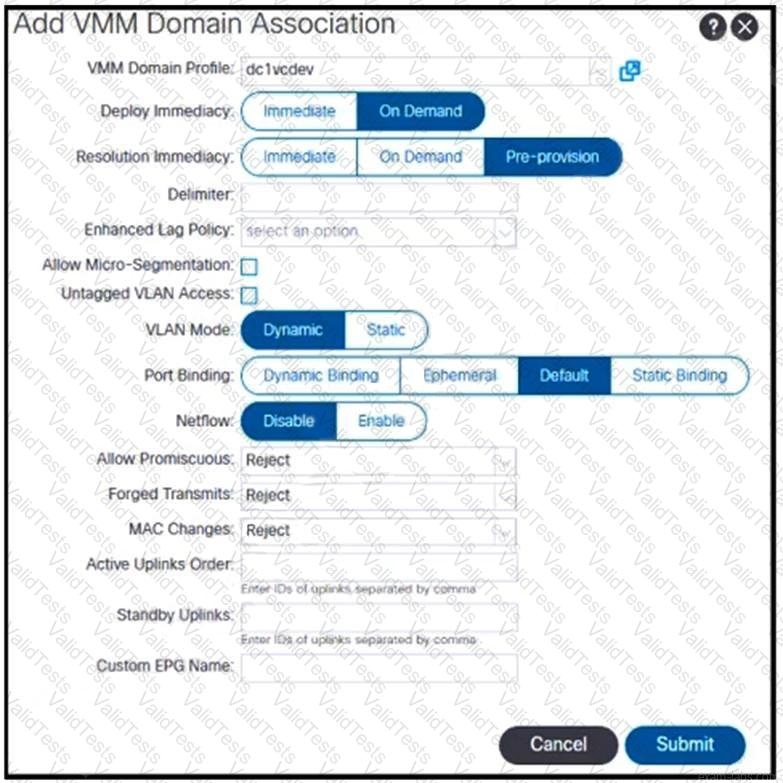

Refer to the exhibit. The EPG-100 must be extended to the vCenter as a port group with a tagged VLAN ID of 100. Which set of actions accomplishes this goal?
A.
Define a static VLAN range (from 100-200) under a VLAN pool that is associated with the dc1vcdev domain.
Associate the dc1vcdev domain with EPG and select these settings:
Untagged VLAN Access: unselected
VLAN Mode: Static with Encap: 100
B.
Define a static VLAN range (from 100-200) under a VLAN pool that is associated with the dc1vcdev domain.
Associate the dc2vcdev domain with EPG and select these settings:
Untagged VLAN Access: selected
VLAN Mode: Static with Encap: 100
C.
Define a dynamic VLAN range (from 100-200) under a VLAN pool that is associated with the del vdev domain.
Associate the dc1vcdev domain with EPG and select these settings:
Untagged VLAN Access: unselected
VLAN Mode: Static with Encap: 100
D.
Define a dynamic VLAN range (from 100-200) under a VLAN pool that is associated with the dc1vdev domain.
Associate the dc2vcdev domain with EPG and select these settings:
To extend the EPG-100 to the vCenter as a port group with a tagged VLAN ID of 100, the following actions should be taken:
Define a static VLAN range (from 100-200) under a VLAN pool: This step involves creating a VLAN pool that includes the desired VLAN range. The VLAN pool is then associated with the VMM domain that corresponds to the vCenter integration1.
Associate the dc1vcdev domain with EPG: The VMM domain named ‘dc1vcdev’ should be associated with the EPG-100. This association allows for the automatic creation of port groups in vCenter when the EPG is associated with a VMM domain1.
Select the appropriate settings for the domain association:
Untagged VLAN Access: This should be unselected because the VLAN ID needs to be tagged.
VLAN Mode: Set to ‘Static’ to specify the encapsulation VLAN ID.
Encap: Set to ‘100’ to define the specific VLAN ID that should be tagged for the port group1.
Chosen Answer:
