 To limit management access to the Cisco ACI fabric that originates from a single subnet where the NOC operates, the policy should be configured in the management tenant on the Cisco APIC5.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/ apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_0111.html

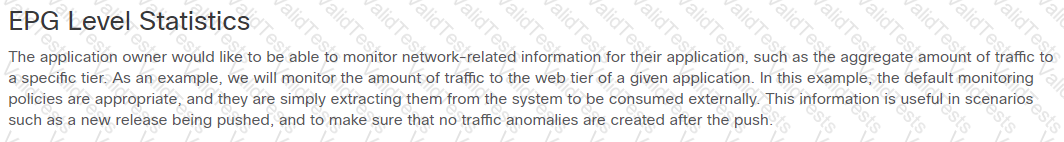

To monitor the statistics of unicast and BUM traffic seen in a certain EPG, the collection of statistics must be enabled at the EPG level. This is done by enabling the statistics specifically for unicast and BUM traffic within the EPG settings3.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_01011.html

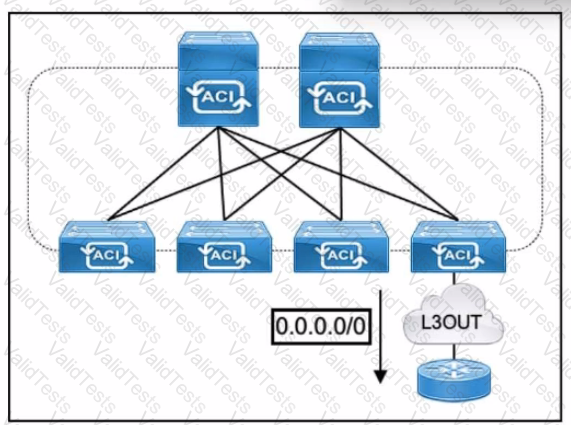

For external connections to the fabric that only require a default route, there is support for originating a default route for OSPF, EIGRP, and BGP L3Out connections. If a default route is received from an external peer, this route can be redistributed out to another peer following the transit export route control as described earlier in this article. A default route can also be advertised out using a Default Route Leak policy. This policy supports advertising a default route if it is present in the routing table or it always supports advertising a default route. The Default Route Leak policy is configured in the L3Out connection. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L3_config/b_Cisco_APIC_Layer_3_Configuration_Guide/b_Cisco_APIC_Layer_3_Configuration_Guide_chapter_010100.html

To securely back up the current Cisco ACI configuration to a remote location with encryption and authentication, and ensure that sensitive information is not exported, the following steps should be taken:

Create a Remote Location: Define a remote location where the backup will be stored. This involves specifying the hostname or IP address of the remote server and selecting the protocol (SCP/FTP/SFTP) to be used1.

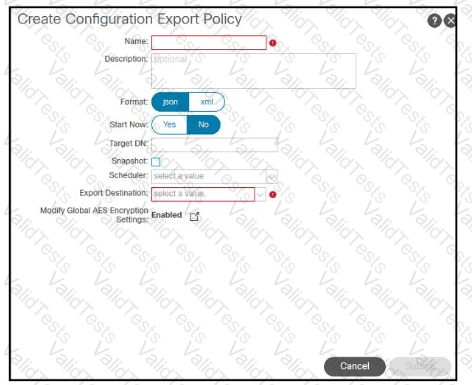

Create a Configuration Export Policy: Set up an export policy that defines the format (XML/JSON) and the destination for the backup. This policy will also include the schedule for the backup to run once per day1.

Configure Global AES Encryption: To ensure that the backup is encrypted, configure the Global AES Encryption setting. This will allow for hashed secure properties, such as passwords and certificates, to be exported in an encrypted form. It’s important to configure a passphrase that is at least 16 characters long for the encryption1.

Schedule the Backup Job: Use the scheduler to set up the backup job to run once per day. This ensures that the backup process is automated and adheres to the customer’s security policy1.

Exclude Sensitive Information: To comply with the security policy that mandates sensitive information not be exported, ensure that the configuration export policy is set to exclude secure fields unless encryption is enabled1.

References :=

Cisco Guide on Creating a Backup for Your APIC Cluster1

Cisco Community Discussion on Backing Up ACI Configuration2

To migrate the gateway address out of the ACI fabric for an endpoint group (EPG), the bridge domain configuration must ensure that routing is contained within the ACI fabric and that ARP requests are managed efficiently. The correct configuration set is:

L2 Unknown Unicast: Set to Hardware Proxy. This setting allows the ACI fabric to use the spine proxy function to handle unknown unicast traffic, which helps to reduce flooding within the fabric.

Unicast Routing: Set to Disabled. Since the gateway is being migrated out of the ACI fabric, unicast routing should be disabled to prevent the ACI fabric from attempting to route traffic for the EPG.

ARP Flooding: Set to Enabled. This allows ARP requests to be flooded within the bridge domain, which is necessary when the unicast routing is disabled, to ensure that ARP requests can still be resolved.

References :=

Cisco ACI Bridge Domain Configuration Guide

Cisco ACI Best Practices Guide

 To export all configuration parameters necessary for disaster recovery in Cisco ACI, the setting that must be enabled is enabled JSON format export1. This format allows for a complete and structured export of the configuration that can be used for recovery purposes1.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/ b_KB_Using_Import_Export_to_Recover_Config_States.html

The true statement regarding ACI Multi-Pod and TEP pool is that the same TEP pool is used in all Pods. This shared TEP pool ensures consistent addressing and simplifies the management of the overlay network across multiple Pods.

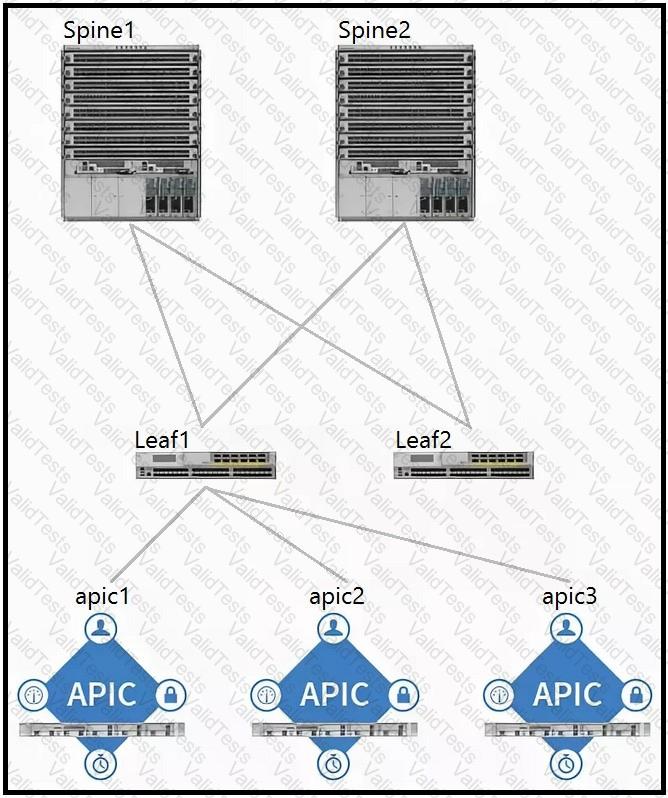

 In a Cisco ACI fabric, the spine switches are typically configured as route reflectors. This is because spine switches are central to the fabric’s architecture and are responsible for interconnecting all the leaf switches, making them ideal for reflecting BGP routes within the fabric. Therefore, the components that should be configured as route reflectors are:

Spine1 (Option A)

Spine2 (Option C)

The question asks which switch type is discovered first in the Cisco ACI fabric discovery process. The ACI fabric consists of spine and leaf switches, and the discovery process is a critical initial step to establish the fabric topology. Let’s analyze this based on Cisco ACI documentation.

Requirement Analysis

The ACI fabric discovery process involves the Application Policy Infrastructure Controller (APIC) identifying and registering switches to form the network topology.

The process relies on protocols like Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) to detect connected devices.

The sequence of discovery is determined by the physical connectivity and the role of switches in the fabric.

Option Evaluation

A. leaf:

In the Cisco ACI fabric, the discovery process begins with the leaf switches. When the APIC is powered on and connected to the fabric, it first discovers the leaf switches directly attached to it or other initial points of connectivity. Leaf switches are the access layer devices that connect endpoints and are the starting point for fabric topology discovery. Once leaf switches are identified, they assist in discovering the spine switches.
