The COOP (Council Of Oracle Protocol) database is located on each spine switch within the Cisco ACI fabric. The COOP database is responsible for maintaining a consistent copy of endpoint address and location information across the fabric

When the default gateway for endpoints is on an external device instead of a Cisco ACI bridge domain Switched Virtual Interface (SVI), the unicast routing feature should be disabled on the bridge domain. This prevents the ACI fabric from attempting to route traffic for the endpoints, which should instead be directed to the external default gateway.

 In the process of discovering a new Cisco ACI fabric, after the discovery of leaf 1 has been completed, the next nodes expected to be discovered are the spine switches. This is because the spines are typically connected to the leaf switches and play a central role in the fabric’s topology6.

The import mode that must be used to ensure that the import process terminates if the imported configuration is incompatible with the existing system is the ‘atomic’ mode. This mode ignores shards that contain objects that cannot be imported while proceeding with shards that can be imported. If the incoming configuration’s version is incompatible with the existing system, the import process will terminate2.

When traffic is received from a Layer 3 Out (L3Out) on the ingress leaf switch in a Cisco ACI fabric, the source IP address of the traffic is learned as a remote endpoint. This is because the traffic is entering the ACI fabric from an external network, and the source IP is considered remote to the fabric.

In a Cisco ACI Multi-Site setup, back-to-back spine connectivity is limited to a direct connection between two sites. This design simplifies inter-site communication by avoiding the need for an intermediate Inter-Pod Network (IPN) or Multi-Site Orchestrator.

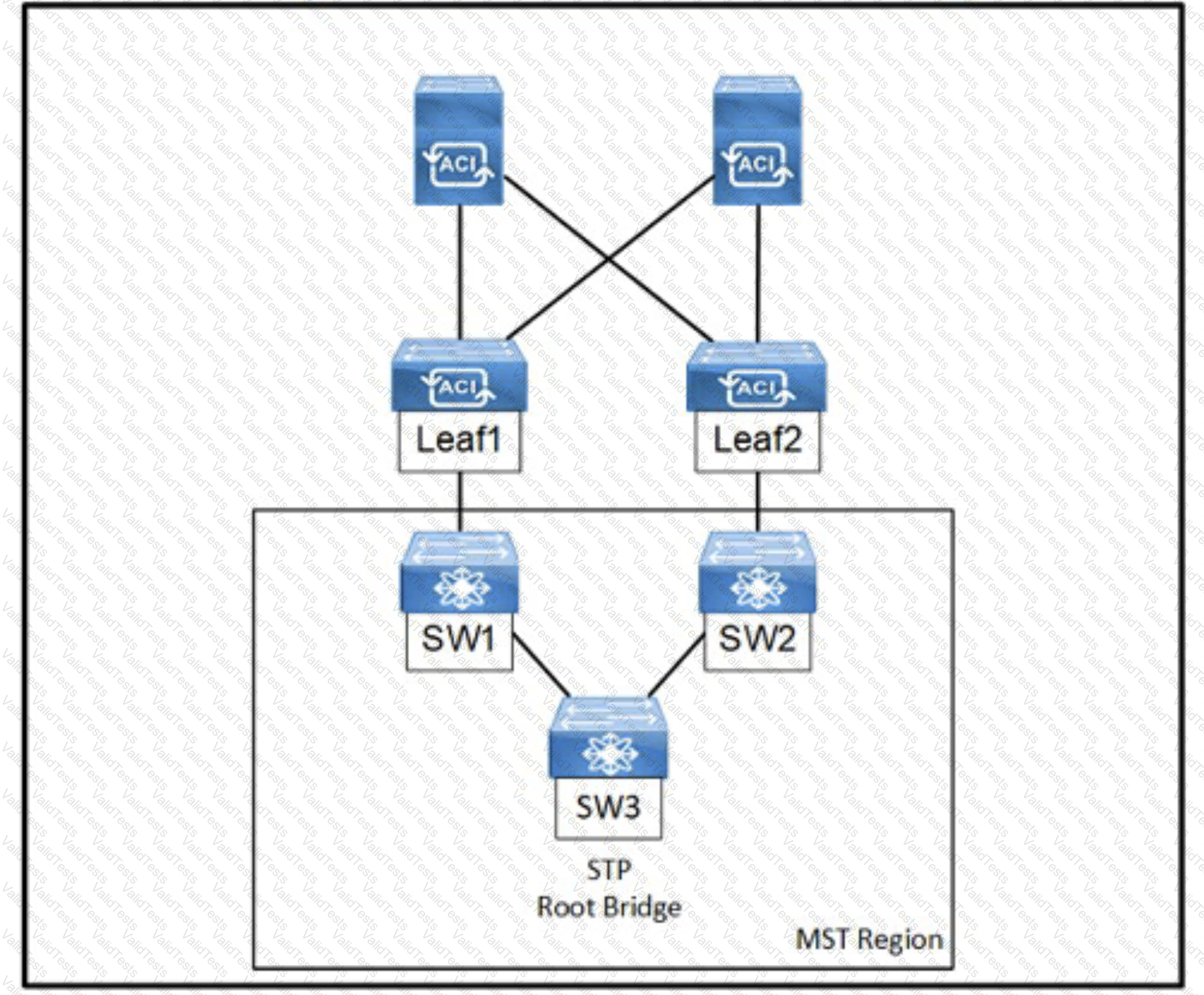

To break the STP loop between switch1 and switch2 in a Cisco ACI environment, enabling BPDU filtering on the interfaces facing the MST (Multiple Spanning Tree) switches is the necessary step. BPDU filtering prevents BPDUs from being sent or received through a port, which effectively stops the STP process on those ports and breaks the loop1.

When BPDU filtering is enabled on an interface, the switch does not send any BPDUs and ignores any BPDUs it receives on that interface. This can be used to prevent unwanted STP negotiations on ports where loops are not expected to happen or where STP is not desired1.

References :=

Use of ACI Operation with L2 Switches and Spanning Tree Link Types - Cisco1

When the client endpoint and the service node interface are in different subnets, the Adjacency Type value should be set to Routed. This setting is used to indicate that routing is required between the client endpoint and the service node interface, as they are not in the same Layer 2 broadcast domain and need Layer 3 routing to communicate.

To complete the task of configuring a Layer 3 connection to the WAN router and allowing hosts in the production VRF to access WAN subnets, the engineer should configure the Export Route Control Subnet scope for the external EPG. This setting allows the subnets associated with the external EPG to be advertised to external routers, enabling connectivity to the WAN.

When the Cisco ACI fabric has a stale endpoint entry for the destination endpoint, the traffic flow is affected in that the leaf switch floods the traffic to the endpoint throughout the fabric (Option C). This flooding occurs because the leaf switch does not have the correct location of the endpoint in its endpoint table, leading it to flood the traffic in an attempt to reach the destination.
