The two IP address types that are available for transport over the Inter-Site Network (ISN) when they are configured from Cisco ACI Multi-Site Orchestrator (MSO) are the Anycast Overlay Multicast Tunnel Endpoint (TEP) and the MP-BGP EVPN Router-ID. These IP addresses are used for inter-site communication and routing in a Multi-Site deployment.

Storm control should be configured on port channel on a single leaf switch (Option B) and endpoint-facing trunk interface (Option D) to protect against broadcast traffic6. These interfaces are where storm control policies are typically applied to prevent disruptions caused by traffic storms6.

 To determine if a change in the behavior of the ACI fabric was due to human intervention, an ACI administrator should inspect the audit logs in the APIC UI. The audit logs provide a record of all user events, which includes actions performed by users, making it possible to trace any changes back to specific human activities1.

To set Layer 2 loop migration in an ACI Fabric with a Layer 2 Out configured, MCP (Misconfiguration Protocol) must be enabled on the ACI fabric56. MCP helps to prevent Layer 2 loops by detecting misconfigurations that could potentially cause loops56.

 When two interface protocol policies need to be used together in a single policy, the ACI object that must be used is an interface policy group

An EPG is extended outside of the ACI fabric by statically assigning a VLAN ID to a leaf port in an EPG. This method maps the traffic received on the leaf port to the EPG, and the policy for this EPG is enforced

To move the gateway address for VLAN 1001 from the core outside the Cisco ACI fabric into the Cisco ACI fabric and ensure that endpoints in EPG-1001 route traffic to endpoints in other EPGs while minimizing flooded traffic in the fabric, the following configuration set is needed on the bridge domain:

Enable Hardware Proxy: This step involves enabling the hardware proxy feature, which allows the fabric to learn and maintain endpoint information more efficiently7.

Enable Unicast Routing: This step involves enabling unicast routing within the bridge domain, which allows for the routing of traffic between different EPGs and minimizes flooded traffic

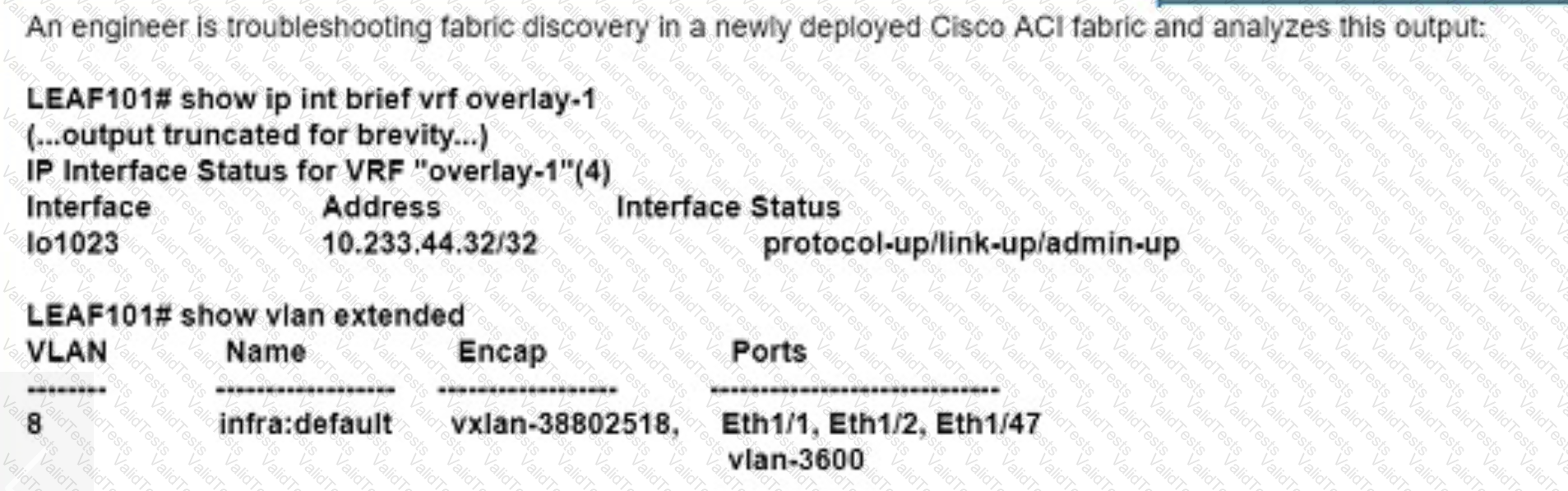

In Cisco ACI, the interface lo1023 is assigned as a fabric tunnel endpoint (FTEP). This is a pervasive address found on every leaf and it’s always the same. It is used mostly for AVS (Application Virtual Switch) when the infra VXLAN is extended out of the fabric1. The FTEP is crucial for the internal operation of the fabric, particularly for scenarios where the infrastructure VXLAN needs to be extended outside of the ACI fabric.

References :=

Default IP interfaces on Fabric nodes - Cisco Community1

To support cross-site connectivity in a production Multi-Site solution, where connectivity from EPGs from a specific site to networks reachable through a remote site L3OUT is required, the additional configuration that must be implemented in the Multi-Site Orchestrator is to add a new stretched external EPG to the existing L3OUT1. This allows the EPGs from one site to communicate with the networks defined in the L3OUT at the remote site, facilitating the required connectivity across sites.

References :=

Cisco ACI Multi-Site Configuration Guide1
