The Cisco APIC configuration that prevents a remote network that is not configured on the bridge domain from being learned by the fabric is to enable Limit IP Learning to Subnet2. This setting restricts IP address learning to only those subnets that are defined on the bridge domain2.

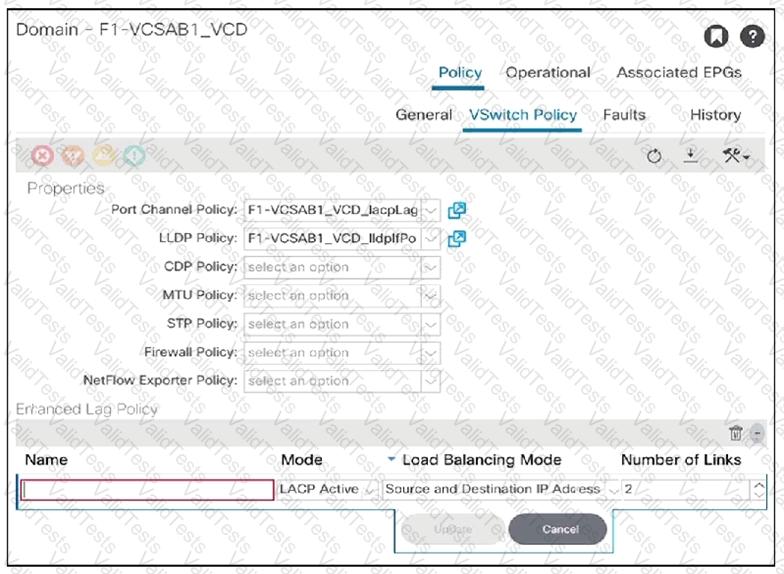

To meet the server team’s requirements for VMM integration with ESXi servers, the two enhanced LAG policies that should be configured are:

LB Mode: Destination IP Address and TCP/UDP Port (Option B): This load balancing mode ensures that traffic is evenly distributed across all available links based on the destination IP address and the TCP/UDP port numbers, which can provide a balanced traffic flow for different sessions.

LACP Mode: LACP Active (Option E): Setting the LACP mode to active allows the network switches to initiate the LACP negotiation, which is necessary when the servers are not configured to initiate the LACP process.

These settings ensure that the LAG group consisting of two 10 Gigabit Ethernet links will have traffic evenly distributed across them and that the network switches will initiate the LACP negotiation as required by the server team.

The two actions that extend a Layer 2 domain beyond the ACI fabric are extending the bridge domain out of the ACI fabric (Option D) and extending the EPG out of the ACI fabric (Option E)34. Extending the bridge domain involves creating a Layer 2 outside connection, while extending the EPG involves statically assigning a port with a VLAN ID to an EPG34.

To extend the EPG-100 to the vCenter as a port group with a tagged VLAN ID of 100, the following actions should be taken:

Define a static VLAN range (from 100-200) under a VLAN pool: This step involves creating a VLAN pool that includes the desired VLAN range. The VLAN pool is then associated with the VMM domain that corresponds to the vCenter integration1.

Associate the dc1vcdev domain with EPG: The VMM domain named ‘dc1vcdev’ should be associated with the EPG-100. This association allows for the automatic creation of port groups in vCenter when the EPG is associated with a VMM domain1.

Select the appropriate settings for the domain association:

Untagged VLAN Access: This should be unselected because the VLAN ID needs to be tagged.

VLAN Mode: Set to ‘Static’ to specify the encapsulation VLAN ID.

Encap: Set to ‘100’ to define the specific VLAN ID that should be tagged for the port group1.

References :=

Cisco APIC Layer 2 Networking Configuration Guide1

Cisco APIC Layer 2 Networking Configuration Guide1

When extending an EPG out of the ACI fabric using static path binding, it is true that external endpoints are in the same EPG as the directly attached endpoints8. This means that traffic received on a statically bound leaf port with a specific VLAN ID is mapped to the EPG, and the same policies applied to directly attached endpoints are enforced on the external endpoints8.

 In a Cisco ACI Multi-Pod environment with active-active data centers and active-standby firewalls in each data center, enabling Pod ID Aware Redirection is the action that should be taken to maintain traffic symmetry through the firewalls. This feature ensures that traffic is consistently directed through the active firewall based on the pod identifier, thus maintaining the desired traffic flow and symmetry2.

References :=

Cisco ACI Multi-Pod and Service Node Integration White Paper

In Cisco ACI, when a service graph is deployed under one tenant (e.g., Operations) and needs to be referenced by another tenant (e.g., Management), the Layer 4-Layer 7 (L4-L7) device export action is used. This allows the firewall or other L4-L7 devices defined in the service graph to be shared across tenants. By exporting the L4-L7 device, the configuration enables the Management tenant to reference and use the firewall deployed in the Operations tenant.

https://www.cisco.com/c/en/us/td/docs/dcn/aci/apic/5x/security-configuration/cisco-apic-security-configuration-guide-release-52x/protocol-authentication-52x.html

To support a new application that is sensitive to latency and jitter and sets the DSCP values of packets to AF31 and CS6, it is necessary to align the ACI Quality of Service (QoS) levels and Inter-Pod Network (IPN) QoS policies. This alignment ensures that the DSCP values are preserved and respected across the ACI fabric and the IPN, preventing packets from being delayed or dropped between pods.

References :=

Cisco ACI Multi-Site Architecture White Paper

Cisco ACI Best Practices Guide

Cisco ACI Quality of Service Configuration Guide

To backup the PRODUCTION tenant configuration on the APIC using a markup language and include all secure information, the network engineer must use an export policy that allows for exporting in a markup language format such as XML or JSON and includes secure attributes. In this case, the correct export policy is Option A, which shows an interface with “Export-Tenant-Production” where the format can be selected as ‘xml’ or ‘json’, and there is an option to modify global AES encryption settings, indicating that secure information can be included in the backup.

References :=

Cisco Application Policy Infrastructure Controller (APIC) - Cisco APIC

Cisco Application Centric Infrastructure Best Practices Guide - Cisco ACI Design Guide

The image shows a graphical user interface for an export policy named “Export-Tenant-Production.” The interface provides options to select the format of the backup (either ‘json’ or ‘xml’), whether to start now with options ‘Yes’ or ‘No’, a field for Target DN with ‘/tn-PRODUCTION’ filled in, a scheduler dropdown menu, and a checkbox for modifying global AES encryption settings which is enabled. This image is relevant because it depicts how to configure an export policy on Cisco’s APIC to backup tenant configurations securely.
