A network administrator is implementing IGMP to enable multicast feed transmission to the receiver. Which configuration must the administrator deploy on GW1 to permit IGMP Joins only to the assigned (S, G) feed?
Option A corresponds to the desired configuration. It uses an access-list to permit IGMP joins for the specific multicast group 239.10.10.10 from the source 172.20.20.3.

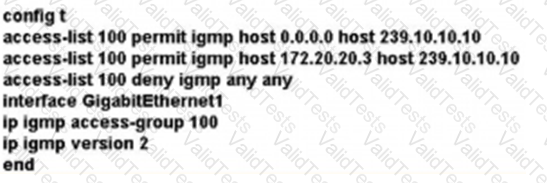

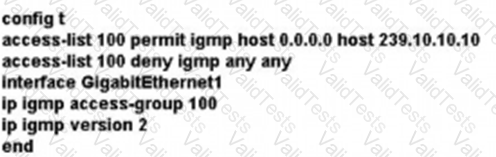

Options B, C, and D do not match the desired configuration. They either allow all IGMP traffic or do not specify the correct source and group addresses.
References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) source book
