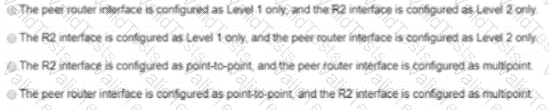

The issue with establishing an IS-IS adjacency between the two routers stems from a mismatch in the configuration of their interfaces. Router R2’s interface is set to point-to-point, while the peer router interface is set to multipoint. For IS-IS adjacencies to form, both interfaces must be configured with the same network type. The discrepancy in the network types is preventing the adjacency from being established. To resolve this, the network operator must ensure that both interfaces are either configured as point-to-point or as multipoint. References := Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

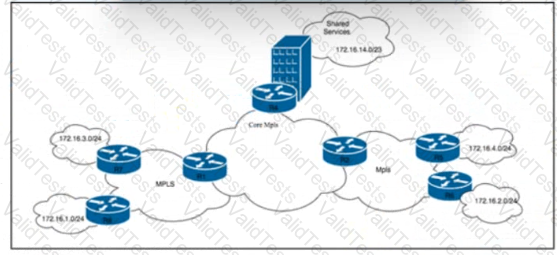

To ensure multiple paths toward the hosting-as-a-service solution and basic protection against traffic black-holing in case of link failure, the engineering team should:

B. Configure the fast-reroute per-prefix command for the IS-IS protocol in the MPLS network. This action enables fast reroute, which is a mechanism to quickly switch over to a backup path in case the primary path fails, without waiting for the routing protocol to converge.

D. Configure the mpls ldp sync command in the MPLS network with the BGP additional-paths receive and additional-paths send options. MPLS LDP (Label Distribution Protocol) synchronization ensures that a label-switched path (LSP) is not used for forwarding traffic until all routers along the path have signaled that they have label information for that LSP. The BGP additional-paths feature allows for the advertisement of multiple paths for the same prefix, providing path diversity and redundancy.

The Forward Error Correction (FEC) field within the OTN (Optical Transport Network) signal structure is responsible for error correction. When data arrives at the receiver, the FEC field helps correct any errors that may have occurred during transmission. It enhances the reliability of optical communication by detecting and rectifying errors.

References: Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

Cisco Internetwork Operating System (IOS) is the software used on most Cisco Systems routers and current Cisco network switches. IOS is a package of routing, switching, internetworking and telecommunications functions integrated into a multitasking operating system. IOS uses a monolithic architecture, meaning that all processes run in a single address space, making it a single-image system.

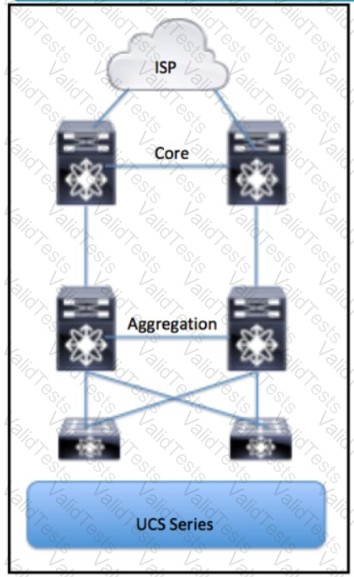

In the context of Cisco’s Implementing and Operating Service Provider Network Core Technologies, the UCS Series is typically where OpenStack components would be hosted. OpenStack is a cloud operating system that controls large pools of compute, storage, and networking resources throughout a data center, all managed through a dashboard that gives administrators control while empowering their users to provision resources through a web interface.

References: Cisco SPCOR training materials and documentation provide detailed information on the implementation and operation of service provider technologies, including the hosting of OpenStack components on the UCS Series.

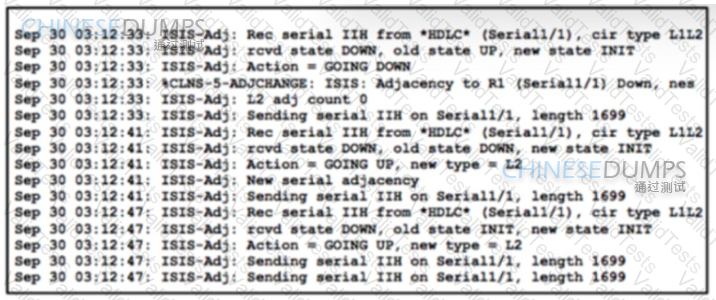

The disruption in IS-IS connectivity between R1 and R2, despite the interfaces being up, suggests an issue with packet handling or MTU configuration. Action A, disabling padding for hello packets under the serial interface on R2, is necessary because excessive padding can lead to issues in processing hello packets effectively. Action C, changing the MTU to 1500 bytes on R2, addresses potential MTU mismatch issues. MTU mismatches are common problems that can interrupt connectivity in networks using routing protocols like IS-IS; ensuring both routers operate at the same MTU can resolve this issue.

References := The explanation is derived from the principles outlined in Cisco’s Implementing and Operating Cisco Service Provider Network Core Technologies, which emphasizes the importance of proper packet handling and MTU configuration for maintaining IS-IS connectivity.

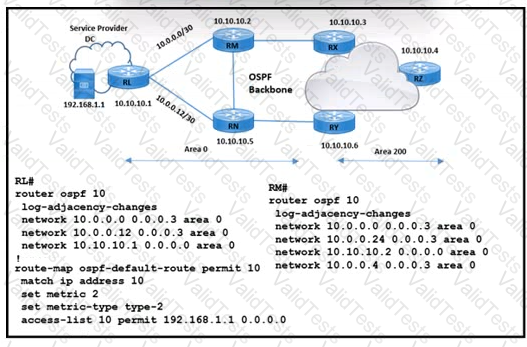

To achieve the origination of a default route based on the condition of the application server being up, a route map policy needs to be applied. This policy should match the condition of the server’s status and then use the default-information originate command to originate the default route with the specified metric type and value on router RL.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - OSPF Route Map Policy section.

In OSPF, the election of the designated router (DR) and backup designated router (BDR) is based on the OSPF network type. The network types include:

Broadcast: This is the default network type for Ethernet interfaces. In a broadcast network, OSPF elects a DR and BDR. All other routers become DROTHERs. To prevent the election of a DR/BDR, you can configure the interface as non-broadcast (NBMA) using the ip ospf network non-broadcast command.

Point-to-Point: This network type is used for point-to-point links (e.g., serial links). There is no DR/BDR election in point-to-point networks.

Point-to-Multipoint: This network type is used for point-to-multipoint links (e.g., Frame Relay). There is no DR/BDR election in point-to-multipoint networks.

Point-to-Multipoint Non-Broadcast: Similar to point-to-multipoint, but explicitly configured as non-broadcast. There is no DR/BDR election in point-to-multipoint non-broadcast networks.

Loopback: Loopback interfaces are always treated as point-to-point.

Virtual-Link: Used for OSPF virtual links.

Sham-Link: Used for OSPF sham links.

Demand Circuit: Used for demand circuits (e.g., ISDN).

Non-Broadcast: Explicitly configured as non-broadcast. There is no DR/BDR election in non-broadcast networks.

References:

Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

Cisco Learning Network Store - SPCOR Training
