 When interface Gi0/0/0/2 is shut down for maintenance, the other interfaces’ states are affected based on their current configurations and roles. In this case, Gi0/0/0/0 becomes active because it is next in line to take over the traffic load, ensuring that network service remains uninterrupted. Gi0/0/0/1 remains standby as it was before the shutdown of Gi0/0/0/2.

References: The explanation can be inferred from understanding Cisco’s technology and protocols related to interface states and bundle ether configurations,

 The Time to Live (TTL) security mechanism is a lightweight security feature that can protect against CPU and memory resource exhaustion due to a denial-of-service (DoS) attack. It works by setting a limit on the number of hops (TTL value) that BGP packets can traverse. By configuring neighbor 10.163.83.55 ttl-security hops 2, ISP A ensures that BGP packets received from ISP C must have a TTL value of at least 254 when they reach R1, as BGP packets decrement the TTL by 1 with each hop. This effectively prevents spoofing attacks from outside the directly connected network because any packets spoofed from further away would have a TTL that drops below the threshold before reaching R1.

References: This explanation is based on the security features described in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

The configuration snippet in the exhibit shows that BGP summarization is configured with the “aggregate-address” command followed by an IP address and a subnet mask, and then the “summary-only” and “as-set” options. The IP address is 192.168.0.0, and the subnet mask is 255.255.0.0, which corresponds to a /16 prefix length (indicating that the first 16 bits of the IP address are the network portion). However, there seems to be a typo in option B as it’s not a valid IP address format; hence option A is correct with an assumption of typo error.

References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

 The PCE (Path Computation Element) communicates with the PCC (Path Computation Client) using the PCEP. PCEP is responsible for path computation and signaling in MPLS networks.

References: Implementing and Operating Cisco Service Provider Network Core Technologies course materials.

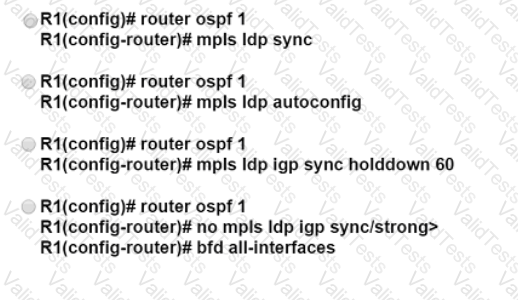

The correct configuration for MPLS LDP synchronization with OSPF process 1 on router R1 is to use the command mpls ldp igp sync holddown 60 under the OSPF process configuration. This ensures that the MPLS LDP synchronization is enabled and held for 60 seconds with OSPF process 1, which helps prevent black holes in MPLS networks during the convergence process by ensuring that routes are not advertised until LDP is fully operational and labels have been exchanged between adjacent routers.

References:

Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR

Additional resources on Cisco’s Service Provider training: Cisco Service Provider Training

 In Cisco Service Provider Network Core Technologies, an EVPN instance can be likened to a VRF (Virtual Routing and Forwarding). A VRF allows multiple instances of a routing table to co-exist within the same router at the same time. Similarly, EVPN provides separation between routing instances which aligns with how VRF operates.

The OSPF neighbor relationship is not establishing due to a mismatch in MTU (Maximum Transmission Unit) settings on the interfaces of PE-A and PE-B routers. On PE-A, there is no MTU configuration under the interface FastEthernet0/0, which means it is using the default MTU setting. However, on PE-B, the MTU is explicitly set to 1400 bytes with “ip mtu 1400” command under interface FastEthernet0/0. OSPF requires that both ends of a point-to-point link have matching MTU sizes to form a neighbor relationship; otherwise, OSPF adjacency will not be established.

References:

Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Resources

In NetFlow export statistics, the BGP next hop information is not included by default. To include the BGP next hop in the export statistics, specific keywords related to BGP next hop must be configured with the version 9 NetFlow entry. This configuration allows for the measurement of network traffic on a per-BGP next hop basis, which is essential for detailed traffic analysis and accounting1. References: Configuring NetFlow BGP Next Hop Support for Accounting and Analysis - Cisco Systems1.

Option A corresponds to the desired configuration. It uses an access-list to permit IGMP joins for the specific multicast group 239.10.10.10 from the source 172.20.20.3.

Options B, C, and D do not match the desired configuration. They either allow all IGMP traffic or do not specify the correct source and group addresses.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) source book

 In a gRPC dial-in configuration, the encoding is specified by the client initiating the connection. This setup allows for connection multiplexing, which means multiple gRPC calls can be made concurrently over a single connection, improving efficiency. Two-way streaming is also facilitated, allowing both the client and server to send a sequence of messages to each other, providing a full-duplex communication channel.

TI-LFA, or Topology Independent Loop-Free Alternate, is a fast-reroute mechanism that provides protection against link or node failures in a network. It guarantees a loop-free alternate path for all areas configured in OSPF, ensuring traffic can be quickly rerouted in case of a failure. This characteristic is crucial for maintaining network stability and avoiding traffic loops, which can lead to packet loss and network congestion.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) official documentation
