The script in the exhibit is for configuring a static VLAN (Option D). The XML configuration specifies a static VLAN range with “allocMode=‘static’”, indicating that VLAN IDs are assigned manually, not dynamically.

References := These explanations are derived from the concepts outlined in the Cisco Service Provider source book, specifically the “Implementing and Operating Cisco Service Provider Network Core Technologies” course materials,

The Adjacency-SID sub-TLV extension is advertised within TLV-22 (Extended IS Reachability) to label a specific link in a segment routing domain. This allows for the identification and utilization of specific paths or links within the network, facilitating more efficient routing and traffic management. References := Implementing and Operating Cisco Service Provider Network Core Technologies

The configuration should include a class-map that matches the ICMP traffic destined for the web server’s IP address. This can be achieved by using an access control list (ACL) within the class-map to match the ICMP traffic. Then, a policy-map should be applied that sets the next hop to the IP address of the new security appliance. This policy-map is then applied to the appropriate interface on router R2 using the service-policy command.

References: The Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course provides detailed information on configuring class-maps and policy-maps for traffic redirection. Specifically, it covers topics related to VPLS services and DDoS protection, which are relevant to the scenario presented in the question12. The course materials and official Cisco documentation serve as the primary references for this solution.

The issue of no LDP neighbor existing for 1.1.1.1 between two directly connected routers could be due to R2 not receiving any hellos from R1. In the context of LDP (Label Distribution Protocol), hellos are used for the discovery of LDP peers. They are sent periodically on each interface that LDP is enabled on to discover and maintain LDP sessions with neighbors. If R2 is not seeing any hellos from R1, it means there’s a failure in the initial step of establishing an LDP session, hence no neighbor relationship is formed.

References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide can provide more insights into the workings and troubleshooting steps for LDP protocol.

The REST API command shown in the exhibit is a POST request to a specific URL, indicating that it is used to submit data to be processed to a specified resource. In this case, the resource is an XML file named “Descriptions.xml”. POST requests are used when submitting data to be processed by the resource identified by the URI. The nature of the process conducted on the submitted data depends on that particular URI. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - REST API section.

When there is an LSP breakage during the testing of MPLS OAM ping capabilities, the ingress MPLS router does not receive any reply because MPLS OAM ping is used to verify connectivity over Label Switched Paths (LSPs), and if an LSP is broken, the echo request will not reach the egress router, resulting in no echo reply being sent back.

When implementing LDP NSF (Nonstop Forwarding) on the network, an engineer must perform the following tasks:

Implement direct connections for LDP peers: This ensures that LDP sessions can be reestablished quickly after a switchover.

Enable NSF for the link-state routing protocol in use on the network: This allows the routing protocol to maintain its state during a switchover, ensuring seamless operation.

For example, if OSPF is the link-state routing protocol, enabling NSF for OSPF ensures that OSPF adjacencies are maintained during a switchover

RSVP (Resource Reservation Protocol) is used with MPLS (Multiprotocol Label Switching) traffic engineering tunnels primarily to reserve bandwidth along the path of the tunnel. This ensures that sufficient resources are allocated for the traffic to meet quality of service requirements, which is crucial for maintaining the performance of critical applications that traverse the network. References := For more information on RSVP and MPLS traffic engineering, refer to the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, which provide detailed explanations on how these technologies work together to optimize network traffic1.

https://www.cisco.com/c/en/us/p roducts/collateral/switches/nexus-9000-series-switches/guide-c07-734107.html

The configuration in Option A is correct for enabling dial-out telemetry streams using gRPC on devices with TLS disabled.

It uses model-driven telemetry (MDT), which is a new method of monitoring network devices. Unlike traditional methods that pull data from the device, MDT pushes data from the device to the collector.

In this configuration:

Telemetry is model-driven.

It specifies a destination group with an IP address and port number where the telemetry data will be sent.

The encoding is self-describing-gpb (Google Protocol Buffers).

The protocol used is TCP.

This setup ensures that telemetry data is sent to the specified collector without requiring TLS encryption.

References: Implementing and Operating Cisco Service Provider Network Core Technologies

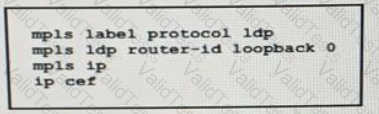

The configuration snippet shows that MPLS and LDP are configured globally but not enabled on an interface. The commands include “mpls label protocol ldp,” “mpls ldp router-id loopback 0,” and “mpls ip,” which are necessary for global settings. However, to establish LDP neighbors and exchange labels, LDP must be enabled on the specific interface where it’s needed.

References:

Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

Cisco SPCOR Training resources available on the Cisco Learning Network Store.
