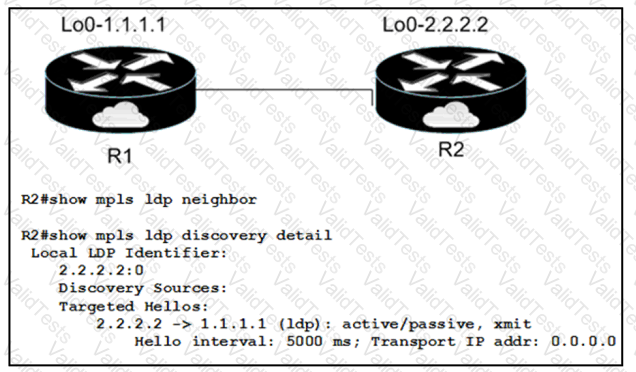

When implementing an LDP protocol, an engineer experienced an issue between two directly connected routers and noticed that no LDP neighbor exists for 1.1.1.1.
Which factor should be the reason for this situation?
A.
LDP needs to be enabled on the R2 physical interface
B.
R2 does not see any hellos from R1
C.
LDP needs to be enabled on the R2 loopback interface
The issue of no LDP neighbor existing for 1.1.1.1 between two directly connected routers could be due to R2 not receiving any hellos from R1. In the context of LDP (Label Distribution Protocol), hellos are used for the discovery of LDP peers. They are sent periodically on each interface that LDP is enabled on to discover and maintain LDP sessions with neighbors. If R2 is not seeing any hellos from R1, it means there’s a failure in the initial step of establishing an LDP session, hence no neighbor relationship is formed.
References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide can provide more insights into the workings and troubleshooting steps for LDP protocol.
