In PowerProtect DD environments, network performance can be affected by various factors, and bottlenecks often arise from:

Configuration: Misconfigured network settings or incorrect protocols can limit the system's performance.

Wire speeds: The physical speed of the network cables (e.g., 1 GbE, 10 GbE) impacts data transfer rates.

Switches and routers: These network devices can introduce latency or limit bandwidth, especially if they are not optimized or if there are too many hops in the network path.

By addressing these areas, you can improve network throughput and ensure that the PowerProtect DD system is not constrained by network bottlenecks.

RADIUS is commonly supported in PowerProtect DD for external authentication, allowing integration with centralized authentication systems for user management and access control.

Explanation: The File System Settings in PowerProtect DD include data movement settings such as Throttle and Schedule to control the rate and timing of data transfers, optimizing resource utilization based on operational requirements.

In the PowerProtect DD File System Settings, the data movement system settings available include Throttle and Schedule. These settings allow administrators to control the flow of data between different storage tiers or destinations.

Throttle: This setting regulates the rate of data transfer, which helps in managing network load and ensures that data movement does not overwhelm the system resources or impact other network activities.

Schedule: Administrators can define specific times for data movement operations, which helps in optimizing resource utilization by scheduling intensive tasks during off-peak hours, thereby minimizing impact on performance during critical operational periods.

These options provide flexibility and control over how and when data is transferred, enhancing the overall efficiency and performance of data management tasks on PowerProtect DD systems.

BoostFS (Boost File System) is a DD Boost-enabled file system interface that allows applications like IBM Spectrum Protect to take advantage of DD Boost features, such as optimized deduplication, load balancing, and improved backup/restore performance. By using BoostFS, IBM Spectrum Protect can efficiently integrate with PowerProtect DD appliances to leverage DD Boost's capabilities for faster and more efficient data transfer.

Explanation: A small TCP window size can restrict data throughput, leading to suboptimal performance in CIFS-based file transfers. Adjusting the TCP window size can help maximize network bandwidth utilization and improve transfer speeds.

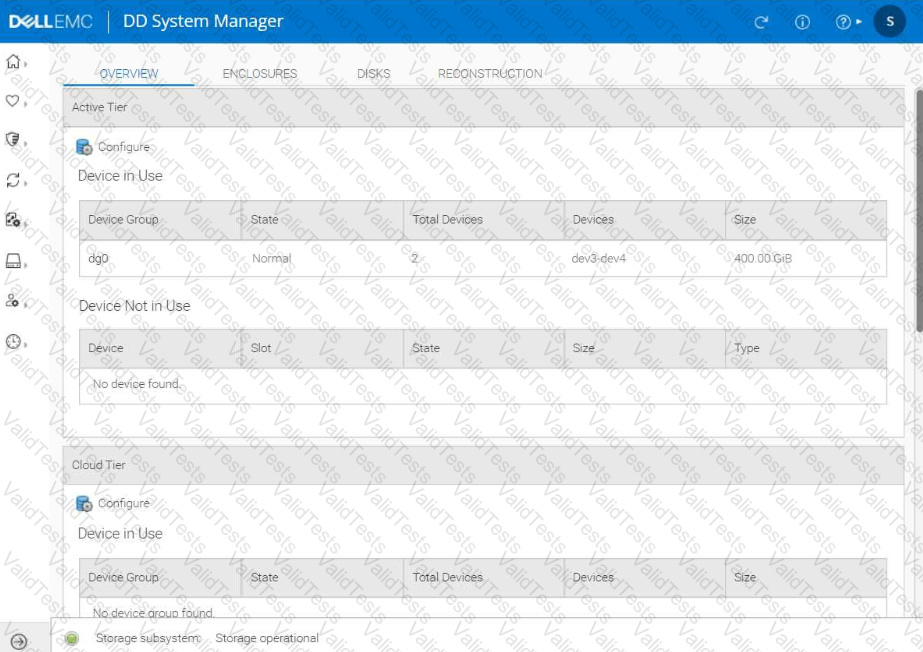

To flash an LED on a hard drive and bring a disk back online using the DD System Manager or DDOS CLI, follow these general steps:

Step 1: Identify the Disk

In DD System Manager:

Go to the Hardware section in the sidebar.

Locate the list of disks, and find Disk 1.5 (the offline disk).

In DDOS CLI (if using CLI):

Use the command to list disks and confirm the status of Disk 1.5.

Command example: disk show state or disk show summary.

Step 2: Flash the LED on the Disk

In DD System Manager:

In the Hardware section, select Disk 1.5.

Look for an option like Flash LED or Locate Drive to help identify the physical disk.

Activate the LED flash to identify the disk physically.

In DDOS CLI:

Use the command: disk locate 1.5 to flash the LED for Disk 1.5.

Step 3: Bring the Disk Back Online

In DD System Manager:

After identifying the disk, check for options to Bring Online or Reactivate Disk 1.5.

Select the option to return the disk to operation.

In DDOS CLI:

Use the command: disk unfail 1.5 to bring the disk back online.

Step 4: Verify the Disk Status

Confirm in DD System Manager or by using the disk show state command in CLI that Disk 1.5 is now online and functioning.

After completing these steps, the LED should flash to help locate the disk physically, and then Disk 1.5 will be returned to an operational state. Let me know if you need further guidance!

A screenshot of a computer Description automatically generated

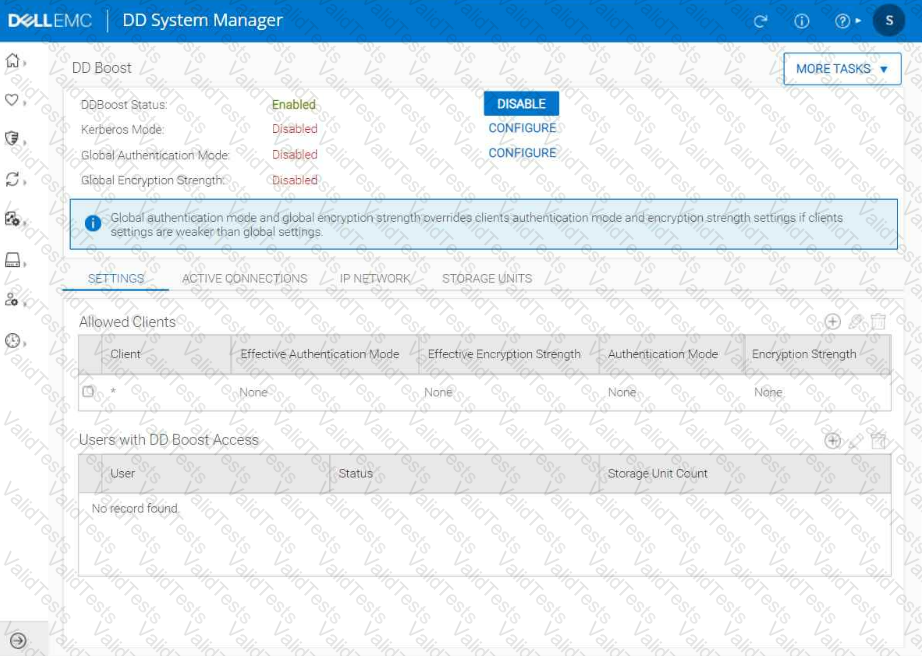

To configure DD Boost on the PowerProtect DD system and create the required user and storage unit, follow these steps:

Enable DD Boost:

Go to the DD System Manager.

Navigate to DD Boost Settings.

Click on Enable to activate DD Boost on the system.

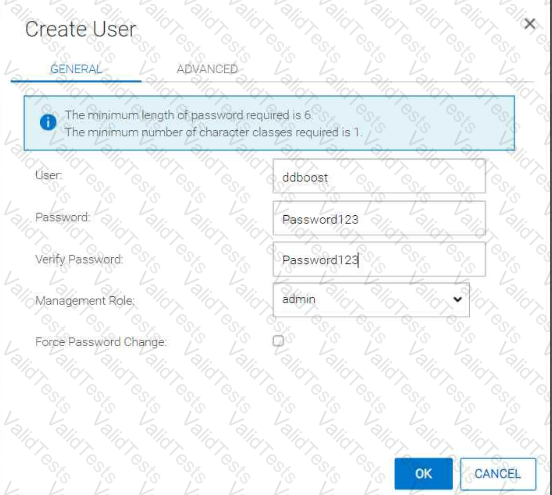

2. Create the User 'ddboost':

Go to Access Management > Local Users.

Click Create to add a new user.

Set the username to ddboost and the password to Password123.

Assign the user management role (the recommended permission for DD Boost users).

Click OK to create the user.

3. Create the Storage Unit 'SU1':

Go to Storage Units in the DD Boost section.

Click Create to add a new storage unit.

Name the storage unit SU1.

Assign the ddboost user to this storage unit for access.

Set any quota limits if required, or leave them as None if no restrictions are needed.

Click Create to finalize the storage unit creation.

After completing these steps, DD Boost will be enabled, and the ddboost user with appropriate permissions will have access to the newly created storage unit SU1.

To configure DD Boost, enable it, create a new user, and set up a storage unit in the DD System Manager, follow these steps:

Enable DD Boost:

In the Protocols section on the left sidebar, locate DD Boost and click on it.

Inside the DD Boost settings, find the option to enable DD Boost if it's currently disabled.

Create a New User:

Go to Administration or Users (location varies based on version).

Select Add User or New User.

Set the username as ddboost and the password as Password123.

Assign the appropriate permissions, typically Admin or Read/Write access, based on best practice recommendations for DD Boost users.

Create a Storage Unit:

Return to the DD Boost section.

Look for an option labeled Storage Units or similar, and choose Add Storage Unit.

Name the storage unit SU1.

Ensure that the newly created ddboost user has access to this storage unit.

Save and Confirm:

After configuring, save all settings and confirm the changes.

Verify that DD Boost is enabled, the user ddboost exists with the specified permissions, and the storage unit SU1 is created and accessible by this user.

This completes the setup for DD Boost with a new user and storage unit on PowerProtect DD. Let me know if you need more assistance with any of these steps.

A screenshot of a computer Description automatically generated

A screenshot of a login form Description automatically generated

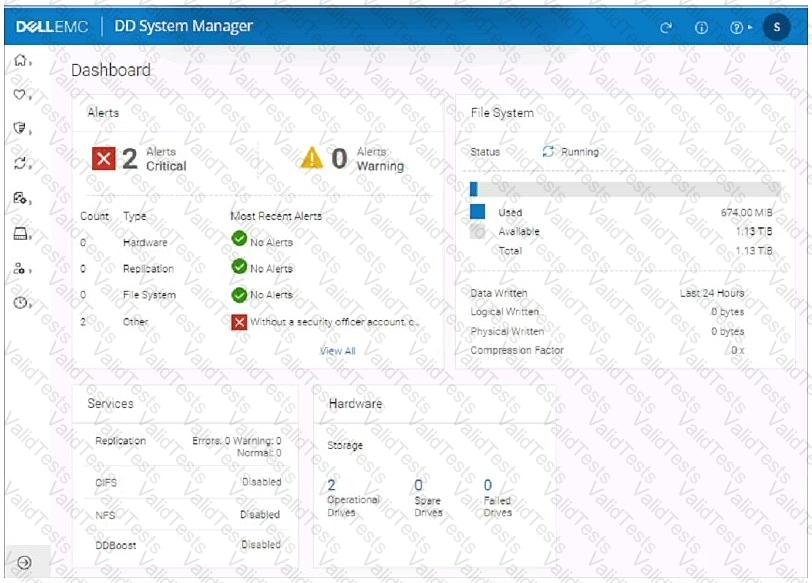

To configure a user account for Retention Lock Compliance Edition with specific role and password policies on a PowerProtect DD system, follow these steps:

Step 1: Access the User Management Section

In the DD System Manager interface, go to Administration or Users (exact location may vary).

Look for an option to manage user accounts.

Step 2: Create or Verify the Account

If the account asterix1 already exists:

Select the user and edit the properties.

If the account does not exist:

Click on Add User or Create New User.

Enter the Username as asterix1.

Set the Password as password2.

Step 3: Assign the Compliance Role

Ensure that asterix1 is assigned the correct role, which is usually Security Officer or a similar role necessary for Retention Lock Compliance.

This role allows the user to manage and enforce compliance-related settings on the system.

Step 4: Set Password Expiration Policy

Configure the Password Aging Policy:

Set Password Expiration or Maximum Days to 180 days.

Ensure Minimum Days and Warning Days are set as needed or required by the compliance policy.

Step 5: Save and Verify

Save the changes and verify that the account asterix1 is now listed with the appropriate role and password settings.

This configuration ensures that the asterix1 account is in place with the correct permissions and that the password is set to expire after 180 days. Let me know if you need more assistance!

To schedule space reclamation on a PowerProtect DD system as specified, here’s the general procedure to follow in the DD System Manager:

Log into DD System Manager: Access the management interface for your PowerProtect DD system.

Navigate to Data Management: In the sidebar, look for an option labeled Data Management or similar (may vary slightly depending on the exact DD OS version).

Select Space Reclamation: Within Data Management, find and select Space Reclamation settings.

Set Schedule:

Click on Schedule and choose to add a new schedule if not already present.

Set the Day to Monday.

Set the Time to 4:00 AM.

Configure Resource Limit:

Look for an option to limit the resource usage for the reclamation task.

Set the Maximum System Resource Usage (or a similarly named option) to 25% to avoid impacting the system performance excessively.

Save the Schedule: Confirm and save your settings.

Verify the Schedule: Check that the schedule appears correctly in the list, indicating it will run every Monday at 4:00 AM with the specified resource usage limit.

After completing these steps, the PowerProtect DD system should reclaim space as scheduled without exceeding 25% resource usage, minimizing its impact on other system operations.
