To configure an iDRAC shared management port with LOM2 and set up a failover network using LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

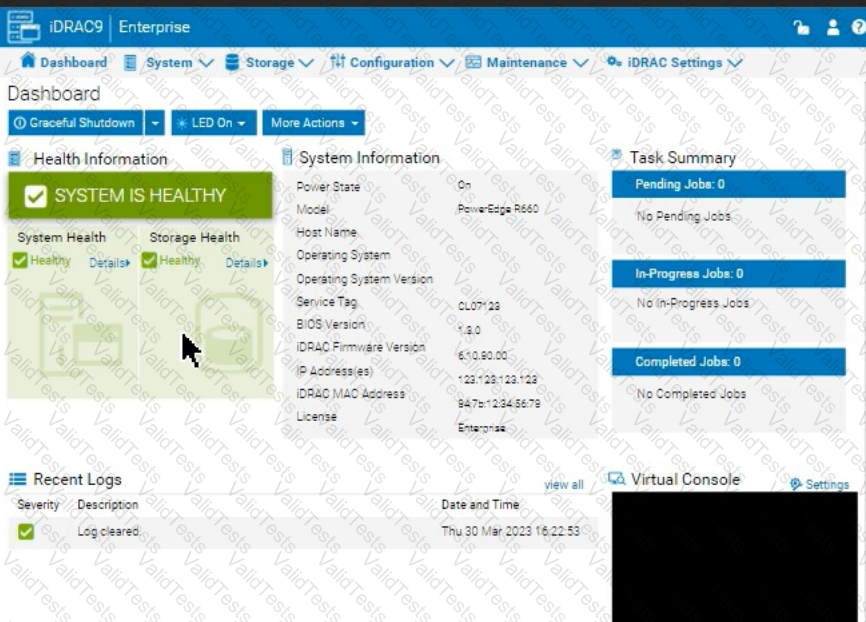

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration.

Change the NIC Selection to Shared. This will enable the use of a LAN on Motherboard (LOM) port for iDRAC management.

Select LOM2 for the Shared Management Port:

Once you’ve selected Shared, additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port. This configures iDRAC to use LOM2 for its primary network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the shared management port and set up a failover network with LOM3. Make sure to save your changes to apply the configuration.

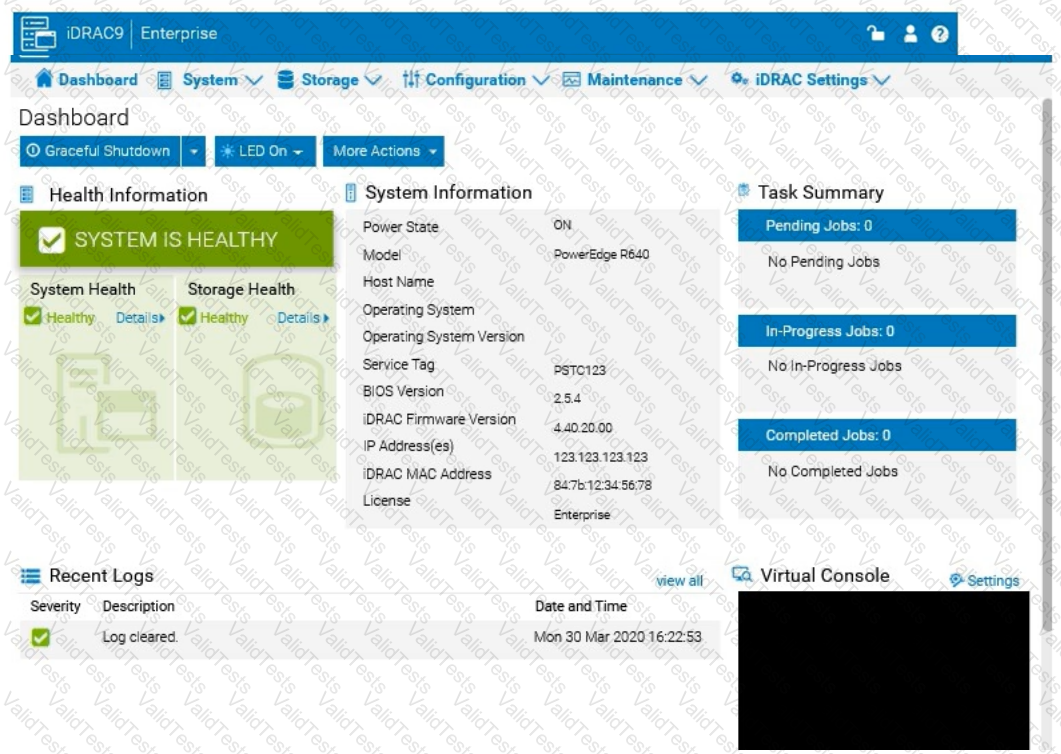

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power Supply Configuration.

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0. In this configuration, there will be no redundancy, and both power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU. Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without automatic failover to another power supply.

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings.

Set the IP Address to 192.168.0.120.

For the Subnet Mask, since it’s a /24 CIDR, set it to 255.255.255.0.

Configure the Gateway:

In the same section, find the field for Default Gateway.

Enter the Gateway as 192.168.0.1.

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1.

Enter DNS Server 2 as 10.10.0.2.

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120.

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

To create and save a server configuration profile with specific components in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access Configuration Profiles:

Go to the "Configuration" tab on the top menu bar.

From the dropdown options, select "Server Configuration Profile."

Create a New Profile:

Within the Server Configuration Profile section, choose the option to Create a New Profile.

You will likely see options to specify which components to include in the configuration profile.

Select Components:

When prompted, select only the components required for the configuration:

NIC: Network Interface Card settings.

RAID: Storage controller and RAID configuration.

iDRAC: iDRAC management settings.

Ensure that other components are not selected to meet the requirement.

Save the Configuration:

Enter the file name "PE-server" for the profile.

Choose the option to Save or Export the configuration profile. This should save the configuration to the specified name, typically on the server or local storage available through iDRAC.

Verify the Profile Creation:

After saving, verify that the profile appears in the list of server configuration profiles with the name "PE-server."

Confirm that it includes only the selected components.

By following these steps, you should successfully create and save the configuration profile with the specified components.

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here's how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A. Under voltage fault detection on power supply 1: Indicates a voltage issue was detected on PSU1.

B. Power supply 2 has failed: Indicates PSU2 has completely failed.

C. Under voltage fault detected on power supply 2: Indicates a voltage issue was detected on PSU2.

D. Power supply 1 has failed: Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue, the most likely scenario involves a failure or under-voltage detection.

 Launch the Simulator:

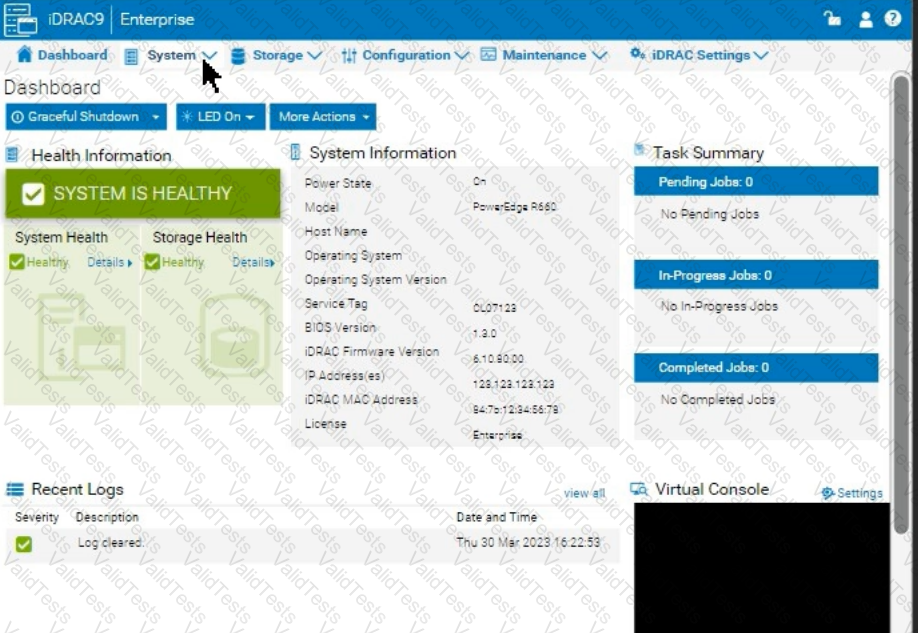

Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

 Navigate to System Information:

In the top menu bar, select the "Configuration" tab.

From the options that appear, choose "Storage". This section will display details and configurations for the storage controllers installed on the server.

 Check the H965i Storage Controller:

Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

Look for the field labeled "Cache Memory Size". This will provide the cache memory size value for the controller.

To enable capturing the full POST (Power-On Self-Test) sequence using the iDRAC interface, follow these steps:

Step-by-Step Guide:

Log into the iDRAC Interface:

Access the iDRAC UI using the server’s IP address from a web browser.

Enter your credentials to log in.

Navigate to System BIOS Settings:

Go to the Configuration tab on the top menu.

Select BIOS Settings from the dropdown menu. This will take you to the settings where you can manage BIOS-related configurations.

Enable POST Sequence Logging:

In the BIOS Settings, look for an option related to POST Behavior or Boot Sequence Capture.

Enable Verbose Mode or Capture Full POST Sequence. This setting ensures that the entire POST process is logged in detail during the next boot attempt.

Alternatively, if there is a specific setting for Capture System Boot Logs, enable it to ensure detailed logging during POST.

Apply the Changes:

After enabling the POST capture option, click Apply or Save.

iDRAC may prompt for confirmation or inform you that changes will take effect upon the next reboot. Confirm any prompts as required.

Restart the Server (if necessary):

If the server is currently off, attempt to power it on. If it’s on, you may need to perform a Graceful Shutdown followed by a restart to initiate the POST sequence.

Review POST Logs After Reboot:

Once the server attempts to boot, return to the iDRAC Logs section to review the captured POST logs.

Go to Maintenance > System Event Log or Lifecycle Log to view the detailed logs from the POST sequence. This can help diagnose why the server is failing to boot.

By enabling this setting, you will capture detailed information during the POST process, which can then be reviewed to identify any hardware or configuration issues preventing the server from booting successfully.

Understanding Features of AMD Processors in Dell PowerEdge Servers

Server Components (26%)

Define the different processor, memory options, and memory configurations

Analyze server security features

Overview

AMD processors, specifically the AMD EPYC series, are utilized in Dell PowerEdge servers to provide high performance, scalability, and advanced security features. One of the standout features of AMD processors is Secure Encrypted Virtualization (SEV).

Explanation of Options

Option A: Supports up to four sockets

Explanation: AMD EPYC processors in current Dell PowerEdge servers typically support up to two sockets. Intel processors are more commonly associated with supporting up to four sockets in server configurations.

Conclusion: Incorrect.

Option B: Up to 60 cores

Explanation: AMD EPYC processors offer up to 64 cores per processor. While "up to 60 cores" is close, it does not fully capture the maximum core count offered.

Conclusion: While partially correct, not the most distinctive feature.

Option C: Fastest processor speeds

Explanation: Processor speeds vary depending on specific models and configurations. Both AMD and Intel offer processors with high clock speeds. Claiming the "fastest processor speeds" is subjective and not a definitive feature.

Conclusion: Not a unique feature.

Option D: Secure Encrypted Virtualization

Explanation: SEV is a security feature unique to AMD processors. It allows for the encryption of virtual machine memory, providing isolation between VMs and enhancing security in virtualized environments.

Features:

Encrypts VM memory with individual keys.

Protects against hypervisor-level attacks.

Enhances data security and compliance.

Conclusion: Correct Answer.

Dell Operate References

Server Components (26%):

Define the different processor, memory options, and memory configurations: Understanding the features and capabilities of AMD processors in server environments.

Analyze server security features: SEV is a significant security feature offered by AMD processors, enhancing virtualization security.

Conclusion

The standout feature of AMD processors in Dell PowerEdge servers is Secure Encrypted Virtualization, which enhances security in virtualized environments by encrypting VM memory.

Understanding Dell PowerEdge Server Out-of-Band Management

Server Management and Configuration Tools (14%)

Define in-band and OOB management and at-the-box-management

What is Out-of-Band (OOB) Management?

Out-of-band management refers to the ability to manage and monitor a server independently of the operating system or primary network interfaces. Dell PowerEdge servers utilize the Integrated Dell Remote Access Controller (iDRAC) for OOB management.

Characteristics of Out-of-Band Management:

Independent Operation:

OOB management operates independently of the server's operating system. It remains functional even if the server is powered off (as long as it is connected to a power source) or the operating system is unresponsive.

Dedicated Network Connection:

OOB management uses a network connection separate from the data network. This is typically achieved via a dedicated management port on the server, ensuring that management traffic does not interfere with data traffic.

Option C reflects this characteristic accurately.

No Need for Operating System Agents:

OOB management does not require any software agents running on the operating system. Management tasks are performed directly through the iDRAC hardware.

Option D is incorrect because OOB management does not require an OS-level agent.

Remote Management Capabilities:

Allows administrators to perform tasks such as monitoring hardware status, configuring settings, updating firmware, and even powering the server on or off remotely.

Explanation of Options:

Option A: Cannot manage a powered off device

Incorrect: OOB management allows for the management of powered-off devices as long as the iDRAC is receiving power.

Option B: Gives firmware update access to all users

Incorrect: Access to firmware updates and other critical functions is controlled via user permissions within iDRAC. Not all users have equal access.

Option C: Network connection separate from data source

Correct: OOB management uses a dedicated network interface, separate from the server's primary data network interfaces.

Option D: Requires an operating system level agent

Incorrect: OOB management is independent of the operating system and does not require any OS-level agents.

Dell Operate References:

Server Management and Configuration Tools (14%)

Define in-band and OOB management and at-the-box-management: Understanding the differences between in-band (requiring OS-level interaction) and out-of-band management is crucial for effective server administration.

Conclusion:

Dell PowerEdge server out-of-band management is characterized by the use of a network connection separate from the data source, allowing for independent and remote management of the server hardware without relying on the operating system.
