In a Dell EMC PowerScale cluster, int-a and int-b are internal network interfaces used for back-end communication between nodes. Proper configuration of these interfaces is essential for cluster performance and redundancy.

Considerations:

Separate Subnets for int-a and int-b:

Assigning int-a and int-b to separate subnets enhances network redundancy.

If one subnet experiences issues, the other can continue to handle internal traffic.

Not on the Same Subnet:

Placing both interfaces on the same subnet can create a single point of failure.

It may also cause network conflicts and degrade performance.

Key Points:

Network Isolation: Separating int-a and int-b ensures that internal communications are robust and fault-tolerant.

Performance Optimization: This configuration allows for load balancing of internal traffic.

Dell PowerScale References:

Dell EMC PowerScale OneFS Network Configuration Guide:

Internal Network Configurationsection recommends using separate subnets for int-a and int-b.

Explains the benefits of network redundancy and performance.

Best Practices:

Plan IP addressing schemes that allocate different subnets for internal interfaces.

Document network configurations for troubleshooting and maintenance.

Updating the install base record is crucial for support and warranty purposes.

Reasons:

Accurate Records:

Reflects the current configuration of the cluster.

Support Entitlement:

Ensures timely support services when needed.

Dell PowerScale References:

Dell EMC Support Policies:

Emphasize the importance of maintaining up-to-date asset information.

Best Practices:

Document all changes made to the cluster.

Notify Dell EMC support or use the appropriate channels to update records.

SolVe Desktop is a tool provided by Dell EMC that offers a centralized platform for accessing detailed, step-by-step procedures for servicing and maintaining Dell EMC equipment, including PowerScale systems.

Key Points:

Purpose of SolVe Desktop:

Acts as a comprehensive resource for service personnel.

Provides guided procedures for installation, maintenance, upgrades, and troubleshooting.

Features:

Interactive and customizable workflows.

Up-to-date documentation and best practices.

Access to knowledge base articles and technical advisories.

Benefits:

Ensures that engineers follow the correct procedures.

Reduces the risk of errors during service activities.

Enhances efficiency and effectiveness of maintenance tasks.

Dell PowerScale References:

SolVe Desktop User Guide:

Outlines the functionalities and how to use the tool effectively.

Emphasizes its role in providing access to step-by-step procedures.

Dell EMC Support Resources:

Encourages service personnel to utilize SolVe Desktop for accurate and approved methods.

Incorrect Options:

Option A (Gather logs from the cluster for analysis)is not the primary function of SolVe Desktop.

Option B (Perform pre-upgrade checks on the cluster)is a function of other tools like OneFS Upgrade Advisor.

Option D (Provide access to the latest OneFS codes and firmware upgrades)is handled through Dell EMC support portals.

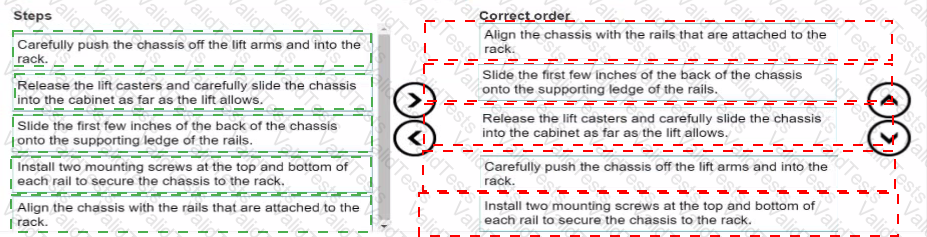

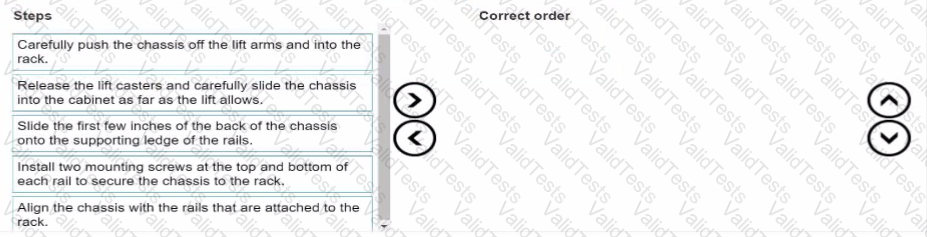

The correct order of steps to install a PowerScale Gen6 in a rack is as follows:

Align the chassis with the rails that are attached to the rack.

Slide the first few inches of the back of the chassis onto the supporting ledge of the rails.

Release the lift casters and carefully slide the chassis into the cabinet as far as the lift allows.

Carefully push the chassis off the lift arms and into the rack.

Install two mounting screws at the top and bottom of each rail to secure the chassis to the rack.

Comprehensive Detailed Step by Step Explanation with ReferencesTo install a PowerScale Gen6 in a rack, you need to follow a systematic process that ensures both safety and correct placement:

Align the chassis with the rails that are attached to the rack.The chassis must be properly aligned with the rails in the rack, which will support the chassis during the installation process.

Slide the first few inches of the back of the chassis onto the supporting ledge of the rails.Once aligned, slide the back of the chassis onto the supporting ledge of the rails, ensuring the chassis is seated securely.

Release the lift casters and carefully slide the chassis into the cabinet as far as the lift allows.After the chassis is aligned and placed onto the rails, release the lift casters and push the chassis into the rack with controlled force, using the lift mechanism.

Carefully push the chassis off the lift arms and into the rack.Once the chassis is positioned on the rails, remove the support from the lift arms, and push the chassis fully into the rack.

Install two mounting screws at the top and bottom of each rail to secure the chassis to the rack.Finally, use screws to secure the chassis at the top and bottom points on both sides, ensuring it is tightly fastened to the rack.

This order ensures a smooth, safe installation and proper alignment in the rack. Following these steps is crucial for the stability of the PowerScale Gen6 system during operation​.

For Dell EMC PowerScale systems, when installing nodes such as theF200, a common1:4 breakout cableratio is used. This means that a single 40GbE port on a switch is broken out into four 10GbE connections, which are used for connecting nodes like the F200.

For example, in environments where multiple F200 nodes need to be connected to a switch using high-speed Ethernet, a 40GbE port on the switch can be split into four 10GbE connections, which is commonly used in PowerScale installations to maximize the available network connections while minimizing the number of switch ports required.

On a Dell PowerScale F600 node, therNDC slot(redundant Network Daughter Card slot) provides management functionality. The rNDC slot hosts the network interface used for node management tasks, including cluster administration and monitoring.

Understanding the F600 Node Architecture:

All-Flash Storage:

The F600 is an all-flash node designed for high performance.

Network Connectivity:

Equipped with various network interface options for data and management traffic.

Role of the rNDC Slot:

Management Port Location:

The rNDC slot houses the management network interfaces.

Dedicated Management Functionality:

Separates management traffic from data traffic to enhance security and performance.

Redundancy Features:

Provides failover capabilities to ensure continuous management access.

Why PCIe Slots Are Less Suitable:

PCIe Slot 1, 2, and 3:

Typically used for data network interfaces or additional hardware components.

Not designated for primary management interfaces.

Management Interface Specificity:

Management ports are specifically assigned to the rNDC slot to standardize configurations across nodes.

Benefits of Using the rNDC Slot for Management:

Simplified Network Design:

Clear separation of management and data networks.

Enhanced Security:

Management interfaces can be placed on a secure network segment.

Consistency Across Clusters:

Facilitates easier administration and support.

Physical Identification:

Location on the Node:

The rNDC slot is located on the back of the F600 node and is typically labeled for easy identification.

Port Types:

May include Ethernet ports designated for management tasks.

Dell PowerScale References:

Dell EMC PowerScale F600 Hardware Overview:

Details the node's hardware components, including the rNDC slot.

Dell EMC PowerScale Networking Guide:

Discusses network configurations and the role of management interfaces.

Hardware Installation Manuals:

Provide diagrams and instructions that identify the rNDC slot as the management port location.

The OneFS API usesHTTPS(HyperText Transfer Protocol Secure) to encrypt communications, ensuring secure data transfer between clients and the PowerScale cluster.

OneFS API and Security:

OneFS API:

Provides a RESTful interface for programmatically managing and interacting with the PowerScale cluster.

Security Importance:

Protects sensitive data and configuration information transmitted via the API.

Use of HTTPS:

Encryption:

HTTPS uses TLS (Transport Layer Security) to encrypt data in transit.

Prevents eavesdropping and man-in-the-middle attacks.

Authentication:

Supports certificate-based authentication to verify the identity of the server.

Standard Protocol:

Widely accepted and supported for secure web communications.

Why Other Options Are Less Suitable:

Option A (SED):

Self-Encrypting Drives (SEDs) encrypt data at rest, not communications.

Option B (RBAC):

Role-Based Access Control (RBAC) manages user permissions and authorization, not encryption.

Option D (OpenSSH):

OpenSSH provides secure shell access, not used for the OneFS API communications.

Implementing HTTPS with OneFS API:

Default Behavior:

OneFS API endpoints are accessed via HTTPS by default on port 8080 or 8080.

Certificate Management:

Administrators can install custom SSL certificates to ensure secure connections.

API Calls:

Applications interacting with the OneFS API must support HTTPS requests.

Dell PowerScale References:

Dell EMC PowerScale OneFS API Reference Guide:

Details on API usage and security considerations.

Dell EMC PowerScale OneFS API Reference Guide

Dell EMC PowerScale OneFS Security Configuration Guide:

Provides information on configuring HTTPS and managing certificates.

Dell EMC PowerScale OneFS Security Guide

Knowledge Base Articles:

Article ID 000123006:"Securing OneFS API Communications with HTTPS"

Article ID 000123007:"Configuring SSL Certificates for OneFS API Access"

When an engineer plans to addA300 nodesto an existing cluster consisting ofH400andA200nodes, theA300 nodes can be added and become members of the A200 node pool through compatibility mode.

Understanding Node Pools and Compatibility Mode:

Node Pools:

Groups of nodes with similar hardware and performance characteristics.

Nodes in the same pool can share data and balance workloads effectively.

Compatibility Mode:

Allows newer nodes to join an existing node pool with older nodes.

Ensures compatibility by adjusting performance features to match the existing pool.

Adding A300 Nodes to the A200 Node Pool:

A200 and A300 Nodes:

Both are archive nodes designed for high-capacity storage.

A300 nodes are the next generation with updated hardware.

Using Compatibility Mode:

A300 nodes can operate in compatibility mode to align with the A200's capabilities.

Allows seamless integration without disrupting existing operations.

Process and Considerations:

Cluster Expansion:

The engineer can add the A300 nodes to the cluster and configure them to join the A200 node pool.

Performance Adjustments:

Compatibility mode may limit some of the newer nodes' advanced features to match the older nodes.

Benefits:

Extends the cluster's capacity using newer hardware.

Preserves investment in existing infrastructure.

Why Other Options Are Less Suitable:

Option B (A300 nodes cannot be installed in this cluster):

Incorrect; OneFS allows mixing different node types within the same cluster.

Option C (A300 nodes can be added, and a new A300 node pool is created):

While possible, the question specifies that the engineer plans to open bays, implying expansion within the existing node pool.

Option D (A300 nodes become members of the H400 node pool):

H400 nodes are hybrid nodes; it's not typical to mix archive nodes (A-series) with hybrid nodes (H-series) in the same node pool.

Dell PowerScale References:

Dell EMC PowerScale OneFS Administration Guide:

Details on node pools, compatibility mode, and cluster expansion.

Dell EMC PowerScale OneFS Administration Guide

Dell EMC PowerScale OneFS Best Practices Guide:

Provides guidelines for adding new nodes to existing clusters.

Dell EMC PowerScale OneFS Best Practices

Knowledge Base Articles:

Article ID 000123004:"Adding A300 Nodes to an Existing Cluster with A200 Nodes"

Article ID 000123005:"Understanding Compatibility Mode in Dell PowerScale Clusters"

The customer received replacement parts from Dell without prior communication becausethe cluster is enrolled in the AutoCRU (Automatic Customer Replaceable Unit) program. The AutoCRU program is designed to streamline the parts replacement process by automatically shipping Customer Replaceable Units (CRUs) when a failure is detected, without the need for prior communication or manual intervention.

1. Understanding AutoCRU Program:

AutoCRU Program Overview:

The AutoCRU program enables Dell to automatically dispatch replacement CRUs directly to the customer when a hardware issue is detected.

It reduces downtime by eliminating the need for the customer to contact Dell Support to initiate a replacement.

Applicable for parts classified as CRUs, which customers can replace themselves.

Enrollment in AutoCRU:

Customers must opt-in to participate in the AutoCRU program.

Enrollment involves agreeing to terms and ensuring proper configuration of remote monitoring tools.

2. How AutoCRU Works with PowerScale Clusters:

Remote Monitoring:

The cluster is monitored using tools likeSecure Remote Services (SRS)orSecure Connect Gateway (SCG).

These tools send alerts to Dell when hardware issues are detected.

Automatic Dispatch:

Upon detecting a failure, the system generates a service request.

The AutoCRU process initiates, and replacement parts are shipped automatically to the customer's site.

No Prior Communication Needed:

The automation eliminates the need for prior communication, expediting the replacement process.

Customers receive parts promptly, minimizing potential downtime.

3. Why Other Options Are Less Suitable:

Option A: The cluster is configured with Secure Remote Services only.

While SRS enables remote monitoring, it does not automatically dispatch parts without the AutoCRU program.

SRS requires manual intervention to create service requests unless combined with AutoCRU.

Option C: The cluster is configured with SCG.

Secure Connect Gateway (SCG)is the modern replacement for SRS.

Similar to SRS, SCG facilitates remote monitoring but does not inherently provide automatic parts dispatch without AutoCRU enrollment.

Option D: The cluster is configured with SupportAssist only.

SupportAssistprovides proactive monitoring and can generate alerts.

However, automatic parts dispatch requires participation in the AutoCRU program.

4. Dell PowerScale References:

Dell EMC AutoCRU Program Details:

Provides information on the benefits and enrollment process for AutoCRU.

Dell EMC AutoCRU Program

Secure Remote Services (SRS) and Secure Connect Gateway (SCG):

Discusses how these tools facilitate remote monitoring and support.

Dell EMC Secure Remote Services

Dell EMC Secure Connect Gateway

Customer Replaceable Units (CRUs):

Lists parts classified as CRUs and guidelines for replacement.

Dell EMC PowerScale Customer Replaceable Units Guide

Knowledge Base Articles:

Article ID 000180123:"Understanding the AutoCRU Program for Dell PowerScale"

Article ID 000180124:"Automatic Parts Dispatch with AutoCRU and SRS/SCG"

In Dell EMC PowerScale Gen 6 systems, components are categorized as either Customer Replaceable Units (CRUs) or Field Replaceable Units (FRUs). CRUs are parts that customers are authorized to replace themselves without the need for a Dell EMC service technician. Understanding which components are CRUs is essential for efficient maintenance and minimal downtime.

CRUs in PowerScale Gen 6:

SSD (Solid-State Drive) and Disk Drive:

Both SSDs and HDDs are considered CRUs.

They can be hot-swapped without powering down the node.

Customers can replace failed drives to restore full functionality.

Power Supply:

Power supplies are hot-swappable and designated as CRUs.

Nodes typically have redundant power supplies; replacing one does not require shutting down the node.

Bezel:

The front bezel is considered a CRU.

It can be removed and replaced without tools.

Serves both aesthetic and airflow management purposes.

Why Option C is Correct:

SSD:As a storage component, the SSD is a CRU.

Power Supply:Designated as a CRU for quick replacement.

Disk Drive:Refers to HDDs, also CRUs.

Bezel:Easily removable by the customer.

Why Other Options are Incorrect:

Option A:Includesfan, which is not typically a CRU in Gen 6 nodes; fans are usually considered FRUs due to the complexity of replacement and potential risks.

Option B:Listsback-end switch, which is a complex component requiring a service technician (FRU).

Option D:Includesmemory card(DIMM), which is generally not a CRU because replacing memory modules requires technical expertise and poses risks if not done correctly.

Dell PowerScale References:

Dell EMC PowerScale Hardware Replacement Guide:

Chapter on Customer Replaceable Units (CRUs):

Lists the components that customers can replace.

SSDs, HDDs, power supplies, and bezels are specified as CRUs.

Safety Instructions:

Provides guidelines on how to safely replace CRUs.

Emphasizes the use of ESD (Electrostatic Discharge) precautions.

Dell EMC PowerScale OneFS Administration Guide:

Disk Management Section:

Explains how to handle drive replacements.

Details the hot-swapping procedure for drives.

Best Practices:

Before Replacing a CRU:

Verify the component has indeed failed.

Ensure you have the correct replacement part.

During Replacement:

Follow proper shutdown procedures if required (though CRUs are typically hot-swappable).

Use appropriate ESD protection.

After Replacement:

Confirm that the system recognizes the new component.

Monitor the system for any errors or warnings.
