Understanding DCI (Data Center Interconnect) Schemes:

DCI schemes are used to connect multiple data centers, enabling seamless communication and resource sharing between them. The choice of DCI depends on the specific requirements, such as isolation, VNI translation, or routing domain separation.

VXLAN Stitching:

VXLAN stitching involves connecting multiple VXLAN segments, allowing VNIs (VXLAN Network Identifiers) from different segments to communicate with each other while maintaining separate routing domains.

This approach is particularly effective for keeping routing domains isolated while supporting VNI translation, making it ideal for scenarios where you need to connect different data centers or networks without merging their control planes.

Other Options:

A. MPLS DCI label exchange:This option typically focuses on MPLS-based interconnections and does not inherently support VNI translation or isolation in the context of VXLAN.

B. Over the top (OTT) with VNI translation enabled:This could support VNI translation but does not inherently ensure routing domain isolation.

D. Over the top (OTT) with proxy gateways:This typically involves using external gateways for traffic routing and may not directly support VNI translation or isolation in the same way as VXLAN stitching.

Data Center References:

VXLAN stitching is a powerful method in multi-data center environments, allowing for flexibility in connecting various VXLAN segments while preserving network isolation and supporting complex interconnect requirements.

Controlling Traffic Within a Tenant's Network:

The requirement is to limit access to specific traffic types within a tenant’s network without routing all tenant traffic through a firewall. This requires a selective method that can direct specific types of traffic to different paths based on the nature of the traffic.

Filter-Based Forwarding (FBF):

FBF is a technique that allows for routing decisions based on filters applied to the traffic, such as matching on source IP addresses, destination IP addresses, or even specific application types (like HTTP or FTP). This allows specific types of traffic to be forwardedto a specific next hop (e.g., a firewall) without affecting the entire traffic flow within the tenant's network.

Conclusion:

Option B:Correct—Filter-based forwarding allows for granular control of traffic, ensuring that only specific types of traffic within the tenant's network are redirected through a firewall, satisfying the requirement.

Analyzing the Exhibit Output:

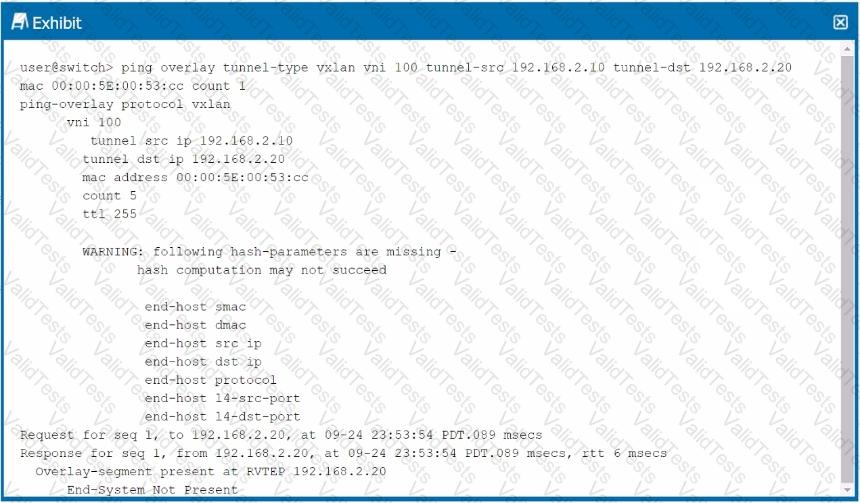

The command ping overlay tunnel-type vxlan is used to test the VXLAN tunnel between two VTEPs (VXLAN Tunnel Endpoints). The output shows a warning about missing hash parameters, but more importantly, it displays the result: End-System Not Present.

Understanding the Response:

The message End-System Not Present indicates that the remote VTEP (192.168.2.20) did not find the MAC address 00:00:5E:00:53:CC in its forwarding table. This typically means that the MAC address is unknown to the remote VTEP, and as a result, it could not forward the packet to the intended destination.

Conclusion:

Option B:Correct—The MAC address is unknown and is not in the forwarding table of the remote VTEP, which is why the system reports that the "End-System" is not present.

Zero Touch Provisioning (ZTP):

Juniper Networks' ZTP (Zero Touch Provisioning) process automates the deployment of new devices by allowing them to fetch and execute scripts for configuration and setup as they are powered on and connected to the network.

Supported Scripting Languages:

The Junos OS supports several scripting languages that can be used during the ZTP process:

Shellscripts are often used for general automation tasks.

Pythonis a widely supported language in Junos, offering powerful scripting capabilities for automating network tasks.

SLAX(Service Logic Execution Environment) is a scripting language specific to Junos, designed to automate configuration tasks and simplify network operations.

Conclusion:

Option D:Correct—Junos ZTP supports Shell, Python, and SLAX, making it the correct choice among the provided options.

Understanding Oversubscription Ratio in IP Fabrics:

The oversubscription ratio in an IP fabric typically refers to the ratio of the available bandwidth at the edge of the network (leaves) to the available bandwidth at the core or spine. A 3:1 oversubscription ratio means that for every 3 units of bandwidth at the leaves, there is 1 unit of bandwidth at the spine.

Impact of Adding or Removing Leaf Devices:

Removing Leaf Devices:When you remove leaf devices, the amount of total edge bandwidth decreases while the bandwidth in the spine remains constant. This causes the oversubscription ratio toincreasebecause there is now less total bandwidth to distribute across the same amount of spine bandwidth.

Adding Leaf Devices:Conversely, when you add leaf devices, the total edge bandwidth increases. Since the spine bandwidth remains the same, the oversubscription ratio would remain the same if the additional leaves consume their share of the available bandwidth proportionally.

Conclusion:

Option C:Correct—Removing leaf devices increases the oversubscription ratio.

Option D:Correct—Adding leaf devices typically maintains the oversubscription ratio assuming uniform bandwidth distribution.

Understanding VPN Route Table Association:

In MPLS/VPN and EVPN networks, theroute-target communityis a BGP extended community attribute used to control the import and export of VPN routes. It associates received routes with the appropriate VPN route tables on the PE (Provider Edge) routers.

Function of Route-Target Community:

The route-target community tag ensures that routes are imported into the correct VRF (Virtual Routing and Forwarding) instance, allowing them to be correctly routed within the VPN.

Conclusion:

Option A:Correct—The route-target community is used to associate received routes with a local VPN route table.

Understanding the Scenario:

EVPN-VXLAN deployments often involve scenarios where multiple tenants or applications require overlapping VLAN IDs, which can be managed using the mac-vrf routing instance type. This allows you to segregate traffic within the same VLAN ID across different tenants.

Host-facing Interface Configuration:

A. Host-facing interfaces must be configured using a service-provider style configuration:This is correct. In mac-vrf configurations, host-facing interfaces (those connecting end devices) typically follow a service-provider style configuration, where each customer or tenant's traffic is isolated even if overlapping VLAN IDs are used.

B. Host-facing interfaces must be configured using enterprise-style configuration:This is incorrect for mac-vrf instances because enterprise-style configurations are more common in simpler, less segmented networks.

Routing Instance Service Type:

D. The routing-instance service type can be VLAN-based:This is correct. The service type in mac-vrf can indeed be VLAN-based, which is particularly useful in scenarios where VLAN ID overlap is needed between different tenants or services.

Data Center References:

The mac-vrf instance type is powerful for handling complex multi-tenant environments in EVPN-VXLAN, especially when dealing with overlapping VLAN IDs across different segments of the network.

VXLAN Overview:

VXLAN (Virtual Extensible LAN) is a network virtualization technology that encapsulates Layer 2 Ethernet frames into Layer 3 UDP packets for transmission over an IP network. It allows the creation of Layer 2 overlay networks across a Layer 3 infrastructure.

Understanding VXLAN Components:

VTEP (VXLAN Tunnel Endpoint):A VTEP is responsible for encapsulating and decapsulating Ethernet frames into and from VXLAN packets.

VNI (VXLAN Network Identifier):A 24-bit identifier used to distinguish different VXLAN segments, allowing for up to 16 million unique segments.

Correct Statements:

C. Layer 2 frames are encapsulated by the source VTEP:This is correct. In a VXLAN deployment, the source VTEP encapsulates the original Layer 2 Ethernet frame into a VXLAN packet before transmitting it over the IP network to the destination VTEP, which then decapsulates it.

A. A VXLAN packet does not contain a VLAN ID:This is correct. The VXLAN header does not carry the original VLAN ID; instead, it uses the VNI to identify the network segment. The VLAN ID is local to the switch and does not traverse the VXLAN tunnel.

Incorrect Statements:

B. The VNI must match the VLAN tag to ensure that the remote VTEP can decapsulate VXLAN packets:This is incorrect. The VNI is independent of the VLAN tag, and the VLAN ID does not need to match the VNI. The VNI is what the remote VTEP uses to identify the correct VXLAN segment.

D. The VNI is a 16-bit value and can range from 0 through 16,777,215:This is incorrect because the VNI is a 24-bit value, allowing for a range of 0 to 16,777,215.

Data Center References:

VXLAN technology is critical for modern data centers as it enables scalability and efficient segmentation without the constraints of traditional VLAN limits.

Redundant Gateways in EVPN-VXLAN:

In an EVPN-VXLAN environment, providing redundant gateway functionality typically involves the use of Anycast Gateway. This allows multiple PEs (Provider Edge devices) to use the same IP address and MAC address for the gateway, enabling seamless failover and redundancy without IP conflicts.

Conserving Address Space:

Using the same IP address across multiple PEs conserves address space because only one IP address is needed for the gateway function, regardless of the number of PEs. The shared MAC address ensures that ARP resolution and forwarding behavior are consistent across all the PEs.

Conclusion:

Option C:Correct—Using IRB interfaces with the same IP and MAC address across all PEs satisfies the need for redundancy while conserving address space.

OptionsA, B,andDintroduce unnecessary complexity or do not fully utilize the efficient Anycast Gateway approach, which is best practice for conserving IP space and providing redundancy.

ERB Architecture in EVPN-VXLAN:

ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.

VLAN and VNI Configuration:

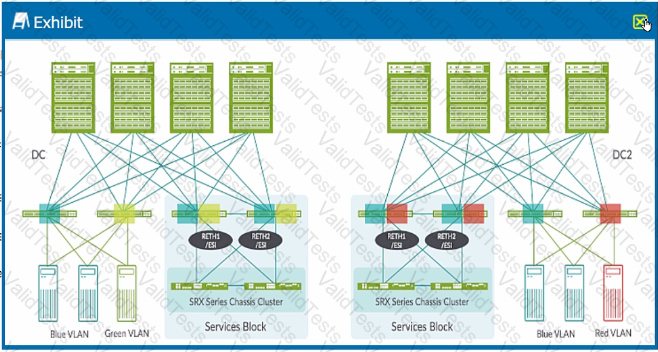

The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require atransit VNI(Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).

Interconnect between SRX Series Devices:

The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.

Conclusion:

Option B:Correct—Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.
