Understanding DCI (Data Center Interconnect) Schemes:

DCI schemes are used to connect multiple data centers, enabling seamless communication and resource sharing between them. The choice of DCI depends on the specific requirements, such as isolation, VNI translation, or routing domain separation.

VXLAN Stitching:

VXLAN stitching involves connecting multiple VXLAN segments, allowing VNIs (VXLAN Network Identifiers) from different segments to communicate with each other while maintaining separate routing domains.

This approach is particularly effective for keeping routing domains isolated while supporting VNI translation, making it ideal for scenarios where you need to connect different data centers or networks without merging their control planes.

Other Options:

A. MPLS DCI label exchange:This option typically focuses on MPLS-based interconnections and does not inherently support VNI translation or isolation in the context of VXLAN.

B. Over the top (OTT) with VNI translation enabled:This could support VNI translation but does not inherently ensure routing domain isolation.

D. Over the top (OTT) with proxy gateways:This typically involves using external gateways for traffic routing and may not directly support VNI translation or isolation in the same way as VXLAN stitching.

Data Center References:

VXLAN stitching is a powerful method in multi-data center environments, allowing for flexibility in connecting various VXLAN segments while preserving network isolation and supporting complex interconnect requirements.

Review of the Exhibit:

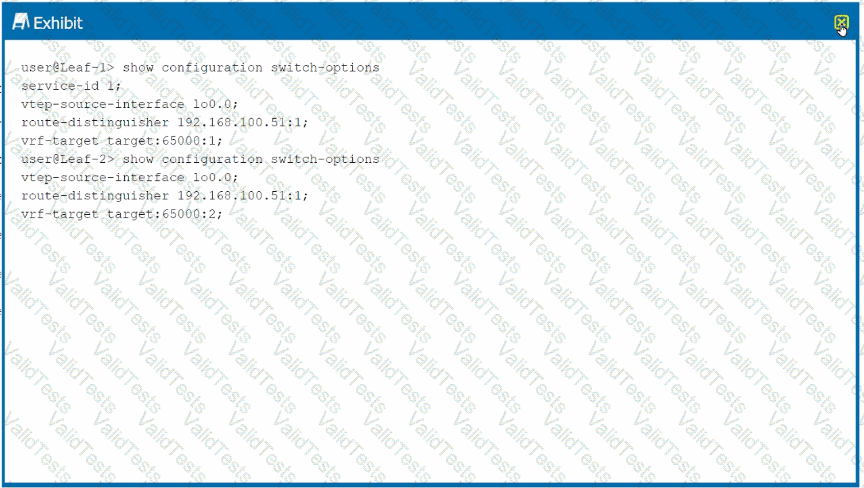

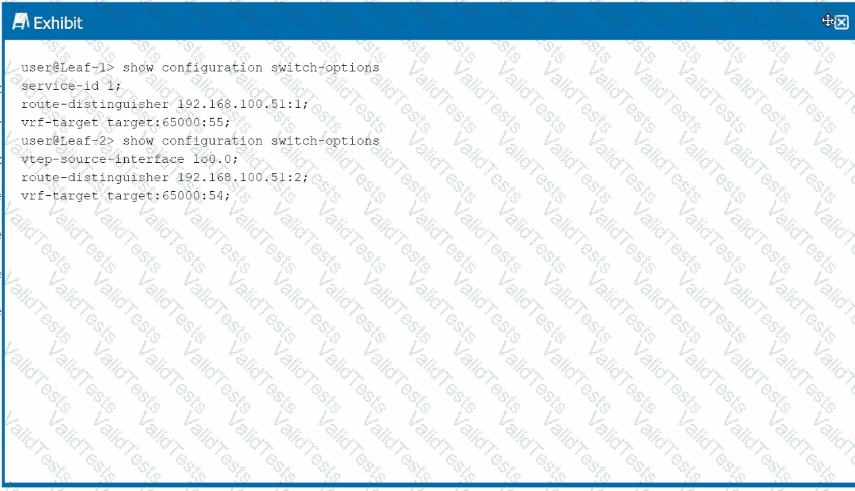

The exhibit shows the switch configuration for Leaf-1 and Leaf-2. The configurations include route distinguishers, VRF targets, and service IDs, all of which are crucial for ensuring proper operation in an EVPN-VXLAN environment.

Service-ID Consistency:

The service ID must be consistent across all participating leaf devices in the same EVPN instance to ensure that they are part of the same VXLAN overlay network.

VRF Target Consistency:

The vrf-target parameter must also be consistent across devices to ensure that VRFs (Virtual Routing and Forwarding instances) are correctly imported and exported between leaf nodes.

Conclusion:

Option B:Correct—Setting the same service-id on Leaf-2 ensures that it is part of the same VXLAN overlay as Leaf-1.

Option D:Correct—The vrf-target on Leaf-2 should match Leaf-1 to ensure consistent routing policies and proper route exchange.

Understanding Network Architectures:

ERB (Edge Routed Bridging) architecture involves routing at the network's edge (leaf nodes), while traffic between leaf nodes is switched. This is commonly used in VXLAN-EVPN setups.

Analysis of the Exhibit:

The exhibit shows configurations related to routing instances, VXLAN, and VLANs, with VNIs being used for each VLAN. This setup is characteristic of an ERB architecture where each leaf device handles Layer 3 routing for its connected devices.

Conclusion:

Option B:Correct—The configuration shown corresponds to an ERB architecture where routing occurs at the network's edge (leaf devices).

Understanding sFlow Monitoring:

sFlow is a packet sampling technology used to monitor traffic in a network. It sends sampled packet data and interface counters to an sFlow collector, which analyzes the traffic patterns.

Information Included in sFlow Datagram:

Option A:The datagram sent to the sFlow collector includes information about the interface through which the packets entered the agent (the switch or router). This is crucial for understanding where in the network the traffic was captured.

Option D:sFlow datagrams also include the source and destination VLAN for the sampled packets. This allows for detailed analysis of the traffic flow within different VLANs.

Conclusion:

Option A:Correct—The ingress interface is included in the sFlow datagram.

Option D:Correct—The source and destination VLANs are also included, providing context for the sampled traffic.

Understanding Bridged Overlay Architecture:

In a single-tenant data center using a bridged overlay architecture, virtual networks (VLANs) are typically isolated within the fabric, with traffic between these VLANs handled outside the fabric.

Communication Between Different Virtual Networks:

A. off-fabric using an external device:This is correct. In many bridged overlay architectures, communication between different virtual networks is handled off-fabric, often using an external router or firewall that connects the different VLANs. The fabric itself primarily provides Layer 2 connectivity within each VLAN, leaving inter-VLAN routing to be handled externally.

Data Center References:

This design is common in smaller or simpler data center environments where a single tenant does not require complex on-fabric routing and prefers to handle inter-VLAN routing through dedicated devices.

Zero Touch Provisioning (ZTP):

Juniper Networks' ZTP (Zero Touch Provisioning) process automates the deployment of new devices by allowing them to fetch and execute scripts for configuration and setup as they are powered on and connected to the network.

Supported Scripting Languages:

The Junos OS supports several scripting languages that can be used during the ZTP process:

Shellscripts are often used for general automation tasks.

Pythonis a widely supported language in Junos, offering powerful scripting capabilities for automating network tasks.

SLAX(Service Logic Execution Environment) is a scripting language specific to Junos, designed to automate configuration tasks and simplify network operations.

Conclusion:

Option D:Correct—Junos ZTP supports Shell, Python, and SLAX, making it the correct choice among the provided options.

Understanding the Configuration:

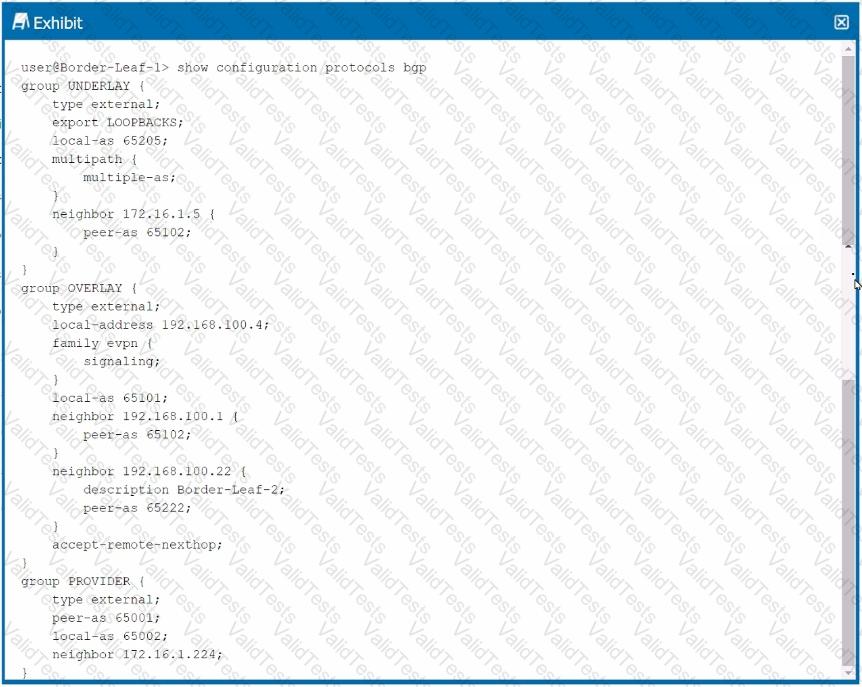

The exhibit shows a BGP configuration on a Border-Leaf device. The BGP group UNDERLAY is used for the underlay network, OVERLAY for EVPN signaling, and PROVIDER for connecting to the provider network.

The OVERLAY group has the accept-remote-nexthop statement, which is designed to accept the next-hop address learned from the remote peer as is, without modifying it.

Problem Identification:

The BGP session to Border-Leaf-2 is not established. A common issue in EVPN-VXLAN environments is related to next-hop reachability, especially when accept-remote-nexthop is configured.

In typical EVPN-VXLAN setups, the next-hop address should be reachable within the overlay network. However, the accept-remote-nexthop can cause issues if the next-hop IP address is not directly reachable or conflicts with the expected behavior in the overlay.

Corrective Action:

D. delete protocols bgp group OVERLAY accept-remote-nexthop:Removing this command will ensure that the device uses its own IP address as the next-hop in BGP advertisements, which is standard practice in many EVPN-VXLAN setups. This change should help establish the BGP session with Border-Leaf-2.

Data Center References:

Proper handling of BGP next-hop attributes is critical in establishing and maintaining stable BGP sessions, especially in complex multi-fabric environments like EVPN-VXLAN. Removing accept-remote-nexthop aligns with best practices in many scenarios.
