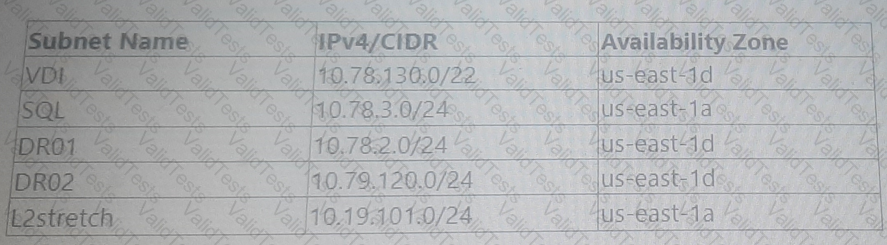

For the NC2 cluster deployed in the North Virginia region (us-east-id), consuming IPs from the 10.78.2.0/24 range, the subnets configured within the same CIDR range of 10.78.0.0/16 will be recognized.

The subnetDR01 (10.78.2.0/24)is directly within the range of the deployed cluster.

The subnetL2stretch (10.19.101.0/24)is also configured in the NC2 AWS VPC, although not in the immediate range of the cluster, it may show up due to broader network configurations for stretched L2 operations.

SubnetsVDI (10.78.130.0/22)andDR02 (10.79.120.0/24), although part of the same VPC, are not directly within the immediate CIDR range or may not be recognized in this specific configuration scenario.

References:Refer to the Nutanix documentation on NC2 AWS VPC subnet configurations and Prism Element settings for detailed guidelines on network visibility and configuration.

Within an NC2 environment, the Cluster Protect feature can ensure the protection of:

Nutanix Files: This provides file services within the Nutanix ecosystem, and Cluster Protect can safeguard the data stored in Nutanix Files.

Virtual Machine Disks: This ensures that the data stored on virtual machine disks is protected, providing backup and recovery options for the virtual machines running within the cluster.

References:

Nutanix Cloud Clusters on AWS Administration

Nutanix AOS 6.7 Documentation

To deploy an NC2 cluster using an existing AWS network, the NAT Gateway should be placed in a public subnet. A public subnet is one that has a route to an Internet Gateway, allowing the NAT Gateway to provide outbound internet access for resources in private subnets. The NAT Gateway is used to enable instances in private subnets to access the internet while keeping them secure by not exposing them directly to the public internet.

References:

Nutanix Cloud Clusters (NC2) on AWS Documentation

To ensure that only application servers from the source subnet 10.79.1.0/24 can access the SQL databases running on the NC2 cluster in the subnet 10.78.1.0/24, the administrator can take the following actions:

Option A: Create a custom Security Group with the following rules:

Key = tag:nutanix:clusters

Key = tag:nutanix:clusters:external

and value = the clusters' UUID

Key = tag:nutanix:clusters:external

and value = 10.78.1.0/24

Option D: Create a custom Security Group with the following:

Key = nutanix:clusters

Key = nutanix:clusters:external

and value = the clusters' UUID

Key = nutanix:clusters:external

and value = 10.79.1.0/24

These actions help create security rules that restrict access to the databases only from the specified source subnet, ensuring secure and controlled access.

References:

Nutanix Cloud Clusters on AWS Administration

AWS Security Groups Documentation

To SSH into a Controller VM (CVM) in an NC2 on AWS cluster without on-premises connectivity, the administrator needs to ensure that the security settings allow SSH access from the Jump Host. This involves editing the User Management Network Security Group to permit SSH traffic from the Jump Host IP.

Deploy Jump Host:

Ensure the Jump Host is deployed in a public subnet with an Elastic IP (EIP) assigned for external access.

Edit User Management Network Security Group:

Locate the security group associated with the user management network.

Modify the inbound rules to allow SSH (port 22) from the Jump Host's IP address. This ensures that the Jump Host can establish an SSH connection to the CVM.

Steps to Edit Security Group:

Navigate to the EC2 dashboard in the AWS Management Console.

Select "Security Groups" under the "Network & Security" section.

Find and select the appropriate security group.

Edit the inbound rules to add a new rule:

Type: SSH

Protocol: TCP

Port Range: 22

Source: Custom IP (enter the Jump Host's public IP address)

Additional Configuration:

Ensure that the CVM itself allows SSH connections and that no internal firewall rules block the traffic.

References:

Nutanix Cloud Clusters on AWS Administration Guide

AWS Security Group Documentation

Nutanix Best Practices for Secure Access

AHV (Answer A):

AHV (Acropolis Hypervisor) can be upgraded using Lifecycle Manager (LCM). LCM simplifies the upgrade process and ensures that all components are updated in a coordinated manner.

BIOS (Answer C):

BIOS upgrades can also be performed using LCM. This helps in maintaining hardware compatibility and performance by ensuring that the latest firmware is installed.

References:

Nutanix Lifecycle Manager (LCM) Documentation

Nutanix AHV Upgrade Guide

Nutanix BIOS Upgrade Documentation

For a VM to be accessible over the internet through a load balancer, the VM itself must have a public IP address.

In this case, the health check for the VM target is failing and the DNS returns a "NOT Found" message because web-1 does not have a public IP assigned.

Without a public IP, the load balancer cannot route traffic to web-1 from the internet.

Assigning a public IP to web-1 ensures that the VM can be accessed via the load balancer, resolving the connectivity issue.

References:Refer to the AWS documentation on network load balancers and public IP assignments, and Nutanix documentation on VM network configurations.

When creating user VM subnets for multiple NC2 clusters in AWS, the best approach is to create guest-VM subnets for each cluster. This ensures that each cluster has its own dedicated subnets, which simplifies network management and avoids potential IP conflicts.

Advantages of Dedicated Subnets:

Isolation: Each cluster operates in its own subnet, providing better isolation and security.

Management: Easier to manage and troubleshoot network issues when each cluster has its own subnets.

Scalability: More scalable as each subnet can be managed and expanded independently.

Steps to Create Guest-VM Subnets:

Identify the IP range for each subnet.

In the AWS VPC console, create a new subnet for each cluster using the identified IP ranges.

Associate the new subnets with the respective clusters during or after the cluster deployment process.

Why Not Shared Subnets:

Shared subnetscould lead to IP conflicts and make network management more complex, especially as the number of clusters grows.

References:

Nutanix Cloud Clusters on AWS Administration Guide

AWS VPC Subnet Creation Documentation

To manually create an AWS VPC with Public access to Prism Element for testing purposes, the following components must be created:

VPC: A Virtual Private Cloud to provide an isolated network for the resources.

Delegated Subnets: Subnets within the VPC to segment the network and allocate IP ranges.

Route Tables: To define routing rules for the subnets to ensure proper traffic flow.

NAT Gateway: To enable instances in the private subnets to access the internet.

Internet Gateway: To allow direct internet access to instances in the public subnets.

Load Balancer: To distribute traffic across multiple instances for improved availability and redundancy.

References:Refer to the AWS documentation on VPC creation and Nutanix documentation on network setup for Prism Element access.

For issues related to cloud hardware support such as EC2 instances, VPC, etc., the public cloud vendor (AWS in this case) should be contacted. AWS provides support and documentation for their infrastructure and services, ensuring that users can get assistance for any hardware or cloud-specific queries.
