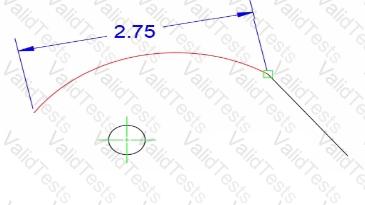

When working with arcs in AutoCAD, you can use different methods to draw them. The given exhibit shows a dimensioned arc which looks to be defined by three points: the starting point, the center point, and the ending point. This is typically how the "Start, Center, End" method works.

Start Point: The initial point where the arc begins.

Center Point: The center of the circle from which the arc is a segment.

End Point: The final point where the arc ends.

This method is useful for accurately defining the curve and ensuring it passes through the desired points.

 Identify the Data Link: Select the table cell that shows the chain link with a padlock icon. This indicates it is linked to an external data source.

 Locate the Data Link: Right-click the table and choose Data Links. Note the file path of the linked data file.

 Open the Data Link File: Open the linked data file (e.g., an Excel spreadsheet) in its respective application.

 Edit the Cell: Make the necessary changes to the cell in the external data file and save the changes.

 Update in AutoCAD: Return to AutoCAD and the table should automatically update to reflect the changes made in the external file.

References:

AutoCAD Help Documentation on Data Linking in Tables

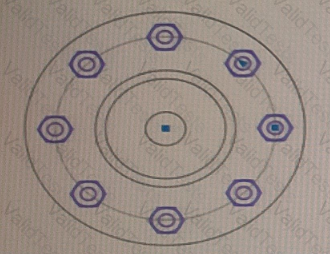

array items are contained in a single array object, similar to a block. You can change the number of these items and their spacing in an associative array.

Based on 2, you can move an item in an associative array by pressing and holding the Ctrl key, and then selecting the items you want to move.

since explode is the command that separates objects into individual objects. Disassociate, ungroup and break are not valid commands for associative arrays.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-27321B8F-C67E-4EF9-9A25-C5444330E5F2-htm.html

https://knowledge.autodesk.com/support/revit/learn-explore/caas/CloudHelp/cloudhelp/2022/ENU/Revit-DocumentPresent/files/GUID-EA2B51E1-C28A-4410-AF01-836377581968-htm.html#:~:text=DWG%20(drawing)%20format%20is%20supported,DXF%20files%20are%20generally%20large .

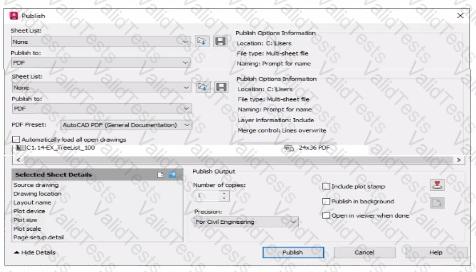

 Open the Sheet Set Manager: Type SHEETSET in the command line and press Enter.

 Modify Page Setup: Right-click on the sheet set or individual sheets and select Properties.

 Set Page Setup: Change the page setup to 12x18 PDF.

 Publish: Click Publish to generate the PDF with the desired settings.

References:

AutoCAD Help Documentation on Publishing Drawing Sheets

https://www.tutorial-autocad.com/mirror-command

http://docs.autodesk.com/ACD/2011/ENU/filesMDG/WS1a9193826455f5ff2566ffd511ff6f8c7ca-3f53.htm

According to the AutoCAD for Design and Drafting documents1, the command that should be typed at the command line in order to start creating a line for drawing reference that starts at a defined point and extends to infinity in the designated direction is XLINE2. This command creates a construction line, which is a type of reference line that can help you manage accurate parameters of your drawing2. You can also use point objects as nodes or reference geometry for object snaps and relative offsets3.

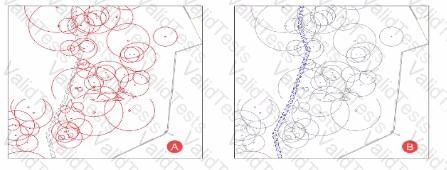

To achieve the desired appearance where the trail system is blue and all other content is gray in Viewport B, the designer needs to utilize the viewport layer properties.

Open the Layer Properties Manager:

Type LAYER in the command line and press Enter.

Modify VP Layer Colors:

In the Layer Properties Manager, find the layers that need to be changed (the trail system and other content layers).

Select the specific viewport (Viewport B) from the "Viewport Overrides" column.

Change the Colors for Viewport B:

For the trail system layer, set the color to blue.

For all other layers, set the color to gray.

This can be done by double-clicking the color cell in the "VP Color" column and selecting the desired color.

Apply Changes:

Close the Layer Properties Manager after making the necessary changes. The viewport overrides will apply, showing the trail system in blue and other content in gray in Viewport B.

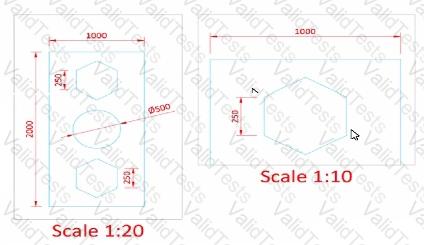

 Create or Modify Dimension Style: Type DIMSTYLE in the command line and press Enter. Create a new dimension style or modify an existing one.

 Set as Annotative: In the Dimension Style Manager, go to the Fit tab and check the Annotative option.

 Apply to Dimensions: Ensure that all dimensions in your drawing use this annotative dimension style.

 Set Annotation Scale: Set the annotation scale for each viewport so that the dimensions scale correctly in each one. Use the Properties palette to set the Annotation Scale for each viewport.

References:

AutoCAD Help Documentation on Using Annotative Dimensions

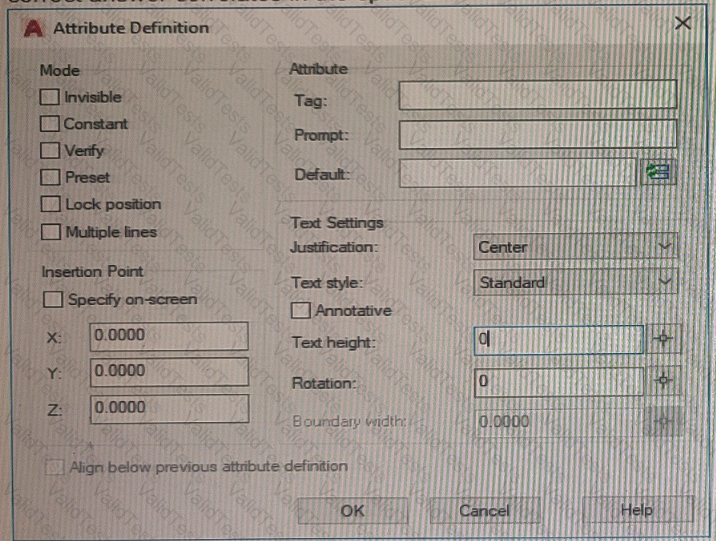

the mode that should be used if you want the default value of the attribute assigned upon insertion where the attribute value cannot be changed is Constant. This option sets the attribute value as constant and prevents it from being modified during a block insertion or later.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-92A7CE9D-2E1C-415E-A1BF-5CB35D5E2D38-htm.html
