Identify the Current UCS:

Before changing the view, ensure that the UCS (User Coordinate System) is correctly oriented with the angled geometry.

If necessary, use the UCS command to align the UCS with the angled building addition.

Use the PLAN Command:

Type PLAN in the command line and press Enter.

When prompted, choose the Current UCS option. This option adjusts the view so that it becomes orthogonal (aligned) to the current UCS.

Result:

The drawing will now be oriented orthogonally on the screen, as shown in the exhibit on the right, without rotating any actual geometry.

References:

AutoCAD Documentation on the PLAN command: PLAN Command

polar tracking is a feature that allows you to draw lines at specific angles. You can configure polar tracking to work at any angle you want by following these steps:

Click on the arrow next to the Polar Tracking icon in the Status bar and select Settings.

In the Drafting Settings dialog box, click on the Polar Tracking tab.

Under Additional Angles, click on New and enter 6.25 as the angle value. Click OK.

Make sure that 6.25 is checked in the list of additional angles. Click OK.

Now you can draw a line at an angle of 6.25 degrees by using polar tracking.

the external references use relative paths to load them without error after copying them locally from a central server. This way, you can avoid broken links due to changes in drive letters or folder names.

https://grabcad.com/tutorials/working-with-external-references-xrefs-autocad

 you need to activate the viewport that you want to rotate and start the Dview command with the Twist option. This will allow you to rotate the view within a viewport without rotating the viewport itself.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-D077CEA3-6EC1-4677-BD4B-372D7364D545-htm.html

Box 1 : Batch plot

One of the topics covered in this course is Plotting Drawings2. In this topic, you can learn how to print multiple sheets or drawings to a plotter, printer, DWF file, or PDF file. The applicable command for this function is Batch plot (PUBLISH)2.

https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional

Box 2: EtransmitOne of the topics covered in this course is Sharing Drawings2. In this topic, you can learn how to create a package of drawing files and their dependencies. The applicable command for this function is Etransmit (ETRANSMIT)2. https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional

Box3: ExportOne of the topics covered in this course is Exporting Drawings2. In this topic, you can learn how to save the objects in a current drawing to a different file format, such as SAT, STL, etc. The applicable command for this function is Export (EXPORT)2. https://www-int.autodesk.com/certification/learning-pathways/autocad-design-drafting

Understanding Polar Tracking:

Polar Tracking in AutoCAD helps users draw lines at specific angles by snapping to predefined increments.

This feature is useful for creating lines at consistent angles without manually entering angle values each time.

Steps to Set Increment Angle:

Go to the Drafting Settings dialog box.

Select the Polar Tracking tab.

Check the box to enable Polar Tracking.

In the Increment Angle dropdown, set the desired increment angle (in this case, 17 degrees).

Enabling and Using Polar Tracking:

Once enabled, you can draw lines that snap to the set angle increments, simplifying the process of creating precise angled lines.

Conclusion:

To create lines at consistent 17-degree increments, the Polar Tracking setting should be edited.

References:

AutoCAD User Guide on Polar Tracking.

AutoCAD Help Documentation on Drafting Settings.

Understanding Annotative Objects:

Annotative objects in AutoCAD are designed to automatically adjust their size based on the viewport scale to ensure readability.

Issue with Custom Drawing Scale:

When a new custom scale (1:120) is applied, annotative objects disappear if they are not configured to support the new scale.

Options to Resolve the Issue:

Option A: Turning off the annotation monitor within the viewport does not resolve scale issues.

Option B: Moving objects to a new layer does not affect their annotative properties.

Option D: Setting multiple scale positions is a partial solution but does not directly address the missing scale.

Correct Solution:

Option C: Adding the 1:120 scale to the annotative objects in model space ensures that these objects recognize and adjust to the new scale within the viewport.

Steps to Add Scale:

Select annotative objects in model space.

Right-click and choose "Annotative Object Scale" from the context menu.

Add the new scale (1:120) to ensure objects appear correctly in the viewport.

References:

AutoCAD Help Documentation on Annotative Objects and Scaling.

AutoCAD 2024 User Guide on Managing Annotative Properties.

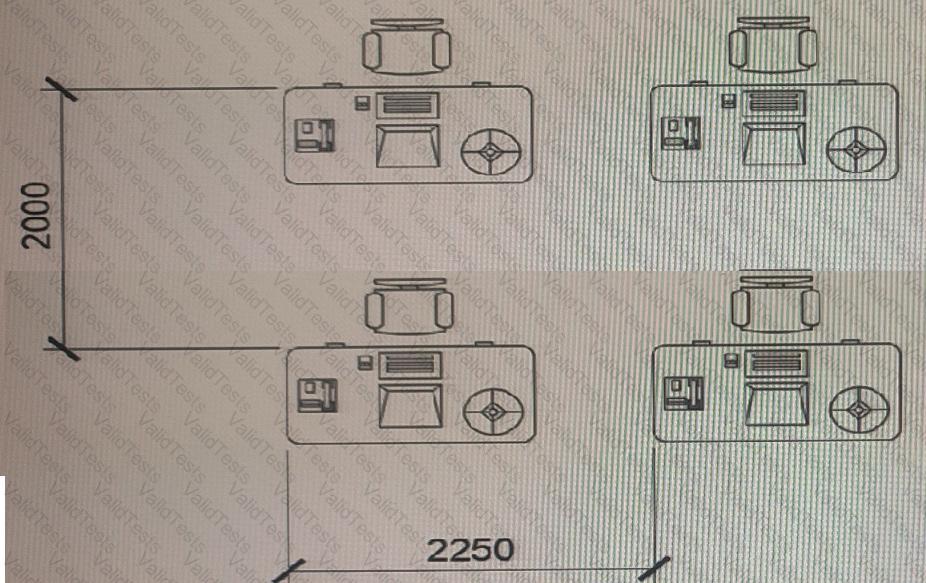

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-181BF535-D6F4-4B90-B04D-EB99C5488DAB-htm.html

To ensure that all drawing information is visible when plotting from an ISO A3 layout to an ISO A4 sheet size, the correct plot settings need to be applied.

Open the Plot Dialog:

Type PLOT in the command line and press Enter.

Set Plot Area:

In the Plot dialog, set the "Plot Area" to Extents. This ensures that everything within the drawing extents will be included in the plot.

Adjust Plot Scale:

Set the "Plot Scale" to Fit to paper. This option will automatically scale the drawing to fit within the ISO A4 sheet size (297 mm x 210 mm).

Other Settings:

Ensure that the correct printer/plotter and paper size (ISO A4) are selected.

Optionally, check the "Center the plot" option to ensure the drawing is centered on the sheet.

Save Changes:

Click on the "Preview" button to check the output. If everything looks correct, click "OK" to plot the drawing.
