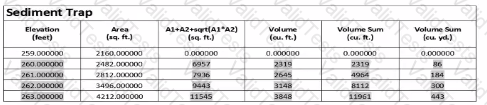

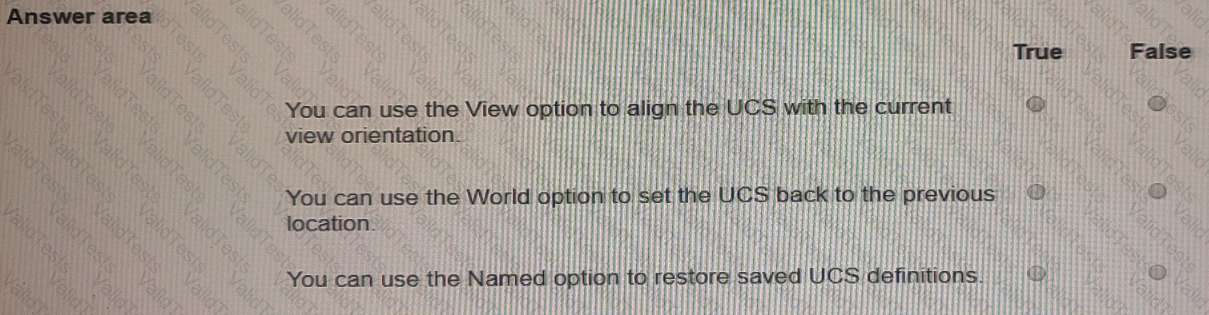

TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the View option to align the UCS with the current view orientation. This option rotates the UCS so that it matches your current view of a 3D model. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

Falseccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the World option to set the UCS back to its default orientation. This option resets the UCS so that it matches the WCS (world coordinate system).

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the Named option to save or restore named UCS definitions. This option allows you to create custom UCSs and switch between them easily.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

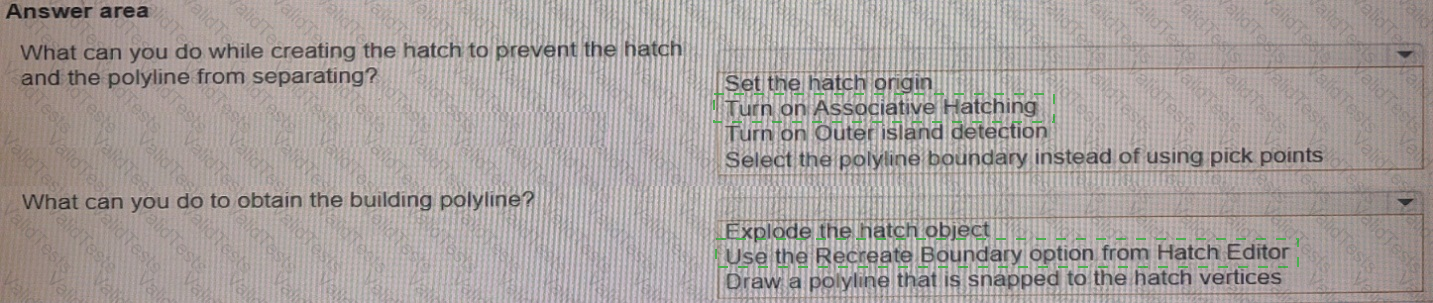

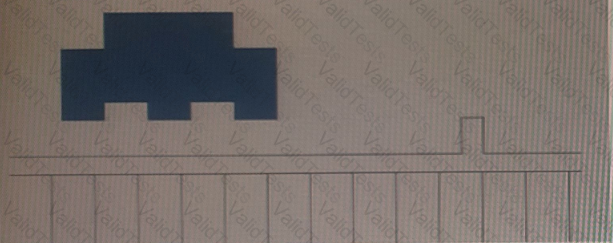

Box 1 = Turn on Associative Hatching

Box 2 = use the Recreate Boundary option from Hatch Editor

https://knowledge.autodesk.com/support/autocad/troubleshooting/caas/sfdcarticles/sfdcarticles/Recreating-hatch-boundary.html

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2018/ENU/AutoCAD-Core/files/GUID-2B5D404A-DCAB-4AF6-A5C1-51593B38F519-htm.html

When you encounter the error "Possible circular reference to current drawing" in AutoCAD while attaching an external reference (xref), it means that the drawing you are trying to reference has the same name as the current drawing. This creates a circular dependency which AutoCAD cannot resolve.

Check File Names: Verify that the file name of the drawing you are trying to reference does not match the name of the current drawing.

Rename if Necessary: If the names match, rename either the current drawing or the external reference file.

Steps to resolve:

Save the current drawing with a different name if necessary.

Ensure the external reference file has a unique name before attaching it.

This prevents the circular reference error and allows the xref to be attached properly.

True

1. According to the AutoCAD for Design and Drafting documents1, a polyline is a connected sequence of line segments created as a single object. You can create straight line segments, arc segments, or a combination of the two2341. Therefore, the correct answer is True. A polyline can include both straight line segments and arc segments.

2. False.According to the AutoCAD for Design and Drafting documents1, a spline is a smooth curve that passes through or near a set of fit points, or that is defined by the vertices in a control frame. A spline does not have a constant radius, but rather a local radius at each point on the curve2. Therefore, AutoCAD cannot directly dimension or display a radius of a spline curve23. You can use some workarounds such as exploding the curve to arc segments with the FLATTEN command2, or creating a polyline over the top with arc active3, but these may not be accurate or desirable. Therefore, the correct answer is False. The radius on a spline cannot be found in AutoCAD properties.3. TrueAccording to the AutoCAD for Design and Drafting documents1, a 2D polyline is a connected sequence of line segments created as a single object. You can specify an elevation for a 2D polyline using the Edit Polyline Elevations command2. However, this command will assign the same elevation to all vertices of the polyline2. Therefore, you cannot assign different elevations to different segments or points of a 2D polyline. Therefore, the correct answer is True. You can assign only one elevation to a 2D polyline.

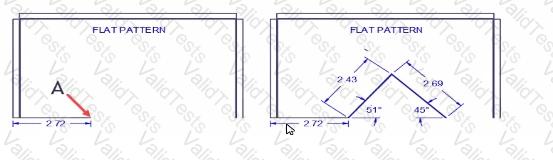

Dynamic input in AutoCAD allows you to enter coordinates and angles directly in the command line, providing real-time feedback on the drawing. To draw lines at specific angles and lengths, you use the format length<angle.

Start Point (A): Begin drawing from point A.

Enter Length and Angle: For the first line, input 2.43<51 to draw a line that is 2.43 units long at an angle of 51 degrees from the horizontal.

Enter Length and Angle for Second Line: For the second line, input 2.69<-45 to draw a line that is 2.69 units long at an angle of -45 degrees from the horizontal.

Using dynamic input in this manner ensures precise drawing and proper alignment as per the given angles and lengths.

 Open ETRANSMIT Command: Type ETRANSMIT in the command line and press Enter to open the Create Transmittal dialog box.

 Open Transmittal Setup: Click on the Transmittal Setup button to modify the settings.

 Modify Transmittal Setup: In the Transmittal Setup dialog box, make sure to select the option Include fonts to ensure SHX files (fonts) are included in the transmittal package.

 Save Changes: Click OK to save the settings and then create the transmittal package. This will ensure that all necessary SHX files are included with the drawings sent to the client.

References:

AutoCAD Help Documentation on ETRANSMIT Command

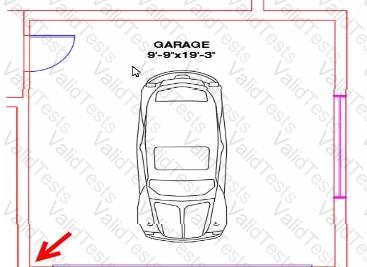

Select the Car Block:

In the current drawing, select the car block.

Copy with Base Point:

Right-click and choose "Clipboard" > "Copy with Base Point".

Specify the lower left-hand corner of the garage as the base point.

Switch to the Target Drawing:

Open the target drawing where you want to paste the car block.

Paste to Original Coordinates:

Right-click and choose "Clipboard" > "Paste to Original Coordinates".

The car block will be pasted into the same position relative to the garage as in the original drawing.

References:

AutoCAD User Guide on Clipboard Operations

Autodesk Knowledge Network: Copying and Pasting Objects in AutoCAD

Check the Active Space:

The Annotation Scale tool is only visible when the user is in model space.

Ensure that you are currently working in model space by checking the status bar or the workspace tab.

Switch to Model Space:

If you are in paper space (layout view), switch to model space by double-clicking inside a viewport or selecting the 'Model' tab at the bottom of the drawing area.

Verify the Annotation Scale Tool:

The Annotation Scale tool should now be visible in the status bar.

If it is still not visible, right-click on the status bar, go to 'Customization,' and ensure 'Annotation Scale' is checked.

References:

AutoCAD Documentation on Annotation Scale: Annotation Scale

Thank you for your engagement! Join our VIP AI Discord community at SmartPrompt for AI news and custom prompts for passive income opportunities with business automation.

The vertex options in the multi-functional grip menu are specific to certain types of geometry in AutoCAD. Let's break down why the vertex options are missing in Exhibit 2.

Understanding Grip Menus:

Grip menus provide different options depending on the type of object selected. These options can include stretching vertices, adding vertices, or other object-specific commands.

Geometry Types and Grip Menus:

Polyline: Offers vertex-related options such as adding, stretching, or removing vertices.

Line: Offers basic options such as stretching or lengthening but does not provide vertex-related options because a line has only two endpoints.

Block: May not offer vertex manipulation directly unless exploded into its component objects.

Dimension: Offers dimension-specific grip options, not typically including vertex manipulation.

Analyzing Exhibit 2:

Exhibit 2 shows a grip menu with only the "Stretch" and "Lengthen" options available. This menu is typical for a simple line object, which does not have intermediate vertices that can be manipulated individually like a polyline.

Therefore, the correct answer is C. The Geometry is a line.
