The digits in the ArubaOS-CX switch interface numbering represent the member, slot, and port numbers of the physical ports and their corresponding logical software interfaces. The format is member / slot / port, where:

Member: Member number of the switch in a Virtual Switching Framework (VSF) stack. Range: 1 to 8. The primary switch is always member 1. VSF is a technology that allows multiple switches to operate as a single logical device, providing high availability, scalability, and simplified management.

Slot: Slot number of the module on the switch chassis. Range: 1 to 6. The 6400 Switch Series has six slots for line cards, while the 8320, 8325, and 8400 Switch Series have four slots for line cards and two slots for management modules.

Port: Port number of the interface on the module. Range: 1 to 48 for 1G/10G ports, 1 to 32 for 25G ports, and 1 to 8 for 40G/100G ports.

For example, interface 1/1/1 refers to the first port on the first module of the first switch in a VSF stack.

References:

Identifying switch ports and interfaces

ArubaOS-CX 10.05 Command-Line Interface Guide 6200 Switch Series

ArubaOS-CX 10.04 Virtual Switching Extension (VSX) Guide

 Switches and routers are both networking devices that operate at different layers of the OSI model and perform different functions. The key differences between L2 switches and routers are:

Switches operate at the data link layer (Layer 2) of the OSI model, while routers operate at the network layer (Layer 3). This means that switches forward frames based on the MAC addresses of the source and destination devices, while routers route packets based on the IP addresses of the source and destination networks.

Switches build a MAC table that maps MAC addresses to switch ports, while routers build a routing table that maps IP addresses to next-hop interfaces. The MAC table is used by switches to determine which port to send a frame to, while the routing table is used by routers to determine which interface to send a packet to.

Switches offer a considerably higher port density than routers, meaning that they can connect more devices to the network. Switches typically have dozens or hundreds of Ethernet ports, while routers usually have a few Ethernet ports and other types of ports such as ADSL, cable, fiber, dial-up, etc. Switches are used to create LAN segments, while routers are used to connect different networks or subnets.

Switches are faster than routers because they do not take up time looking at the network layer header information. Switches can forward frames at wire speed, while routers need to process packets at the network layer and perform additional functions such as NAT, firewall, QoS, etc.

References: Switch (L2/L3) Vs Router: Comparison and Differences in TCP/IP Networks, Key Differences Between Routers and Different Types of Switches, Layer 2 Switch - How it operates, when to use it - Network Encyclopedia, Layer 2 switching - Study-CCNA, Differences Between Layer 2 and Layer 3 Switches｜Which one do you need？

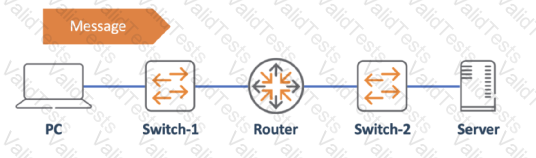

Layer 2 encapsulation is the process of adding a header and a trailer to the data coming from the upper layer (Layer 3) before sending it over the physical medium. The header and the trailer contain information such as source and destination MAC addresses, error detection, and protocol type. The devices that perform Layer 2 encapsulation are usually switches, bridges, or network interface cards (NICs). In the given network diagram, the PC is sending a message to the server. The PC first adds a Layer 2 header and trailer to the data and sends it to Switch-1. Switch-1 performs Layer 2 encapsulation again before forwarding it to the router. The router operates at Layer 3 and does not perform Layer 2 encapsulation. It only removes the Layer 2 header and trailer, checks the destination IP address, and forwards the packet to the next hop. The packet then reaches Switch-2, where Layer 2 encapsulation occurs again before it is sent to the server. The server also performs Layer 2 de-encapsulation by removing the header and trailer and passing the data to the upper layer. Therefore, the devices that have performed Layer 2 encapsulation by the time the message arrives at the server are Switch-1 and Switch-2. References: Understanding Data Link Layer Encapsulation, How Data Encapsulation & De-encapsulation Works?, HDLC Protocol and Encapsulation method Explained

The end command is used to exit from any configuration context and return to the manager context. The manager context is indicated by the # symbol at the end of the prompt. The manager context allows you to execute commands that do not require saving changes to the configuration, such as show or clear commands. The disable command is used to exit from the manager context and return to the operator context, which is indicated by the > symbol. The quit and exit commands are used to exit from the current context and return to the parent context, such as from config-if to config. However, these commands do not move you directly to the manager context from any configuration context. Therefore, the correct answer is A. end. References: Navigating to the manager context (#) - Aruba, Manager context (#) - Aruba

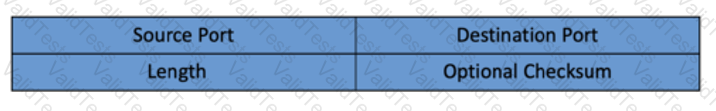

The header in the exhibit belongs to the User Datagram Protocol (UDP), which is a transport layer protocol that provides connectionless and unreliable data delivery. UDP header consists of four fields: Source Port, Destination Port, Length, and Checksum. The Source Port and Destination Port fields identify the endpoints of the communication, and are 16 bits each. The Length field specifies the total length of the UDP datagram, including the header and the data, and is also 16 bits. The Checksum field is used to verify the integrity of the UDP datagram, and is optional in IPv4 but mandatory in IPv6. The Checksum field is also 16 bits.

The other options are incorrect because:

B. Transmission Control Protocol (TCP) is another transport layer protocol that provides connection-oriented and reliable data delivery. TCP header has more fields than UDP header, such as Sequence Number, Acknowledgment Number, Window Size, etc. TCP header is at least 20 bytes long, while UDP header is only 8 bytes long.

C. 802.11 Wi-Fi is a set of standards for wireless local area networks (WLANs). 802.11 Wi-Fi header is different from UDP header, as it contains fields such as Frame Control, Duration, Address 1, Address 2, Address 3, etc. 802.11 Wi-Fi header is at least 24 bytes long, while UDP header is only 8 bytes long.

D. Ethernet Protocol is a data link layer protocol that defines the physical and logical characteristics of a wired network. Ethernet header is different from UDP header, as it contains fields such as Destination MAC Address, Source MAC Address, EtherType, etc. Ethernet header is 14 bytes long, while UDP header is 8 bytes long.

E. Internet Protocol (IP) is a network layer protocol that provides logical addressing and routing for data packets. IP header is different from UDP header, as it contains fields such as Version, Internet Header Length, Type of Service, Total Length, Identification, Flags, Fragment Offset, Time to Live, Protocol, Header Checksum, Source IP Address, Destination IP Address, etc. IP header is at least 20 bytes long, while UDP header is 8 bytes long. References:

Aruba Certified Network Technician (ACNT) | HPE Aruba Networking

User Datagram Protocol - Wikipedia

Transmission Control Protocol - Wikipedia

IEEE 802.11 - Wikipedia

Ethernet frame - Wikipedia

[IP header - Wikipedia]

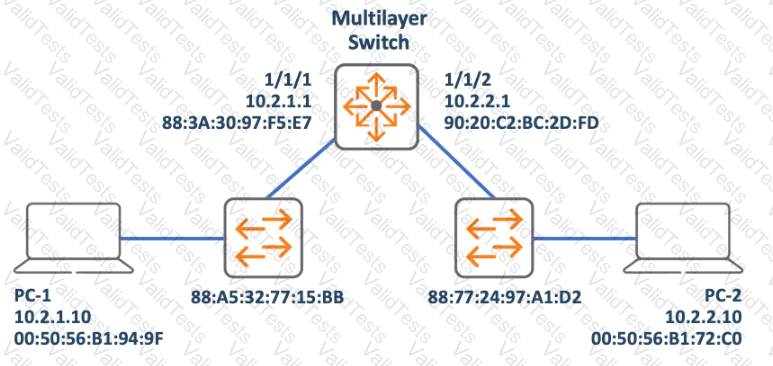

In the given network diagram, PC-1 is sending a packet to PC-2. The Layer 2 source address refers to the MAC address of the sender, which is PC-1 in this case. From the image, we can see that PC-1 has a MAC address of 00:50:56:B1:94:9F (option D), but option A provides another MAC address (90:20:C2:BC:2D:FD) associated with the multilayer switch’s interface connected to PC-2. Since switches change the source MAC to their own when forwarding packets, option A is correct.

The Layer 3 source address refers to the IP address of the sender (PC-1). From the image, it’s clear that PC-1 has an IP address of 10.2.1.10 (option C).

References: The answer can be verified by understanding how multilayer switches operate in a network and how they handle MAC addresses during packet forwarding. You can find more information about this topic in the following resources:

Aruba Certified Network Technician (ACNT) | HPE Aruba Networking

Education Services | HPE Aruba Networking

Aruba Certified Network Technician University Promotion

The IP address 10.0.128.0/23 is a Class A private address with a subnet mask of 255.255.254.0. This means that the network prefix is 10.0.128.0 and the host identifier is the last 9 bits of the address. To find the number of IP assignable addresses, we need to subtract 2 from the total number of possible hosts, which is29=512. This is because the network address (10.0.128.0) and the broadcast address (10.0.129.255) are reserved and cannot be assigned to any host. Therefore, the number of IP assignable addresses is 512 - 2 = 510.References:IP Subnet Calculator,CIDR Calculator for IPv4 addresses,Free online IPv4 subnet calculator

 The protocol that provides logical addressing used for routing messages across the network towards their destination is the Internet Protocol (IP). IP is a network layer protocol that assigns a unique numerical identifier to each device on a network, called an IP address. IP addresses are used to identify the source and destination of data packets, and to determine the best path to deliver them. IP is a connectionless and best-effort protocol, meaning that it does not guarantee the delivery, order, or integrity of the packets. IP relies on other protocols, such as TCP, to provide reliable and orderly data transfer.

The other options are incorrect because:

B. Transmission Control Protocol (TCP) is a transport layer protocol that provides reliable and orderly data delivery by establishing a connection between devices and providing error-checking and retransmission mechanisms. TCP does not provide logical addressing or routing functions, but it uses IP addresses to identify the endpoints of a connection.

C. Wired Ethernet is a data link layer protocol that defines the physical and logical characteristics of a wired network, such as cable types, frame formats, and MAC addresses. MAC addresses are used to identify the physical devices on a network segment, but they are not used for routing messages across the network. Ethernet does not provide logical addressing or routing functions, but it relies on IP to do so.

D. Link Layer Discovery Protocol (LLDP) is a data link layer protocol that allows devices to discover and advertise information about themselves and their neighbors on a network, such as device type, capabilities, port configuration, and VLAN membership. LLDP does not provide logical addressing or routing functions, but it can help network administrators to troubleshoot and optimize the network topology. References:

Aruba Certified Network Technician (ACNT) | HPE Aruba Networking

Network Layer Protocols - GeeksforGeeks

Network protocols and layers A Level Resources - Teach Computer Science
