Pass the HP Aruba Certified Professional - Campus Access HPE7-A07 Questions and answers with ValidTests

In the United States, the operation in the 6GHz band for Wi-Fi devices such as the AP-634 and AP-635 is regulated by the Automated Frequency Coordination (AFC) system, which determines the channels that can be used based on the location. Since the Proof of Concept (POC) was conducted in a different location using AP-635 APs, the allowable channels identified by the AFC service for that location would be different than the channels allowed for the actual deployment location of the AP-634 APs. This would result in a different set of broadcasting channels being available for use in the new warehouse deployment.

The CLI output displays EVPN routes and their corresponding next hops. The "Route Distinguisher" entries followed by IP addresses in the 172.21.11.x range indicate these are loopback addresses used by the underlay network. The underlay network provides the basic routing and forwarding plane for the overlay network that EVPN is part of. These loopback addresses are crucial for the proper functioning of the EVPN control plane.

Graceful Restart (GR) allows a router to continue forwarding packets while it restarts its OSPF process. The GR helper role on AOS-CX switches supports routers during this process. OSPFrouters listen for Grace-LSAs to identify neighbors undergoing a graceful restart, maintaining adjacencies with those routers to allow uninterrupted forwarding.

Dynamic Multicast Optimization (DMO) and Multicast Transmission Optimization are features that can help address issues with multicast traffic in wireless environments. DMO optimizes the way multicast traffic is transmitted over the air by converting multicast streams into unicast streams to the clients that need them. This reduces unnecessary traffic for clients that have not subscribed to the multicast group and can improve overall network performance. Multicast Transmission Optimization adjusts the transmission rate of multicast frames to ensure they are sent at optimal speeds, addressing the issue of multicast flow being received at slow speeds by all users.

Applying the 'acmethreshold' profile as shown in the exhibit would set a minimum and maximum threshold for queue 0, which affects the drop probability for traffic that exceeds these thresholds. The yellow marking indicates a medium drop precedence, so yellow-flagged traffic would be more likely to be dropped when congestion occurs, and the uplink is over-utilized. This action is intended to protect higher-priority traffic, such as VoIP, by giving it a lower probability of being dropped.

The Modulation and Coding Scheme (MCS) used by wireless stations is directly affected by the signal-to-noise ratio (SNR) and the frequency band. Higher SNR can lead to higher MCS values, which means better data rates. The frequency band can affect MCS due to different channel characteristics, such as the presence of interference and propagation properties, which are factors in determining data rates.

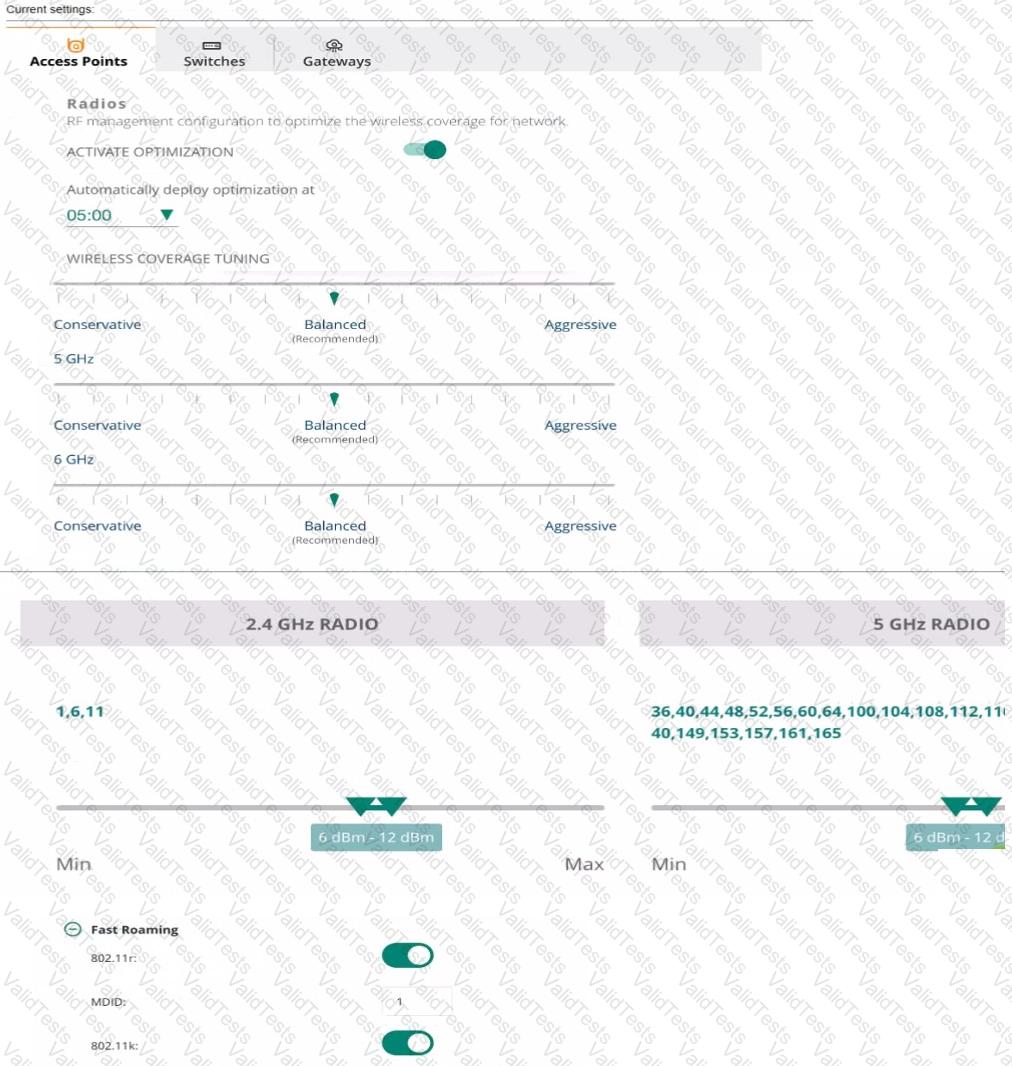

To address connectivity issues when students are working outdoors, increasing the transmission (TX) power range for the 5GHz radios can help improve signal strength and coverage. The setting shown indicates a conservative approach to power settings, which might not provide sufficient coverage for outdoor areas. By increasing the power range, you can extend the wireless signal reach, which aligns with best practices for outdoor wireless coverage.

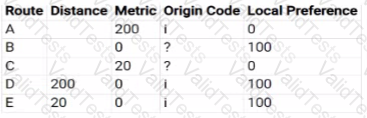

In BGP, the route marked with a ">" symbol is the best route that is chosen based on BGP attributes in the following order: highest weight (Cisco-specific), highest local preference, originated by BGP running on the local router, shortest AS path, lowest origin type, lowest MED, eBGP over iBGP, closest IGP neighbor, and lowest BGP router ID. Based on the table provided, Option E would be marked with a ">" symbol as it has the highest local preference of 100 which is a decisive factor in the BGP best path selection process.

To ensure that ClearPass can initiate a Change of Authorization (CoA) consistently, it's important to enable dynamic authorization to allow RADIUS CoA messages to be processed. This setting typically falls under the high-availability cluster configuration to ensure that it persists across gateway failovers. Additionally, the NAS IP address must be configured under RADIUS client settings to ensure that the correct IP address is used for RADIUS communications, which is necessary for CoA to function correctly.

The error message "User not found" indicates that the authentication source, in this case, Active Directory (AD), is not able to locate the user account based on the current search parameters. This often occurs when the User Principal Name (UPN) that the client is using to authenticate is not included in the search parameters of the AD authentication source within ClearPass. By modifying the AD authentication source to include the UPN in the search, ClearPass will be able to correctly locate the user account and proceed with the authentication using the valid client certificates.
