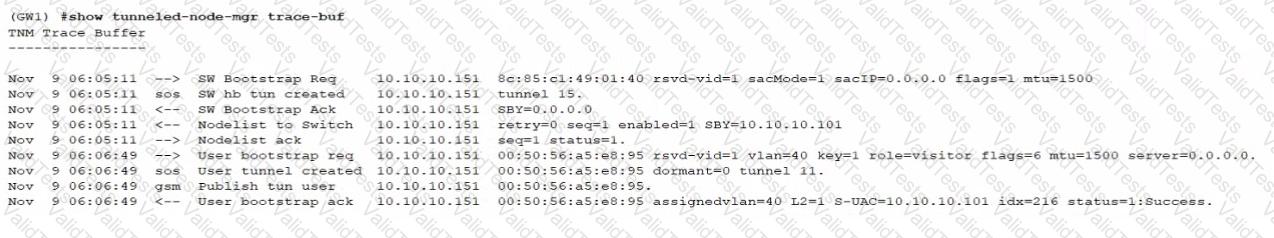

The CLI output indicates a tunnel creation process, where "SW hw tun created" refers to the switch hardware tunnel being created. The line mentioning "BYP-10.10.10.101 -> SW hw tun created to 10.10.10.151 tunnel 15." implies that a tunnel was established to the secondary tunnel endpoint with the IP address 10.10.10.151. This is a common configuration for User-Based Tunneling (UBT) setups where traffic is tunneled to a specific endpoint.

When configuring an 802.1X supplicant for wireless network access with Microsoft Windows 10, enabling server certificate validation is a critical step to ensure the security of the authentication process. Server certificate validation helps prevent man-in-the-middle attacks by ensuring the RADIUS server presenting the certificate is the correct server that the client expects to communicate with.

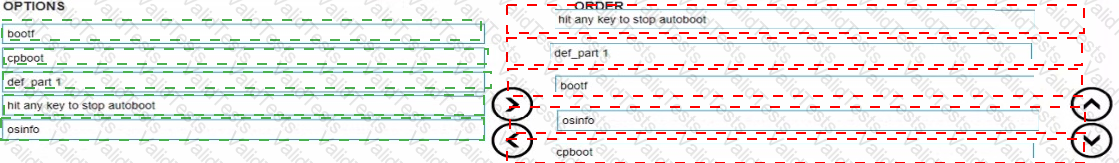

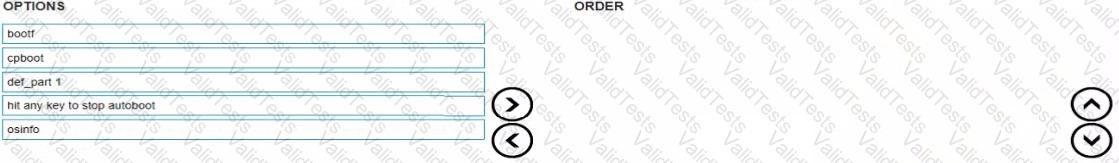

The sequence to return to the previous firmware version after an unsuccessful update would typically be:

hit any key to stop autoboot(This would prevent the system from automatically booting into the current, problematic firmware.)

def_part 1(This command sets the default boot partition, which is likely where the previous working firmware is located.)

bootf(This command would boot from the specified flash partition, which after the second step, would be the previous firmware.)

osinfo(After the system is booted, this command could be used to confirm the firmware version now running on the gateway.)

The issue likely stems from the Windows device not being configured to use TEAP (Tunneled Extensible Authentication Protocol) as specified in the ClearPass configuration. TEAP is an EAP method that encapsulates an inner EAP method for secure authentication. The Windows device must have TEAP enabled and correctly configured in its network settings to authenticate successfully on the network using ClearPass.

Multi-Pre-Shared Key (MPSK) with ClearPass is the recommended solution for a scenario where the IT Helpdesk needs to configure IoT devices to connect to a single SSID using unique PSKs. MPSK allows for the use of different PSKs on the same SSID, and ClearPass enables the management of these unique keys efficiently.

To support a business-critical faculty real-time application that requires seamless roaming within wings without cross-wing roaming, it's essential to ensure high availability and sufficient capacity. Adding an additional 7210 mobility gateway to each cluster would provide the required redundancy and capacity. Running L2 for all SSIDs and permitting user VLANs on gateway uplinks would facilitate the necessary traffic flow without L3 segmentation issues, thus supporting seamless roaming within each wing.

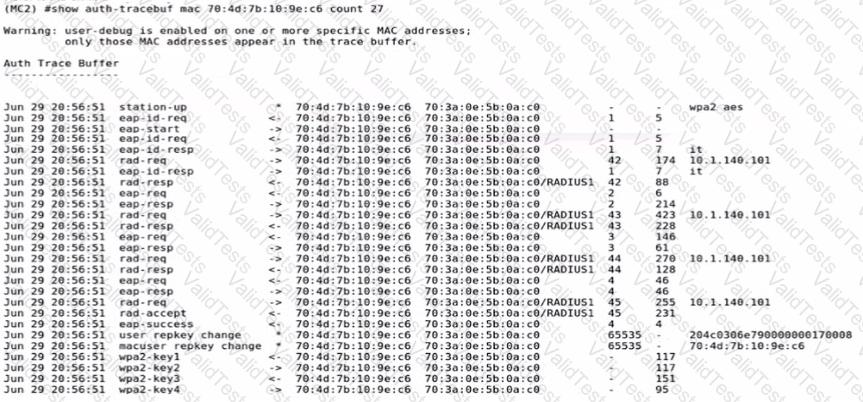

The wireless connection phase that has just been completed is L2 authentication and encryption. This phase includes processes such as the Extensible Authentication Protocol (EAP) exchange, RADIUS requests and responses, and the 4-way handshake which is characteristic of WPA2-AES encryption.

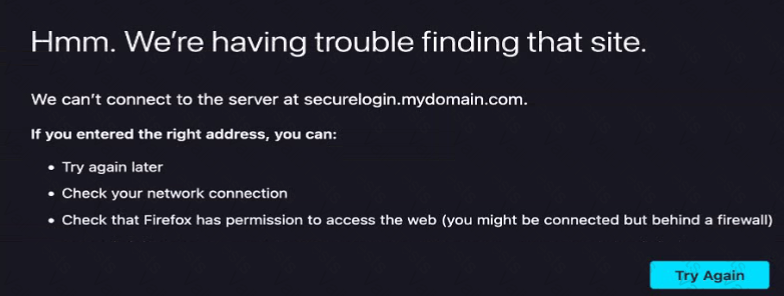

Including the root and intermediate certificates in the captive portal certificate for the gateway will resolve the error seen during the login action after successful registration. This is necessary to ensure the SSL/TLS handshake can be completed successfully, as the client browser needs to validate the entire certificate chain.

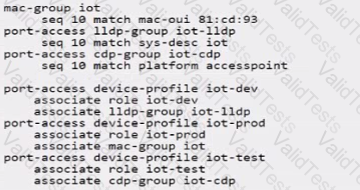

In device profile configuration, the device role is often determined by matching attributes such as MAC address, LLDP system description, and CDP information against defined conditions. The test device is being assigned the "iot-dev" role because its LLDP system description matches the 'iot-lldp' group configuration that is associated with the 'iot-dev' role.

UL MU-MIMO, or Uplink Multi-User Multiple Input Multiple Output, is a technology that allows multiple clients to transmit data to the access point simultaneously, increasing overall throughput and efficiency, especially for upload-heavy scenarios like video file uploads. This technology enables spatially separated clients to access the channel at the same time, which can improve performance for clients when uploading large files.
