Comprehensive and Detailed Explanation:

In OSPF, routers on a broadcast network elect a DR and BDR to reduce overhead.

The multicast address 224.0.0.6 is used exclusively by the DR and BDR to receive LSU packets.

Other routers send LSU packets to 224.0.0.6, and the DR forwards them to 224.0.0.5 (all OSPF routers).

✅ Reference: HCIA-Datacom Routing Guide – OSPF DR/BDR Operations

Detailed Explanation:The EUI-64 format splits a MAC address into two parts and inserts "FFFE" in the middle. The Universal/Local (U/L) bit is flipped, so a valid EUI-64 address would be 02E0-FCEF-FFFE-0FEC​.

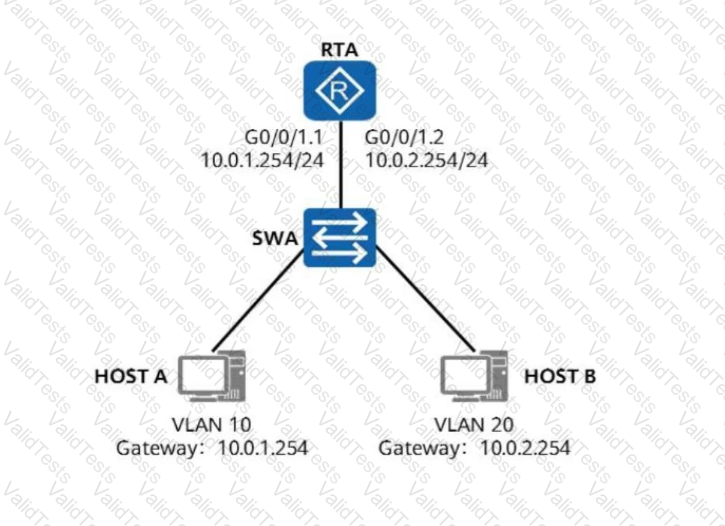

Understanding the Network Diagram

Host A is in VLAN 10 with a gateway of 10.0.1.254.

Host B is in VLAN 20 with a gateway of 10.0.2.254.

The router (RTA) has two sub-interfaces:

G0/0/1.1 (10.0.1.254/24) for VLAN 10

G0/0/1.2 (10.0.2.254/24) for VLAN 20

The switch (SWA) is using VLAN trunking to forward packets to the router, requiring 802.1Q encapsulation.

One-Armed Routing (Router-on-a-Stick) is being used, meaning a single physical interface (G0/0/1) handles multiple VLANs using sub-interfaces.

Analyzing the Answer Choices

Option A (dot1q termination vid 20) → Incorrect

This command would be configured on G0/0/1.2, not G0/0/1.1.

Option B (dot1q termination vid 30) → Incorrect

VLAN 30 is not part of this topology.

Option C (dot1q termination vid 10) → Correct

Since G0/0/1.1 corresponds to VLAN 10, the correct command is dot1q termination vid 10.

Option D (dot1q termination vid 1) → Incorrect

VLAN 1 is usually the default VLAN, which is not relevant here.

Thus, the correct answer is C (dot1q termination vid 10).

LACP Active Interface Election Overview:In LACP mode, active interfaces are elected based on interface priorities. If the interface priorities are identical, the system compares the interface numbers, and the one with the smaller number is preferred.

Analysis of Options:

Option A: Incorrect because interface priorities alone are insufficient when multiple interfaces share the same priority.

Option B: Device priorities are not used in this scenario for selecting active interfaces.

Option C: Correct. This process aligns with the behavior described for LACP, where interface priorities are compared first, and interface numbers are used as a tie-breaker.

Option D: Incorrect because interface numbers are only used as a secondary criterion.

Correct Answer:C. Interface priorities are compared first. If priorities of interfaces on the Actor are the same, interfaces with smaller interface numbers are elected as active interfaces​​.

To determine which types of traffic can be filtered by an advanced Access Control List (ACL) on a Huawei device, we need to understand the capabilities of advanced ACLs as defined in HCIA Datacom documentation and Huawei networking standards. Let’s analyze each option step by step:

Understanding Huawei ACL Types:

Huawei devices support different types of ACLs, including Basic ACLs, Advanced ACLs, and Layer 2 ACLs (MAC-based). Each type has specific filtering capabilities:

Basic ACLs (2000–2999): Filter traffic based on source IP addresses only.

Advanced ACLs (3000–3999): Provide more granular filtering, including source IP addresses, destination IP addresses, protocols, port numbers, and other Layer 3 and Layer 4 parameters. They are more flexible than Basic ACLs but do not filter based on Layer 2 information like MAC addresses.

Layer 2 ACLs (4000–4999): Filter traffic based on source and destination MAC addresses, VLAN IDs, and other Layer 2 parameters.

The question specifically asks about advanced ACLs, so we focus on their capabilities, which are limited to Layer 3 and Layer 4 traffic (IP-based and protocol-specific filtering).

Evaluating Each Option:

A. Network traffic based on a specific source IP address

Advanced ACLs on Huawei devices can filter traffic based on source IP addresses. This is a standard feature of advanced ACLs, which support matching rules for source IP addresses using wildcard masks or specific IP ranges.

This statement is true.

B. Network traffic based on a specific source MAC address

Advanced ACLs operate at Layer 3 and Layer 4 (IP and TCP/UDP) and do not have the capability to filter traffic based on Layer 2 information, such as MAC addresses. Filtering based on MAC addresses requires Layer 2 ACLs (e.g., ACLs in the 4000–4999 range), not advanced ACLs.

This statement is false.

C. Network traffic based on a specific user name

Advanced ACLs do not have the capability to filter traffic based on user names. User-based filtering typically requires authentication mechanisms (e.g., 802.1X, AAA, or RADIUS) combined with dynamic ACLs or policies, not standard advanced ACLs. Advanced ACLs are limited to IP addresses, protocols, and port numbers, not user-specific attributes.

This statement is false.

D. Network traffic based on a specific port number

Advanced ACLs can filter traffic based on transport layer port numbers (e.g., TCP/UDP ports), such as HTTP (port 80), FTP (port 21), etc. This is a key feature of advanced ACLs, allowing granular control over application-layer traffic.

This statement is true.

E. Network traffic based on a specific destination IP address

Advanced ACLs can filter traffic based on destination IP addresses, similar to source IP addresses. This is another standard capability, allowing matching rules for destination IP addresses using wildcard masks or specific IP ranges.

This statement is true.

Conclusion:

Advanced ACLs on Huawei devices can filter traffic based on:

Source IP addresses (Option A).

Destination IP addresses (Option E).

Port numbers (Option D).

They cannot filter traffic based on source MAC addresses (Option B) or user names (Option C), as these require Layer 2 ACLs or authentication-based policies, respectively.

Therefore, the correct answers are A, D, and E.

The IPv4 header length is variable and is determined by the Header Length (IHL) field in the IPv4 header.

Minimum header size: 20 bytes (5 x 4B) → No options field.

Maximum header size: 60 bytes (15 x 4B) → Includes maximum options.

Option A (Incorrect - 64B): The maximum possible length of an IPv4 header is 60B, so 64B is not possible.

Option B (Correct - 20B): This is the standard IPv4 header size without options.

Option C (Correct - 60B): This is the maximum IPv4 header size with options.

Option D (Correct - 32B): This is a possible IPv4 header size with some options.

Thus, the correct answer is A (64B).

Comprehensive and Detailed Explanation:

On Huawei VRP-based devices, the configuration file (vrpcfg.zip) is not immediately deleted when using the delete command.

Instead, it is moved to the recycle bin, ensuring accidental deletions can be recovered.

To permanently delete the file, the user must clear the recycle bin using the reset recycle-bin command.

✅ Reference: HCIA-Datacom Configuration Guide – File Management on VRP
