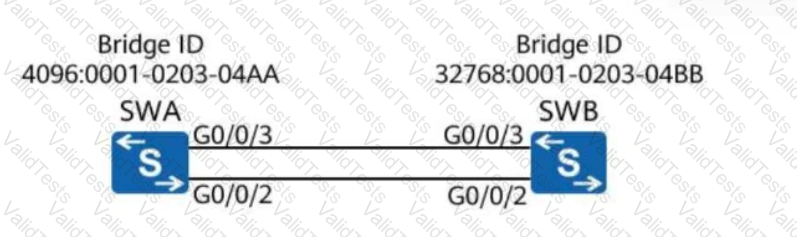

Comprehensive Explanation: In RSTP (Rapid Spanning Tree Protocol), G0/0/3 of SWB is an Alternate Port because it provides a redundant path to the root bridge, while G0/0/3 of SWA is a Designated Port, forwarding traffic away from the root bridge. Similarly, G0/0/2 of SWA is also a Designated Port because it forwards traffic to other segments of the network. Alternate Ports are used to provide backup paths, while Designated Ports are the forwarding ports on a given segment.

The MAC address table does not contain an entry for 5489-98EC-F011.

When a switch receives a frame with an unknown destination MAC address, it performs flooding.

Flooding sends the frame out of all interfaces except the one it was received on.

A (Incorrect): The switch does not discard unknown frames; it floods them.

B (Incorrect): No request is sent; flooding occurs instead.

D (Incorrect): ICMP is used for network-layer (IP) communication, not Ethernet switching.

Thus, the correct answer is C (Floods the frame on all interfaces except the incoming one).

PPP (Point-to-Point Protocol) is versatile and allows IP addresses on each end of a link to belong to different subnets. This capability supports flexible WAN (Wide Area Network) connections where different subnet addressing schemes may be required. This flexibility is part of PPP's design, allowing it to function effectively over varied network architectures​.

Router Functionality:Routers operate at the Network Layer (Layer 3) of the OSI model. They use IP addresses to forward packets between different networks and determine the best path for data transmission based on routing tables​​.

Analysis of Options:

Option A: "Network layer" is correct, as routers are Layer 3 devices.

Option B: "Transport layer" handles end-to-end communication and reliability (e.g., TCP/UDP), not routing.

Option C: "Data link layer" is for local node-to-node data transfer (e.g., MAC addresses), handled by switches.

Option D: "Application layer" is for user-facing software interactions (e.g., HTTP, FTP).

Correct Answer:Routers work at the A (Network layer).

Detailed Explanation:The default Router Dead Interval in OSPF is 40 seconds for broadcast and point-to-point networks. This interval defines the time period a router waits to receive hello packets before declaring a neighbor as down. (Reference: HCIA-Datacom Training Material, OSPF Hello and Dead Intervals)

If host A already has host B’s MAC address in its ARP cache, it can send packets directly to host B without needing to perform an ARP request. This cached information allows immediate packet delivery, assuming no network changes have occurred that would invalidate the ARP entry​.
