The default sending interval for BFD (Bidirectional Forwarding Detection) control packets is 100 milliseconds. This interval ensures rapid detection of link faults, providing fast failover and minimizing downtime in network operations ​.

Comprehensive and Detailed In-Depth Explanation:

Internal Router (IR): A router that exists entirely within asingle OSPF area(e.g., Area 0). It doesnot have to be a Border Router (BR).

Area Border Router (ABR): A router that connectstwo or more OSPF areas. It maintains separate LSDBs for each area and forwardssummary LSAsbetween them.

Autonomous System Boundary Router (ASBR): A router that connects the OSPF domain to anexternal network(e.g., BGP, another OSPF AS).

The statement isfalsebecause:

AnIR in Area 0 does not have to be a BR(Border Router). It can just be a normal internal router.

AnASBR does not have to be an ABR. An ASBR can existinside any OSPF area, even a single area, without needing to connect multiple areas.

????Reference:Huawei HCIA-Datacom Study Guide, OSPF Router Types and Area Concepts.

ATotally Stubby Areain OSPF is a special type of stub area where onlyintra-area (Type 1) LSAs,router LSAs, anddefault routes (Type 3 LSA with 0.0.0.0/0)are allowed to be injected. Itblocks inter-area routes (Type 3 LSAs for specific prefixes)andType 5 LSAs (external routes)to reduce the size of the Link-State Database (LSDB) and enhance router performance.

Explanation of the Options:

A. Type 3 specific LSA–❌Correct Answer. These LSAs represent inter-area routes. Totally Stubby Areasdo not allow Type 3 LSAs for specific routes, only for the default route (0.0.0.0/0).

B. Type 1 LSA–✅Allowed. These are Router LSAs generated by routers within the area and are necessary for OSPF to function.

C. Type 3 LSA that describes a default route–✅Allowed. This is the only Type 3 LSA permitted in a Totally Stubby Area. It provides a default route (0.0.0.0/0) to reach external destinations.

D. Type 2 LSA–✅Allowed if there are broadcast or NBMA networks in the area. These describe the network segment in multi-access environments and are generated by the DR.

Official Huawei Reference:

????Huawei HCIP-Datacom-Core Technology Study Guide–

Chapter: OSPF Special Areas

"A totally stub area does not allow inter-area Type 3 LSAs or external Type 5 LSAs to enter. Only a default route is injected in the form of a Type 3 LSA (0.0.0.0/0), which greatly reduces the LSDB size."

????Also refer to:

Huawei VRP Command Guide > OSPF > Configuration Notes > OSPF Special Areas

Apseudonodein IS-IS is a logical representation of a broadcast network segment (e.g., Ethernet) where theDesignated Intermediate System (DIS)generates an LSP on behalf of the LAN.

Pseudonode LSPs contain:

Interface information(i.e., the interface that connects to the pseudonode)

Neighbor information(adjacencies with other routers on the LAN)

Protocol information(e.g., supported address families)

However,route information is not containedin LSPs generated by pseudonodes because routing information is advertised in theLSPs generated by the routers themselves, not the pseudonode.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“Pseudonode LSPs contain information about the broadcast link, including interface and neighbor data. They do not advertise routing entries.”

(Chapter: IS-IS Advanced Features – Section: DIS and Pseudonodes)

Understanding DHCPv6:

DHCPv6 (Dynamic Host Configuration Protocol for IPv6) is used to assign configuration parameters to IPv6 clients.

It supports bothstatefulandstatelessmodes:

Stateful: Assigns IPv6 addresses and other configuration parameters.

Stateless: Assigns only configuration parameters (e.g., DNS server) without providing IPv6 addresses.

HCIP-Datacom-Core Technology Training Material (IPv6 Address Configuration and DHCPv6)​​.

Analysis of Parameters:

A. Gateway address:

False. DHCPv6 does not assign the default gateway. Instead, the default gateway is advertised by routers usingRouter Advertisement (RA)messages in IPv6.

B. DNS server address:

True. DHCPv6 can assign the IPv6 address of DNS servers to the client.

C. IPv6 address/prefix:

True. In stateful mode, DHCPv6 assigns IPv6 addresses and prefixes to clients.

D. SNTP server address:

True. DHCPv6 can assign the address of an SNTP (Simple Network Time Protocol) server to synchronize time on the client.

Master

Backup

Master

Backup

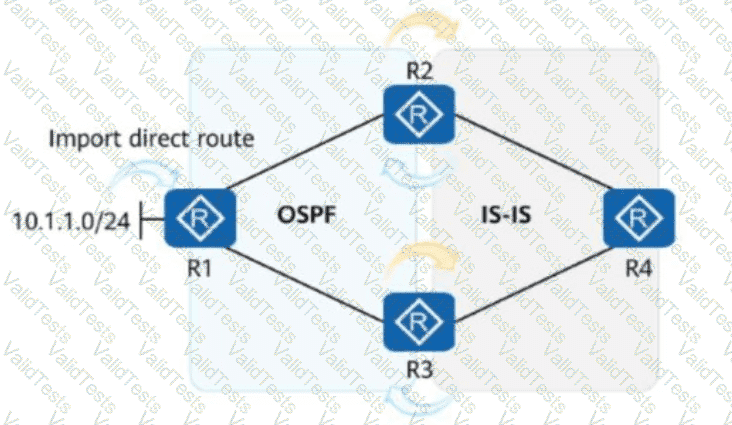

Let's break it down step by step based on Huawei's routing protocol behavior:

R1imports thedirect route 10.1.1.0/24intoOSPF.

This route is advertised byR1 to R2 and R3viaOSPF.

BothR2 and R3are runningIS-IS, andbidirectional route redistributionis configured between OSPF and IS-IS.

R2 and R3 bothre-advertisethe OSPF-learned route into IS-IS and then potentiallyre-learnit back from the IS-IS domain, causingredistribution loopsunless properly controlled.

Now, the question focuses onR3’s routing table:

R3 already learns the routedirectly via OSPFfrom R1.

It also learns the same route again viaIS-ISfrom R2 (looped back due to bidirectional redistribution).

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“OSPF ASE routes are assigned a default preference of 150. If a route is redistributed from another protocol (like IS-IS) into OSPF, and then re-learned, it is considered an ASE route.”(Chapter: OSPF Advanced Features – Section: Route Redistribution Behavior)

The election of a Designated Router (DR) and Backup Designated Router (BDR) occurs during the OSPF network's initial setup or upon the failure of an existing DR. A new router joining an OSPF network does not automatically preempt the current DR, even if it has the highest priority. DR and BDR elections are not preemptive. The other statements are correct regarding OSPF DR/BDR election processes ​.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is L2TP (Layer 2 Tunneling Protocol)?

L2TP is a tunneling protocol used to transport Layer 2 frames over IP networks.

It is commonly used to establish VPNs but does not provide built-in encryption or security for the transmitted data.

2. Why L2TP Requires Additional Security Measures:

Since L2TP does not encrypt traffic, it is vulnerable to eavesdropping and tampering.

To secure L2TP tunnels, it is often paired with IPsec, which provides strong encryption and authentication. The combination of L2TP and IPsec is known asL2TP/IPsec.

3. Why the Statement is TRUE:

The statement accurately describes the limitation of L2TP (lack of encryption) and the need for additional security measures like IPsec.

Comprehensive and Detailed In-Depth Explanation:

BFD (Bidirectional Forwarding Detection)detectslink failuresfaster than traditional mechanisms.

Session states during setup:

AdminDown→ Initial state (session is administratively disabled).

Down→ The session is being established but has not yet exchanged valid control packets.

Init→ The session is partially established (one side has detected the peer).

Up→ The session is fully operational (not part of the setup process).

SinceAdminDown, Down, and Initare involved insession setup, the correct answers areB, C, D.

????Reference:Huawei HCIA-Datacom Study Guide, BFD Session Establishment and States.
