Address persistence ensures that the same NAT IP address is used for all sessions originating from a single source IP. Persistent NAT maintains connections for applications needing multiple sessions, like VoIP. Additional details are available in Juniper NAT Documentation.

For applications that require multiple TCP sessions for the same application session (such as VoIP or certain online games), the SRX device needs to handle NAT properly to maintain session continuity. Here’s what helps:

Address Persistence (Answer A): Address persistence ensures that multiple sessions initiated by the same internal host are mapped to the same external IP address. This is crucial for applications that use multiple TCP sessions to maintain a stateful connection with the external server.

Command Example:

bash

set security nat source persistent-nat address-persistence

Persistent NAT (Answer C): This feature allows the external server to initiate new connections to the internal client using the same NAT translation. It's essential for applications that require consistent NAT mappings across multiple sessions.

Command Example:

bash

set security nat source persistent-nat permit target-host-port

These features ensure that applications with multiple TCP sessions work seamlessly across NAT.

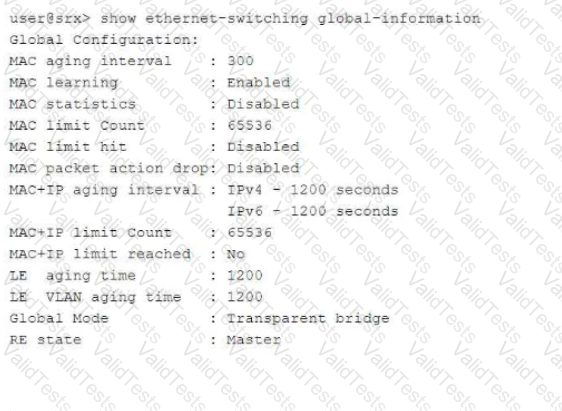

The exhibit provides information about an SRX Series device operating in transparent mode (Layer 2) and Layer 3 routing at the same time. Let’s break down the correct answers:

Explanation of Answer B (Secure Inter-VLAN Traffic with a Security Policy):

The SRX device can secure inter-VLAN traffic because it supports security policies for Layer 3 traffic between different VLANs. In this case, traffic moving between different VLANs (i.e., Layer 3 traffic) can be processed and controlled using security policies.

Explanation of Answer C (Pass Layer 2 and Layer 3 Traffic Simultaneously):

The SRX device can handle both Layer 2 and Layer 3 traffic simultaneously. In mixed mode, the device is capable of switching traffic at Layer 2 (intra-VLAN) while also routing traffic at Layer 3 (inter-VLAN). This is evident from the global configuration showing transparent bridge mode and Layer 3 interfaces.

Juniper Security Reference:

Mixed Mode Overview: Juniper SRX devices in mixed mode can operate as both a Layer 2 switch and a Layer 3 router, allowing it to pass traffic at both layers simultaneously. Reference: Juniper Mixed Mode Documentation.

==========

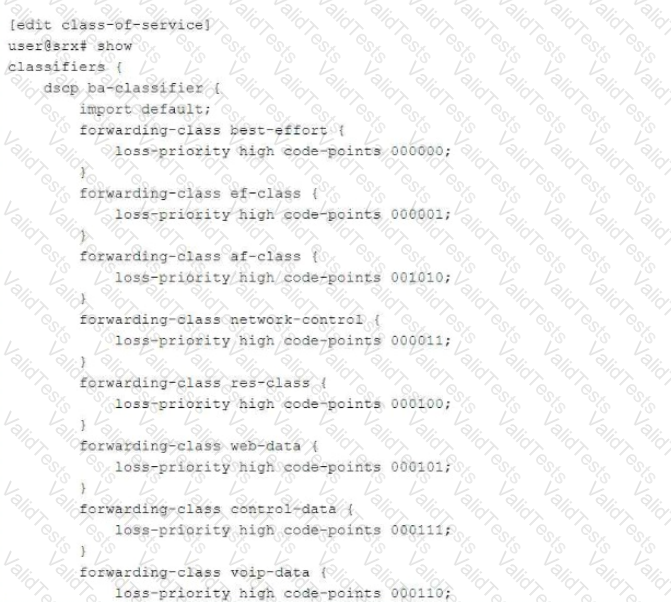

In the exhibit, the CoS-based VPN configuration is not functioning correctly due to an issue with the number of forwarding classes. The maximum number of forwarding classes supported for CoS-based VPNs with multiple SAs (security associations) is typically four forwarding classes. In this case, more than four forwarding classes are defined.

To solve the issue, one forwarding class must be deleted to ensure that the total number of forwarding classes is reduced to four or fewer.

==========

==========

In mixed mode, SRX devices can simultaneously handle Layer 2 switching and Layer 3 routing, but a reboot is required when configuring Layer 2 and Layer 3 interfaces to ensure the configuration takes effect. Layer 2 packets are switched within the defined bridge domain. Further guidance on SRX mixed mode can be found at Juniper Mixed Mode Documentation.

When an SRX Series device is configured in mixed mode, both Layer 2 switching and Layer 3 routing functionalities can be used on the same device. This enables the SRX to act as both a router and a switch for different interfaces. However, there are certain considerations:

Explanation of Answer C (Reboot Requirement):

After configuring the SRX to operate with at least one Layer 2 interface and one Layer 3 interface, the device needs to be rebooted. This is required to properly initialize the mixed mode configuration, as the SRX needs to switch between Layer 2 and Layer 3 processing modes.

Explanation of Answer D (Layer 2 Traffic Handling):

In mixed mode, traffic from Layer 2 interfaces is switched within the same bridge domain. A bridge domain defines a Layer 2 broadcast domain, and packets from Layer 2 interfaces are forwarded based on MAC addresses within that domain.

Juniper Security Reference:

Mixed Mode Overview: Juniper SRX devices can operate in mixed mode to handle both Layer 2 and Layer 3 traffic simultaneously. Reference: Juniper Mixed Mode Documentation.

==========
