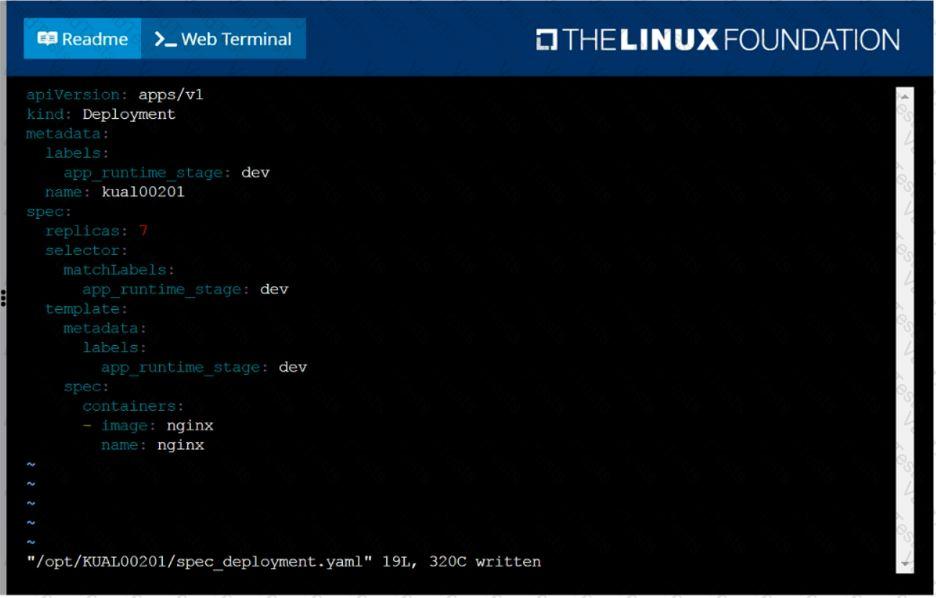

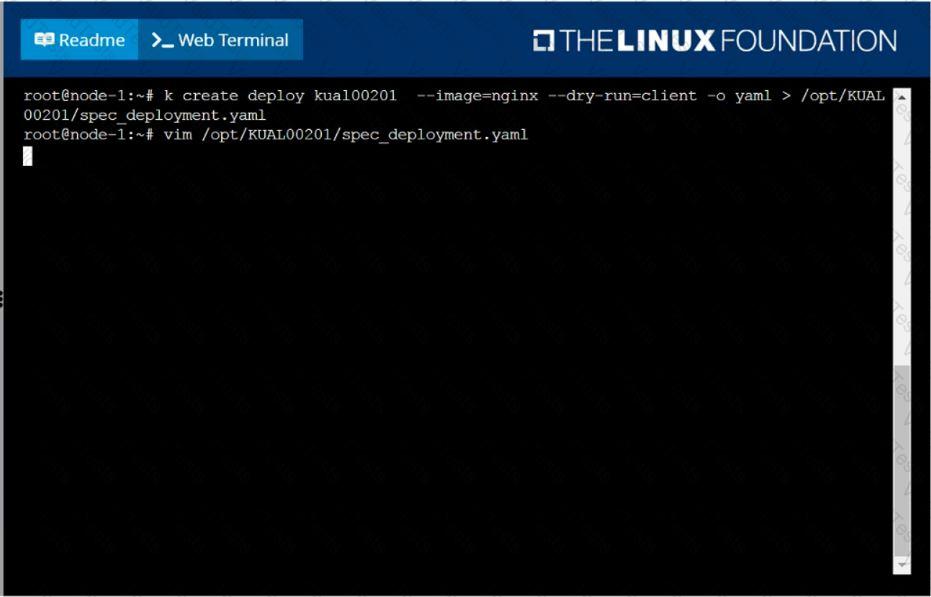

Create a deployment spec file that will:

Launch 7 replicas of the nginx Image with the labelapp_runtime_stage=dev

deployment name: kual00201

Save a copy of this spec file to /opt/KUAL00201/spec_deployment.yaml

(or /opt/KUAL00201/spec_deployment.json).

When you are done, clean up (delete) any new Kubernetes API object that you produced during this task.

Score:7%

Task

Create a new PersistentVolumeClaim

• Name: pv-volume

• Class: csi-hostpath-sc

• Capacity: 10Mi

Create a new Pod which mounts the PersistentVolumeClaim as a volume:

• Name: web-server

• Image: nginx

• Mount path: /usr/share/nginx/html

Configure the new Pod to have ReadWriteOnce access on the volume.

Finally, using kubectl edit or kubectl patch expand the PersistentVolumeClaim to a capacity of 70Mi and record that change.

Score: 5%

Task

Monitor the logs of pod bar and:

• Extract log lines corresponding to error file-not-found

• Write them to /opt/KUTR00101/bar

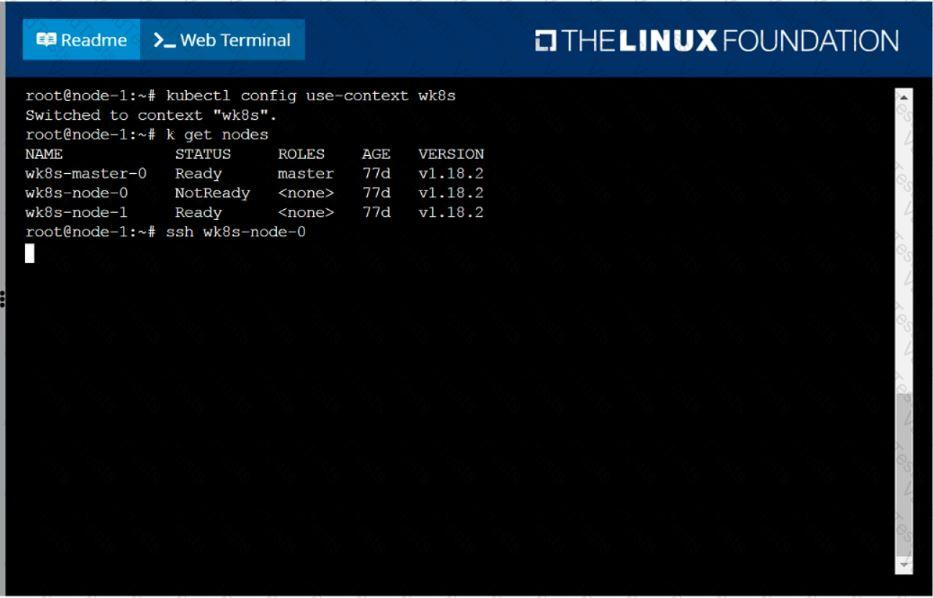

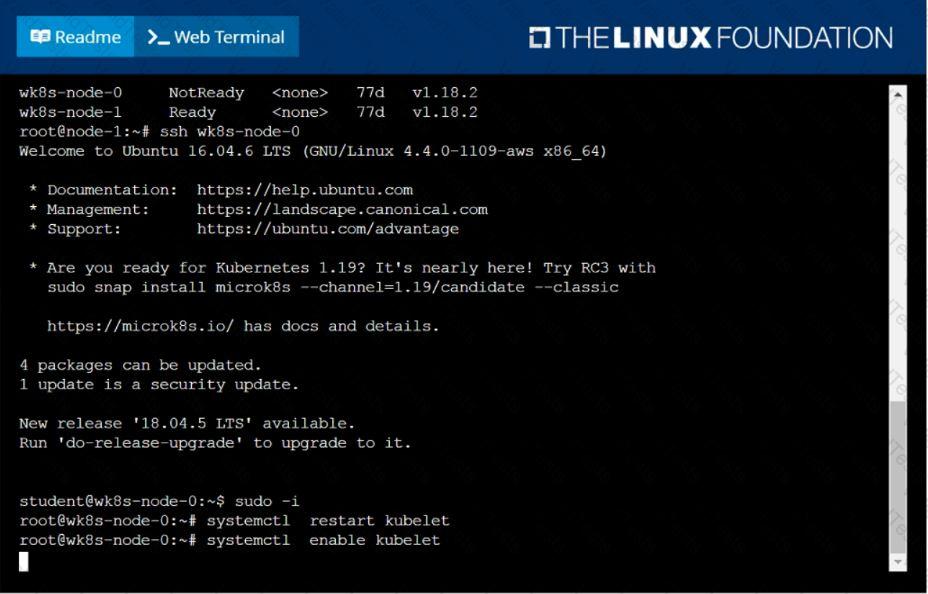

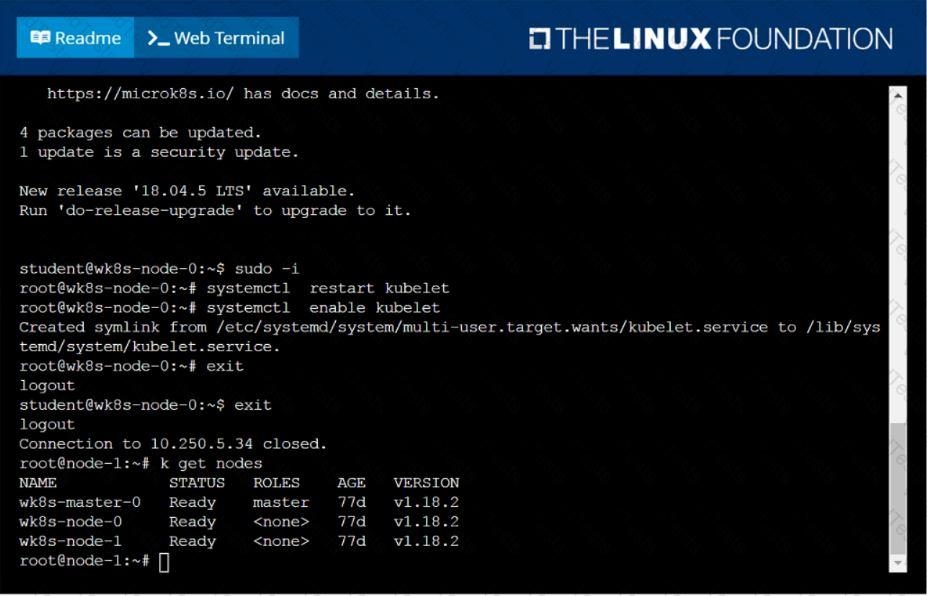

A Kubernetes worker node, named wk8s-node-0 is in state NotReady. Investigate why this is the case, and perform any appropriate steps to bring the node to a Ready state, ensuring that any changes are made permanent.

You can ssh to the failed node using:

[student@node-1] $ | ssh Wk8s-node-0

You can assume elevated privileges on the node with the following command:

[student@w8ks-node-0] $ | sudo –i

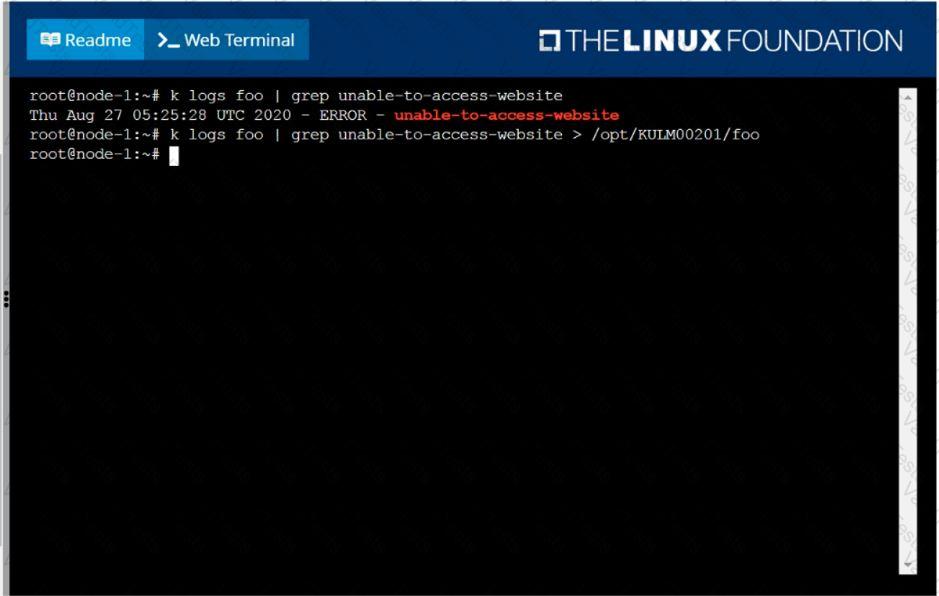

Monitor the logs of pod foo and:

Extract log lines corresponding to error

unable-to-access-website

Write them to/opt/KULM00201/foo

Task Weight: 4%

Task

Scale the deployment webserver to 3 pods.

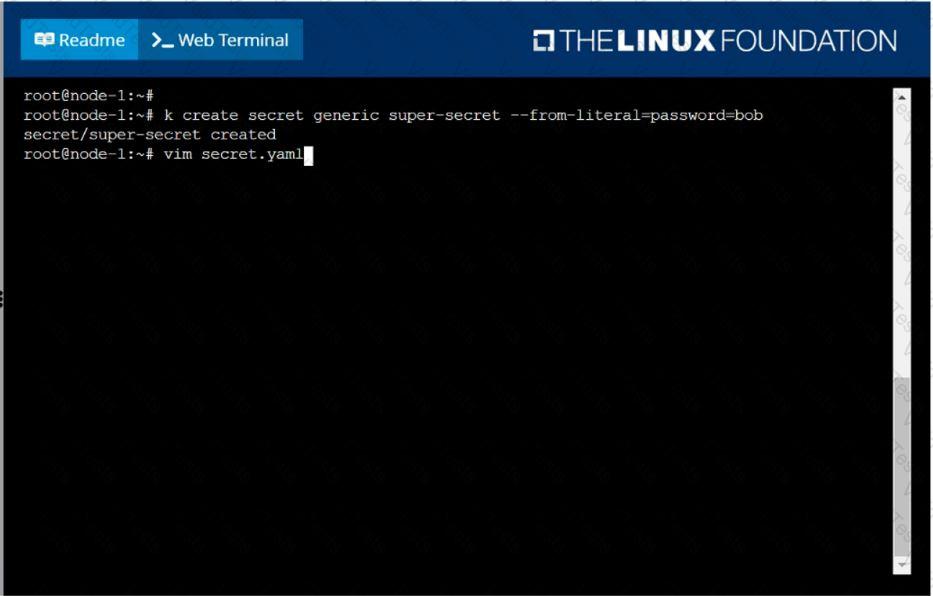

Create a Kubernetes secret as follows:

Name: super-secret

password: bob

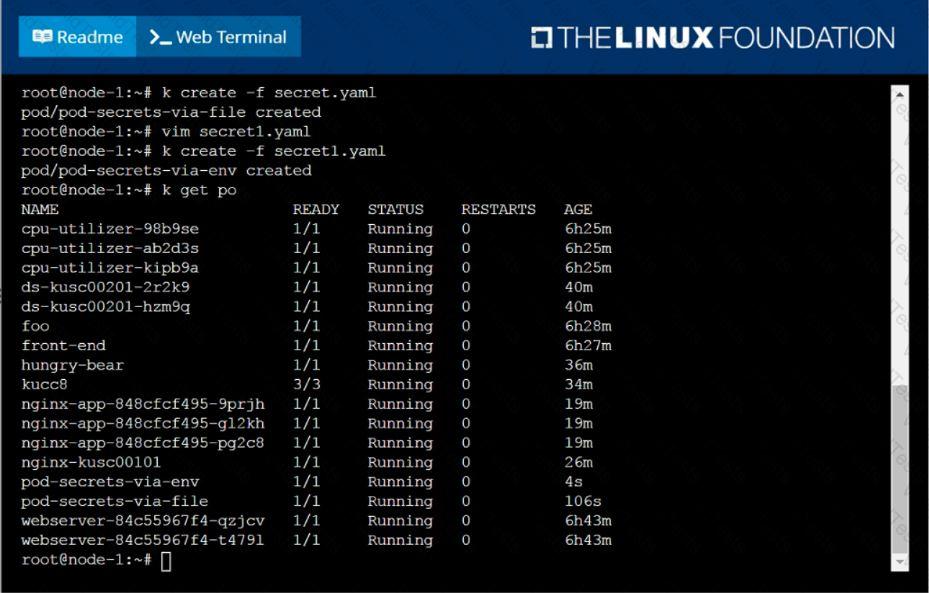

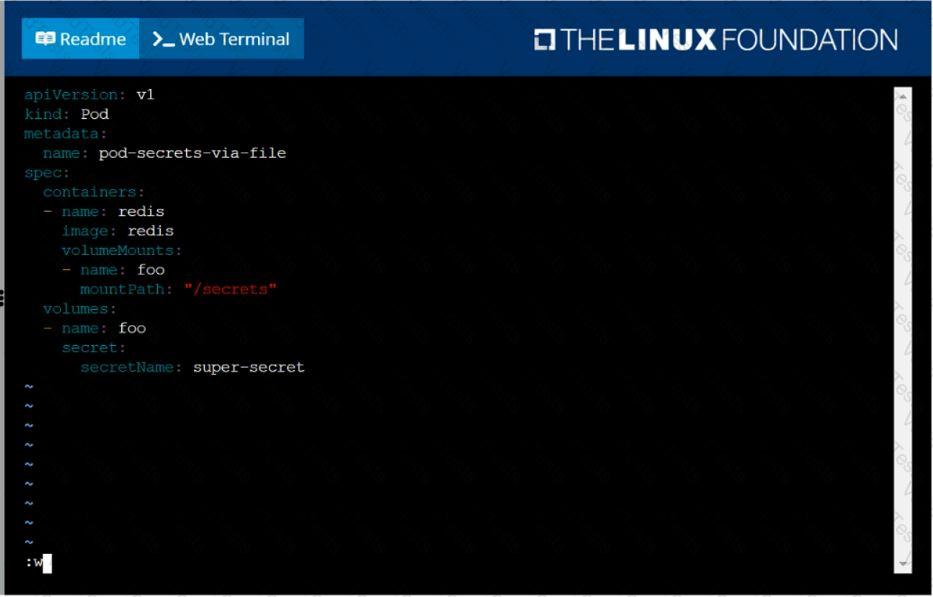

Create a pod named pod-secrets-via-file, using the redis Image, which mounts a secret named super-secret at /secrets.

Create a second pod named pod-secrets-via-env, using the redis Image, which exports password as CONFIDENTIAL

Score: 7%

Task

Create a new NetworkPolicy named allow-port-from-namespace in the existing namespace echo. Ensure that the new NetworkPolicy allows Pods in namespace my-app to connect to port 9000 of Pods in namespace echo.

Further ensure that the new NetworkPolicy:

• does not allow access to Pods, which don't listen on port 9000

• does not allow access from Pods, which are not in namespace my-app

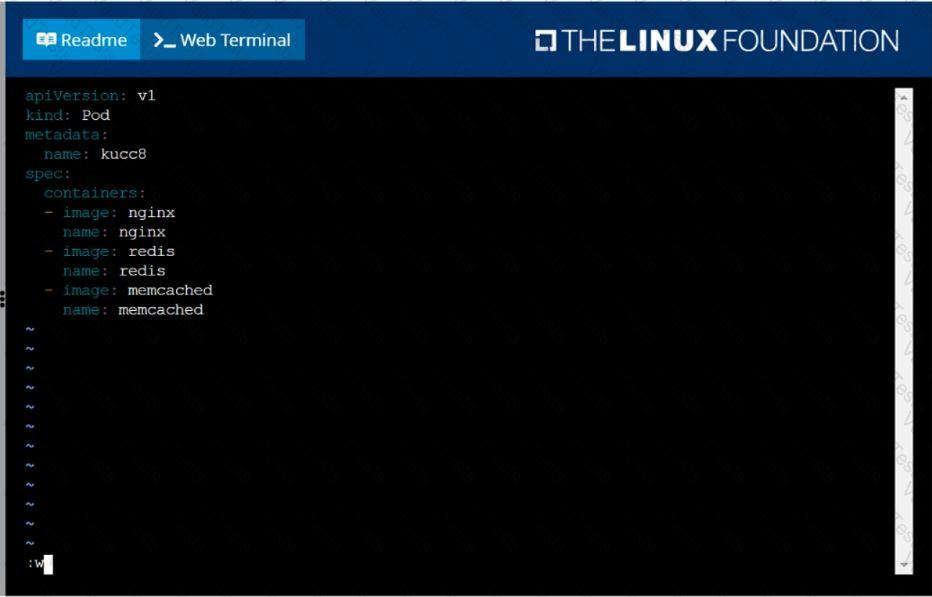

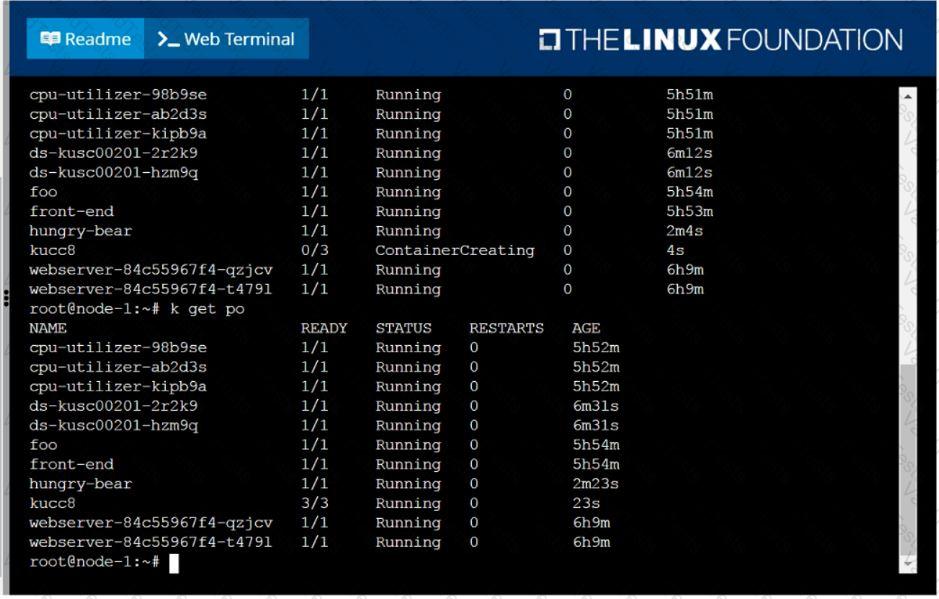

Create a pod named kucc8 with a single app container for each of the

following images running inside (there may be between 1 and 4 images specified):

nginx + redis + memcached.

From the pod label name=cpu-utilizer, find pods running high CPU workloads and

write the name of the pod consuming most CPU to the file /opt/KUTR00102/KUTR00102.txt (which already exists).
