The issue of VMs not being able to ping the default gateway from a newly created VM network on VLAN 20, while the Nutanix cluster uses VLAN 10, most likely stems from the switch port configuration. For the VMs on VLAN 20 to communicate outside their local network, the switch port to which the Nutanix nodes are connected must be configured as a trunk. This configuration allows multiple VLANs to coexist on the same physical port and enables routing between them. Without the trunk setup, the VLAN 20 traffic is restricted and cannot reach the network beyond the switch, including the default gateway.References: Nutanix Network Configuration Guide, Best Practices for VLAN Configurations.SZXCDESX

In a Nutanix environment, if the login process using an Active Directory (AD) user account takes more than a minute to complete, it could be due to the configuration of the AD lookups.

Active Directory lookups can be configured to use either Recursive or Non-Recursive mode. In Recursive mode, the system will look up each group that a user is a member of, then each group that those groups are members of, and so on. This can lead to a large number of lookups and potentially slow down the login process1.

On the other hand, in Non-Recursive mode, the system only looks up the direct groups that a user is a member of. This can significantly reduce the number of lookups and speed up the login process1.

Therefore, the administrator should confirm that Active Directory lookups are configured to use Non-Recursive mode to resolve this issue.

References:

Active Directory Authentication is slow - Takes minutes to Logon | Nutanix Community

Configuring Authentication | Nutanix Community

Solving Slow Logon Issues in Active Directory Environments

To ensure that the Foundation VM can communicate externally, the virtual network interface card (vNIC) should be set to a bridged adapter. This setting allows the VM to appear as a unique entity on the network, receiving its own IP address accessible from outside the host machine. Additionally, running the 'set_foundation_ip_address' application on the VM desktop enables the consultant to configure a specific, reachable IP address for the Foundation VM, ensuring it can communicate effectively with external network resources and devices.

References:

Nutanix Bible: Networking Setup for Foundation

Nutanix University: Foundation VM Configuration

The scope of services for the deployment of a new Nutanix cluster would apply to both Foundation and Prism Central. Foundation is the initial software used for deploying Nutanix nodes and creating clusters, essential for setting up the environment. Prism Central is used for managing multiple clusters and is integral to the operational scope of the service, providing centralized management capabilities.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

The most likely cause for the failure in joining the Active Directory domain when setting up Nutanix Files, given the error message about the inability to connect to logon servers and valid credentials, points to network communication issues. The specific mention of "ads_connect: No logon servers" suggests that the File Server VMs (FSVMs) are unable to reach the domain controllers. This issue is often due to necessary network firewall ports not being open. Ensuring that all required ports for Active Directory communications are open between the FSVMs and the domain controllers would resolve this issue.References: Nutanix Files Administration Guide, Active Directory Services Network Configuration requirements.

To verify that a Nutanix cluster can tolerate a single-node failure, the consultant should use the command nutanix@cvm~$ ncli cluster get-domain-fault-tolerance-status type=node. This command is executed from the Controller Virtual Machine (CVM) and checks the cluster's fault tolerance status specifically for node failures, providing insights into how the cluster's data resiliency and redundancy configurations are holding up against potential single-node failures.References: Nutanix CLI Guide, Nutanix Fault Tolerance Documentation.

An alert of this nature in the file server dashboard usually indicates issues related to node availability within a cluster. Specifically, the failure of a node in a three-node cluster (Option B) can lead to insufficient resources to handle all tasks, which might trigger such an alert. Additionally, setting a node to maintenance mode in a three-node cluster (Option D) also disrupts service availability and could generate a similar alert, as the remaining nodes might struggle to handle the load or maintain data redundancy.References: Nutanix AOS User Guide, Nutanix Files Documentation.

https://portal.nutanix.com/page/documents/details?targetId=Web-Console-Guide-Prism-v5_10:wc-protection-domain-failback-disaster.html

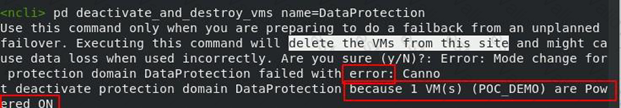

The command ncli pd deactivate_and__destroy_vms name=<protection_domain_name> is a critical operation in managing Nutanix environments, particularly in scenarios involving disaster recovery and replication.

This command deactivates the protection domain and deletes all VMs associated with that protection domain from the source site (Site A in this case). This operation is generally part of a planned migration or failover process where the VMs are intended to be run from the remote site (Site B).

After this operation, the protection domain at Site A is no longer active, meaning it has been effectively removed along with its associated VMs, thus clearing the way for Site B to take over operations without conflict from the original site.

References:This action and its implications are covered under Nutanix disaster recovery and high availability strategies, detailed in both the Nutanix Bible and official Nutanix NCS-Core training materials, which discuss the management of protection domains and replication processes.
