The Destination Guard feature helps in minimizing denial-of-service (DoS) attacks. It performs address resolutions only for those addresses that are active on the link,and requires the FHS binding table to be populated with the help of the IPv6 snooping feature.The feature enables the filtering of IPv6 traffic based on the destinationaddress, and blocks the NDP resolution for destination addresses that are not found in the binding table. By default, the policy drops traffic coming for an unknowndestination.

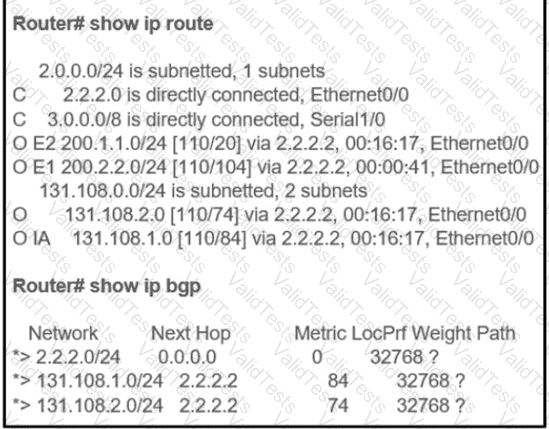

If you configure the redistribution of OSPF into BGP without keywords, only OSPF intra-area

and inter-area routes are redistributed into BGP, by default. You can use the internal keyword

along with the redistribute command under router bgp to redistribute OSPF intra- and inter-area

routes.

Use the external keyword along with the redistribute command under router bgp to redistribute

OSPF external routes into BGP.

-> In order to redistribute all OSPF routes into BGP, we must use both internal and external

keywords. The full command would be (suppose we are using OSPF 1):

redistribute ospf 1 match internal external

Note: The configuration shows match internal external 1 external 2. This is normal because

OSPF automatically appends “external 1 external 2” in the configuration. In other words,

keyword external = external 1 external 2. External 1 = O E1 and External 2 = O E2.

In the debug output, we see that the Authorization (not Authentication) failed so we need to

correct the authorization. In order to enable authorization, we must use the global command

“aaa authorization console” first.

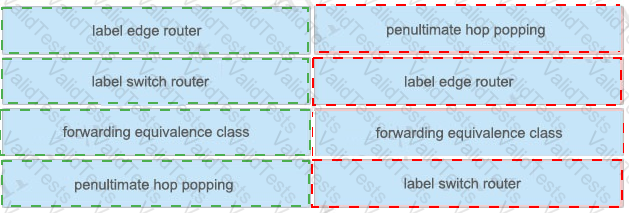

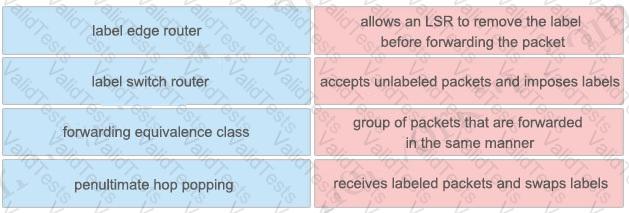

+ allows an LSR to remove the label before forwarding the packet: penultimate hop popping

+ accepts unlabeled packets and imposes labels: label edge router

+ group of packets that are forwarded in the same manner: forwarding equivalence class

+ receives labeled packets and swaps labels: label switch router

Explanation

A label edge router (LER, also known as edge LSR) is a router that operates at the edge of an MPLS network and acts as the entry and exit points for the network. LERspush an MPLS label onto an incoming packet and pop it off an outgoing packet.

A forwarding equivalence class (FEC) is a term

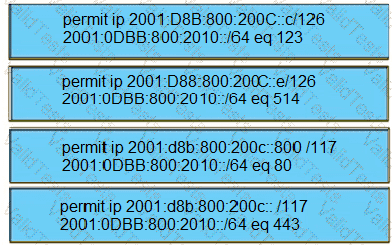

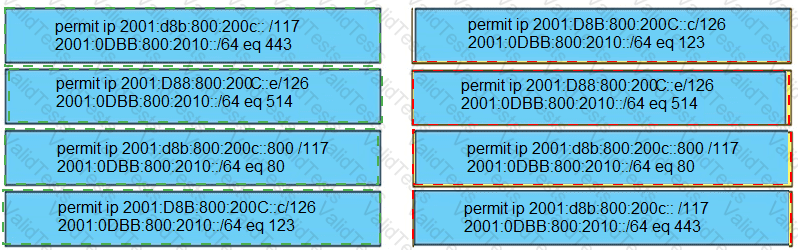

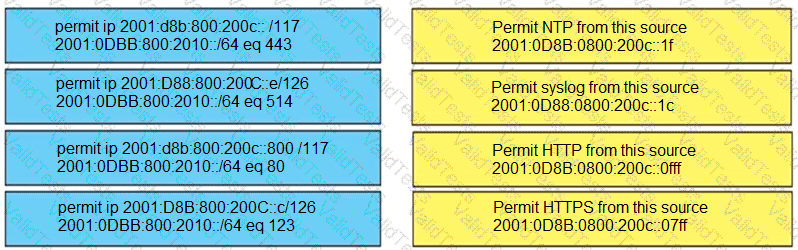

HTTP and HTTPs run on TCP port 80 and 443, respectively and we have to remember them.

Syslog runs on UDP port 514 while NTP runs on UDP port 123 so if we remember them we can find out the matching answers easily. But maybe there is some typos in this question as 2001:d88:800:200c::c/126 only ranges from 2001:d88:800:200c:0:0:0:c to 2001:d88:800:200c:0:0:0:f (4 hosts in total). It does not cover host 2001:0D88:0800:200c::1f. Same for 2001:D88:800:200c::e/126, which also ranges from 2001:d88:800:200c:0:0:0:c to 2001:d88:800:200c:0:0:0:f and does not cover host 2001:0D88:0800:200c::1c.

The AD of static route is manually configured to 130 which is higher than the AD of OSPF router which is 110.
