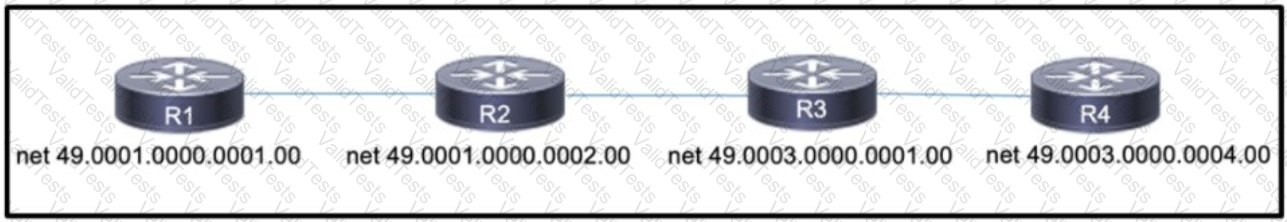

Refer to the exhibit.
AJI four routers on the network reside in the same data center The four routers are running IS-IS between them in Level 1 mode within an IPv4 network After a network engineer installed several new servers connected to R4, users connected via R1 reported they could not connect to applications on the servers The engineer has determined that R4 is receiving routes from R3 but it is failing to receive routes from R1 Which action must the engineer take to resolve the issue?
How does the SRv6 IS-IS Flexible Algorithm function on the data plane?

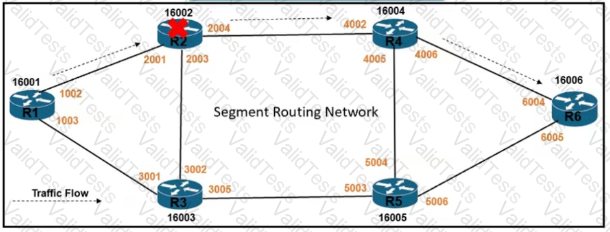

Refer to the exhibit.

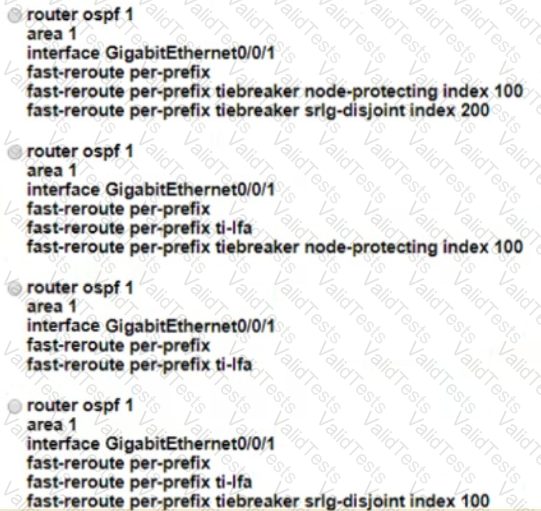

Traffic flow from router R1 to router R6 is delay-sensitive It must consider potential link-failure and node-failure conditions Which configuration must an engineer apply to router R1 to route traffic to router R6 if router R2 fails?

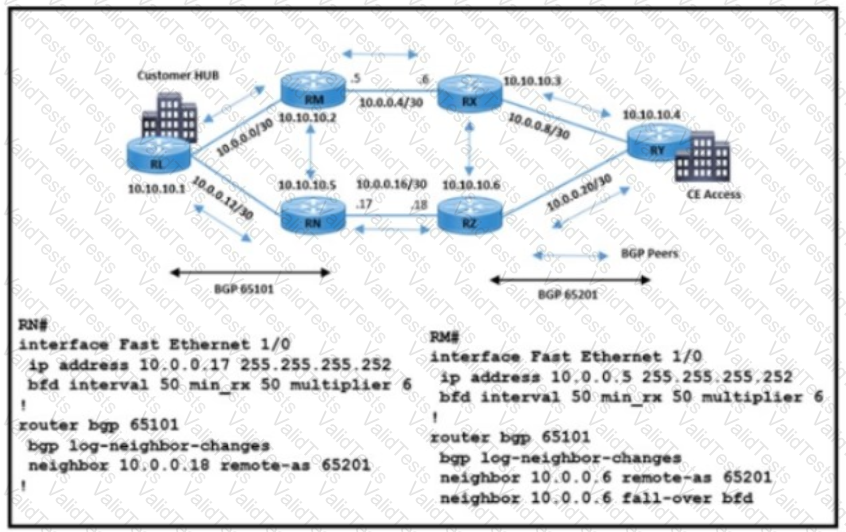

Refer to the exhibit.
EBGP peering is up between BGP AS 65101 and BGP AS 65201 The service provider expects traffic convergence within 300ms between the two autonomous systems but the network operations team sees that route and traffic convergence is too slow Which two actions improve the convergence time? (Choose two.)
Level 3 switch SW1 is part of an EIGRP enabled network located at the edge of an area. Cisco Express Forwarding and SSO are enabled on the router. A network engineer must minimize the downtime of data-transmit services in the network. HSRP group 2 has already been configured with standby preempt delay minimum 2 and standby timers 140. Which additional action must the engineer take on SW1 to suppress routing flaps for 2 minutes?
Which two characteristics unique to SSM when compared to ASM are true? (Choose two.)

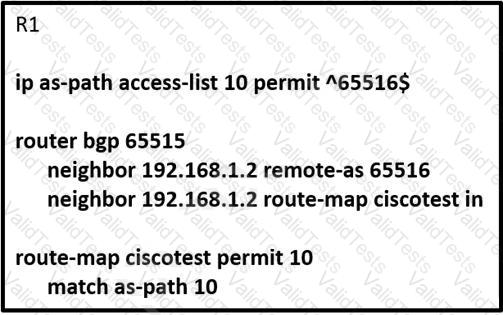

Refer to the exhibit.
.
R1 is expected to receive routes originating from AS 65516 and from any ASs that are directly attached to it. However, R1 is receiving routes only from AS 65516. Which action corrects the configuration?
Refer to the exhibit. Unified MPLS is implemented on this network to provide end-to-end services A network engineer noticed that R3 is failing to receive labels from R1 However, R2 is receiving labels from R1 R3 can ping R1 normally Which action resolves the issue?

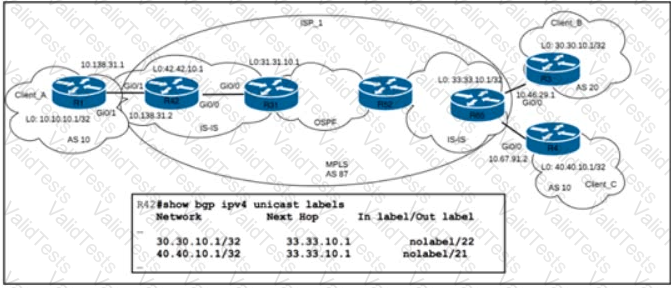

Refer to the exhibit.
ISP_1 uses eBGP for connection to all clients LDP with OSPF and IS-IS is used in the ISP_1 network Client_A and Client_B are in the same VRF_VoD. After oftware upgrade on all routers on the ISP_1 network, Client_A has lost the connection to Client_C. A network engineer must troubleshoot the connection from R1 to R4 via M. After initial checks, the engineer confirmed that all routes are installed correctly. Which two tasks must the engineer perform to correct the problem? (Choose two.)

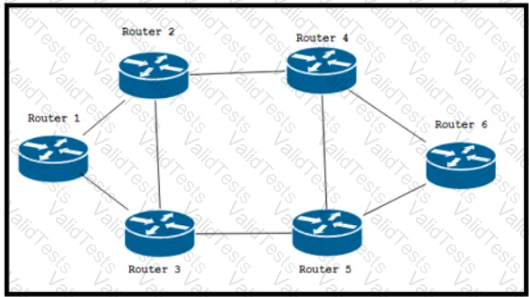

Refer to the exhibit.
Router 1. Router 2. and Router 3 are co-located in an onsite data center of an office, but Router 4. Router 5. and Router 6 are installed in another data center 'eral miles away. A network engineer is troubleshooting an RSVP-TE issue on the network. On most of the devices, the engineer can move all LSPs away from a selected dace and take it down for maintenance without interrupting traffic. However, when an interface on Router 3 is taken down, traffic on the network is disrupted. What must the engineer enable to resolve the issue on Router 3?
