Pass the Cisco CCNP Security 350-701 Questions and answers with ValidTests

Cisco DNA Center is an open and extensible platform that allows third-party applications and processes to exchange data and intelligence with Cisco DNA Center1. One of the features of the open platform capabilities of Cisco DNA Center is the intent-based APIs, which enable DNA Center to provide automation to applications2. Intent-based APIs allow applications to express their intent or desired outcome, and let DNA Center translate that intent into network configurations and policies3. Intent-based APIs simplify the interaction between applications and the network, and enable faster and more consistent service delivery.

 1: Cisco DNA Center 2.3.5 Data Sheet - Cisco 2: Intent-Based Networking’s Next Evolution: The DNA Center Platform - Cisco Blogs 3: Unlocking the Power of Open Platforms with Cisco DNA Center Platform

Dynamic ARP Inspection (DAI) is a security feature that validates ARP packets in a network. DAI allows a network administrator to intercept, log, and discard ARP packets with invalid MAC address to IP address bindings. This capability protects the network from certain “man-in-the-middle” attacks. DAI determines the validity of an ARP packet based on valid IP to MAC address bindings from the DHCP snooping binding database. DAI also supports static ARP ACLs for hosts with static IP addresses. DAI checks all ARP packets on untrusted interfaces, and only forwards the packets that have valid bindings. DAI can also rate-limit the ARP packets on untrusted interfaces to prevent DoS attacks. The other options are incorrect because:

B. In a typical network, DAI should be configured to make all ports as untrusted except for the ports connecting to trusted hosts or switches, which are trusted.

C. DAI does not associate a trust state with each switch, but with each interface on the switch.

D. DAI intercepts all ARP requests and responses on untrusted ports only, not on trusted ports. References :=

https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/25ew/configuration/guide/conf/dynarp.html

https://study-ccna.com/dynamic-arp-inspection-dai/

Explanation

Explanation

Security Intelligence Sources

…

Custom Block lists or feeds (or objects or groups)

Block specific IP addresses, URLs, or domain names using a manually-created list or feed (for IP addresses,

you can also use network objects or groups.)

For example, if you become aware of malicious sites or addresses that are not yet blocked by a feed, add these

sites to a custom Security Intelligence list and add this custom list to the Block list in the Security Intelligence

tab of your access control policy.

A SQL injection attack is a type of attack that exploits a vulnerability in a web application that uses user-supplied data to construct SQL statements that interact with a database. By inserting malicious commands into the database, an attacker can execute arbitrary SQL queries or commands on the database server, which may result in data theft, data manipulation, or command execution. Machine 1 is vulnerable to SQL injection because it does not properly validate or sanitize the user input before using it in a SQL statement. Therefore, inserting malicious commands into the database would allow the attacker to gain access to machine 1.

A buffer overflow attack is a type of attack that exploits a vulnerability in a program that does not check the boundaries of a buffer (a temporary storage area for data) before copying data into it. By overflowing the buffer’s memory, an attacker can overwrite adjacent memory locations, which may result in corrupting data, crashing the program, or executing malicious code. Machine 2 is vulnerable to buffer overflow because it does not properly handle the size or length of the data that it receives from the user or another source. Therefore, overflowing the buffer’s memory would allow the attacker to gain access to machine 2.

Sniffing the packets between the two hosts is a passive attack that involves capturing and analyzing the network traffic that flows between the two machines. This attack may reveal sensitive information, such as credentials, session tokens, or database queries, but it does not directly allow the attacker to gain access to either machine. Sending continuous pings is a type of denial-of-service attack that involves flooding the target machine with ICMP echo request packets, which may consume its network bandwidth or processing resources, but it does not directly allow the attacker to gain access to either machine. Therefore, neither sniffing the packets nor sending continuous pings would allow the attacker to gain access to machine 1 but not machine 2. References :=

Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0, Module 3: Web Security, SQL Injection Attacks

Understanding SQL Injection - Cisco, SQL Injection Explained

Buffer Overflow and SQL Injection: To Remotely Attack and … - Springer, Buffer Overflow and SQL Injection Attacks

 Cisco Advanced Malware Protection (AMP) for Endpoints is a cloud-based solution that provides endpoint protection against malware and advanced threats. It can be deployed in different architectures depending on the customer’s needs and preferences. One of the deployment options is the private cloud, which is designed to keep data within a network perimeter. In this option, the customer hosts the AMP for Endpoints console and the AMP cloud on their own infrastructure, and the endpoints connect to the private cloud for analysis and policy enforcement. This option provides more control and privacy over the data, but also requires more resources and maintenance from the customer. The other deployment options are the public cloud, which uses the Cisco-hosted AMP cloud and console, and the hybrid cloud, which uses a combination of the public and private clouds123 References: 1: Protecting Against Malware Threats with Cisco AMP for Endpoints (SSFAMP) course overview 2: Cisco Secure Endpoint (Formerly AMP for Endpoints) - Cisco 3: Cisco Advanced Malware Protection for Endpoints - Zones

To add a device into Cisco DNA Center with the native API, the POST method and the name attribute are required. The POST method is used to create a new resource on the server, such as a device. The name attribute is used to specify the hostname or IP address of the device to be added. The POST method requires a JSON body that contains the device information, such as the name, type, role, credentials, and other optional parameters. The Cisco DNA Center API documentation provides an example of the JSON body and the response for adding a device1. The Cisco DNA Center Platform User Guide also explains how to use the native API to add devices2. References := 1: Cisco DNA Center API Documentation - Add Device 2: Cisco DNA Center Platform User Guide, Release 2.3.5 - Manage Devices Using the Native API

The mechanism that the engineer should configure to accomplish the goal of sending telemetry using the cloud provider’s mechanisms to a security device is VPC flow logs. VPC flow logs are a feature of Google Cloud that capture and record information about the network flows sent from and received by the virtual machines (VMs) inside a VPC network1. VPC flow logs can provide network telemetry data such as source and destination IP addresses, ports, protocols, bytes sent and received, and connection state1. VPC flow logs can be exported to Cloud Logging, Pub/Sub, or Cloud Storage for further analysis by security devices or tools1. VPC flow logs can help the engineer to perform behavioral analysis to detect malicious activity on the hosts, such as network scans, port sweeps, brute force attacks, data exfiltration, or lateral movement2.

The other options are not correct mechanisms to send telemetry using the cloud provider’s mechanisms to a security device. Option A is incorrect because mirror port is not a feature of Google Cloud, but rather a network device configuration that copies traffic from one port to another for monitoring purposes3. Option B is incorrect because flow is not a specific mechanism, but rather a generic term that refers to a sequence of packets between a source and a destination4. Option C is incorrect because NetFlow is not a feature of Google Cloud, but rather a network protocol developed by Cisco that collects and aggregates information about network flows5. NetFlow is not compatible with VPC flow logs, which use a different format6. References:

VPC flow logs overview

When to use 5 telemetry types in security threat monitoring

What is a Mirror Port?

What is a Network Flow?

What is NetFlow?

Exporting VPC flow logs to Pub/Sub

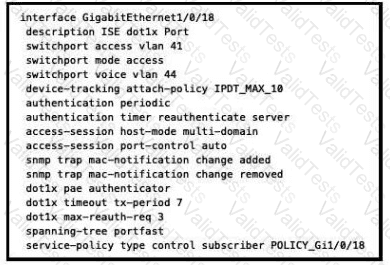

Based on the configuration script in the image, the interface GigabitEthernet0/0/18 is configured for both 802.1X and MAB authentication. The command authentication port-control auto enables 802.1X authentication on the port, while the command dot1x pae authenticator enables the port to act as an authenticator. The command authentication host-mode multi-domain enables MAB authentication on the port, and allows two devices to be authenticated, one in the voice VLAN and one in the data VLAN. Therefore, when a device tries to connect to the port, the switch will first attempt 802.1X authentication, and if it fails, it will fall back to MAB authentication using the device’s MAC address. The switch will then contact the ISE server, which is configured as the RADIUS server group ise-group, to verify the device’s credentials and assign the appropriate access level based on the ISE policy. The ISE policy can also dynamically assign VLANs, ACLs, or service policies to the device based on its identity and posture. References :=

Some possible references are:

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 6: Secure Connectivity, Lesson 6.2: Implementing Site-to-Site VPNs, Topic 6.2.2: Group Encrypted Transport VPN

Cisco IOS Security Configuration Guide, Release 15M&T - Configuring IEEE 802.1x Port-Based Authentication

Cisco IOS Security Configuration Guide, Release 15M&T - Configuring MAC Authentication Bypass

Cisco Identity Services Engine Administrator Guide, Release 2.7 - Configure Wired 802.1X and MAB

 Cisco AMP for Endpoints provides next-generation protection by leveraging an endpoint protection platform (EPP) and endpoint detection and response (EDR) capabilities. EPP is a set of multifaceted prevention techniques that stop threats from compromising endpoints, such as behavioral analytics, machine learning, and signature-based methods. EDR is a set of powerful features that reduce the attack surface and remediate faster, such as advanced threat hunting, endpoint isolation, and dynamic malware analysis. Cisco AMP for Endpoints also integrates with SecureX, a built-in platform that offers extended detection and response (XDR) capabilities across multiple control points, such as network, cloud, email, and web. By combining EPP, EDR, and XDR, Cisco AMP for Endpoints delivers a comprehensive and resilient endpoint security solution that can detect, respond, and recover from sophisticated attacks. References:

Cisco Secure Endpoint (Formerly AMP for Endpoints) - Cisco

Cisco Secure Endpoint (Formerly AMP for Endpoints) - Cisco

Cisco Secure Endpoint (Formerly AMP for Endpoints) - Cisco

Cisco Stealthwatch Cloud is a cloud-delivered and SaaS-based solution that provides visibility and threat detection across the AWS network. It does not require any software agents to be installed on the AWS instances, and it relies on AWS VPC flow logs to collect network traffic metadata. Cisco Stealthwatch Cloud analyzes the flow logs using machine learning and behavioral modeling to detect anomalies and threats, such as data exfiltration, lateral movement, reconnaissance, and compromised instances. Cisco Stealthwatch Cloud also provides contextual information and actionable alerts to help users respond to incidents and remediate issues.

Cisco Umbrella is a cloud-delivered and SaaS-based solution that provides DNS-layer security and web filtering for internet traffic. It does not provide visibility and threat detection for internal AWS network traffic, and it requires software agents to be installed on the endpoints or network devices to enforce policies and redirect DNS requests.

NetFlow collectors are devices or software applications that collect and analyze NetFlow records, which are generated by network devices to capture information about IP traffic flows. NetFlow collectors can provide visibility and threat detection for network traffic, but they are not cloud-delivered or SaaS-based solutions. They also require NetFlow exporters to be configured on the network devices, which may not be supported by AWS.

Cisco Cloudlock is a cloud-delivered and SaaS-based solution that provides cloud security posture management (CSPM) and cloud access security broker (CASB) capabilities for cloud applications and environments. It does not provide visibility and threat detection for AWS network traffic, and it does not rely on AWS VPC flow logs. It focuses on protecting cloud data, users, and configurations from misconfigurations, compliance violations, and malicious activities. References :=

Cisco Stealthwatch Cloud for AWS

Cisco Umbrella

NetFlow

[Cisco Cloudlock]

The target in a phishing attack is the endpoint, which is the device or system that the user interacts with, such as a computer, smartphone, or tablet. Phishing attacks aim to steal or damage sensitive data by deceiving people into revealing personal information like passwords and credit card numbers, or clicking on malicious links or attachments that can install malware on the endpoint. Phishing attacks can be delivered through various channels, such as email, phone, or text message, but they all rely on social engineering techniques to manipulate the user’s trust and curiosity. By compromising the endpoint, attackers can gain access to the user’s accounts, files, network, or other resources. Therefore, endpoint security is essential to prevent phishing attacks and protect the user’s data and identity. References:

What Is a Phishing Attack? Definition and Types - Cisco

8 types of phishing attacks and how to identify them

What Is Phishing? | Microsoft Security

Phishing | What Is Phishing?

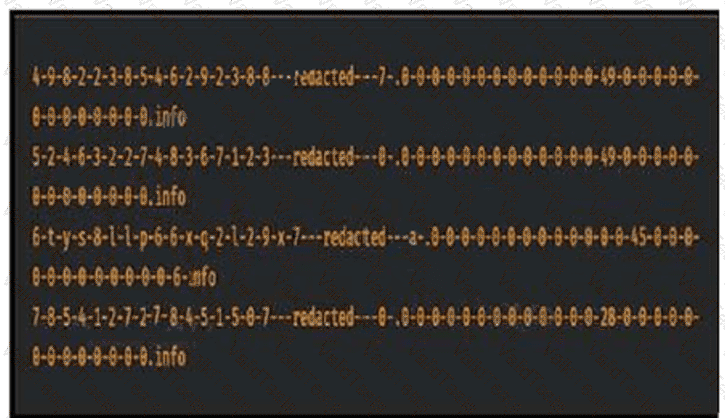

The W32/AutoRun worm is a type of malware that spreads through removable drives, such as USB flash drives, and modifies the autorun.inf file to execute itself when the drive is inserted. The worm also attempts to connect to a remote server and download additional malicious files. One of the features of this worm is that it generates random domain names based on the current date and time, and sends DNS requests to these domains. This is a technique to evade detection and analysis, as well as to communicate with the command and control server. The DNS requests generated by the worm have a distinctive pattern, such as the length of the domain name, the number of subdomains, and the use of redacted characters. By comparing these features to the expected behavior of normal DNS requests, security analysts can identify the presence of the worm and block its traffic. References :=

Some possible references are:

W32/AutoRun worm

DNS requests malicious attack

Four major DNS attack types and how to mitigate them

 Patching is important for security, compliance, stability, and reputation reasons. Patches are released to fix security vulnerabilities in software and systems, which can be exploited by cybercriminals to cause data breaches, data loss, or other damage. Failure to patch these vulnerabilities leaves the company’s systems exposed to potential security risks. Patch management helps to minimize these risks by ensuring that all software and systems are up-to-date with the latest security patches. Patch management also helps to comply with regulatory and industry standards that require a certain level of security, and to avoid legal consequences for non-compliance. Additionally, patches provide bug fixes and other updates that improve the stability and performance of software and systems, and prevent system crashes, downtime, and other issues that can negatively impact the business operations. Finally, patch management helps to maintain a positive reputation for the company, as a security breach or downtime caused by unpatched vulnerabilities can damage the customer trust and loyalty, and result in revenue loss. References:

5 Patch Management Best Practices for Success in 2023 - TechRepublic

Six Patch Management Best Practices [Updated 2024] - Heimdal Security
