-- Exhibit –
-- Exhibit --

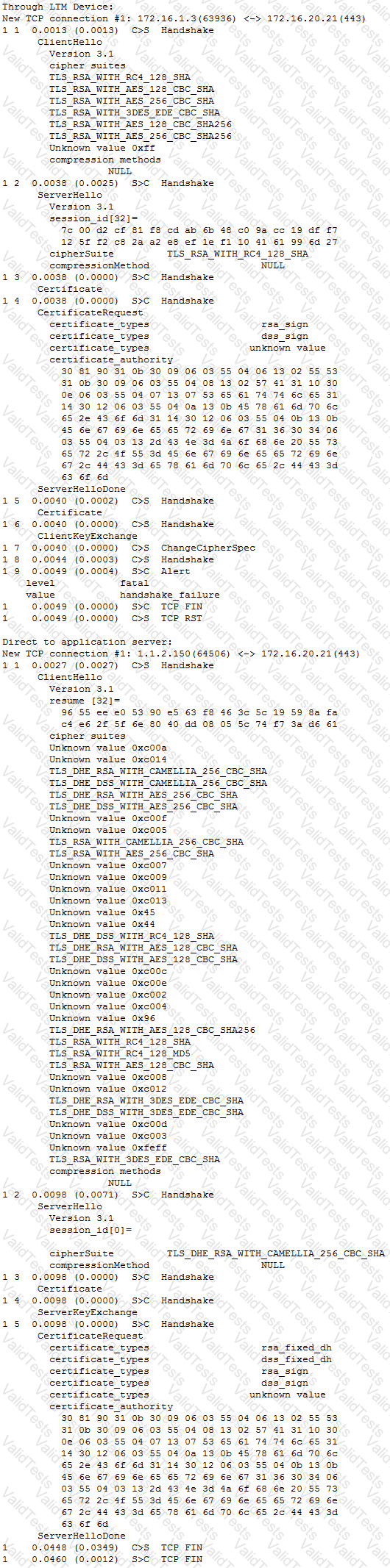

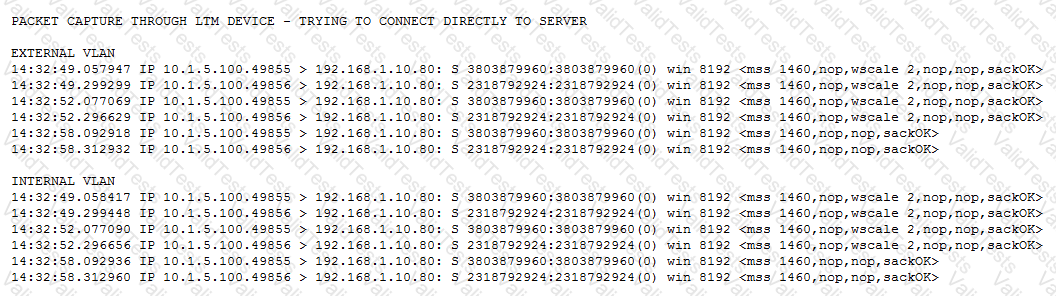

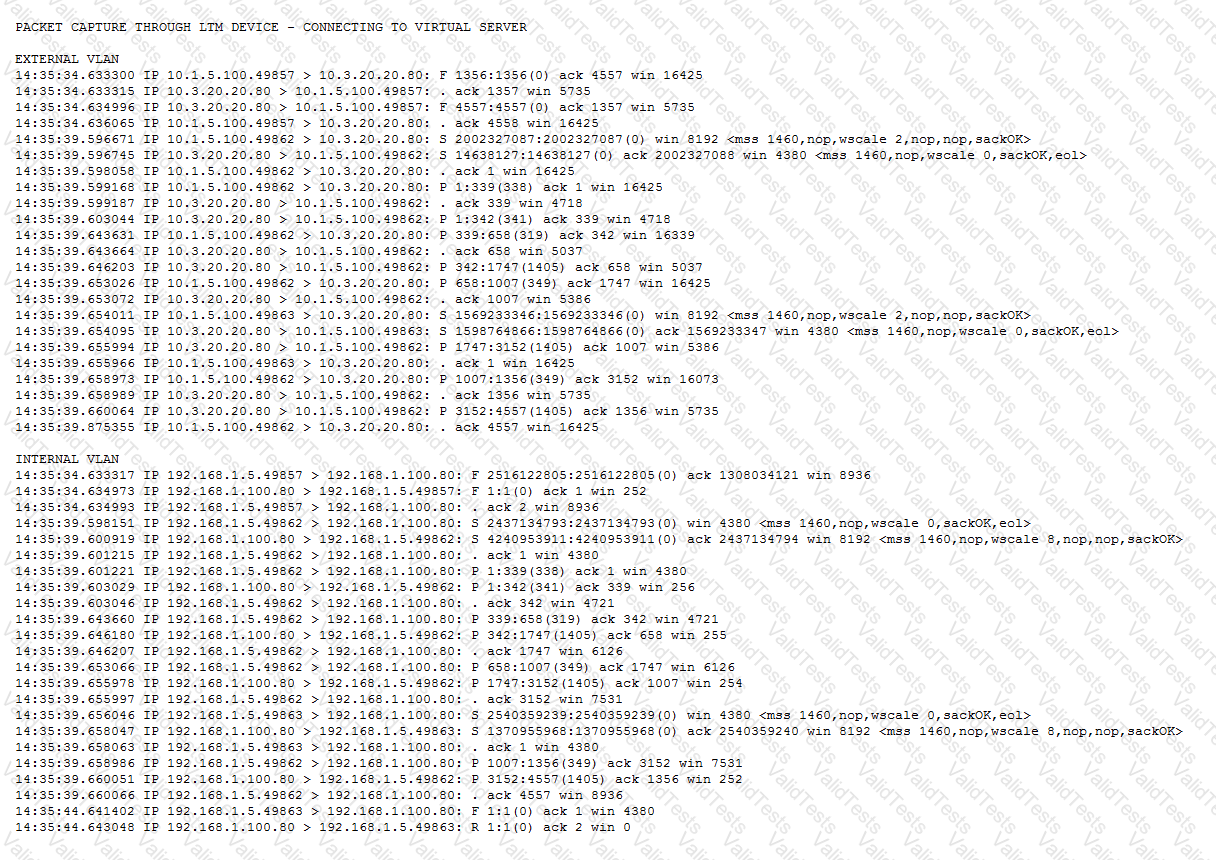

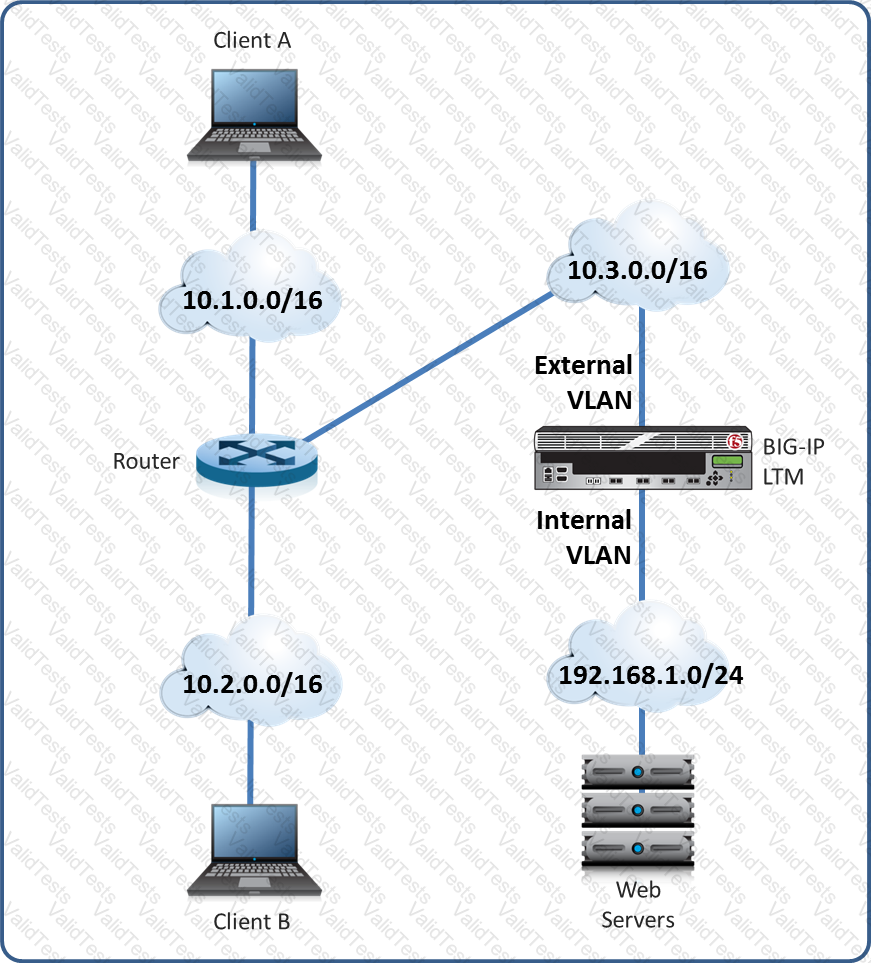

Refer to the exhibits.
Users are able to access the application when connecting to the virtual server but are unsuccessful when connecting directly to the application servers. The LTM Specialist wants to allow direct access to the application servers.
Why are users unable to connect directly to the application servers?
An LTM Specialist has installed a hotfix that updated the SCCP firmware package.
Which command will ensure that the host subsystem and SCCP reboot?
During a maintenance window, an EUD test was executed and the output displayed on the screen. The BIG-IP Administrator did NOT save the screen output. The BIG-IP device is currently handling business critical traffic. The BIG-IP Administrator needs to minimize impact. What should the BIG-IP Administrator do to provide the EUD results to F5 Support?
An LTM device pair is configured for failover and connection mirroring. The LTM devices are configured with virtual servers for HTTP, HTTPS with SSL offload, and SSH. An event occurs that causes a failover. HTTP and SSH sessions active at the time of failover remain active, but HTTPS sessions are dropped.
What is the root cause of this problem?
-- Exhibit –
-- Exhibit --
Refer to the exhibit.
An LTM Specialist creates a virtual server to load balance traffic to a pool of HTTPS servers. The servers use client certificates for user authentication. The virtual server has clientssl, serverssl, and http profiles enabled. Clients are unable to connect to the application through the virtual server, but they are able to connect to the application servers directly.
Which change to the LTM device configuration will resolve the problem?
-- Exhibit –
-- Exhibit --

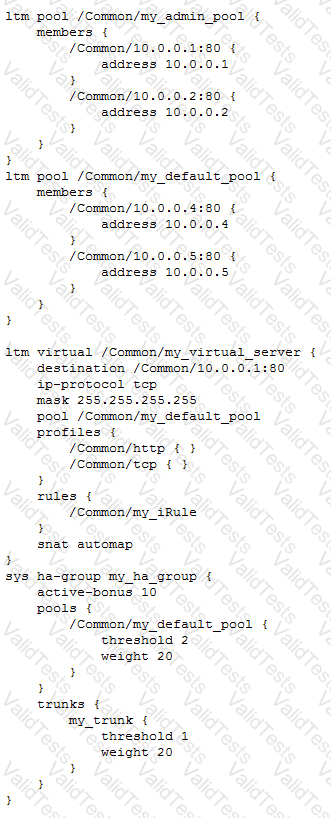

Refer to the exhibit.
A pair of LTM devices is configured for HA.
What happens if the pool member server with IP address 10.0.0.4 becomes totally unresponsive to the active LTM device, but is still responsive to the standby LTM device?
Refer to the Exhibit.
An LTM Specialist notices that two members in a pool are overloaded. To relive the existing members a fourth member (10.128.20.14) is brought up.
How many member will receive and process new connections?
AN LTM Specialist is setting up a new HTTPS virtual server to decrypt client traffic. SNAT the traffic and send the encrypted traffic to the poor member, the client's IP address must be included in the traffic
sent to the pool member.
What is a complete set of profiles that must be configured for the virtual server to meet these requirements?
A 816-IP Administrator recently deployed an application Users are experiencing slow performance with
the application on some remote networks.
Which two modifications can the BIG-IP Administrator make to address this issue? (Choose two)
An LTM Specialist needs to provide statistics regarding the round-trip time betweenthe clients and the servers.
Which metric should be part of the analytics profile to provide that information?
An LTM Specialist is troubleshooting a problem on an eCommerce website. The user browses the online store using port 80, adding items to the shopping cart. The user then clicks the "Checkout" button on the site, which redirects the user to port 443 for the checkout process. Suddenly, the user's shopping cart is shown as empty. The shopping cart data is stored in memory on the server, and the default source address persistence profile is used on both virtual servers.
What is the issue?
All pool members are online. All other virtual server settings are at default What might after the load balancing behavior?
An LTM Specialist must reconfigure a BIG-IP system that load balances traffic to a web application. The security department has informed the LTM Specialist that the following cipher string must be used for TLS connections from BIG-IP to the web application.
NATIVE:IMDS:EXPORT:IDHE:EDH@SPEED
In which virtual server profile should the cipher string be configured?
-- Exhibit –
-- Exhibit --

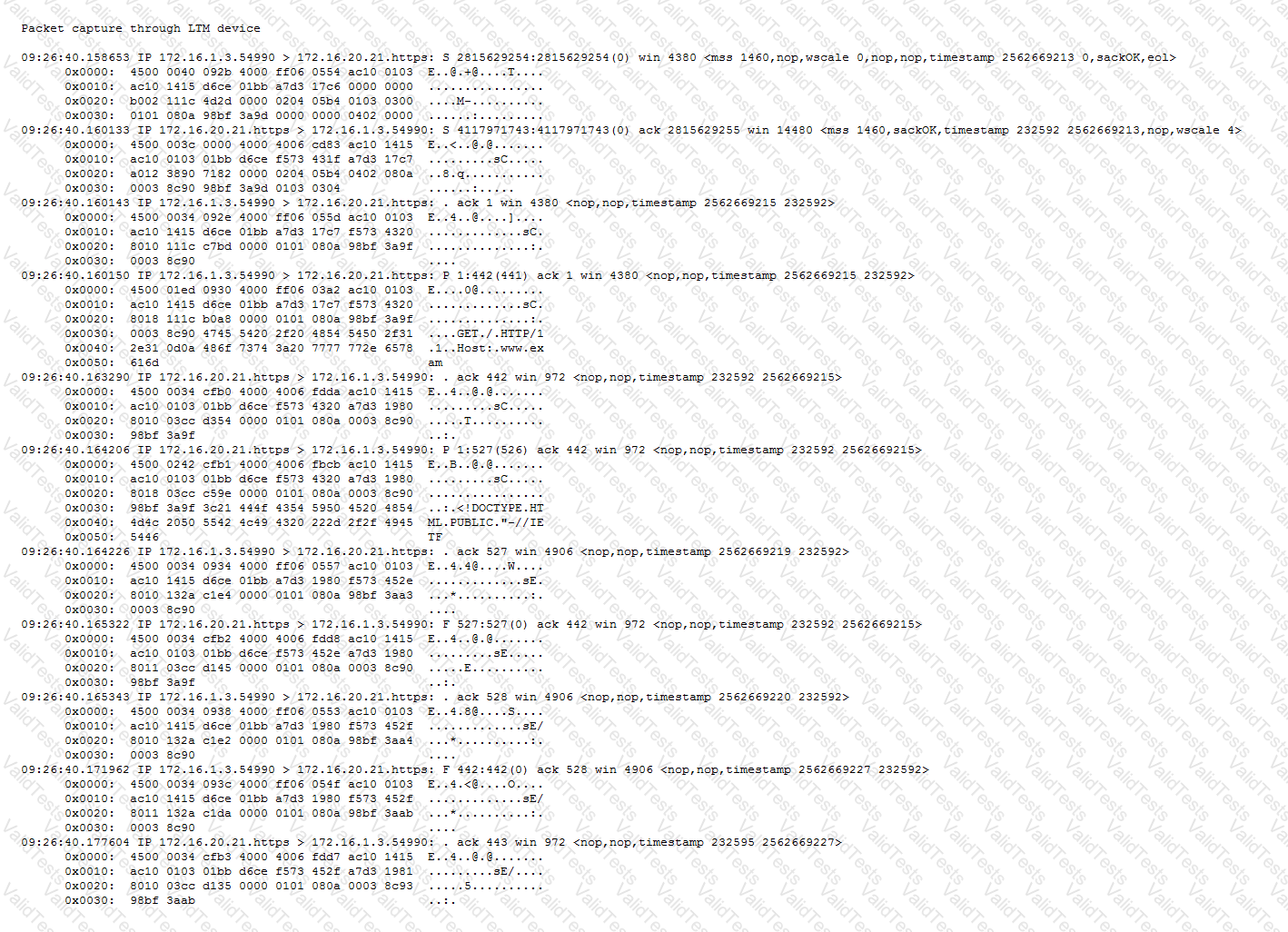

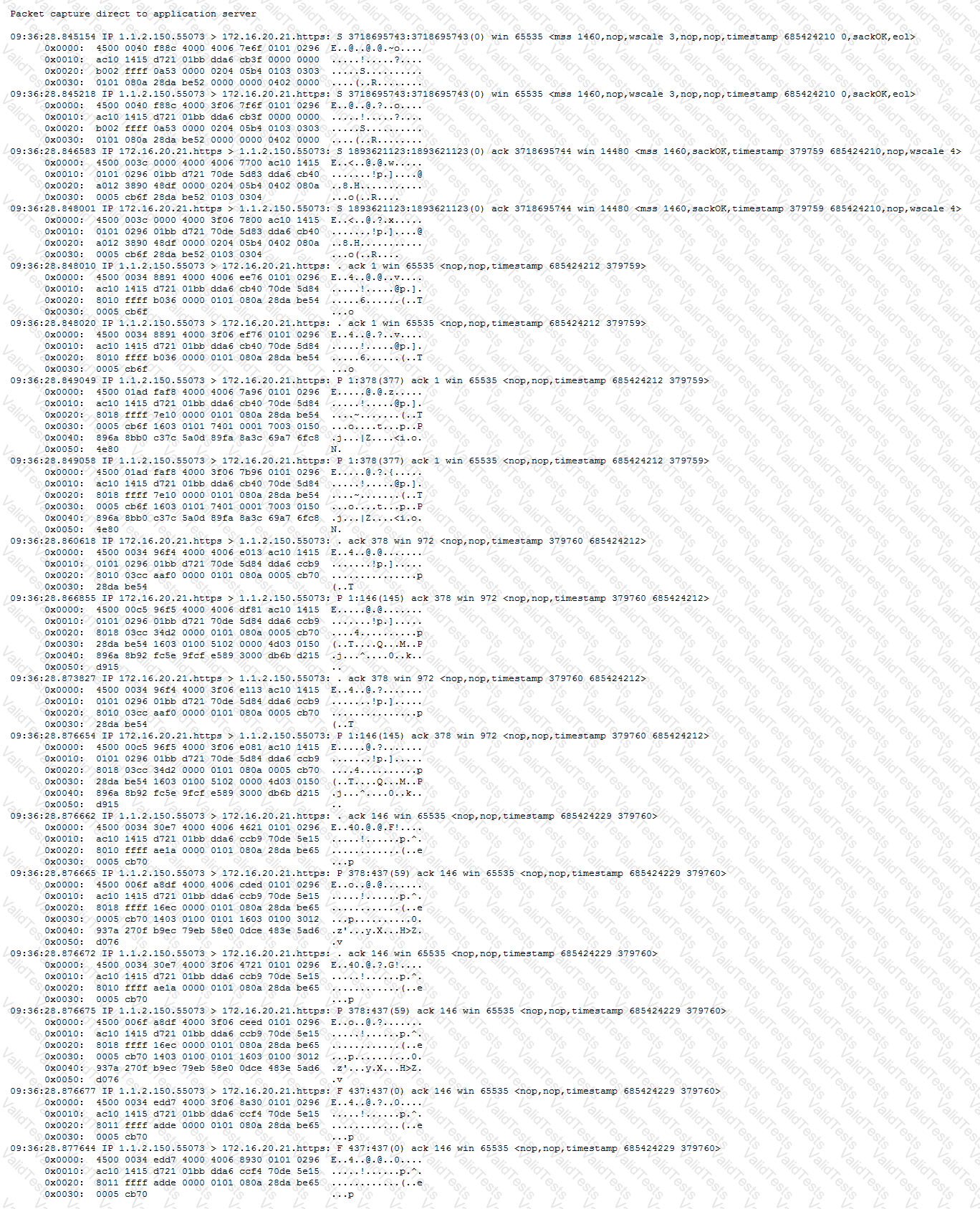

Refer to the exhibits.
An LTM Specialist has configured a virtual server to distribute connections to a pool of application servers and to offload SSL processing. The application fails to work as expected when connecting to the virtual server. It does work when clients connect directly to the application. Two packet captures were taken at the application server.
What is the root cause of the problem?
An LTM device needs an additional traffic group.
Which configuration item is required?
