The task is to configure an AOS-CX switch to send logs to a SIEM Syslog server at IP address 10.4.13.15 using TCP port 514, with logs for events at the "warning" severity level or above (i.e., warning, error, critical, alert, emergency). The initial command entered is:

AOS-CX(config)# logging 10.4.13.15 tcp vrf default

This command configures the switch to send logs to the Syslog server at 10.4.13.15 using TCP (port 514 is the default for TCP Syslog unless specified otherwise) and the default VRF. However, this command alone does not specify the severity level of the logs to be sent, which is a requirement of the task.

Severity Level Configuration: AOS-CX switches allow you to specify the severity level for logs sent to a Syslog server. The severity levels, in increasing order of severity, are: debug, informational, notice, warning, error, critical, alert, and emergency. The requirement is to send logs at the "warning" level or above, meaning warning, error, critical, alert, and emergency logs should be sent, but debug, informational, and notice logs should not.

Option A, "Specify the ‘warning’ severity level for the logging server," is correct. To meet the requirement, you need to add the severity level to the logging configuration for the specific Syslog server. The command to do this is:

AOS-CX(config)# logging 10.4.13.15 severity warning

This command ensures that only logs with a severity of warning or higher are sent to the Syslog server at 10.4.13.15. Since the initial command already specified TCP and the default VRF, this additional command completes the configuration.

Option B, "Add logging categories at the global level," is incorrect. Logging categories (e.g., system, security, network) are used to filter logs based on the type of event, not the severity level. The requirement is about severity ("warning" or above), not specific categories, so this step is not necessary to meet the stated criteria.

Option C, "Ask for the Syslog password and configure it on the switch," is incorrect. Syslog servers typically do not require a password for receiving logs, and AOS-CX switches do not have a configuration option to specify a Syslog password. Authentication or encryption for Syslog (e.g., using TLS) is not mentioned in the requirements.

Option D, "Configure logging as a debug destination," is incorrect. Configuring a debug destination (e.g., using the debug command) is used to send debug-level logs to a destination (e.g., console, buffer, or Syslog), but the requirement is to send logs at the "warning" level or above, not debug-level logs. Additionally, the logging command already specifies the Syslog server as the destination.

The HPE Aruba Networking AOS-CX 10.12 System Management Guide states:

"To configure a Syslog server on an AOS-CX switch, use the logging [tcp | udp] [vrf ] command to specify the server’s IP address, protocol, and VRF. To filter logs by severity, add the severity option to the logging command. For example, logging 10.4.13.15 tcp severity warning sends logs with a severity of warning or higher (warning, error, critical, alert, emergency) to the Syslog server at 10.4.13.15 using TCP. The default port for TCP Syslog is 514." (Page 89, Syslog Configuration Section)

Additionally, the guide notes:

"Severity levels for logging on AOS-CX switches are, in increasing order: debug, informational, notice, warning, error, critical, alert, emergency. Specifying a severity level of ‘warning’ ensures that only logs at that level or higher are sent to the configured destination." (Page 90, Logging Severity Levels Section)

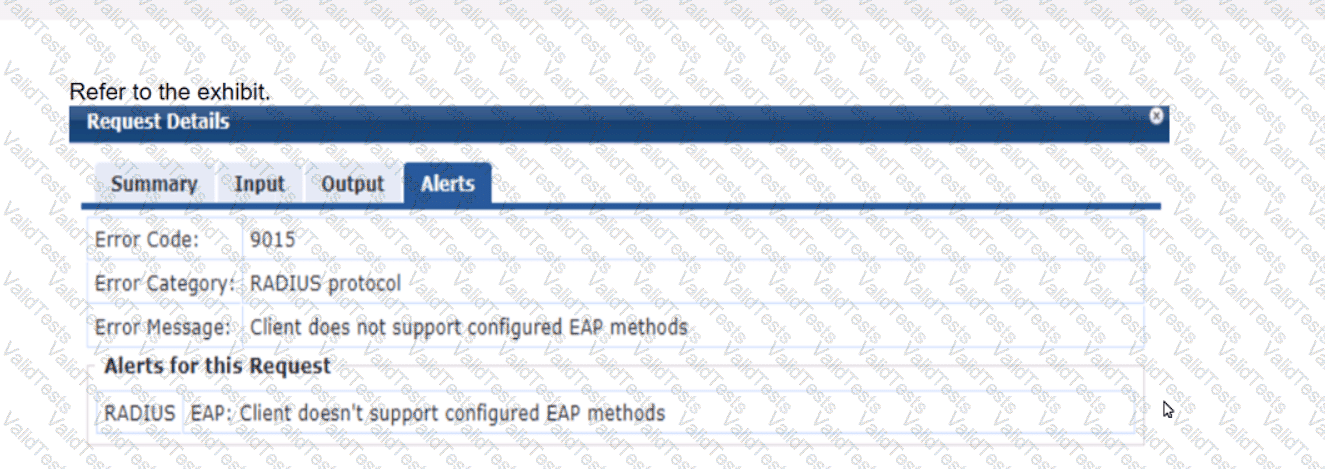

In the context of WPA3-Enterprise with EAP-TLS authentication, the error message "Client doesn’t support configured EAP methods" suggests that the client is not able to complete the EAP-TLS authentication process. EAP-TLS requires that both the server (in this case, CPPM) and the client have a valid certificate for mutual authentication. Windows 10 does support EAP-TLS natively, so options A, C, and D can be ruled out.

The most likely reason for the authentication failure is that the client device does not have the correct client certificate installed, which is required to establish a TLS session with the server. Therefore, ensuring that the client has a valid certificate installed that matches the server's requirements is the correct step to resolve this issue.

A honeypot in the context of wireless networks is a rogue access point (AP) set up by an attacker to lure wireless clients into connecting to it, often to steal credentials, intercept traffic, or launch further attacks. A man-in-the-middle (MITM) attack involves the attacker positioning themselves between the client and the legitimate network to intercept or manipulate traffic.

Option D, "It examines wireless clients' probes and broadcasts the SSIDs in the probes, so that wireless clients will connect to it automatically," is correct. Wireless clients periodically send probe requests to discover available networks, including SSIDs they have previously connected to (stored in their Preferred Network List, PNL). A honeypot AP can capture these probe requests, identify the SSIDs the client is looking for, and then broadcast those SSIDs. If the honeypot AP has a stronger signal or the legitimate AP is not available, the client may automatically connect to the honeypot AP (especially if the SSID is in the PNL and auto-connect is enabled). Once connected, the attacker can intercept the client’s traffic, making this an effective MITM attack.

Option A, "It uses ARP poisoning to disconnect wireless clients from the legitimate wireless network and force clients to connect to the hacker’s wireless network instead," is incorrect. ARP poisoning is a technique used on wired networks (or within the same broadcast domain) to redirect traffic by spoofing ARP responses. In a wireless context, ARP poisoning is not typically used to disconnect clients from a legitimate AP. Instead, techniques like deauthentication attacks or SSID spoofing (as in Option D) are more common.

Option B, "It runs an NMap scan on the wireless client to find the client's MAC and IP address. The hacker then connects to another network and spoofs those addresses," is incorrect. NMap scans are used for network discovery and port scanning, not for launching an MITM attack via a honeypot. Spoofing MAC and IP addresses on another network does not position the attacker as a honeypot to intercept wireless traffic.

Option C, "It uses a combination of software and hardware to jam the RF band and prevent the client from connecting to any wireless networks," is incorrect. Jamming the RF band would disrupt all wireless communication, including the attacker’s honeypot, and would not facilitate an MITM attack. Jamming might be used in a denial-of-service (DoS) attack, but not for MITM.

The HPE Aruba Networking AOS-8 8.11 User Guide states:

"A common technique for launching a man-in-the-middle (MITM) attack using a honeypot AP involves capturing wireless clients’ probe requests to identify SSIDs in their Preferred Network List (PNL). The honeypot AP then broadcasts these SSIDs, tricking clients into connecting automatically if the SSID matches a known network and auto-connect is enabled. Once connected, the attacker can intercept the client’s traffic, performing an MITM attack." (Page 422, Wireless Threats Section)

Additionally, the HPE Aruba Networking Security Guide notes:

"Honeypot APs can be used to launch MITM attacks by spoofing SSIDs that clients are probing for. Clients often automatically connect to known SSIDs in their PNL, especially if the legitimate AP is unavailable or the honeypot AP has a stronger signal, allowing the attacker to intercept traffic." (Page 72, Wireless MITM Attacks Section)

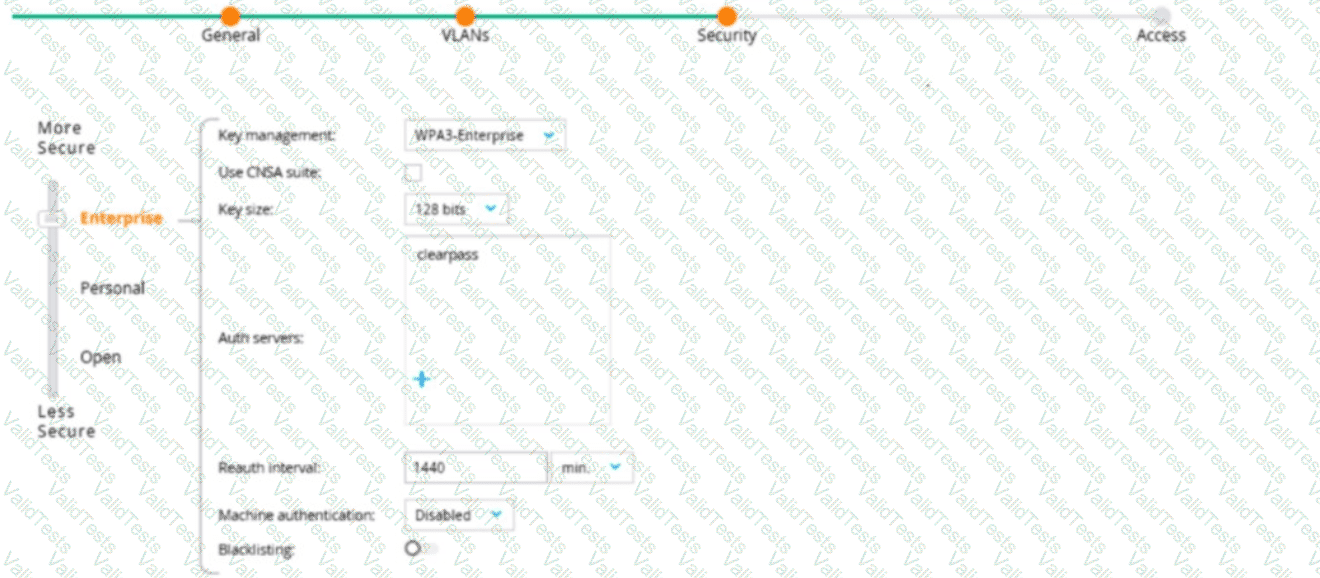

The exhibit shows the configuration of a WLAN on an AOS-8 Mobility Controller (MC) with the following settings:

Key management: WPA3-Enterprise (indicating 802.1X authentication).

Use CNSA suite: Unchecked (using standard encryption, not the Commercial National Security Algorithm suite).

Key size: 128 bits (standard for AES-GCMP in WPA3).

Reauth interval: 1440 minutes (24 hours, the interval for re-authentication).

Machine authentication: Disabled (only user authentication is required).

Blacklisting: Disabled (clients are not blacklisted after failed attempts).

The question states that the AAA profile settings have not been adjusted, meaning the default roles (e.g., initial role, logon role, 802.1X default role) are not specified in the exhibit and are assumed to be the system defaults (e.g., "logon" for the initial and logon roles, and a default role like "guest" for the 802.1X default role). The question asks under which circumstances a client will receive the "default role assignment," which refers to the 802.1X default role configured in the AAA profile for the WLAN.

802.1X Authentication Process in AOS-8:

When a client connects to a WPA3-Enterprise WLAN, it starts in the initial role (typically "logon") to allow basic connectivity (e.g., DHCP, DNS).

During 802.1X authentication, the client is placed in the logon role to allow communication with the authentication server (e.g., ClearPass Policy Manager, CPPM).

If authentication succeeds, the client is assigned a role:

If the authentication server (e.g., CPPM) sends an Aruba-User-Role VSA with a role that exists on the MC, the client is assigned that role.

If no Aruba-User-Role VSA is sent, the client is assigned the 802.1X default role configured in the AAA profile for the WLAN.

If authentication fails or the server is unreachable, the client may be assigned a different role (e.g., a critical role, if configured) or denied access.

Option A, "The client has attempted 802.1X authentication, but the MC could not contact the authentication server," is incorrect. If the MC cannot contact the authentication server (e.g., due to a timeout), the client does not receive the 802.1X default role. Instead, the MC may apply a critical role (if configured) or deny access, depending on the configuration. The 802.1X default role is applied only after successful authentication.

Option B, "The client has passed 802.1X authentication, and the authentication server did not send an Aruba-User-Role VSA," is correct. If the client successfully authenticates via 802.1X and the authentication server (e.g., CPPM) does not send an Aruba-User-Role VSA, the MC assigns the client the 802.1X default role configured in the AAA profile for the WLAN. This is the "default role assignment" referred to in the question.

Option C, "The client has attempted 802.1X authentication, but failed to maintain a reliable connection, leading to a timeout error," is incorrect. A timeout error during authentication (e.g., the client fails to respond to EAP messages) typically results in an authentication failure, not a successful authentication. The client would not receive the 802.1X default role; it might be denied access or placed in a different role (e.g., a pre-authentication role).

Option D, "The client has passed 802.1X authentication, and the value in the Aruba-User-Role VSA matches a role on the MC," is incorrect. If the authentication server sends an Aruba-User-Role VSA with a role that exists on the MC, the client is assigned that specific role, not the 802.1X default role.

The HPE Aruba Networking AOS-8 8.11 User Guide states:

"After a client successfully authenticates via 802.1X, the Mobility Controller assigns a role to the client. If the authentication server (e.g., a RADIUS server) sends an Aruba-User-Role VSA with a role that exists on the controller, the client is assigned that role. If no Aruba-User-Role VSA is sent in the Access-Accept message, the client is assigned the 802.1X default role configured in the AAA profile for the WLAN. For example, if the AAA profile specifies ‘guest’ as the 802.1X default role, the client will be assigned the ‘guest’ role." (Page 305, Role Assignment Section)

Additionally, the HPE Aruba Networking Wireless Security Guide notes:

"In WPA3-Enterprise with 802.1X authentication, the default role assignment occurs when a client successfully authenticates but the authentication server does not specify a role via the Aruba-User-Role VSA. In this case, the client receives the 802.1X default role defined in the AAA profile, such as ‘guest’ or another role configured by the administrator." (Page 42, 802.1X Role Assignment Section)

The recommended approach for preventing users in the "user_group1" role from using gaming and peer-to-peer applications in an ArubaOS environment is to enable Deep Packet Inspection (DPI) and add application rules that specifically deny access to these types of applications for the role. DPI allows the network system to analyze the content of network traffic in real time and apply policies based on what it detects, including blocking specific applications like gaming and peer-to-peer sharing. This capability is essential for effectively managing application usage on the network and ensuring compliance with organizational policies. Application-specific rules provide precise control over the network traffic by identifying the application regardless of the network port used, making it a more effective method than blocking based on ports or IP addresses.

When troubleshooting connectivity issues for a user connecting to an AP managed by a standalone Mobility Controller (MC) in an AOS-8 architecture, detailed logs and debugs specific to the user’s client are essential. The MC provides several tools for capturing logs and debugging information, including packet captures and user-specific debug logs.

Option D, "In the MC UI’s Diagnostics > Logs pages, add a ‘user-debug’ log setting for the client's MAC address," is correct. The "user-debug" feature in the MC allows administrators to enable detailed debugging for a specific client by specifying the client’s MAC address. This generates logs related to the client’s authentication, association, role assignment, and other activities, which are critical for troubleshooting connectivity issues. The Diagnostics > Logs pages in the MC UI provide a user-friendly way to configure this setting and view the resulting logs.

Option A, "In the MC CLI, set up a control plane packet capture and filter for the client's IP address," is incorrect because control plane packet captures are used to capture management traffic (e.g., between the MC and APs or other controllers), not user traffic. Additionally, the client may not yet have an IP address if connectivity is failing, making an IP-based filter less effective.

Option B, "In the MC CLI, set up a data plane packet capture and filter for the client's MAC address," is a valid troubleshooting method but is not the best choice for getting detailed logs. Data plane packet captures are useful for analyzing user traffic (e.g., to see if packets are being dropped), but they do not provide the same level of detailed logging as the "user-debug" feature, which includes authentication and association events.

Option C, "In the MC UI’s Traffic Analytics dashboard, look for the client's IP address," is incorrect because the Traffic Analytics dashboard is used for monitoring application usage and traffic patterns, not for detailed troubleshooting of a specific client’s connectivity issues. Additionally, if the client cannot connect, it may not have an IP address or generate traffic visible in the dashboard.

The HPE Aruba Networking AOS-8 8.11 User Guide states:

"To troubleshoot issues for a specific wireless client, you can enable user-specific debugging using the ‘user-debug’ feature. In the Mobility Controller UI, navigate to Diagnostics > Logs, and add a ‘user-debug’ log setting for the client’s MAC address. This will generate detailed logs for the client, including authentication, association, and role assignment events, which can be viewed in the Logs page. For example, to enable user-debug for a client with MAC address 00:11:22:33:44:55, add the setting ‘user-debug 00:11:22:33:44:55’." (Page 512, Troubleshooting Wireless Clients Section)

Additionally, the guide notes:

"While packet captures (control plane or data plane) can be useful for analyzing traffic, the ‘user-debug’ feature provides more detailed logs for troubleshooting client-specific issues, such as failed authentication or association problems." (Page 513, Debugging Tools Section)

HPE Aruba Networking ClearPass Policy Manager (CPPM) uses TCP fingerprinting as a passive profiling method to classify endpoints by analyzing TCP packet headers (e.g., TTL, window size) to identify the operating system (e.g., Windows, Linux). The company in this scenario has Mobility Controllers (MCs), campus APs, and AOS-CX switches, and wants to use CPPM’s TCP fingerprinting capabilities for endpoint classification.

TCP Fingerprinting: This method requires CPPM to receive TCP traffic from endpoints. Since CPPM is not typically inline with network traffic, the traffic must be mirrored to CPPM for analysis. This is often done using a SPAN (Switched Port Analyzer) port or mirror port on a switch or controller.

Option A, "You will need to mirror traffic to one of CPPM’s span ports from a device such as a core routing switch," is correct. For CPPM to perform TCP fingerprinting, it needs to see the TCP traffic from endpoints. This is typically achieved by mirroring traffic from a core routing switch (or another device like an MC) to a SPAN port on the CPPM server. For example, on an AOS-CX switch, you can configure a mirror session with the command mirror session 1 destination interface source vlan to send traffic to CPPM. This is a key consideration for enabling TCP fingerprinting.

Option B, "ClearPass admins will need to provide the credentials of an API admin account to configure on HPE Aruba Networking devices," is incorrect. TCP fingerprinting does not require API credentials. It is a passive profiling method that analyzes mirrored traffic, and no API interaction is needed between CPPM and Aruba devices for this purpose.

Option C, "AOS-CX switches do not offer the support necessary for CPPM to use TCP fingerprinting on wired endpoints," is incorrect. AOS-CX switches support mirroring traffic to CPPM (e.g., using a mirror session), which enables CPPM to perform TCP fingerprinting on wired endpoints. The switch does not need to perform the fingerprinting itself; it only needs to send the traffic to CPPM.

Option D, "TCP fingerprinting of wireless endpoints requires a third-party Mobility Device Management (MDM) solution," is incorrect. TCP fingerprinting is a built-in capability of CPPM and does not require an MDM solution. For wireless endpoints, the MC can mirror client traffic to CPPM (e.g., using a datapath mirror), allowing CPPM to perform TCP fingerprinting.

The HPE Aruba Networking ClearPass Policy Manager 6.11 User Guide states:

"TCP fingerprinting requires ClearPass to receive TCP traffic from endpoints for analysis. A key consideration is that you must mirror traffic to one of ClearPass’s SPAN ports from a device such as a core routing switch or Mobility Controller. For example, on an AOS-CX switch, configure a mirror session with mirror session 1 destination interface source vlan to send traffic to ClearPass for TCP fingerprinting." (Page 248, TCP Fingerprinting Section)

Additionally, the HPE Aruba Networking AOS-8 8.11 User Guide notes:

"For ClearPass to perform TCP fingerprinting on wireless endpoints, the Mobility Controller can mirror client traffic to ClearPass using a datapath mirror. For wired endpoints, an AOS-CX switch can mirror traffic to ClearPass’s SPAN port, enabling TCP fingerprinting without requiring additional support on the switch itself." (Page 351, Device Profiling with CPPM Section)

Based on the exhibit showing the firewall rules, the following traffic is permitted:

Client 1 is allowed to send HTTPS traffic to any destination within the subnet 10.1.10.0/24 because there is a permit rule for the user to access svc-https to that subnet.

Responses to initiated connections are typically allowed by stateful firewalls; hence, an HTTPS response from 10.1.10.10 to client 1 is expected to be permitted even though it is not explicitly mentioned in the firewall rules (assuming the stateful nature of the firewall).

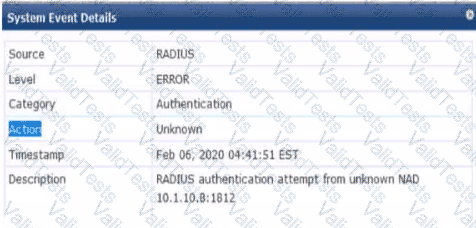

Given the error message from the ClearPass Policy Manager (CPPM) Event Viewer, indicating a RADIUS authentication attempt from an unknown Network Access Device (NAD), you should check that the IP address the Mobility Controller (MC) is using to communicate with CPPM matches the IP address defined for the MC in the CPPM's device inventory. If there is a mismatch in IP addresses, CPPM will not recognize the MC as a known device and will not process the authentication request, leading to the error observed.

To enable managers to use certificates to log into the Web UI of an Aruba Mobility Controller (MC), where Aruba ClearPass Policy Manager (CPPM) acts as the external server for authentication, it is essential to ensure that the MC trusts the HTTPS certificate used by CPPM. This involves uploading a trusted CA certificate to the MC that matches the one used by CPPM. Additionally, configuring a username and password for CPPM on the MC might be necessary to secure and facilitate communication between the MC and CPPM. This setup ensures that certificate-based authentication is securely validated, maintaining secure access control for the Web UI.
