The Lockheed Martin Cyber Kill Chain is a framework that describes the stages of a cyber attack, from initial reconnaissance to achieving the attacker’s objective. It is often referenced in HPE Aruba Networking security documentation to help organizations understand and mitigate threats.

Option A, "In the delivery stage, the hacker delivers malware to targeted users, often with spear phishing methods," is correct. The delivery stage in the Lockheed Martin kill chain involves the attacker transmitting the weaponized payload (e.g., malware) to the target. Spear phishing, where the attacker sends a targeted email with a malicious attachment or link, is a common delivery method. This stage follows reconnaissance (gathering information) and weaponization (creating the malware).

Option B, "In the installation phase, hackers seek to install vulnerabilities in operating systems across the network," is incorrect. The installation phase involves the attacker installing the malware on the target system to establish persistence (e.g., by creating a backdoor). It does not involve "installing vulnerabilities"; vulnerabilities are pre-existing weaknesses that the attacker exploits in the exploitation phase.

Option C, "In the weaponization stage, malware installed in the targeted network seeks to attack intrusion prevention systems (IPS)," is incorrect. The weaponization stage occurs before delivery and involves the attacker creating a deliverable payload (e.g., combining malware with an exploit). The malware is not yet installed in the target network during this stage, and attacking an IPS is not the purpose of weaponization.

Option D, "In the exploitation phase, hackers conduct social engineering attacks to exploit weak algorithms and crack user accounts," is incorrect. The exploitation phase involves the attacker exploiting a vulnerability (e.g., a software flaw) to execute the malware on the target system. Social engineering (e.g., phishing) is typically part of the delivery stage, not exploitation, and "exploiting weak algorithms" is not a standard description of this phase.

The HPE Aruba Networking Security Guide states:

"The Lockheed Martin Cyber Kill Chain describes the stages of a cyber attack. In the delivery stage, the attacker delivers the weaponized payload to the target, often using methods like spear phishing emails with malicious attachments or links. This stage follows reconnaissance (gathering information about the target) and weaponization (creating the malware payload)." (Page 18, Cyber Kill Chain Overview Section)

Additionally, the HPE Aruba Networking AOS-8 8.11 User Guide notes:

"Understanding the Lockheed Martin kill chain helps in threat mitigation. The delivery stage involves the attacker sending malware to the target, commonly through spear phishing, where a targeted email tricks the user into downloading the malware or clicking a malicious link." (Page 420, Threat Mitigation Section)

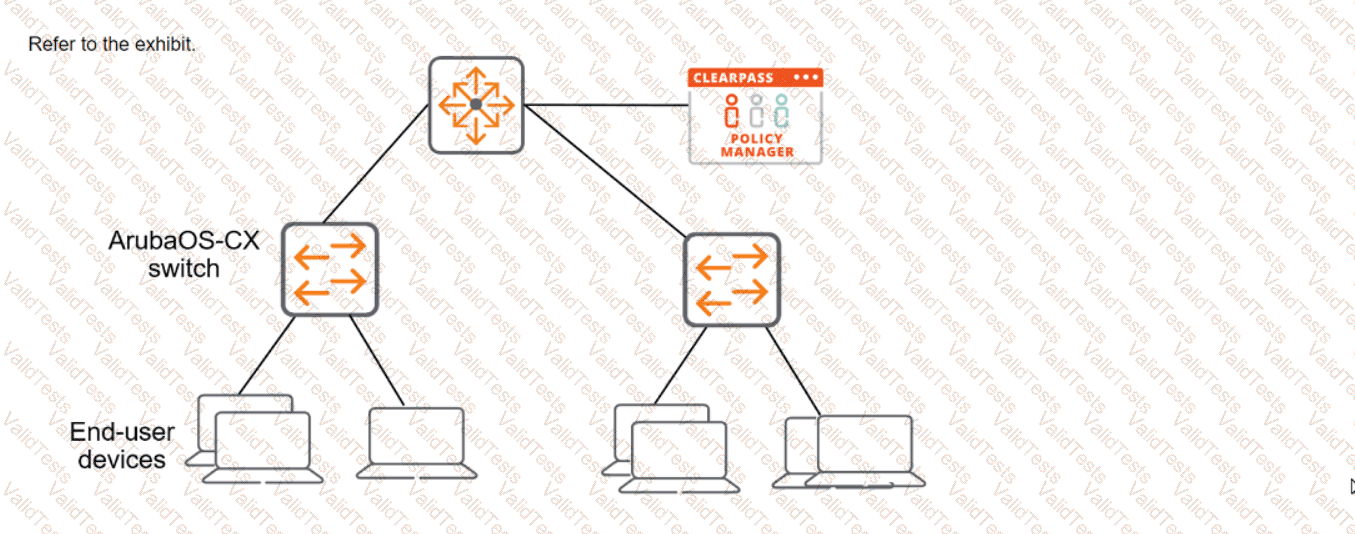

To meet the requirements for configuring an ArubaOS-CX switch for integration with ClearPass Policy Manager (CPPM), it is necessary to set the AAA authentication login method for SSH to use the “radius” server-group, with “local” as a backup. This ensures that when an admin attempts to SSH into the switch, the authentication request is first sent to CPPM via RADIUS. If CPPM is unavailable, the switch will fall back to using local authentication12.

Here’s why the other options are not correct:

Option B is incorrect because configuring a CPPM username and password on the switch that matches a CPPM admin account is not required for SSH login; rather, the switch needs to be configured to communicate with CPPM for authentication.

Option C is incorrect because while CPPM will send Aruba-Admin-Role Vendor-Specific Attributes (VSAs), the switch does not need to have port-access roles created with the same names; it needs to interpret the VSA to assign the correct role.

Option D is incorrect because disabling SSH on the default VRF and enabling it on the mgmt VRF is not related to the authentication process with CPPM.

Therefore, the correct answer is A, as setting the AAA authentication login method for SSH to the “radius” server-group with “local” as backup is a key step in ensuring that the switch can authenticate admins through CPPM while providing a fallback method12.

To configure the infrastructure to support network scans as part of the ClearPass Policy Manager (CPPM) solution, creating SNMPv3 users on ArubaOS-CX switches is necessary. Ensuring that the credentials for these SNMPv3 users match those configured on CPPM is crucial for enabling CPPM to perform network scans effectively. SNMPv3 provides a secure method for network management by offering authentication and encryption, which are essential for safely conducting scans that classify endpoints by type. This configuration allows CPPM to communicate securely with the switches and gather necessary data without compromising network security.

In an HPE Aruba Networking AOS-8 architecture with a Mobility Master (MM), Mobility Controllers (MCs), and campus APs (CAPs), the WLAN is configured to use Tunnel forwarding mode and WPA3-Enterprise security. In Tunnel mode, all user traffic from the APs is encapsulated in a GRE tunnel and sent to the MC, which then forwards the traffic to the appropriate VLAN. The WLAN is assigned to VLAN 301, and the core routing switches act as the default router for wireless user traffic.

Tunnel Forwarding Mode: In this mode, the AP does not directly place user traffic onto the wired network. Instead, the AP tunnels all user traffic to the MC over a GRE tunnel. The MC then decapsulates the traffic and places it onto the wired network in the specified VLAN (VLAN 301 in this case). This means the VLAN tagging for user traffic occurs at the MC, not at the AP.

VLAN 301 Assignment: Since the WLAN is assigned to VLAN 301, the MC will tag user traffic with VLAN 301 when forwarding it to the wired network. The core routing switches, acting as the default router, need to receive this traffic on VLAN 301 to route it appropriately.

Therefore, VLAN 301 needs to be carried on the links between the MC ports and the core routing switches, as this is where the MC forwards the user traffic after decapsulating it from the GRE tunnel.

Option A, "Only links on the path between APs and the core routing switches," is incorrect because, in Tunnel mode, the APs do not directly forward user traffic to the wired network. The traffic is tunneled to the MC, so the links between the APs and the core switches do not need to carry VLAN 301 for user traffic (though they may carry other VLANs for AP management).

Option B, "Only links on the path between APs and the MC," is incorrect for the same reason. The GRE tunnel between the AP and MC carries encapsulated user traffic, and VLAN 301 tagging occurs at the MC, not on the AP-to-MC link.

Option C, "All links in the campus LAN to ensure seamless roaming," is incorrect because VLAN 301 only needs to be present where the MC forwards user traffic to the wired network (i.e., between the MC and the core switches). Extending VLAN 301 to all links is unnecessary and could introduce security or scalability issues.

Option D, "Only links between MC ports and the core routing switches," is correct because the MC places user traffic onto VLAN 301 and forwards it to the core switches, which act as the default router.

The HPE Aruba Networking AOS-8 8.11 User Guide states:

"In Tunnel forwarding mode, the AP encapsulates all user traffic in a GRE tunnel and sends it to the Mobility Controller (MC). The MC decapsulates the traffic and forwards it to the wired network on the VLAN assigned to the WLAN. For example, if the WLAN is assigned to VLAN 301, the MC tags the user traffic with VLAN 301 and sends it out of its wired interface to the upstream switch. Therefore, the VLAN must be configured on the links between the MC and the upstream switch or router that acts as the default gateway for the VLAN." (Page 275, Tunnel Forwarding Mode Section)

Additionally, the HPE Aruba Networking Wireless LAN Design Guide notes:

"When using Tunnel mode, the VLAN assigned to the WLAN must be carried on the wired links between the Mobility Controller and the default router for the VLAN. The links between the APs and the MC do not need to carry the user VLAN, as all traffic is tunneled to the MC, which handles VLAN tagging." (Page 52, VLAN Configuration Section)

Tarpit containment is a method used in ArubaOS Wireless Intrusion Prevention (WIP) to contain rogue APs. It differs from traditional wireless containment in several ways, particularly in how it interacts with clients and manages network resources.

Tarpit containment works by spoofing frames from an AP to confuse a client about its association. It forces the client to associate with a fake channel or BSSID, which is more efficient than rogue containment via repeated de-authorization requests. This method is designed to be less disruptive and more resource-efficient1.

Here’s why the other options are not correct:

Option A is incorrect because tarpit containment does not involve sending ARP frames over the wired network. It operates wirelessly by creating a fake channel or BSSID.

Option B is incorrect because tarpit containment does not selectively target authorized clients; it affects all clients connected to the rogue AP.

Option C is incorrect because tarpit containment does require an RF Protect license to function2.

Therefore, Option D is the correct answer. Tarpit containment is more effective at keeping clients off the network with fewer disassociation frames than traditional wireless containment. It achieves this by forming associations with clients, which leads to a more efficient use of airtime and reduces the chance of negative effects on legitimate network users12.

In ArubaOS firewall policies, using network aliases allows administrators to manage groups of IP addresses more efficiently. By associating multiple IPs with a single alias, any changes made to the alias (like adding or removing IP addresses) are automatically reflected in all firewall rules that reference that alias. This significantly simplifies the management of complex rulesets and ensures consistency across security policies, reducing administrative overhead and minimizing the risk of errors.

The scenario involves an AOS-CX switch that needs to send RADIUS debug messages to a central SIEM server at 10.5.15.6. The switch has already been configured to send logs to the SIEM server with the command logging 10.5.15.6, and the command debug radius all has been entered to enable RADIUS debugging.

Debug Command: The debug radius all command enables debugging for all RADIUS-related events on the AOS-CX switch, generating detailed debug messages for RADIUS authentication, accounting, and other operations.

Debug Destination: Debug messages on AOS-CX switches can be sent to various destinations, such as the console, a file, the debug buffer, or a Syslog server. The logging 10.5.15.6 command indicates that the switch is configured to send logs to a Syslog server at 10.5.15.6 (using UDP port 514 by default, unless specified otherwise).

Option D, "syslog," is correct. To send RADIUS debug messages to the SIEM server, the debug destination must be set to "syslog," as the SIEM server is already defined as a Syslog destination with logging 10.5.15.6. The command to set the debug destination to Syslog is debug destination syslog, which ensures that the RADIUS debug messages are sent to the configured Syslog server (10.5.15.6).

Option A, "file," is incorrect. Sending debug messages to a file (e.g., using debug destination file) stores the messages on the switch’s filesystem, not on the SIEM server.

Option B, "console," is incorrect. Sending debug messages to the console (e.g., using debug destination console) displays them on the switch’s console session, not on the SIEM server.

Option C, "buffer," is incorrect. Sending debug messages to the buffer (e.g., using debug destination buffer) stores them in the switch’s debug buffer, which can be viewed with show debug buffer, but does not send them to the SIEM server.

The HPE Aruba Networking AOS-CX 10.12 System Management Guide states:

"To send debug messages, such as RADIUS debug messages, to a central SIEM server, first configure the Syslog server with the logging command (e.g., logging 10.5.15.6). Then, enable the desired debug with a command like debug radius all, and set the debug destination to Syslog using debug destination syslog. This ensures that all debug messages are sent to the configured Syslog server for centralized logging." (Page 92, Debug Logging Section)

Additionally, the HPE Aruba Networking AOS-CX 10.12 Security Guide notes:

"RADIUS debug messages can be sent to a Syslog server for centralized monitoring. After enabling RADIUS debugging with debug radius all, use debug destination syslog to send the messages to the Syslog server configured with the logging command, such as a SIEM server at 10.5.15.6." (Page 152, RADIUS Debugging Section)

The scenario involves AOS-CX switches in a two-tier topology (access and core layers) using OSPF routing at the core. The goal is to prevent ARP poisoning attacks on user VLANs at the access layer switches, where end-user devices connect. ARP poisoning (also known as ARP spoofing) is an attack where a malicious device sends fake ARP messages to associate its MAC address with the IP address of another device (e.g., the default gateway), allowing the attacker to intercept traffic.

ARP Inspection (Dynamic ARP Inspection, DAI): This feature prevents ARP poisoning by validating ARP packets against a trusted database of IP-to-MAC bindings. On AOS-CX switches, ARP inspection uses the DHCP snooping binding table to verify that ARP messages come from legitimate devices. If an ARP packet does not match the binding table, it is dropped.

DHCPv4 Snooping: This feature protects against rogue DHCP servers and builds a binding table of legitimate IP-to-MAC mappings by snooping DHCP traffic. The binding table is used by ARP inspection to validate ARP packets. DHCP snooping must be enabled before ARP inspection can function effectively, as it provides the trusted data for validation.

Option A, "ARP inspection," is correct. ARP inspection (DAI) directly prevents ARP poisoning by ensuring that ARP packets are legitimate, making it a key technology for this purpose.

Option B, "OSPF passive interface," is incorrect. OSPF passive interface is used to prevent OSPF from sending routing updates on specific interfaces, typically to reduce routing protocol traffic on user-facing interfaces. It does not prevent ARP poisoning, which is a Layer 2 attack.

Option C, "BPDU guard (protection)," is incorrect. BPDU guard protects against spanning tree protocol (STP) attacks by disabling a port if it receives BPDUs (e.g., from an unauthorized switch). It does not address ARP poisoning, which is unrelated to STP.

Option D, "DHCPv4 snooping," is correct. DHCP snooping is a prerequisite for ARP inspection, as it builds the binding table used to validate ARP packets. It also protects against rogue DHCP servers, which can indirectly contribute to ARP poisoning by assigning incorrect IP addresses.

Option E, "BPDU filtering," is incorrect. BPDU filtering prevents a port from sending or receiving BPDUs, which can be used to protect against STP attacks, but it does not prevent ARP poisoning.

The HPE Aruba Networking AOS-CX 10.12 Security Guide states:

"To prevent ARP poisoning attacks on user VLANs, enable Dynamic ARP Inspection (DAI) on access layer switches. DAI validates ARP packets against the DHCP snooping binding table to ensure they come from legitimate devices. Use the command ip arp inspection vlan to enable DAI on the specified VLANs. DHCP snooping must be enabled first with dhcp-snooping and dhcp-snooping vlan to build the binding table used by DAI." (Page 145, ARP Inspection and DHCP Snooping Section)

Additionally, the guide notes:

"DHCP snooping and ARP inspection work together to protect against Layer 2 attacks like ARP poisoning. DHCP snooping builds a trusted database of IP-to-MAC bindings, which ARP inspection uses to filter out malicious ARP packets." (Page 146, Best Practices Section)

The thumbprint (also known as a fingerprint) of a certificate or SSH key is a hash that uniquely represents the public key contained within. When you first connect to the switch with SSH from a management station, you should ensure that the thumbprint matches what you expect. This is a security measure to confirm the identity of the device you are connecting to and to ensure that a man-in-the-middle (MITM) attack is not occurring. If the thumbprint matches the known good thumbprint of the switch, it is safe to proceed with the connection.

HPE Aruba Networking ClearPass Device Insight is an advanced profiling solution integrated with ClearPass Policy Manager (CPPM) to enhance endpoint classification. It uses a combination of passive and active profiling techniques, along with machine learning, to identify and categorize devices on the network.

Option A, "Highly accurate endpoint classification for environments with many device types, including Internet of Things (IoT)," is correct. ClearPass Device Insight is designed to provide precise device profiling, especially in complex environments with diverse device types, such as IoT devices (e.g., smart cameras, thermostats). It leverages deep packet inspection (DPI), behavioral analysis, and a vast fingerprint database to accurately classify devices, enabling granular policy enforcement based on device type.

Option B, "Simpler troubleshooting of ClearPass solutions across an environment with multiple ClearPass Policy Managers," is incorrect. ClearPass Device Insight focuses on device profiling, not on troubleshooting ClearPass deployments. Troubleshooting across multiple CPPM instances would involve tools like the Event Viewer or Access Tracker, not Device Insight.

Option C, "Visibility into devices’ 802.1X supplicant settings and automated certificate deployment," is incorrect. ClearPass Device Insight does not provide visibility into 802.1X supplicant settings or automate certificate deployment. Those functions are handled by ClearPass Onboard (for certificate deployment) or Access Tracker (for authentication details).

Option D, "Agent-based analysis of devices’ security settings and health status, with the ability to implement quarantining," is incorrect. ClearPass Device Insight does not use agents for analysis; it relies on network traffic and active/passive profiling. Agent-based analysis and health status checks are features of ClearPass OnGuard, not Device Insight. Quarantining can be implemented by CPPM policies, but it’s not a direct benefit of Device Insight.

The ClearPass Device Insight Data Sheet states:

"ClearPass Device Insight provides highly accurate endpoint classification for environments with many device types, including Internet of Things (IoT) devices. It uses a combination of passive and active profiling techniques, deep packet inspection (DPI), and machine learning to identify and categorize devices with precision, enabling organizations to enforce granular access policies in complex networks." (Page 2, Benefits Section)

Additionally, the HPE Aruba Networking ClearPass Policy Manager 6.11 User Guide notes:

"ClearPass Device Insight enhances device profiling by offering highly accurate classification, especially for IoT and other non-traditional devices. It leverages a vast fingerprint database and advanced analytics to identify device types, making it ideal for environments with diverse endpoints." (Page 252, Device Insight Overview Section)
