The primary benefit of BSS coloring is D. BSS color tags are applied to Wi-Fi channels and can reduce the threshold for interference.

BSS coloring is a mechanism that allows Wi-Fi 6 devices to mark each frame with a color code that identifies the BSS (Basic Service Set) it belongs to. This helps differentiate between frames from different BSSs that share the same channel and avoid unnecessary collisions and backoffs. BSS coloring also introduces an adaptive threshold for interference, which means that Wi-Fi 6 devices can adjust the signal strength value that determines whether a channel is busy or not based on the current network environment.This allows for more efficient use of spectrum and higher throughput in dense scenarios12.

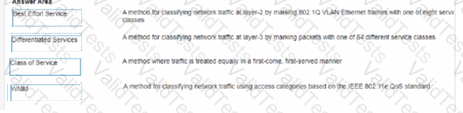

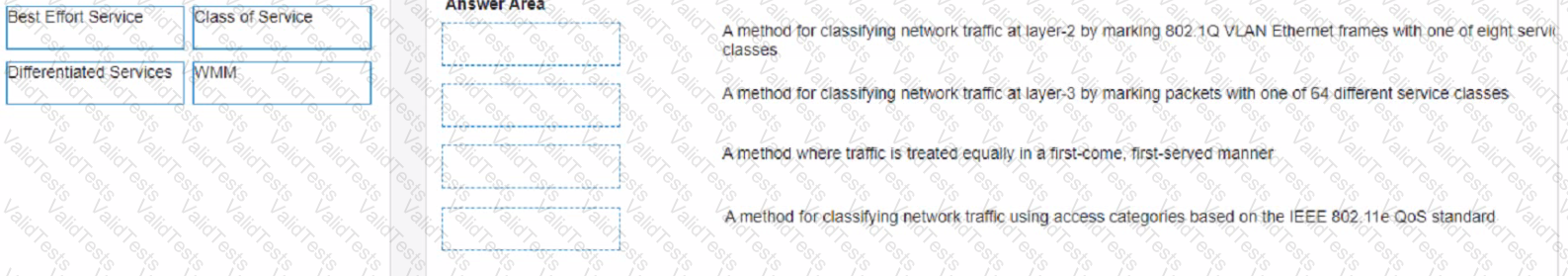

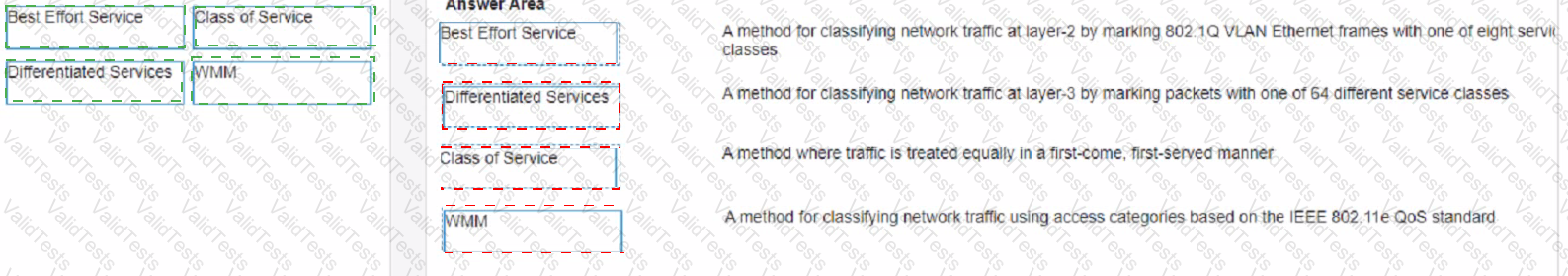

QoS concept: Class of Service Definition: 3) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standards

QoS concept: Differentiated services Definition: 2) A method for classifying network traffic at layer-3 or marking packets with one of 64 different service classes

QoS concept: WMM Definition: 4) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standards

Authentication survivability is a feature that allows the device to remain operational when a remote link failure occurs between a Gateway cluster and a RADIUS server that is either in the cloud or a datacenter. Authentication survivability enables the Gateway cluster to cache successful authentication requests from the RADIUS server and use them to authenticate clients when the RADIUS server is unreachable. Authentication survivability also allows clients to use MAC caching or MAC authentication bypass (MAB) methods to access the network when the RADIUS server is down.References:https://www.arubanetworks.com/assets/tg/TG_AuthSurvivability.pdf

CoS and DSCP are both methods of marking packets for quality of service (QoS) purposes. QoS is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc. CoS stands for Class of Service and is a 3-bit field in the 802.1Q VLAN tag header. CoS can only be used on Ethernet frames that have a VLAN tag, and it can only be preserved within a single VLAN domain. DSCP stands for Differentiated Services Code Point and is a 6-bit field in the IP header. DSCP can be used on any IP packet, regardless of the underlying layer 2 technology, and it can be preserved throughout the IP packet flow, unless it is modified by intermediate devices. References: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html https://www.cisco.com/c/en/us/support/docs/lan-switching/8021q/17056-741-4.html https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-packet-marking/10103-dscpvalues.html

To establish a keepalive connection between two Aruba CX 8325 switches for VSX configuration, you need to use a routed port in custom VRF. A routed port is a physical port that acts as a layer 3 interface and does not belong to any VLAN. A custom VRF is a virtual routing and forwarding instance that provides logical separation of routing tables. By using a routed port in custom VRF, you can isolate the keepalive traffic from other traffic and prevent routing loops or conflicts. The other options are incorrect because they either do not use a routed port or do not use a custom VRF. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch07.html https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html

The best option to enhance security for the new IP cameras and scanners in this environment is C. MPSK provides for each device in the WLAN to have its own unique pre-shared key.

MPSK stands for Multi Pre-Shared Key, and it is a feature that allows different devices to connect to the same SSID with different pre-shared keys. This improves the security and scalability of the network, as each device can have its own key and role without requiring 802.1X authentication or an external policy engine.MPSK can be configured either locally on the AP or centrally on Aruba Central12.

The other options are incorrect because:

A. MPSK Local is a feature that allows the user to configure 24 PSKs per SSID locally on the device. These local PSKs would serve as an extension of the base MPSK functionality.However, MPSK Local is not suitable for this scenario, as it can only support up to 24 devices per SSID, while the client has 250 devices1.

B. Aruba ClearPass is a network access control solution that can perform 802.1X authentication and install certificates for devices.However, this option is not feasible for this scenario, as the new IP cameras and scanners do not support 802.1X authentication3.

D. MPSK Local will not allow the cameras to share a key and the scanners to share a different key. MPSK Local will assign a different key to each device, regardless of their type.Moreover, MPSK Local can only support up to 24 devices per SSID, while the client has 250 devices1.

This is the appropriate solution for this scenario where wireless 802.1X authentication will be against a RADIUS server in the cloud and the security team is concerned that the traffic between the AP and the RADIUS server will be exposed. RadSec, also known as RADIUS over TLS, is a protocol that provides encryption and authentication for RADIUS traffic over TCP and TLS. RadSec can be configured on both the AP and the RADIUS server to establish a secure tunnel for exchanging RADIUS packets. The other options are incorrect because they either do not provide encryption or authentication for RADIUS traffic or do not involve RadSec.References: https://www.securew2.com/blog/what-is-radsec/ https://www.cloudradius.com/radsec-vs-radius/

AOS 10 Gateways can have the following personas: Mobility, Branch, and VPN Concentrator1 However, the Mobility persona is only available when configuring a Gateway-onlygroup, which is a group that contains only one gateway device2 The Mobility persona provides Overlay WLAN and (or) wired LAN functionalities for campus networks1 The Branch persona provides the Aruba Instant OS and SD-Branch (LAN + WAN) functionality for branch and microbranch networks1 The VPN Concentrator persona provides VPN termination and routing functionality for remote access networks3 The Edge persona is not a valid option, as it is not a supported device persona for AOS 10 Gateways.

OCSP is a protocol that allows clients to query the CA or a trusted responder for the status of a specific certificate. OCSP requests and responses are smaller and faster than CRLs, and they can provide real-time information about the revocation status of a certificate12. CRLs are lists of all revoked certificates that are downloaded from the CA. CRLs can present issues, as they can become outdated and have to be downloaded frequently13. Therefore, OCSP reduces latency between the time a certificate is revoked and validation reflects this status. References: 1 https://sectigostore.com/blog/ocsp-vs-crl-whats-the-difference/  2 https://www.keyfactor.com/blog/what-is-a-certificate-revocation-list-crl-vs-ocsp/  3 https://www.fortinet.com/resources/cyberglossary/ocsp
